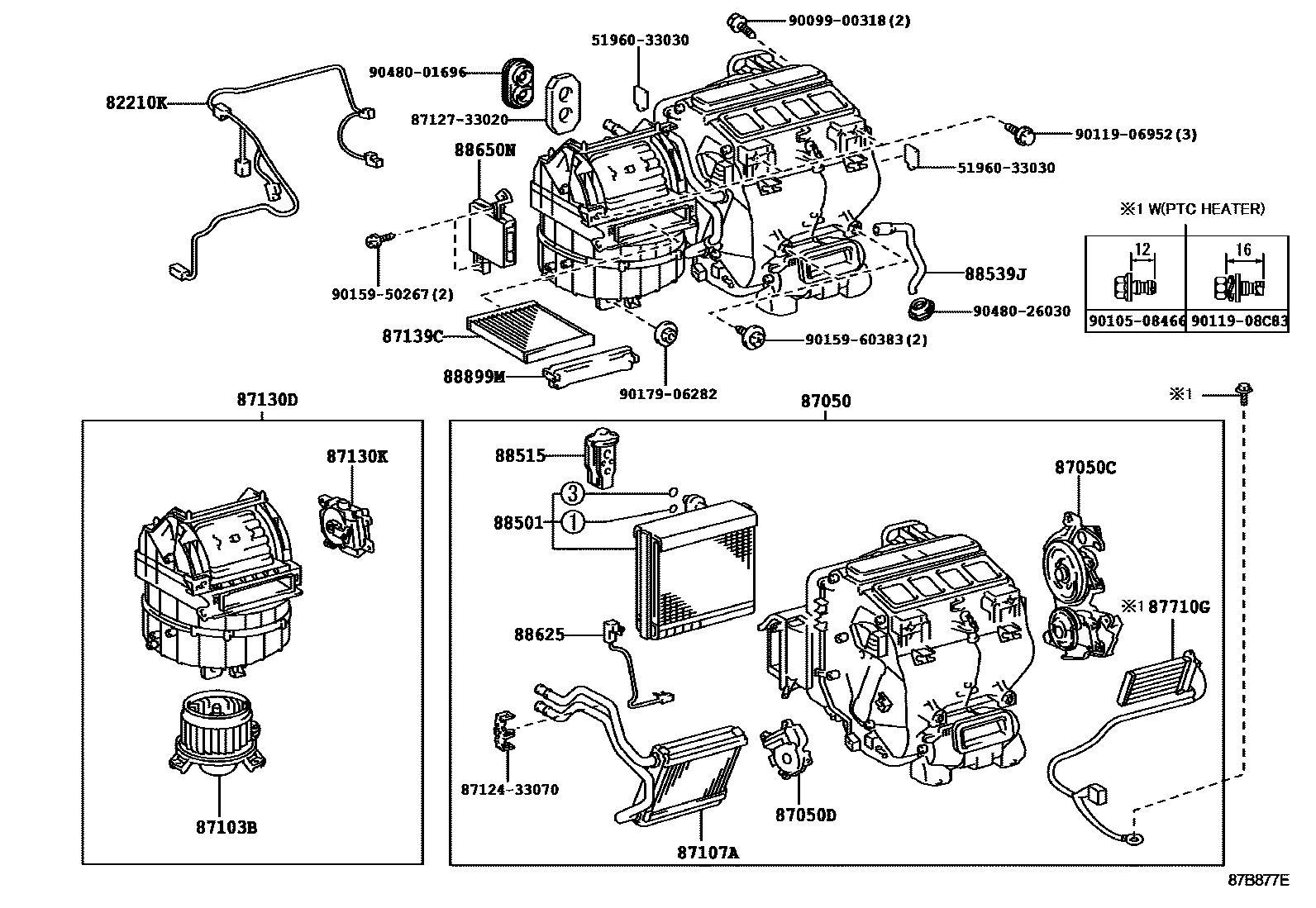

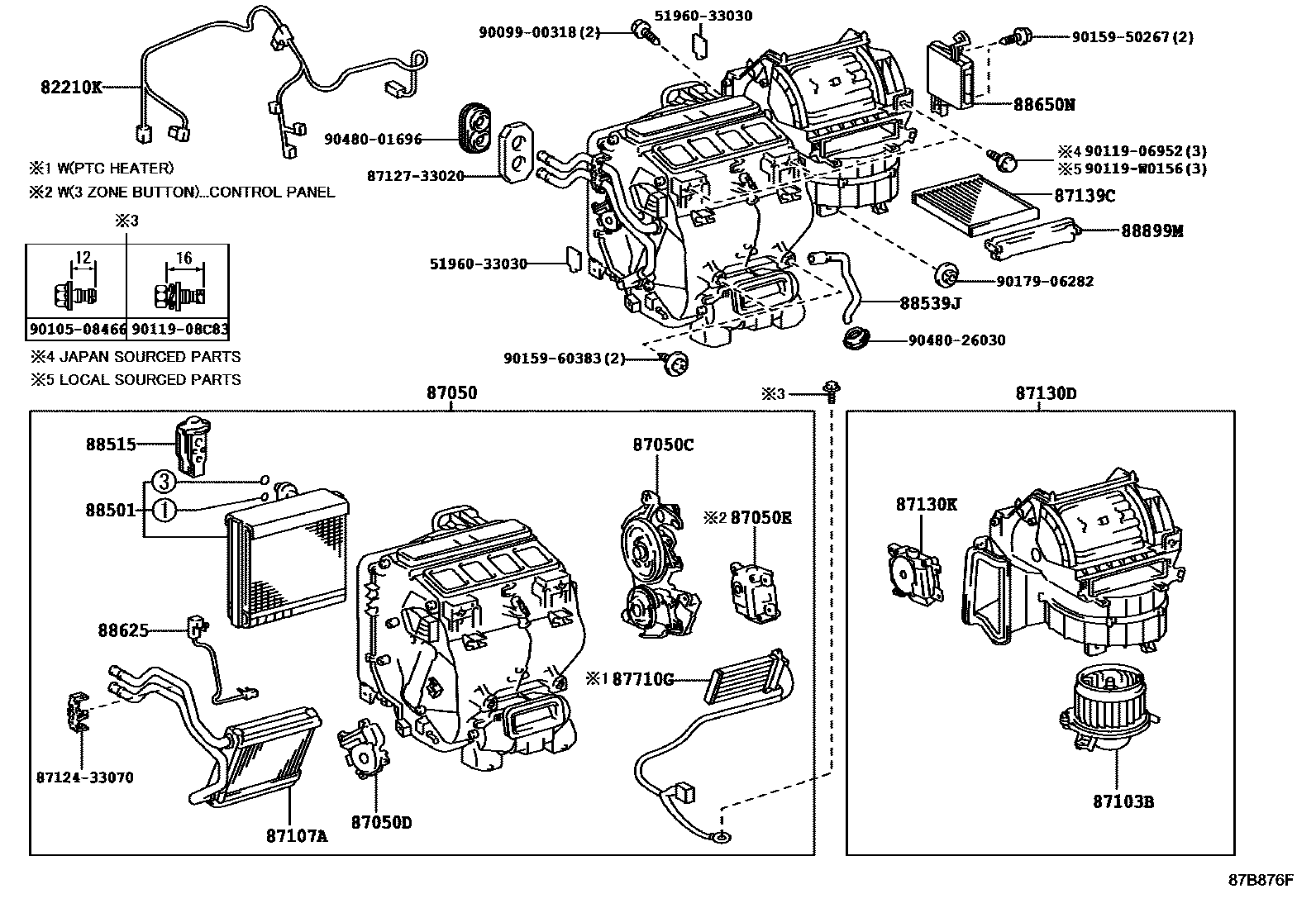

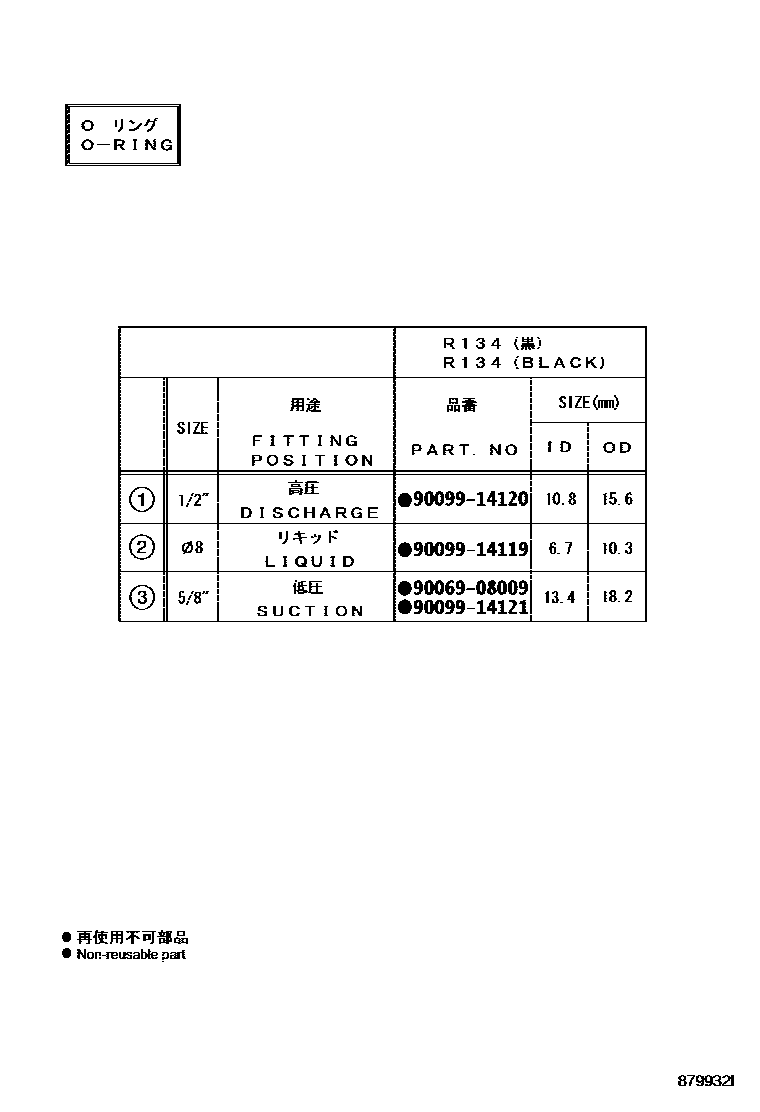

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-33011 · 82212-33012 · 82212-33021 · 82212-33022 · 82212-33060 · 82212-33061 |
| 87050 | Air conditioning radiator assembly | 87050-33630 · 87050-33631 · 87050-33640 · 87050-33641 · 87050-33650 · 87050-33651 · 87050-33690 · 87050-33691 · 87050-33700 · 87050-33701 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-33290 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-33260 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-33300 |
| 87103B | Blower motor sub-assembly with fan | 87103-48070 · 87103-48080 |
| 87107A | Heater radiator device sub-assembly | 87107-33120 |
| 87130D | Blower assembly | 87130-33220 · 87130-33230 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-33270 · 87106-33280 |
| 87139C | air purification filter | 87139-02090 · 87139-07020 · 87139-30040 · 87139-50060 · 87139-50100 · 87139-52020 · 87139-52040 |
| 87710G | Rapid heater assembly | 87710-33011 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-48301 · 88501-48311 |
| 88515 | Cooler expansion valve | 88515-33050 |
| 88539J | Cooler drain hose | 88539-33090 |
| 88625 | Cooler No. 1 Thermistor | 88625-33190 |
| 88650N | Air conditioning amplifier assembly | 88650-06A10 · 88650-06A20 · 88650-06A30 · 88650-06A40 · 88650-06A50 · 88650-06A60 · 88650-06C10 · 88650-06C20 · 88650-06C30 · 88650-06C40 · 88650-06C50 · 88650-06C60 · 88650-33A70 · 88650-33A71 · 88650-33A80 · 88650-33A81 · 88650-33A90 · 88650-33A91 · 88650-33C20 · 88650-33C30 · 88650-33C40 · 88650-33D30 · 88650-33D40 · 88650-33D50 |
| 88899M | cover (for air cleaner) | 88899-33040 |
