VOCR EPC

Toyota CAMRY 后视镜 — Figure 8701

Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.

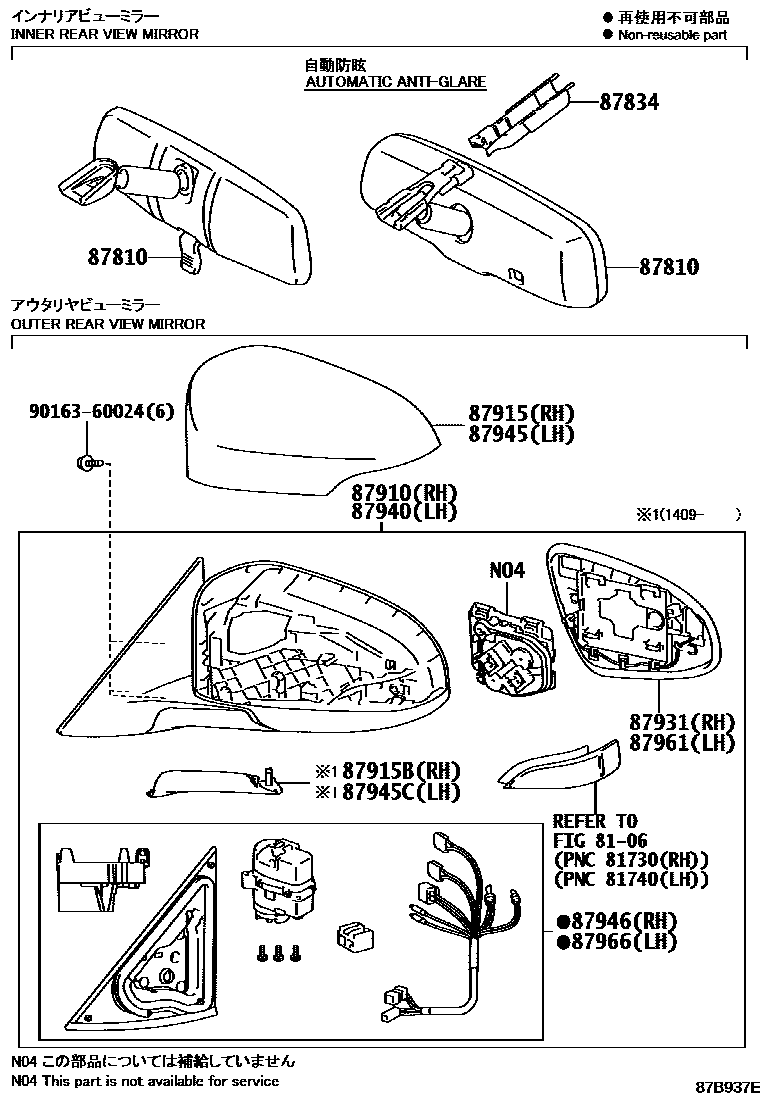

Toyota CAMRY 后视镜 EPC diagram — 87B937E
后视镜 — 87B937E (201108 – 201411)

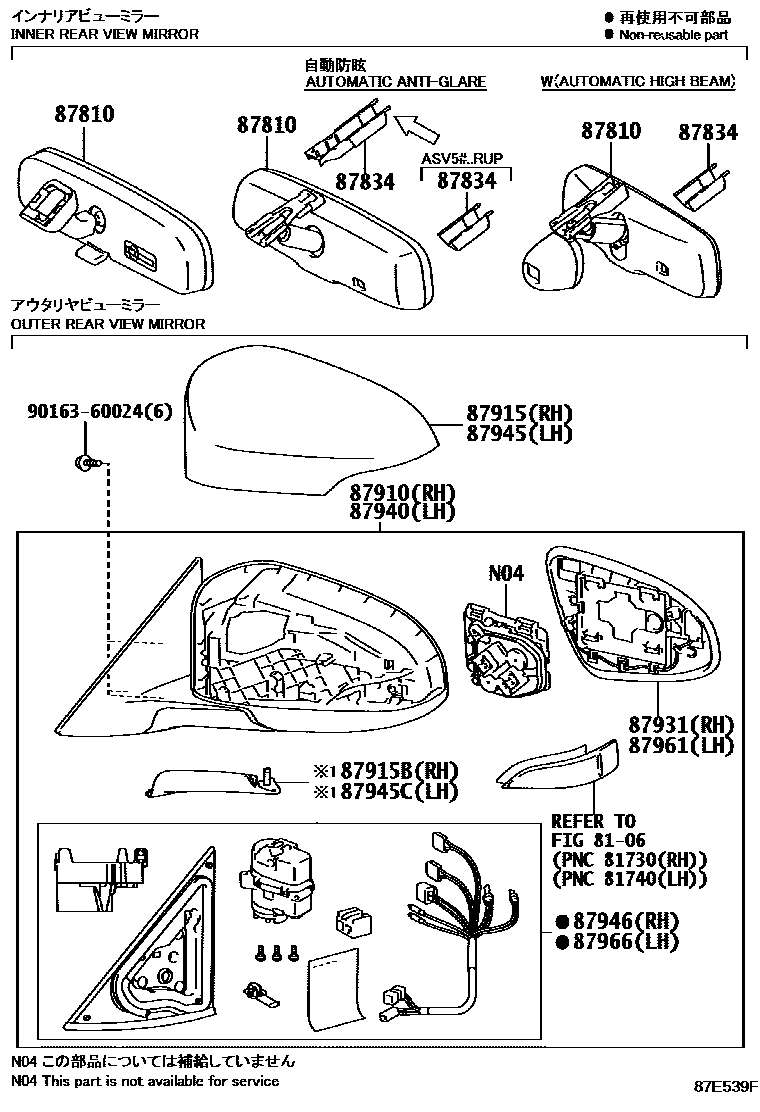

Toyota CAMRY 后视镜 EPC diagram — 87E539F
后视镜 — 87E539F (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06170 · 87810-06171 · 87810-0W260 · 87810-0W810 · 87810-0WK20 · 87810-0WK21 · 87810-60191
87834Interior rearview mirror stay fixing cover87818-04010 · 87818-33010
87910Right exterior rearview mirror assembly87910-33A00 · 87910-33A01 · 87910-33A10 · 87910-33A11 · 87910-33A12 · 87910-33C00 · 87910-33C01
87915BRight exterior rearview mirror lower cover87915-33040
87931Right exterior rearview mirror87931-33A00 · 87931-33A01 · 87931-33A10 · 87931-33A11 · 87931-33C00
87940Left exterior rearview mirror assembly87940-33890 · 87940-33891 · 87940-33A00 · 87940-33A01 · 87940-33A02 · 87940-33C00 · 87940-33C01
87945CLeft exterior rearview mirror lower cover87945-33040
87946Right exterior rearview mirror retractor87946-33A10 · 87946-33A60 · 87946-33C00
87961Left exterior rearview mirror87961-33890 · 87961-33891 · 87961-33A00 · 87961-33A01 · 87961-33C00
87966Left exterior rearview mirror retractor87966-33A00 · 87966-33A50 · 87966-33C00
