Toyota CAMRY 车载电话和呼救装置 — Figure 8615

Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 1 images and 4 PNC and OE references.

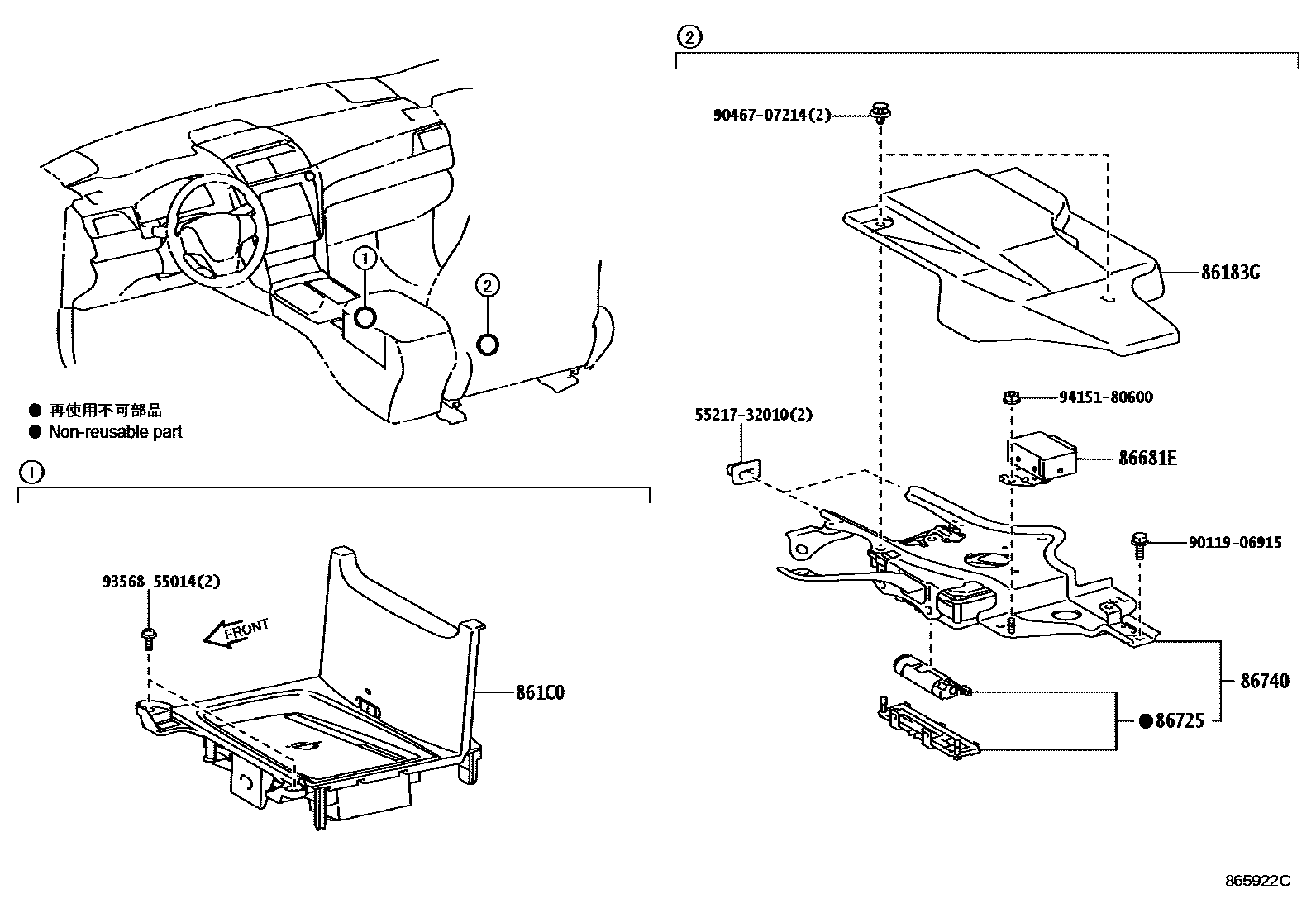

Toyota CAMRY 车载电话和呼救装置 EPC diagram — 865922C
车载电话和呼救装置 — 865922C (201411 – 999999)

PNC and OE references

PNCPart nameOE numbers
86183Gaudio amplifier cover86183-33060
86681EAntenna splitter86681-33030
86725mobile phone battery86725-48010
86740Telephone transceiver assembly86740-06030 · 86740-06040
