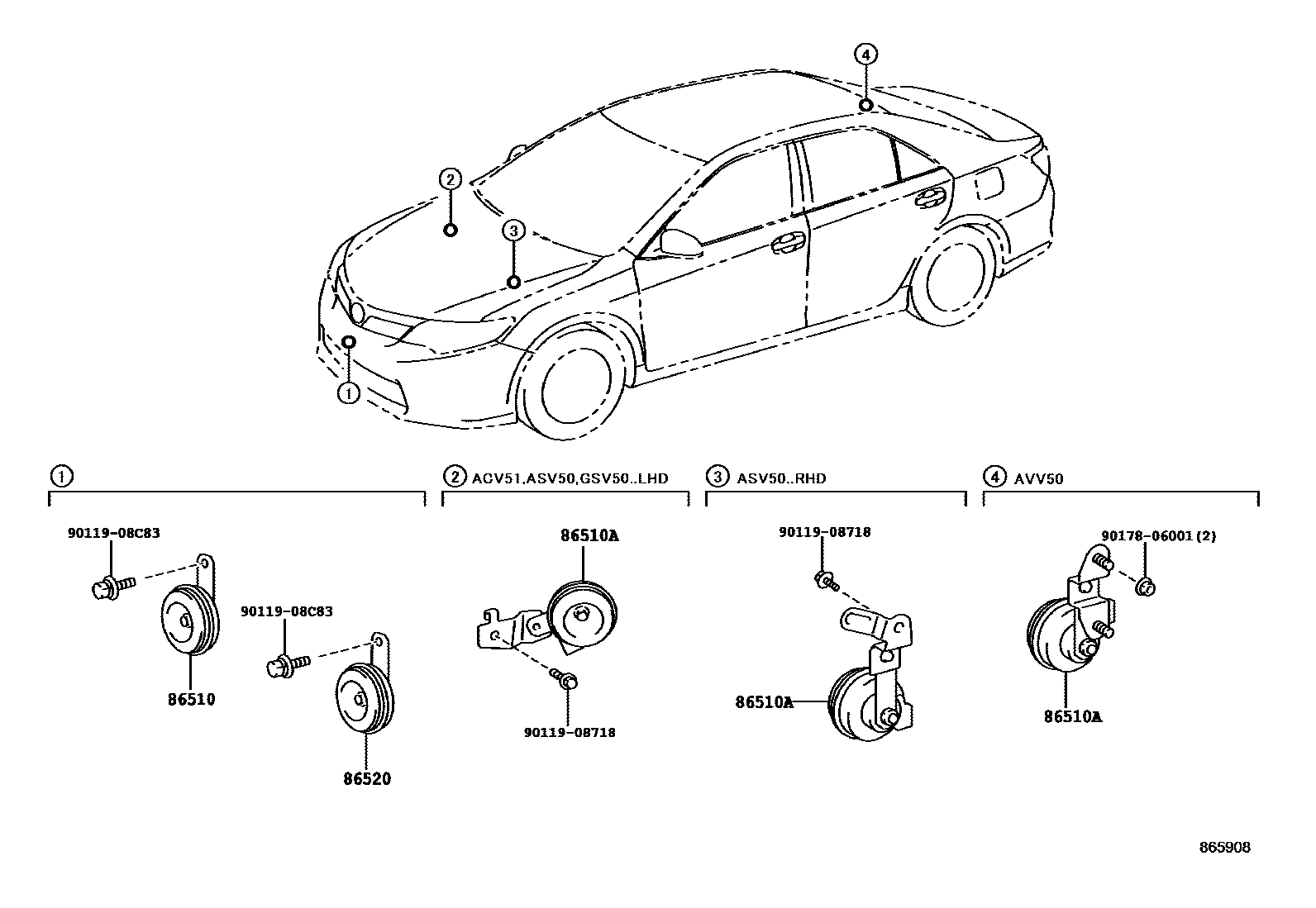

Toyota CAMRY 喇叭 — Figure 8611
Toyota CAMRY EPC diagram 8611, 喇叭, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-28130 |
| 86510A | Alarm horn assembly | 86560-33020 · 86560-33040 · 86560-33050 |
| 86520 | Subwoofer assembly | 86520-28180 |
