Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 4 images and 6 PNC and OE references.

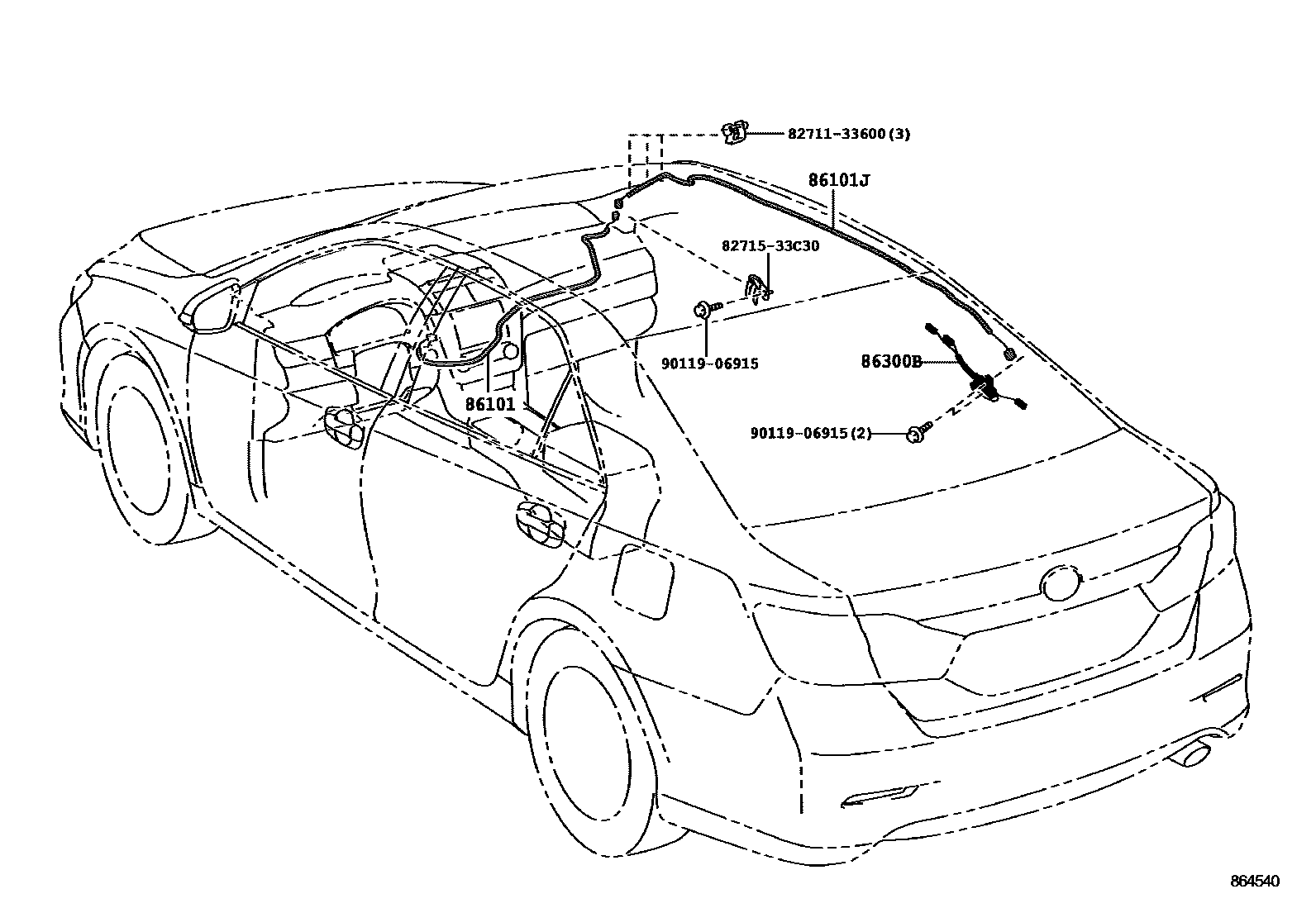

Toyota CAMRY antenna EPC diagram — 864540
antenna — 864540 (201108 – 201411)

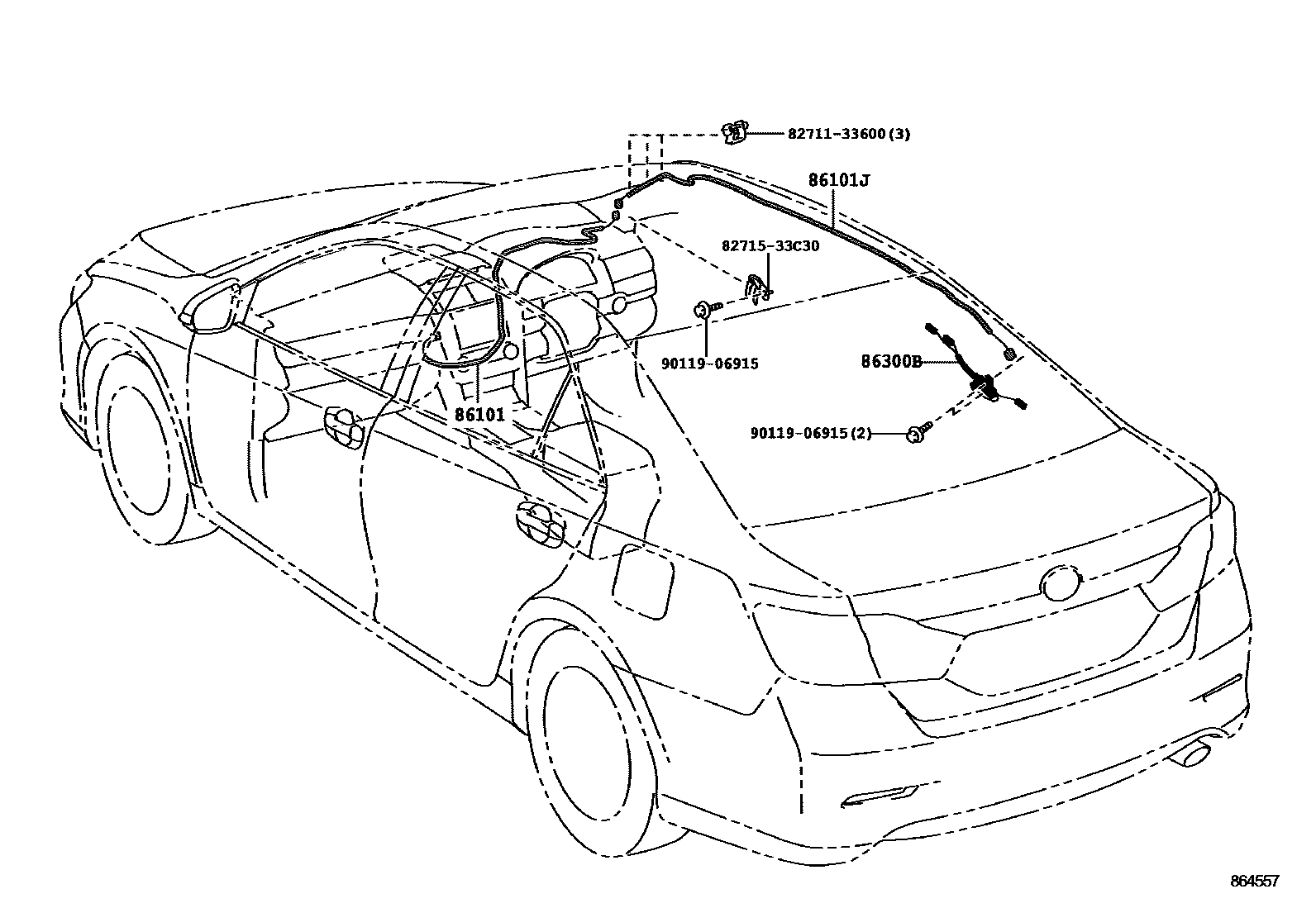

Toyota CAMRY antenna EPC diagram — 864557
antenna — 864557 (201108 – 201409)

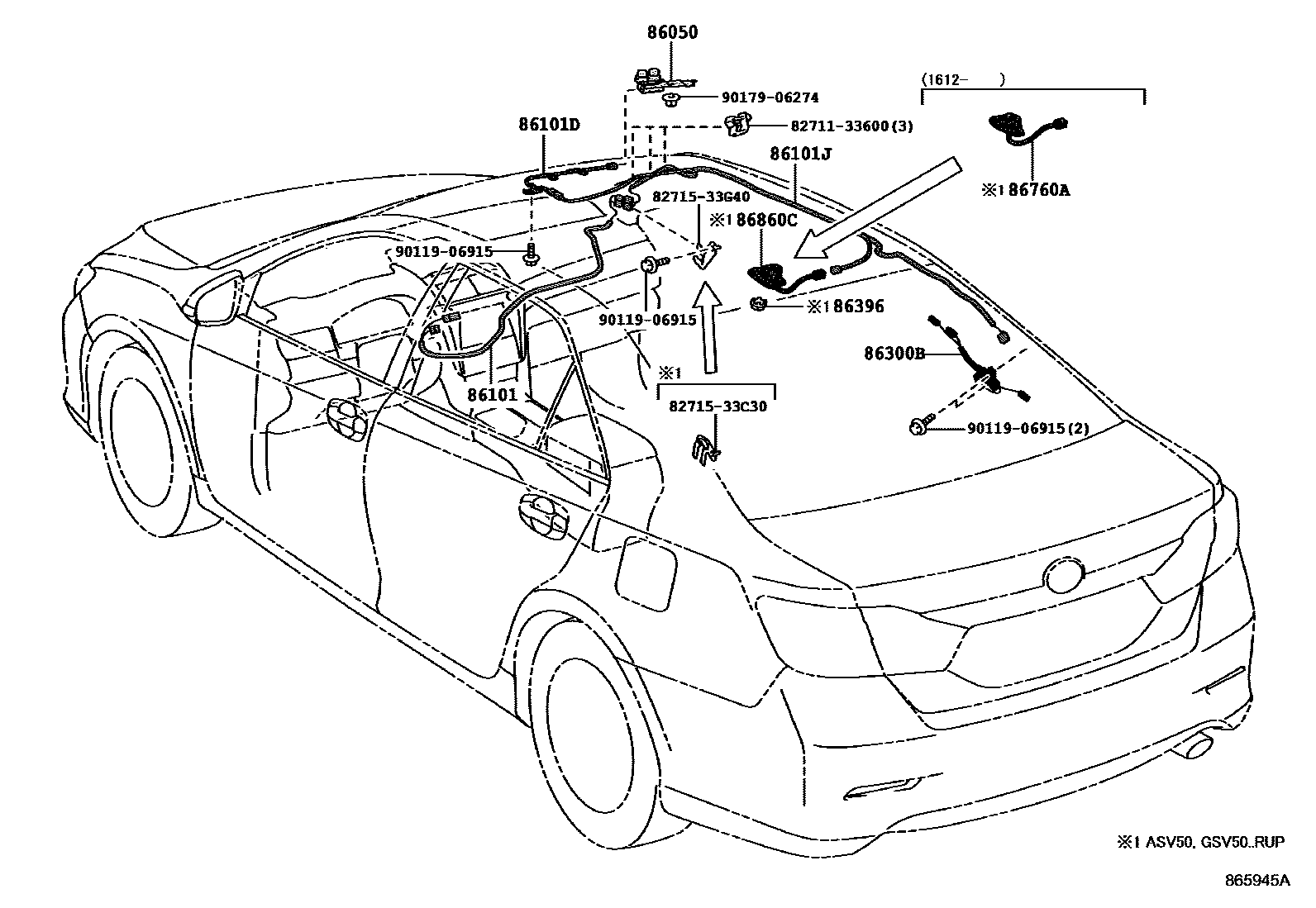

Toyota CAMRY antenna EPC diagram — 865945A
antenna — 865945A (201409 – 999999)

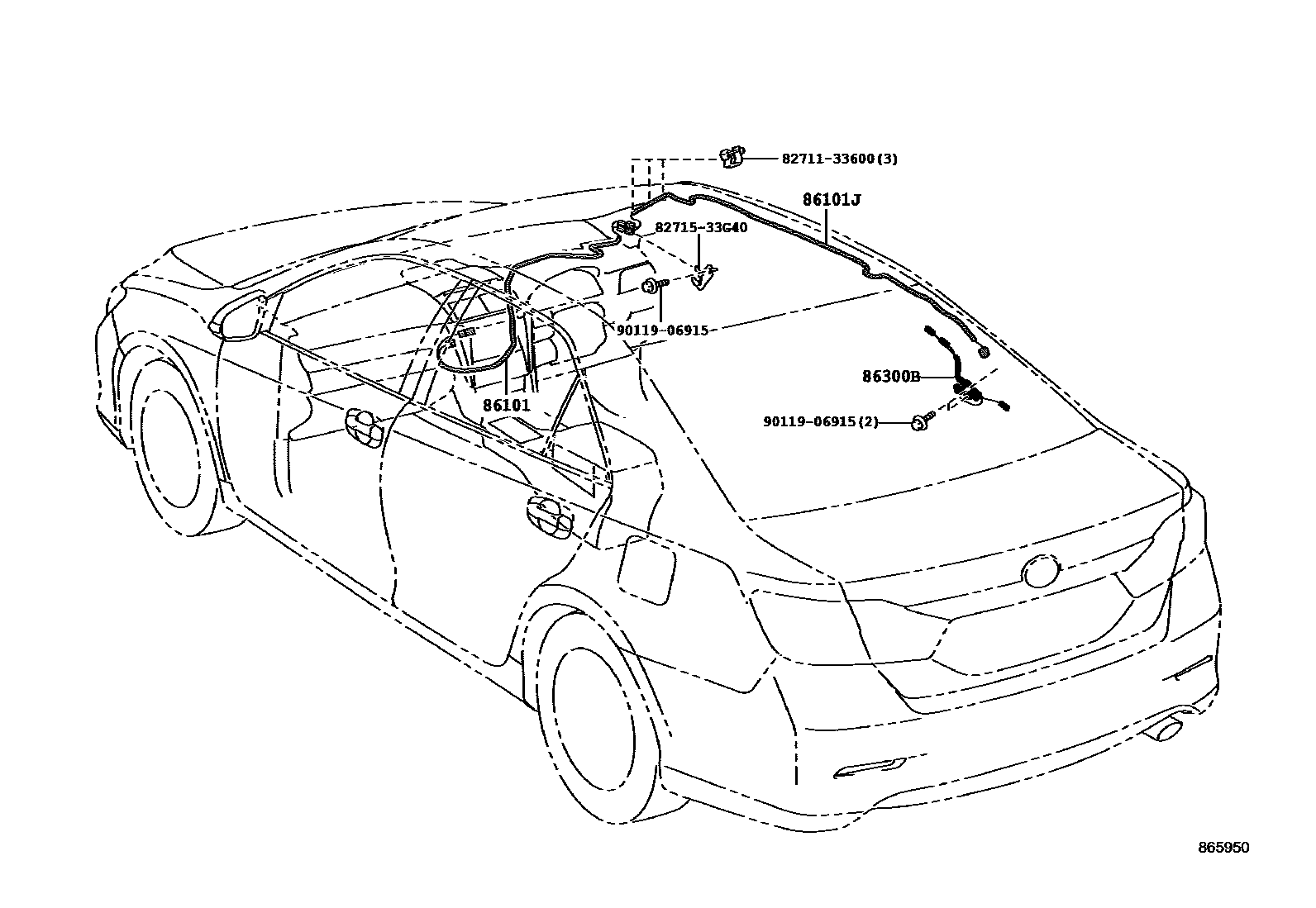

Toyota CAMRY antenna EPC diagram — 865950
antenna — 865950 (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
86050Monitor antenna assembly86050-53200
86101Antenna wire sub-assembly86101-33A90 · 86101-33B00 · 86101-33E40 · 86101-33E60 · 86101-33G70 · 86101-33G80
86101DNo. 3 antenna wire sub-assembly86101-33E80
86101JNo. 2 antenna wire sub-assembly86101-33A70 · 86101-33D80 · 86101-33D90 · 86101-33E20 · 86101-33G60
86300BAmplifier antenna assembly86300-33330
86396Antenna nut86396-47010
