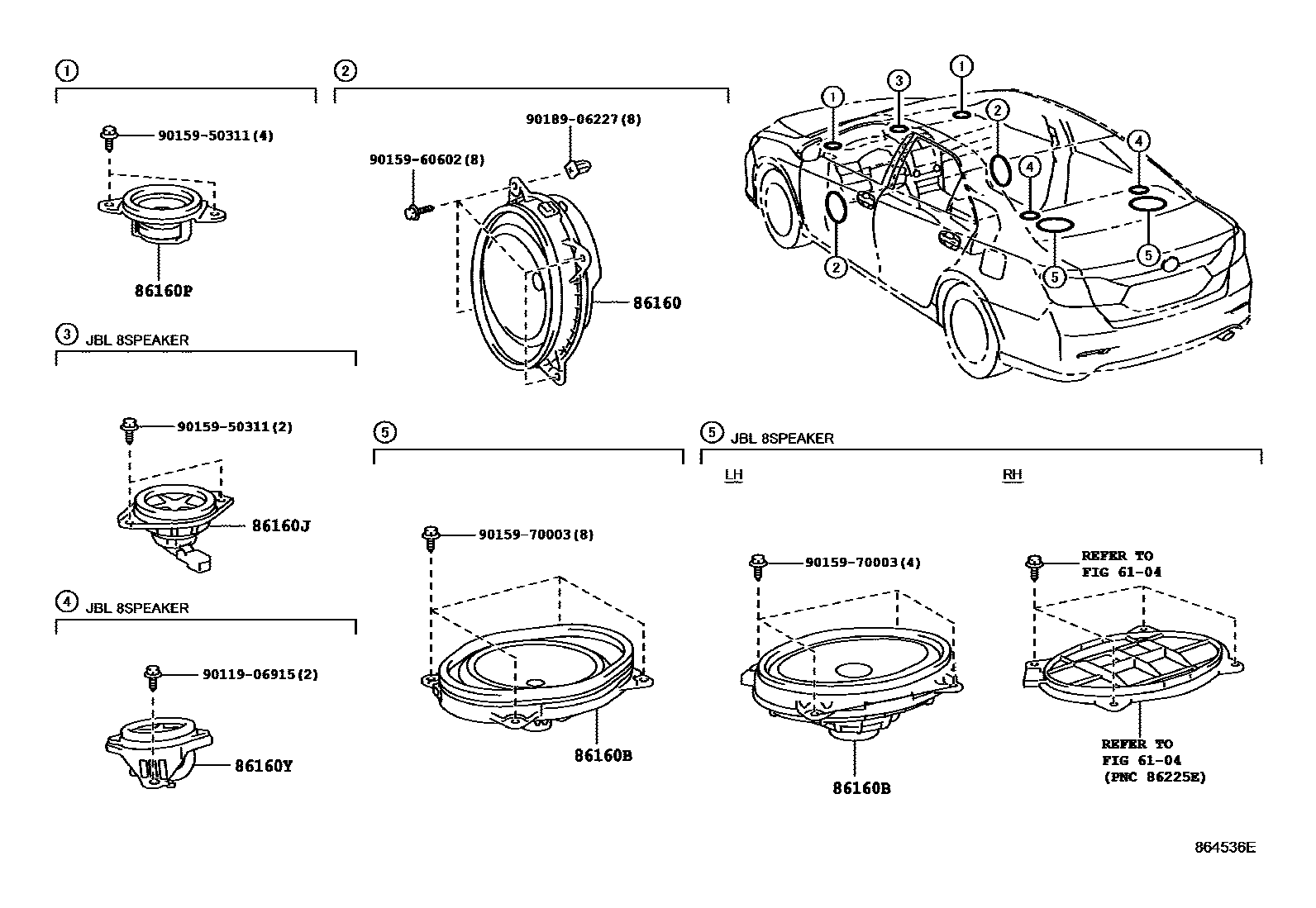

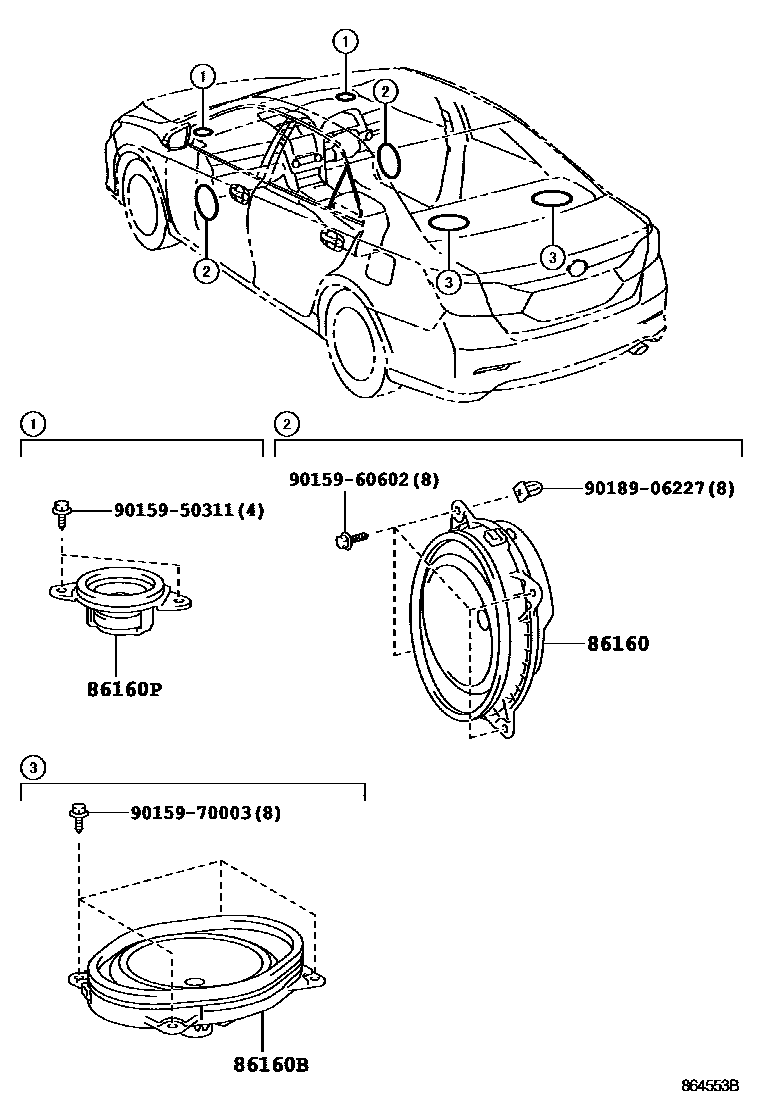

Toyota CAMRY 扬声器 — Figure 8602
Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-06390 · 86160-0WU60 · 86160-33770 · 86160-33850 |
| 86160B | Rear speaker assembly | 86160-06450 · 86160-0WU70 · 86160-33780 · 86160-33781 · 86160-33860 |
| 86160J | No. 3 front speaker assembly | 86160-0WU80 · 86160-33870 |
| 86160P | No. 2 front speaker assembly | 86160-0WU50 · 86160-33760 |
| 86160Y | No. 2 rear speaker assembly | 86150-33040 · 86150-33050 · 86160-0WU90 · 86160-0WW70 |
