Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601

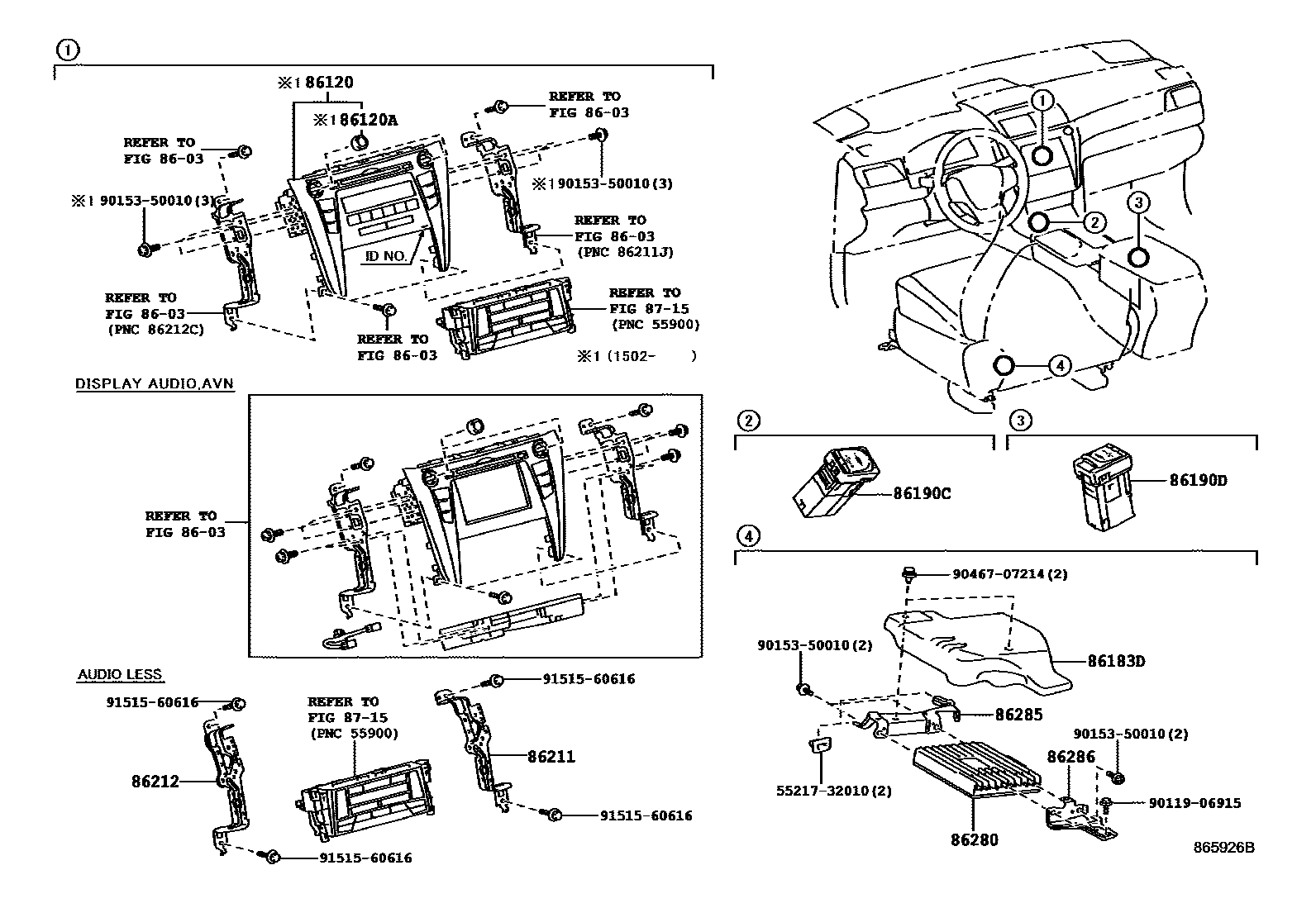

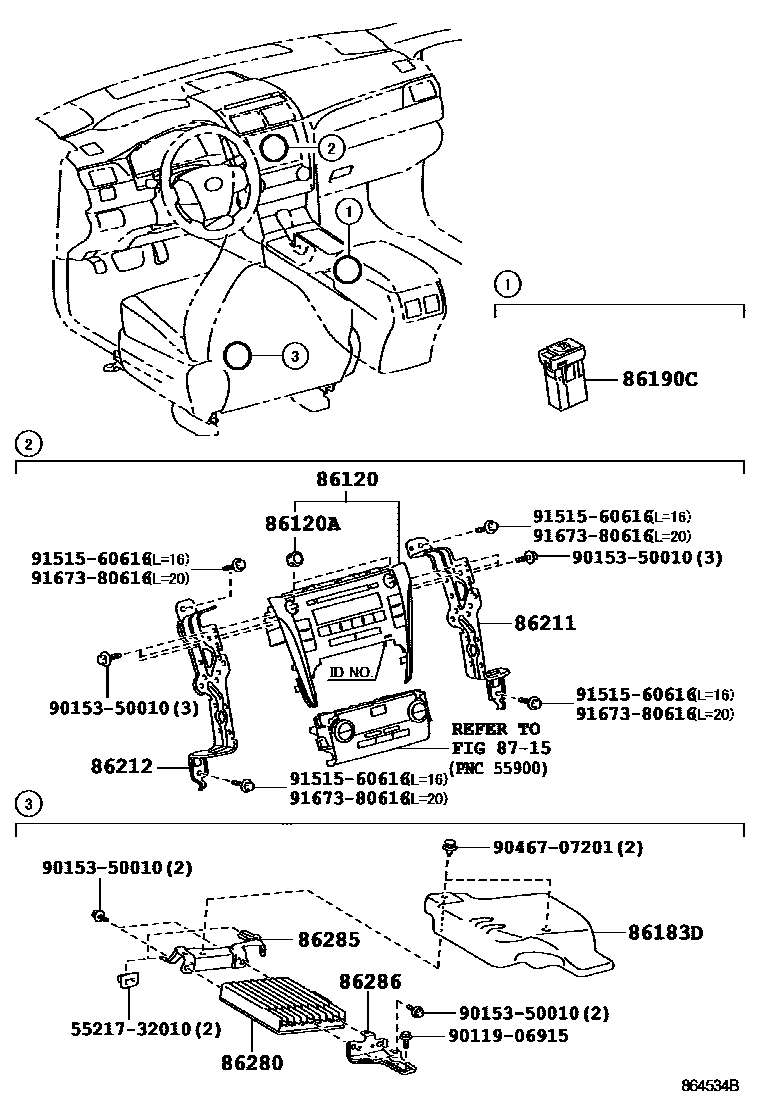

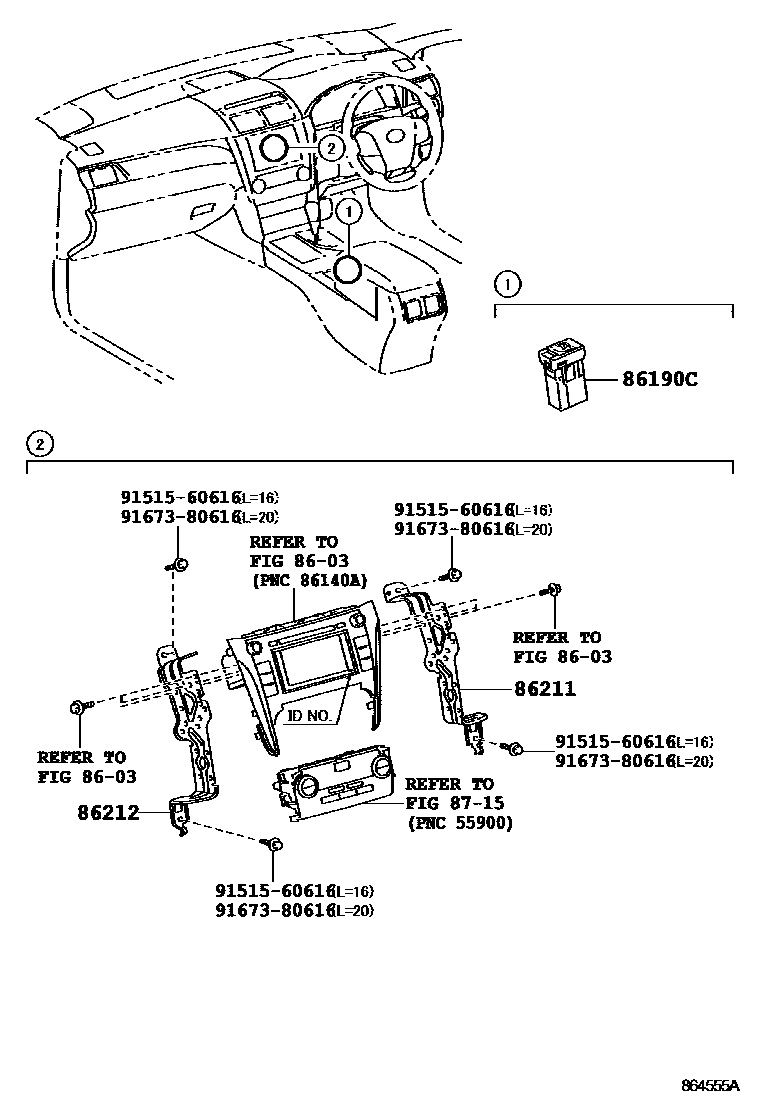

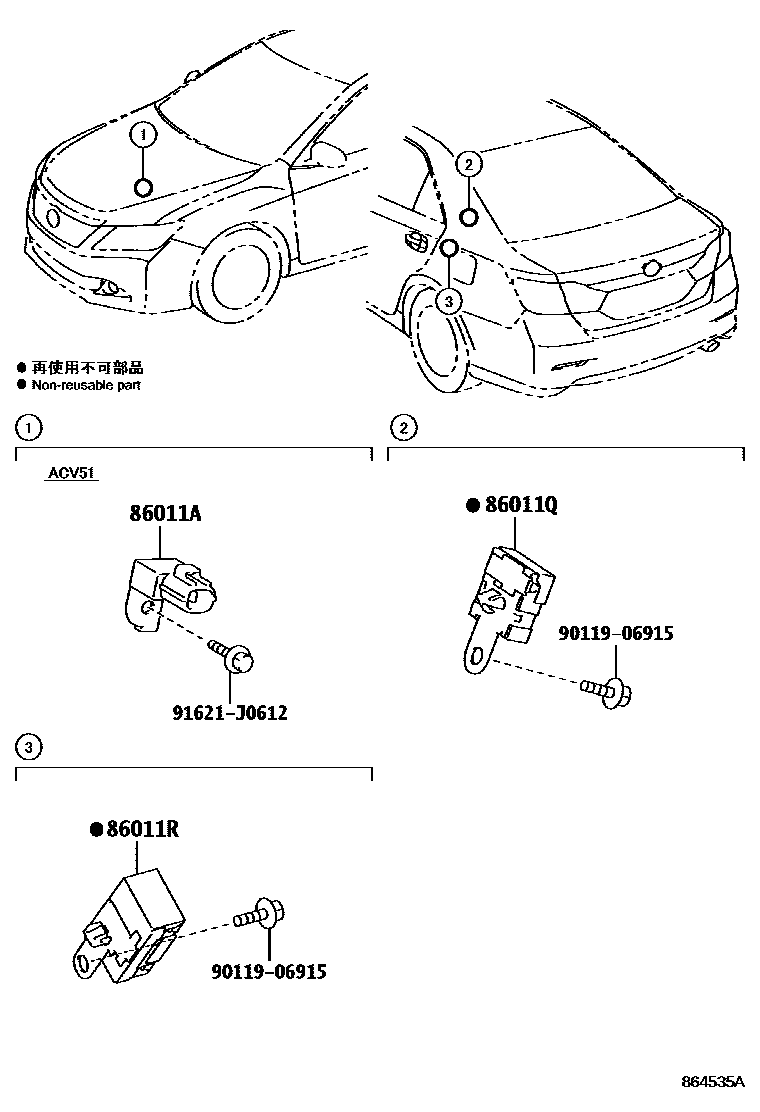

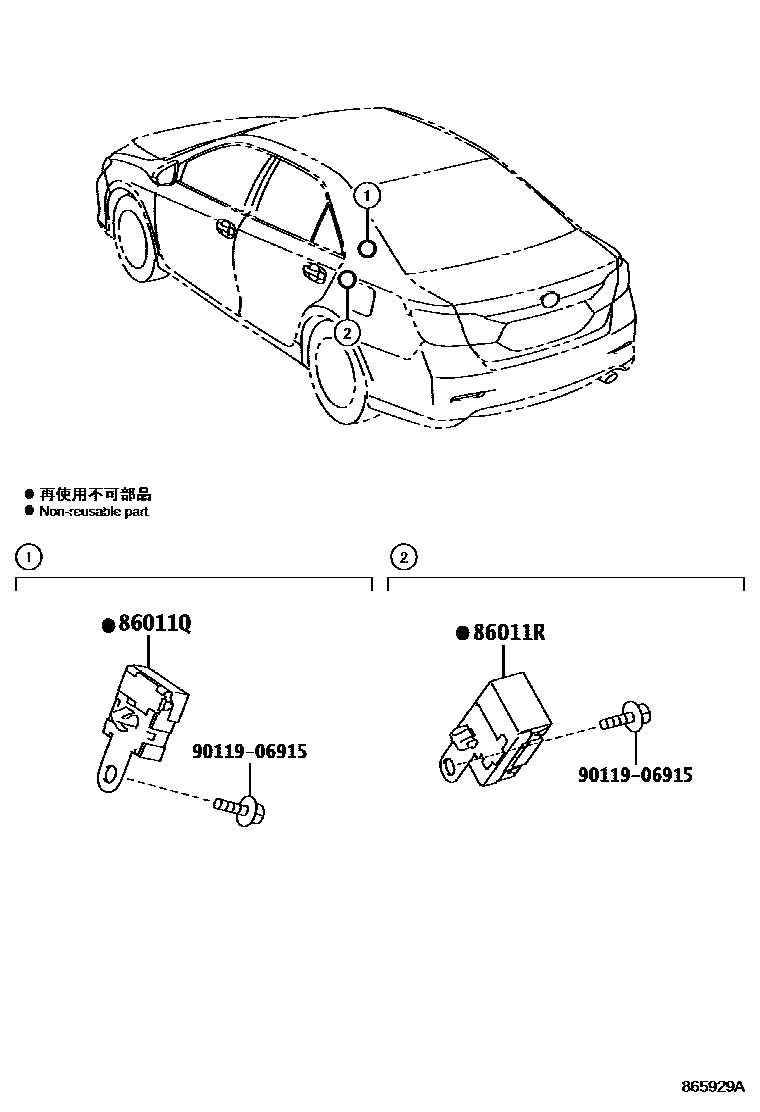

Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04157 |
| 86011Q | radio settings phase modulator | 90980-04189 |
| 86011R | radio settings phase modulator | 90980-04204 |
| 86120 | Radio assembly | 86120-33G20 · 86120-33G21 · 86120-33G30 · 86120-33J20 · 86120-33J50 |
| 86120A | Radio switch knob | 90010-22084 · 90010-22091 · 90010-22107 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-06050 · 86190-33040 · 86190-42040 |
| 86190D | No. 2 stereo socket connector assembly | 86190-48080 |
| 86211 | No. 1 radio bracket | 86211-33230 |
| 86212 | No. 2 radio bracket | 86212-33230 |
| 86280 | Stereo parts amplifier assembly | 86100-0W250 · 86100-33490 · 86280-33220 |
| 86285 | Amplifier Stand No. 1 | 86285-33130 |
| 86286 | Amplifier Stand No. 2 | 86286-33130 |
