Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 11 PNC and OE references.

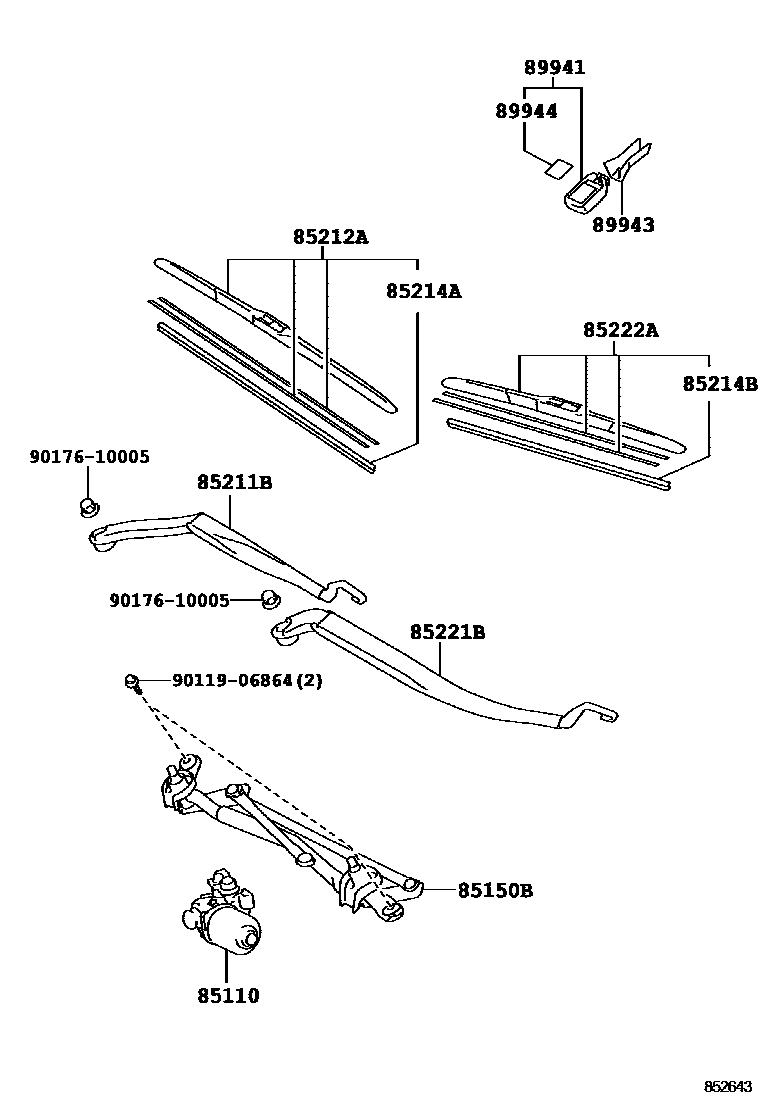

Toyota CAMRY 挡风玻璃刮水器 EPC diagram — 852643
挡风玻璃刮水器 — 852643 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-06180 · 85110-06210 · 85110-33350 · 85110-33360 · 85110-33410 · 85110-33420
85150BWiper connecting rod assembly85150-06180 · 85150-33260 · 85150-33270
85211BRight front wiper arm85211-06170 · 85211-33330 · 85211-33340
85212ARight front wiper blade85212-06170 · 85212-33250 · 85212-33260
85214ARight wiper rubber strip85214-06170 · 85214-33180 · 85214-52110 · 85214-68020
85214BLeft wiper rubber strip85214-06180 · 85214-33180 · 85214-52110 · 85214-68020
85221BLeft front wiper arm85221-06170 · 85221-33320 · 85221-33340
85222ALeft front wiper blade85222-06170 · 85222-33260 · 85222-33270
89941rain sensor89941-52010
89943Rain sensor cover89943-42010
89944Rain sensor tape89944-42010
