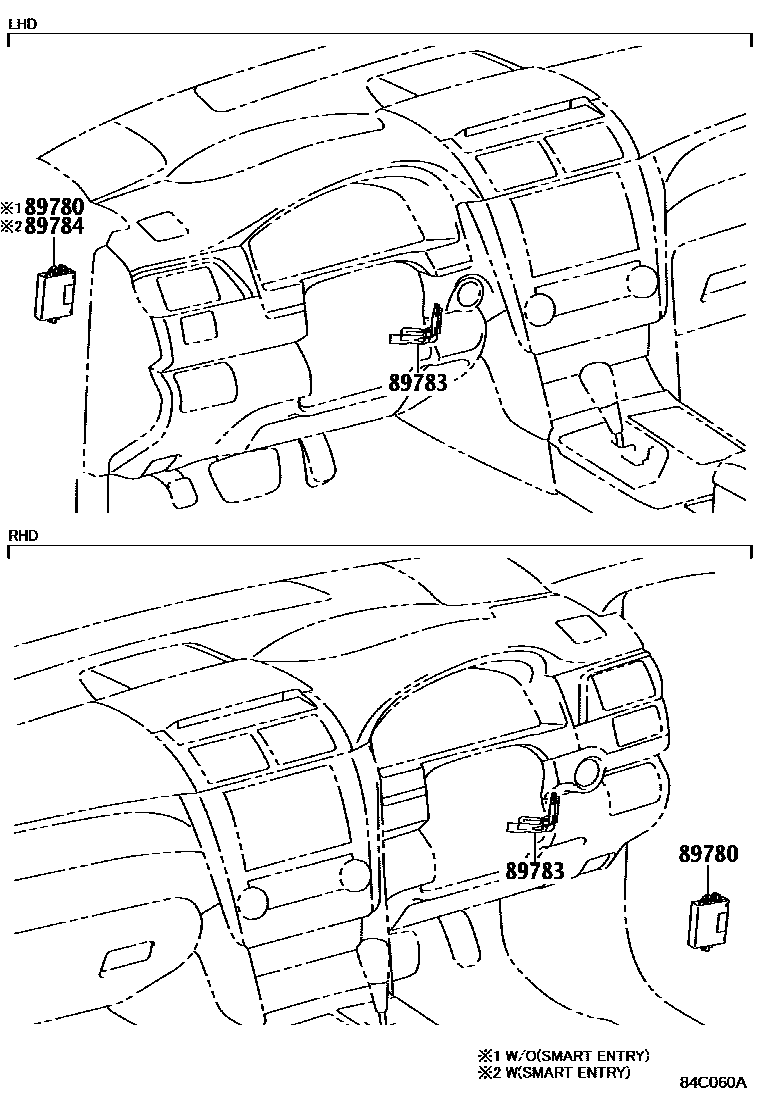

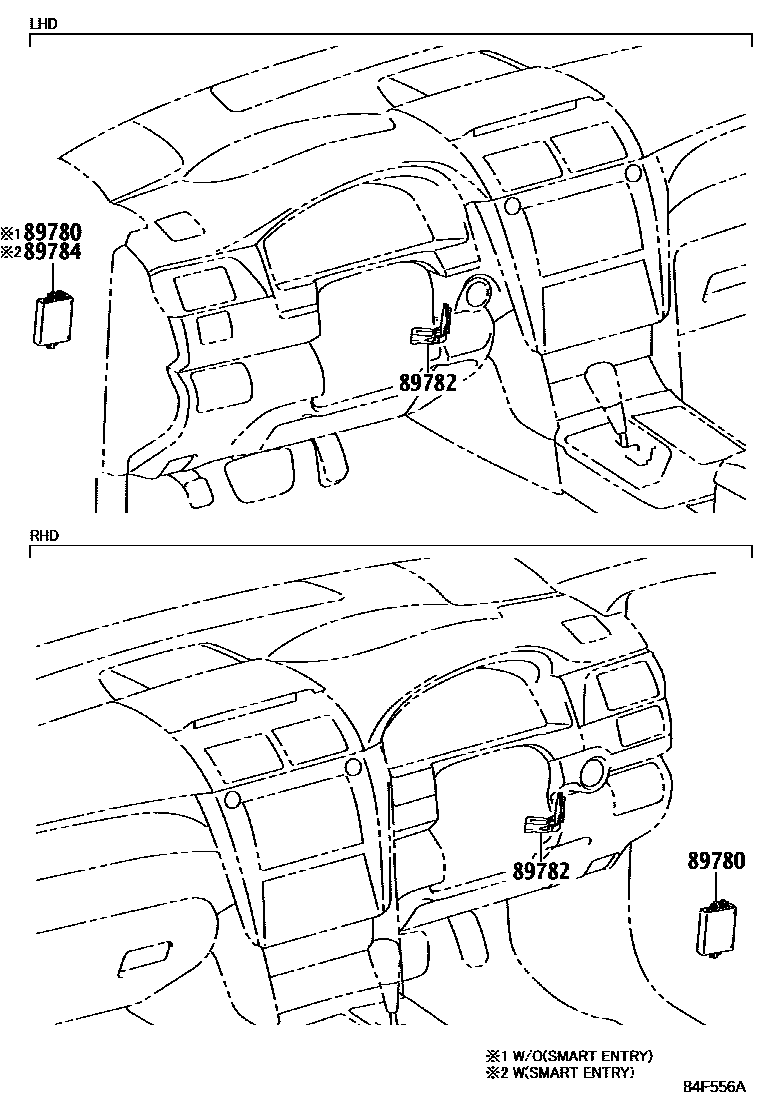

Toyota CAMRY 防盗装置 — Figure 8424
Toyota CAMRY EPC diagram 8424, 防盗装置, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89780 | Transceiver key ECU assembly | 89780-33200 · 89780-33201 · 89780-33210 |
| 89782 | transceiver key coil | 89782-33060 · 89782-42020 |
| 89783 | transceiver key amplifier | 89783-33130 · 89783-33131 |
| 89784 | Shutdown code system ECU | 89784-33030 |
