Toyota CAMRY 开关和继电器和ECU — Figure 8401

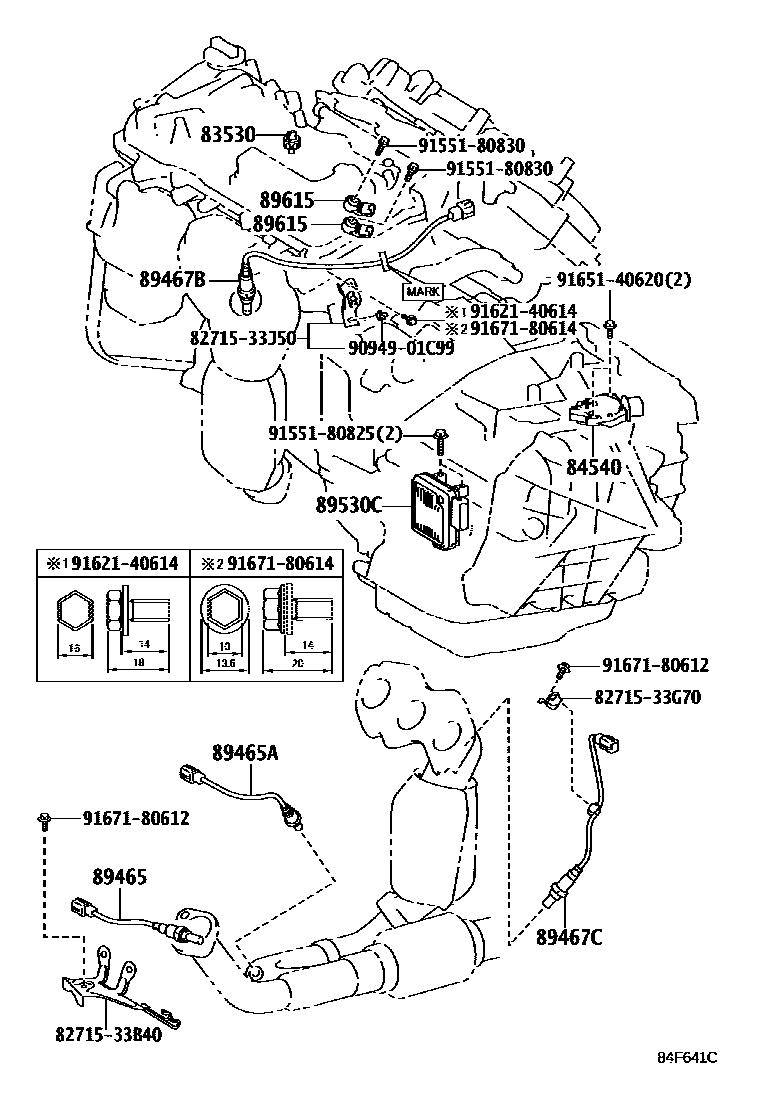

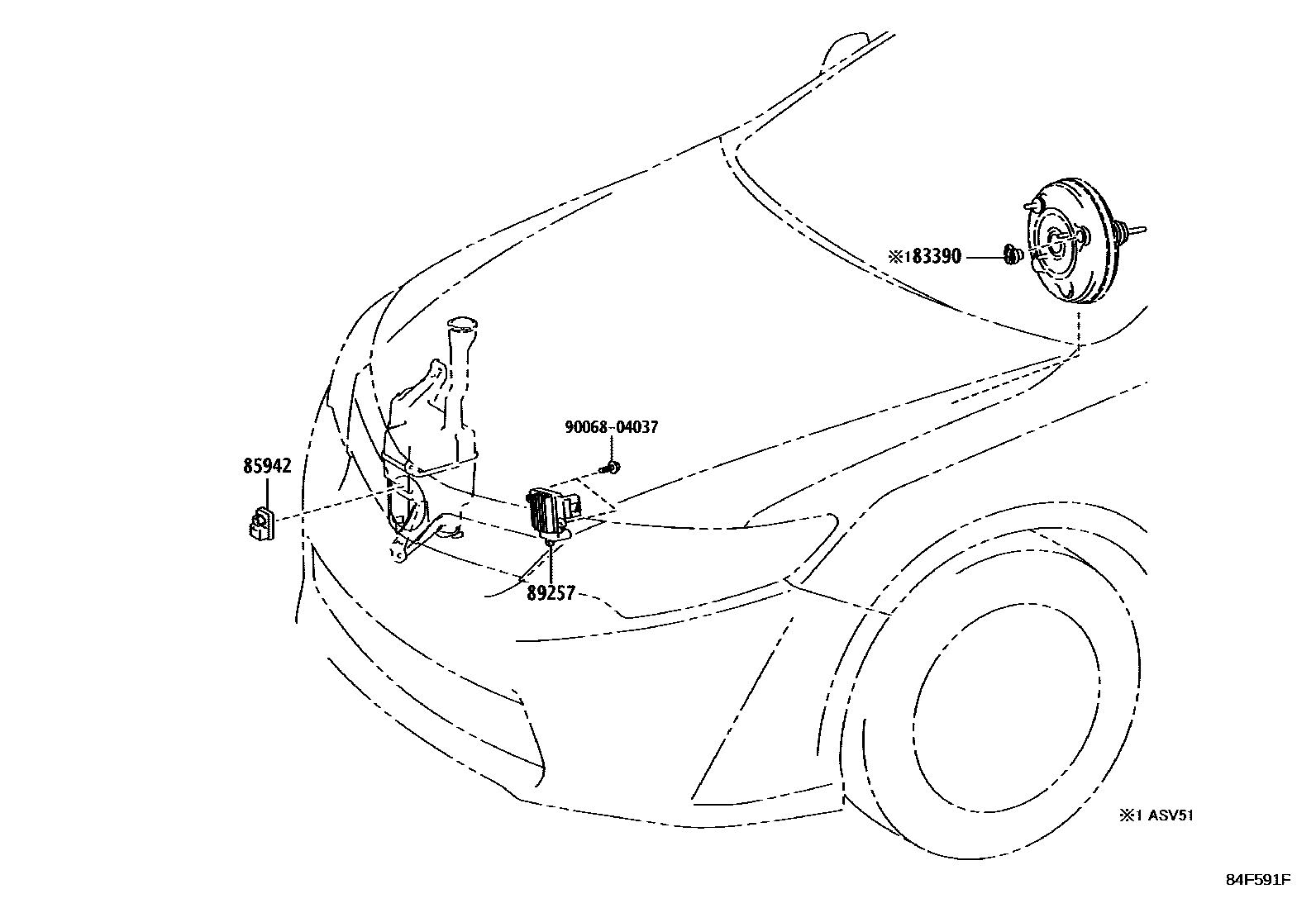

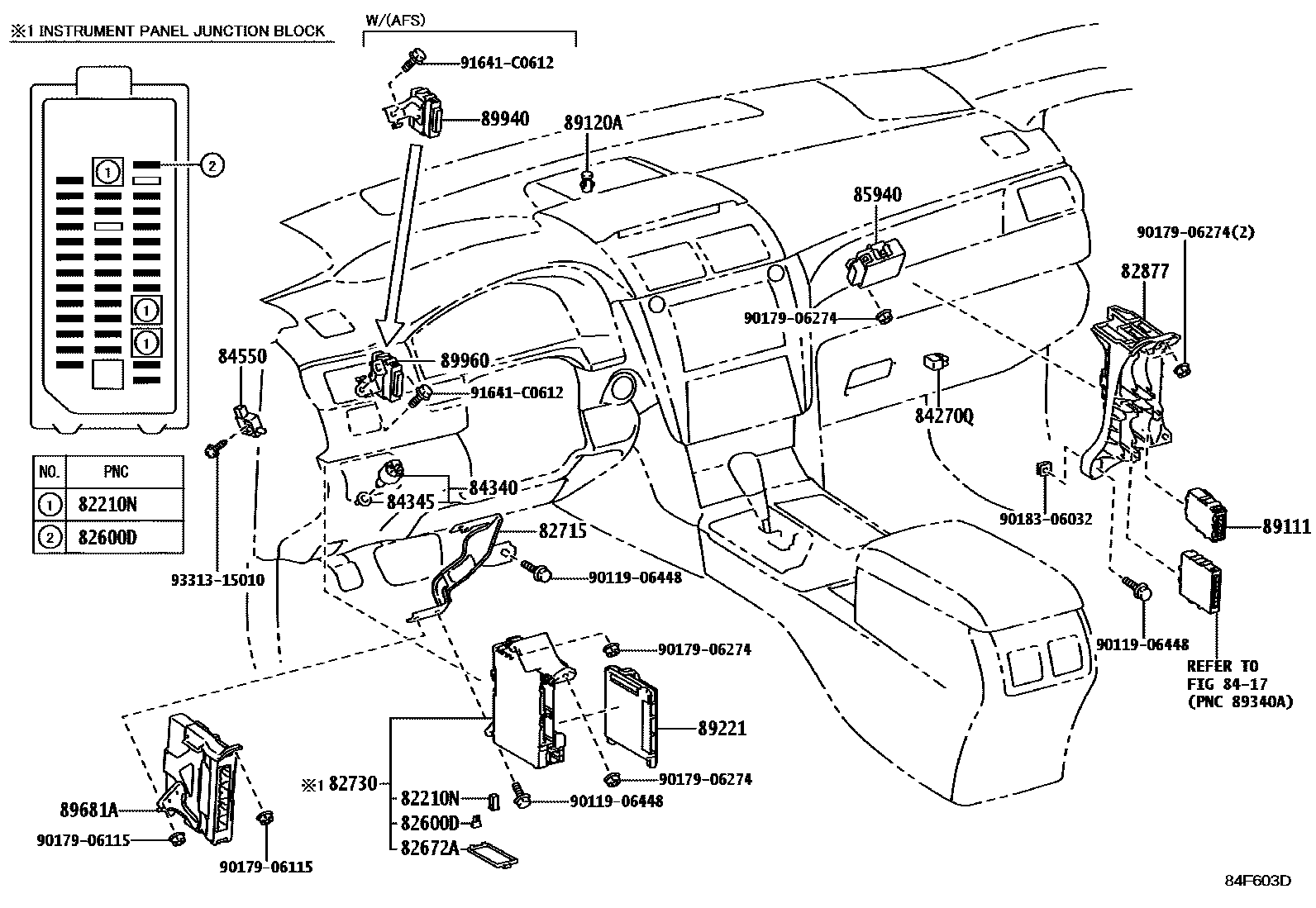

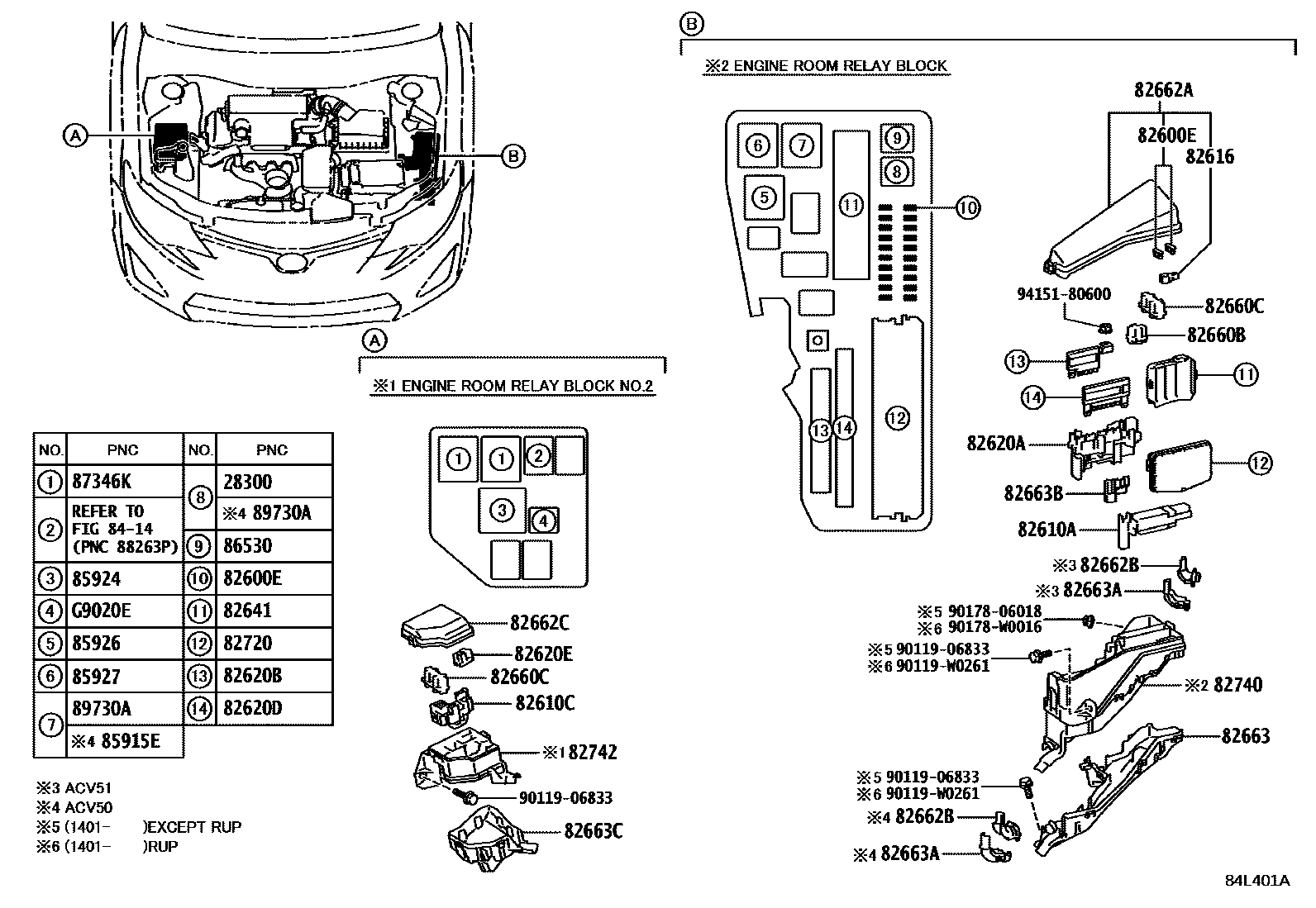

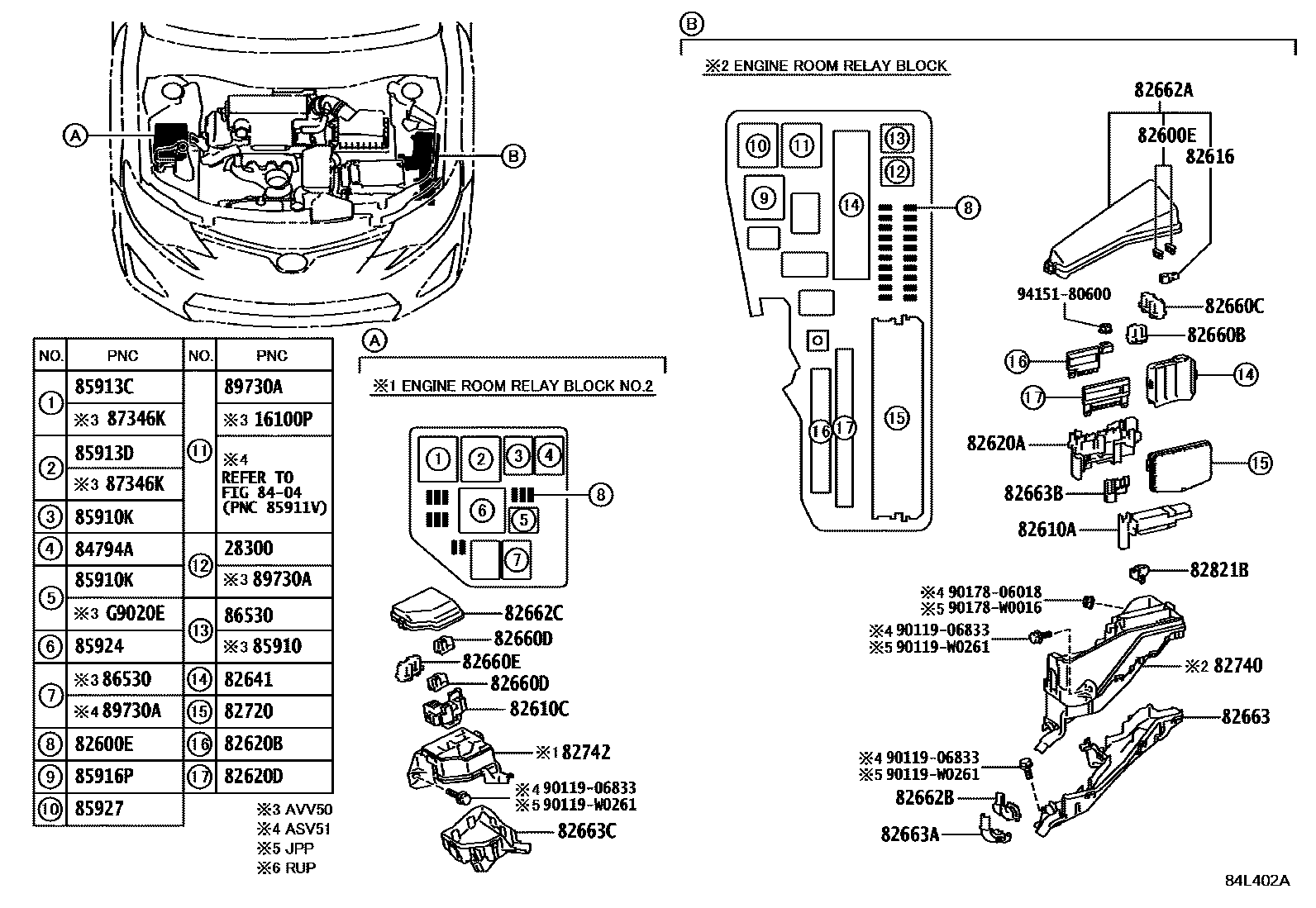

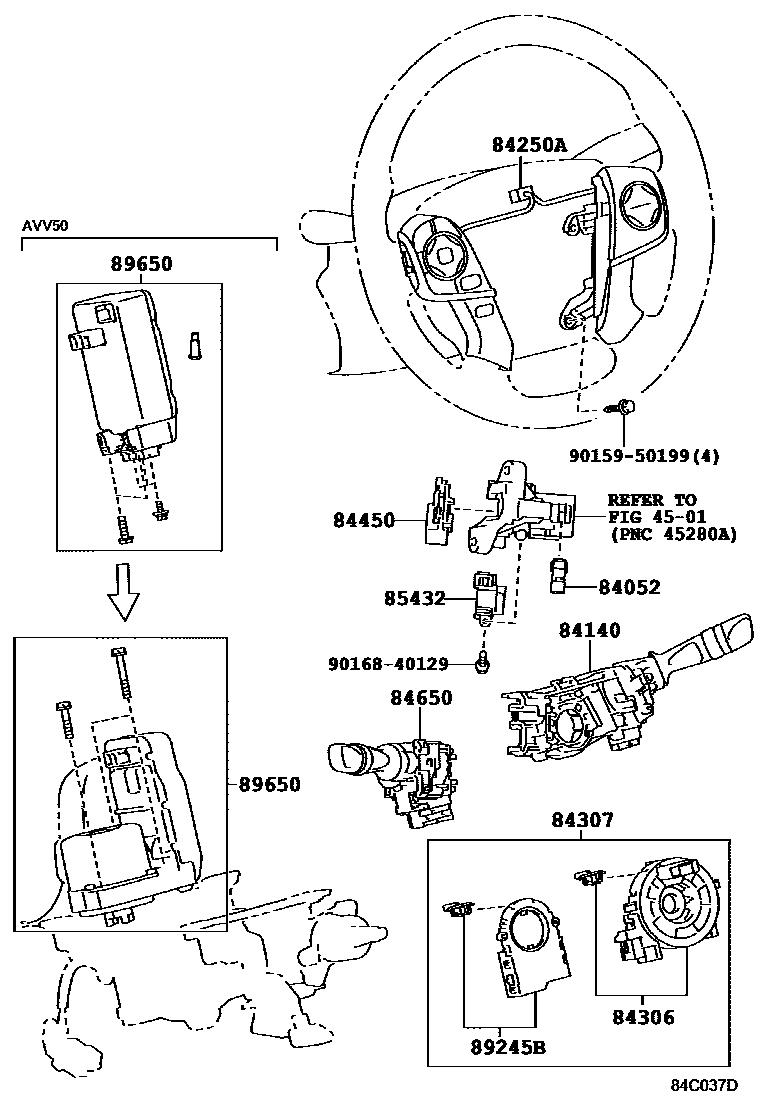

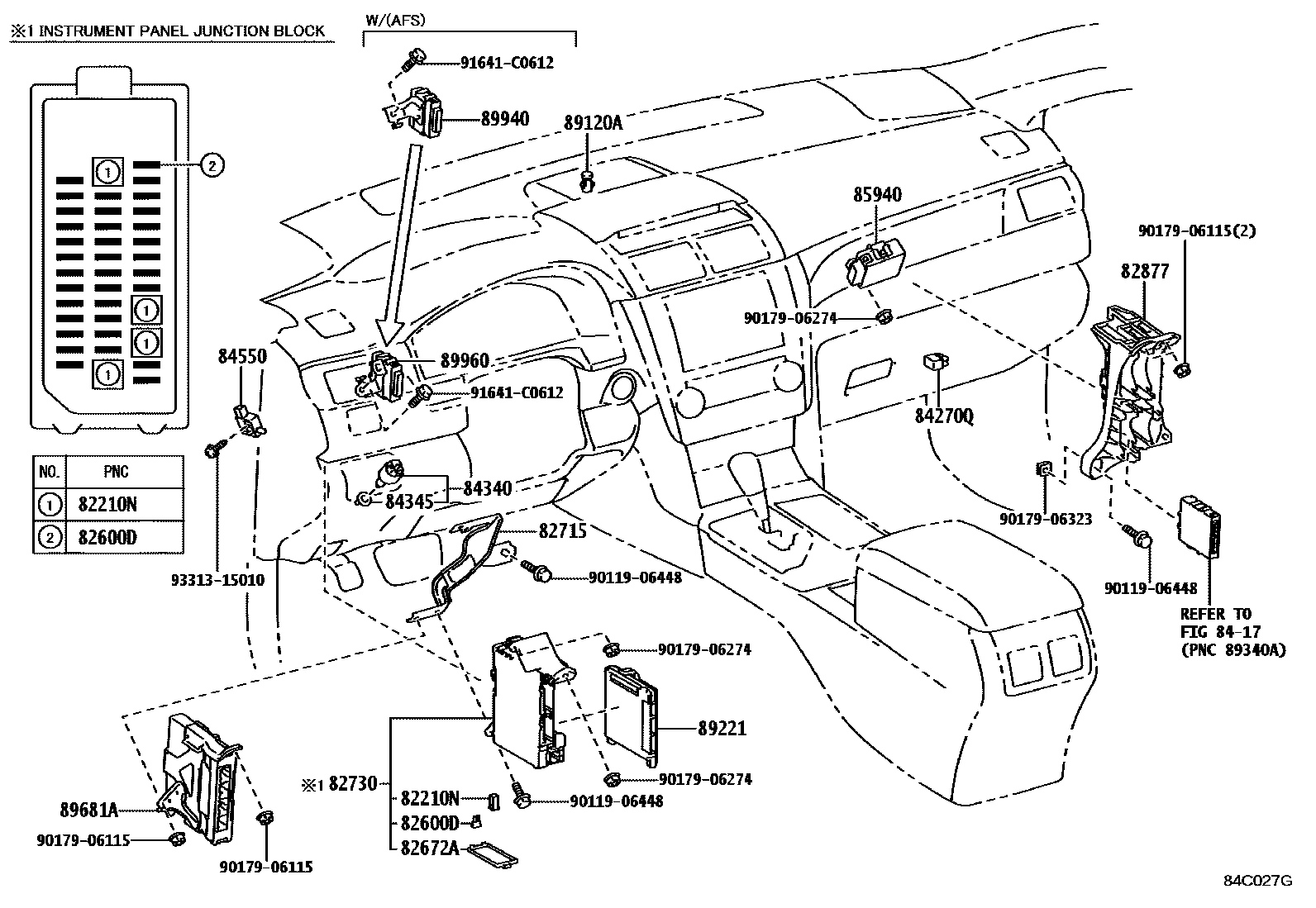

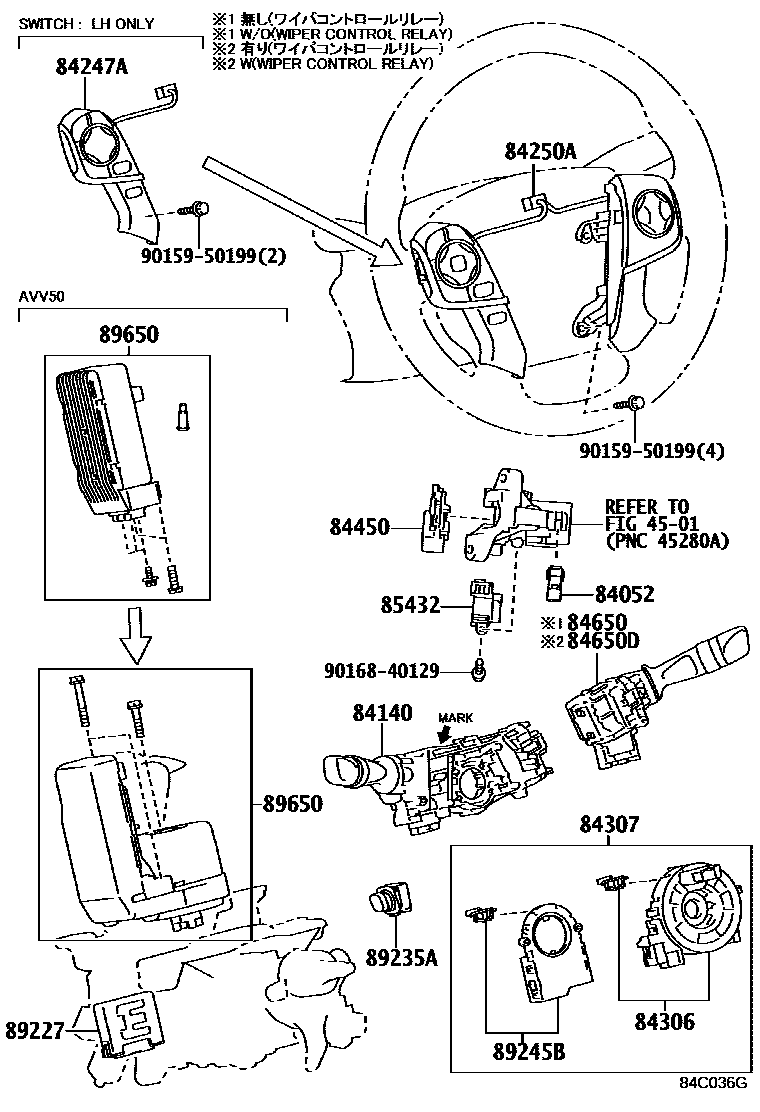

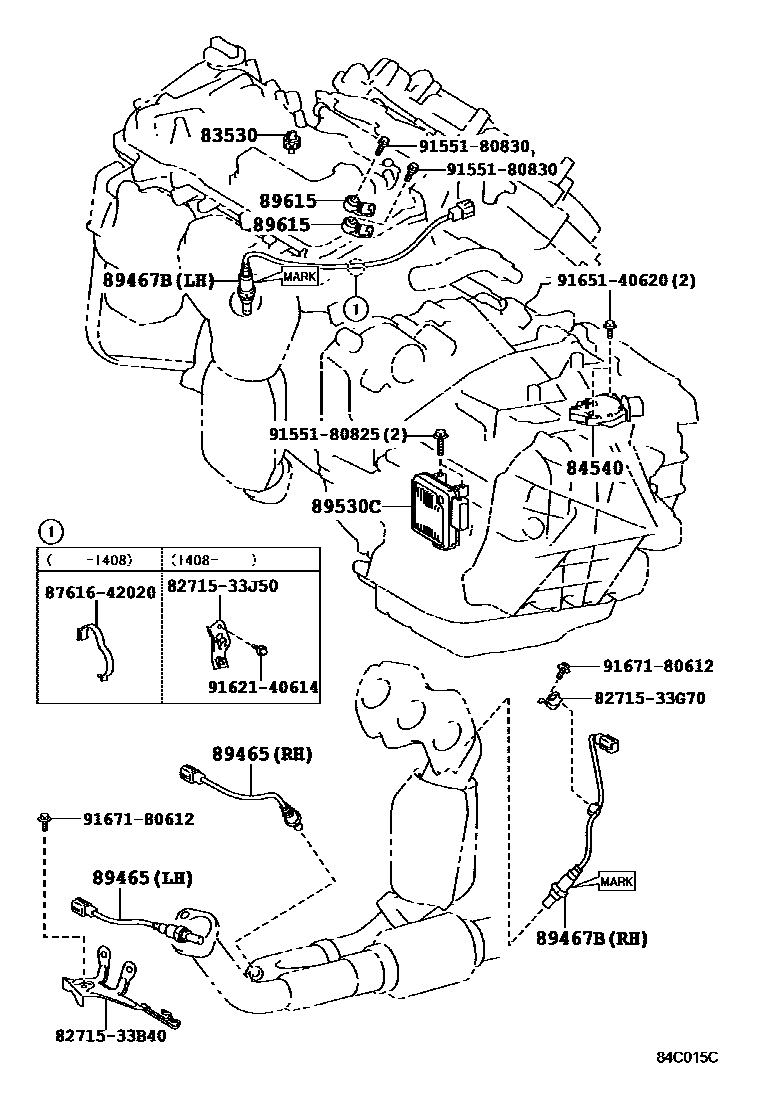

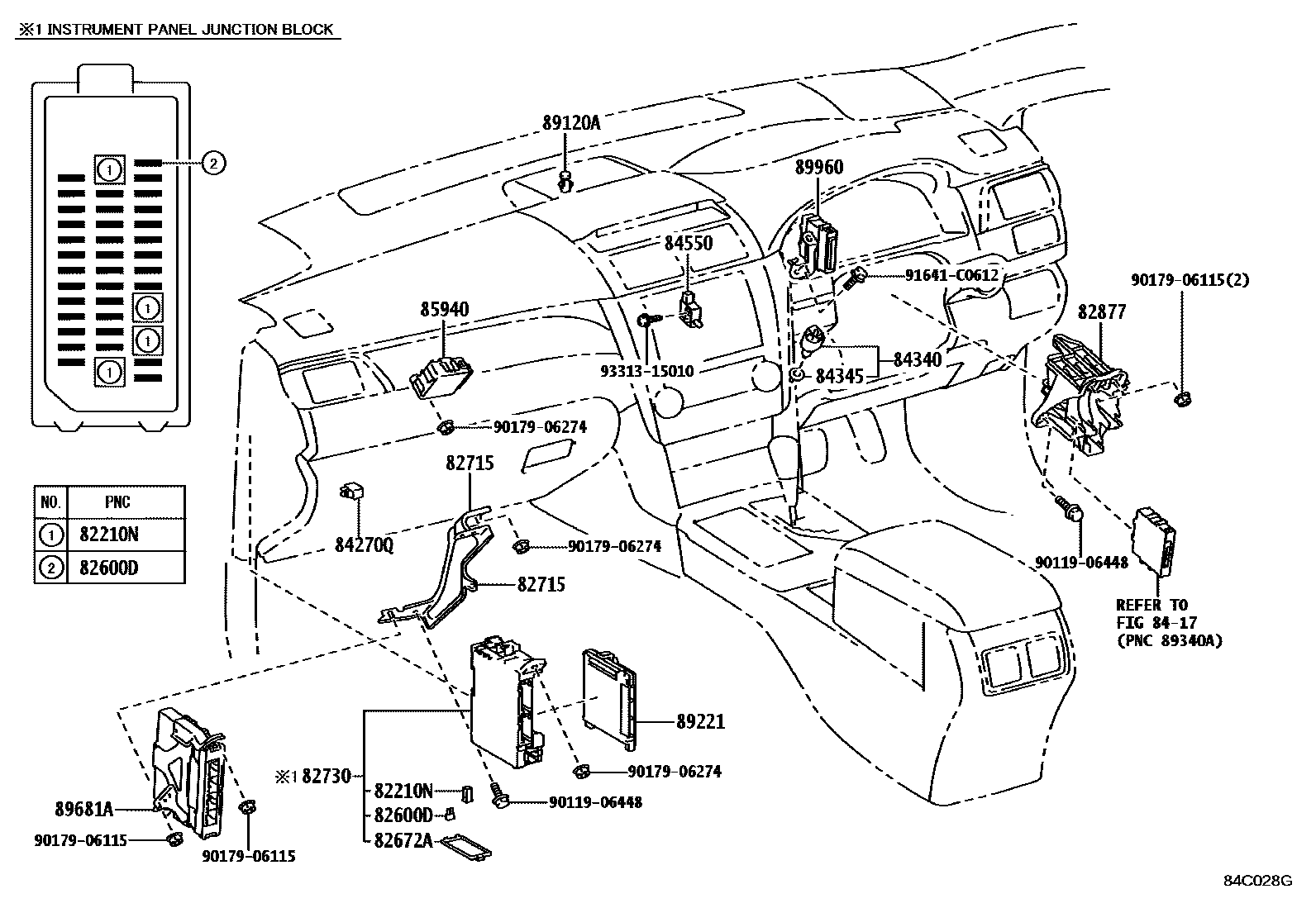

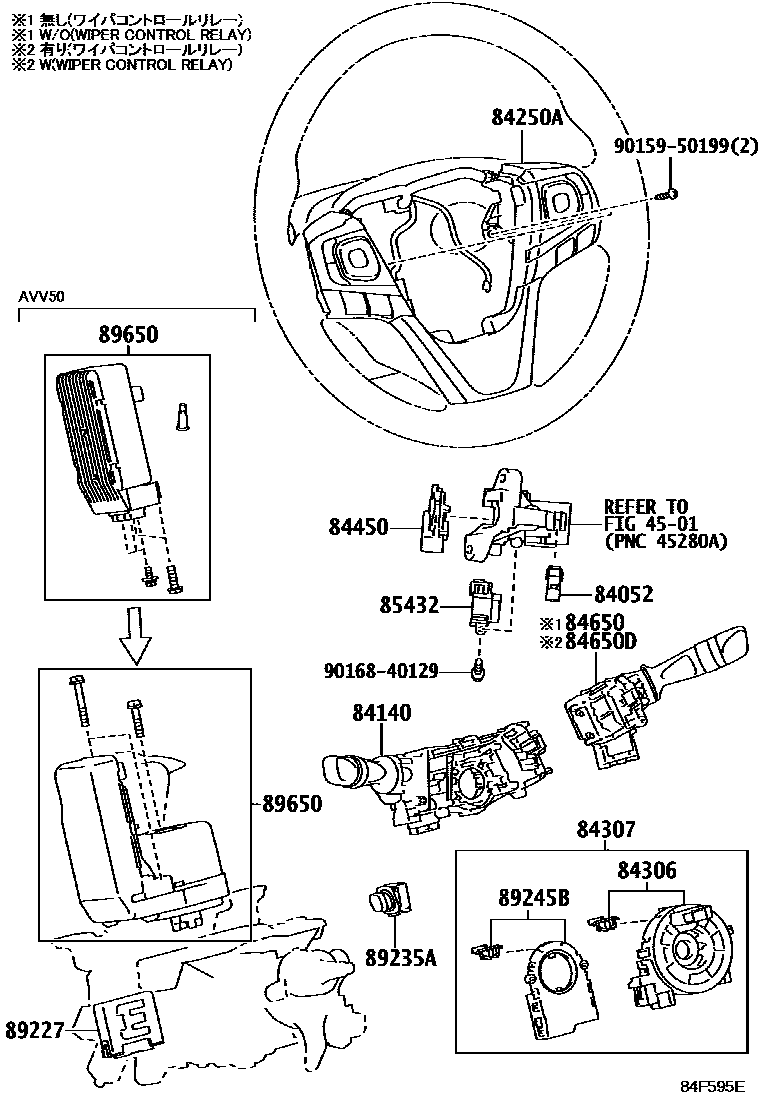

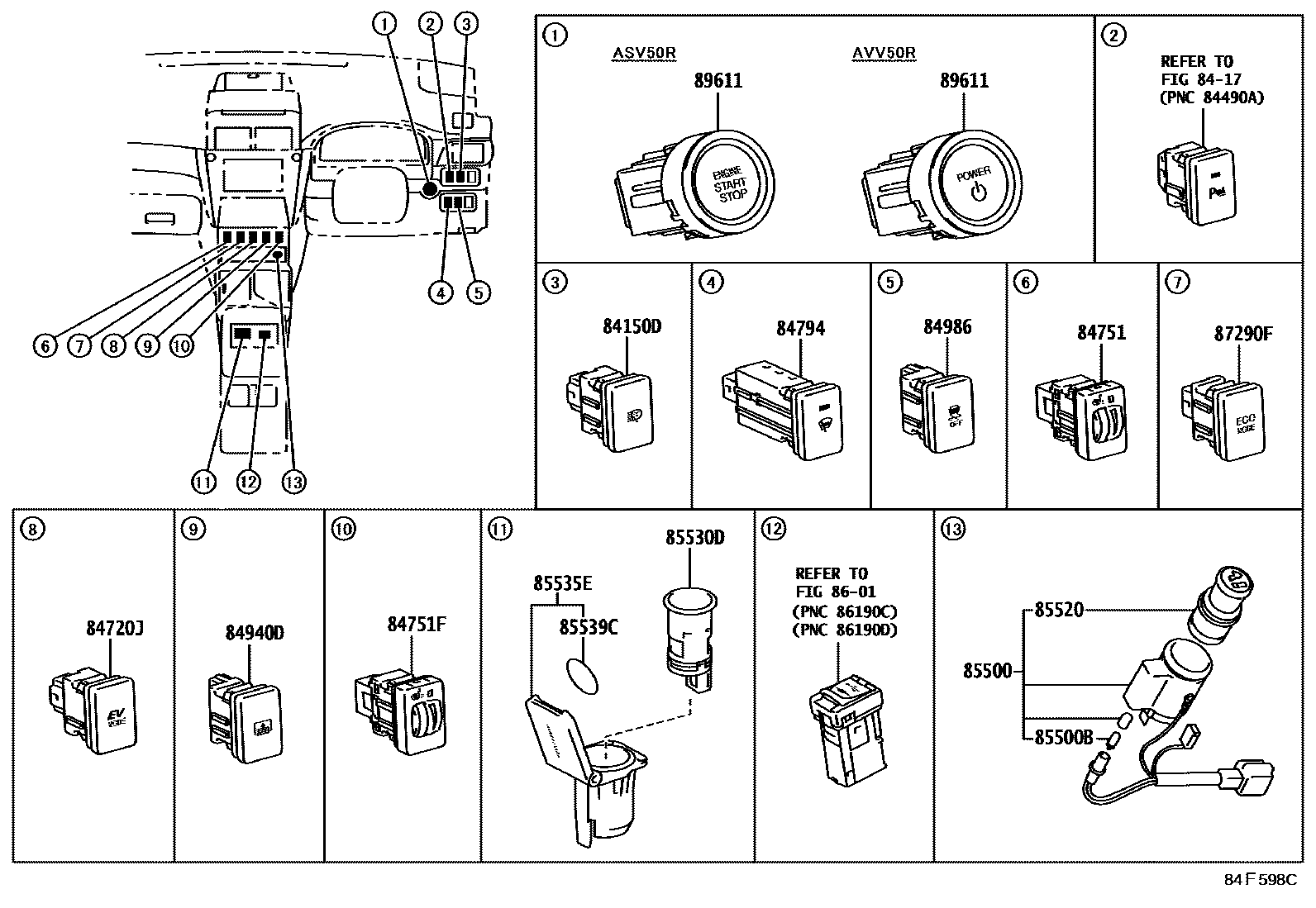

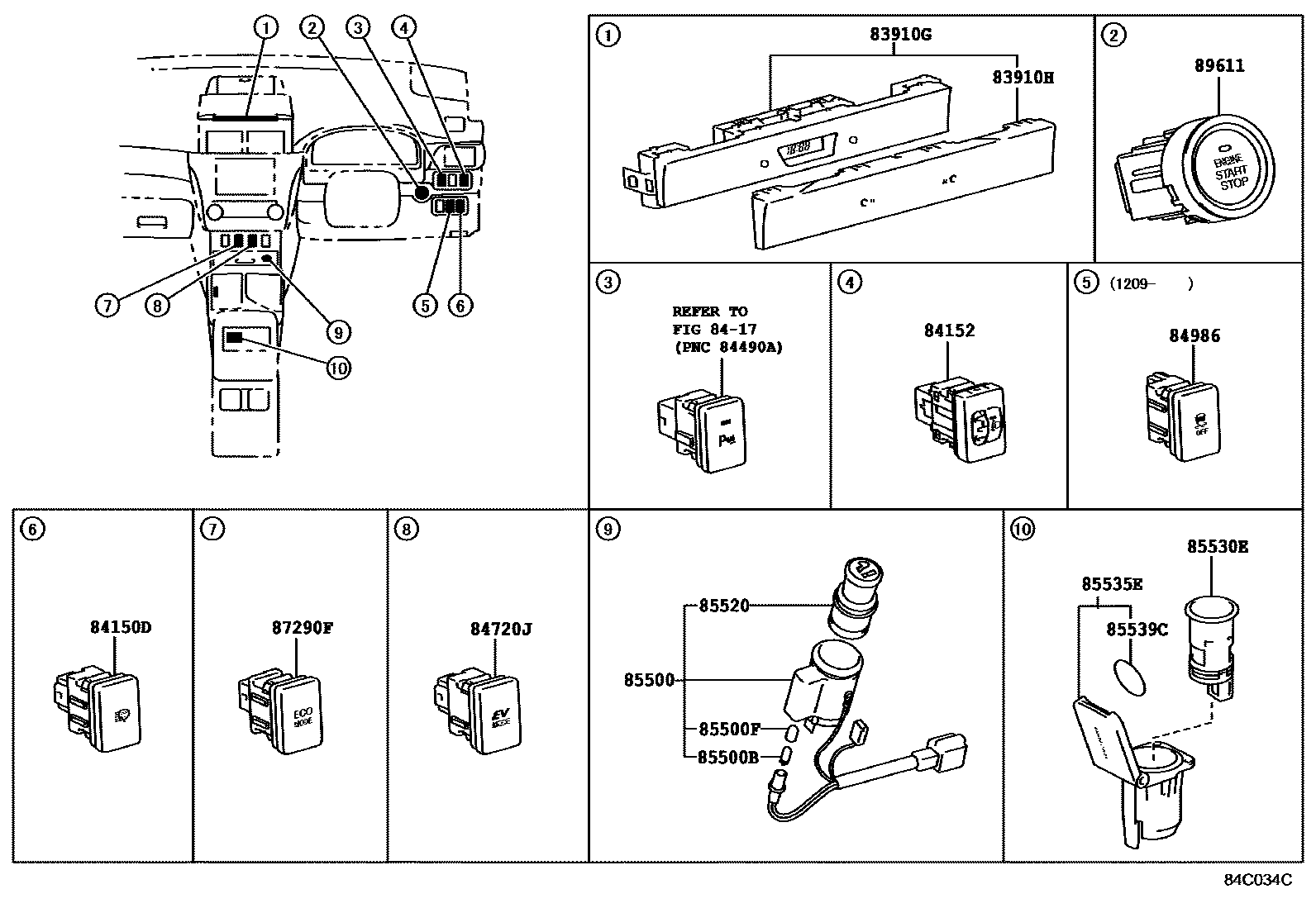

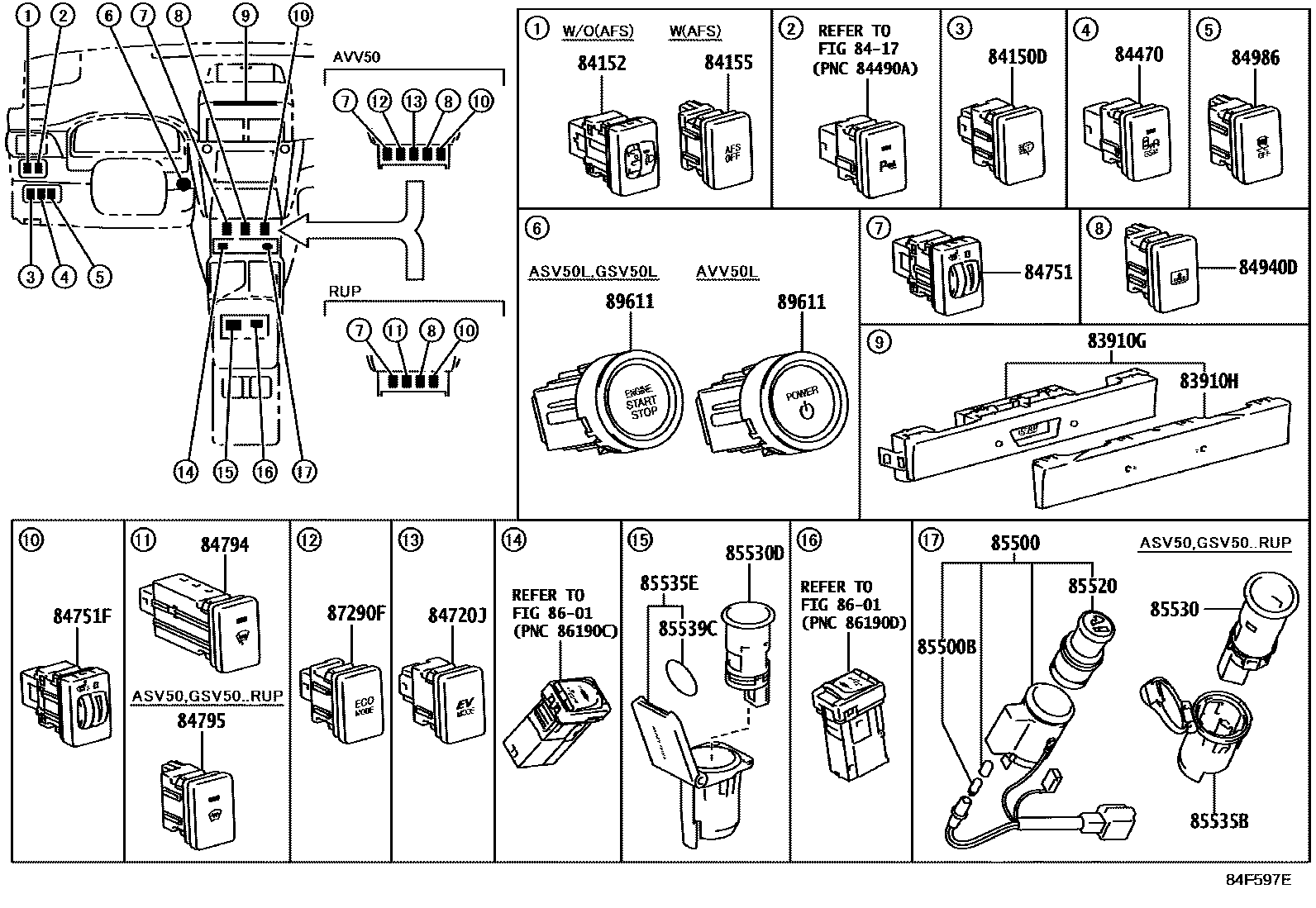

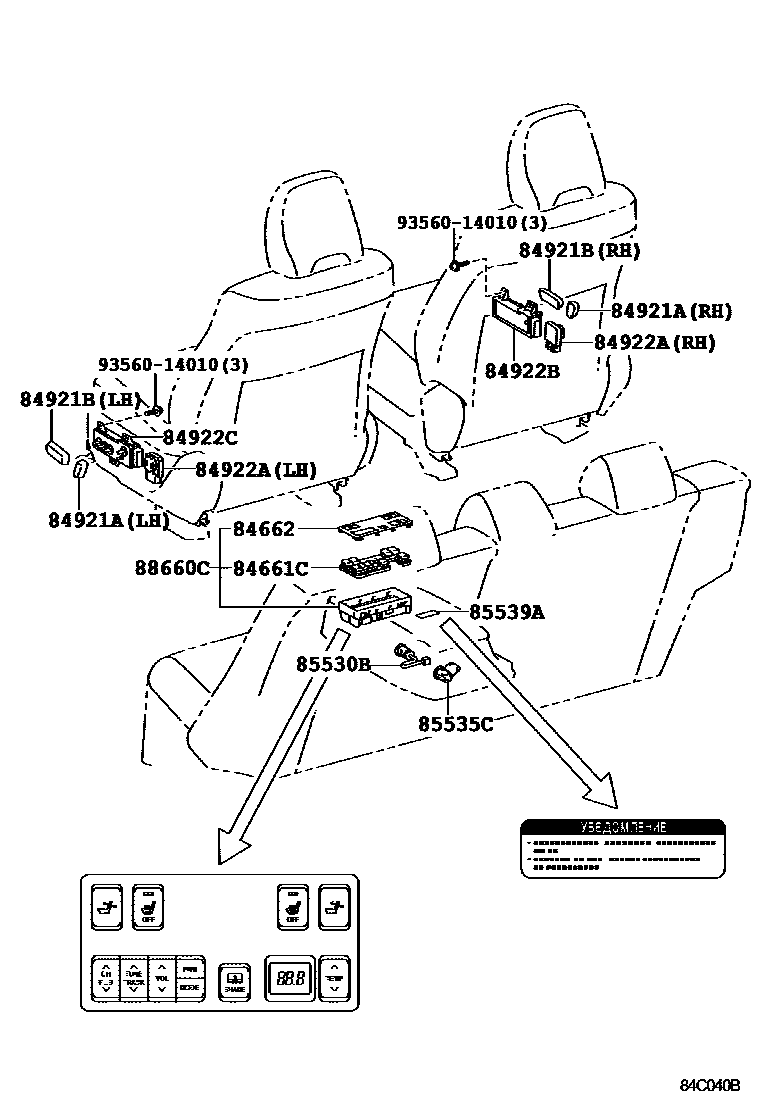

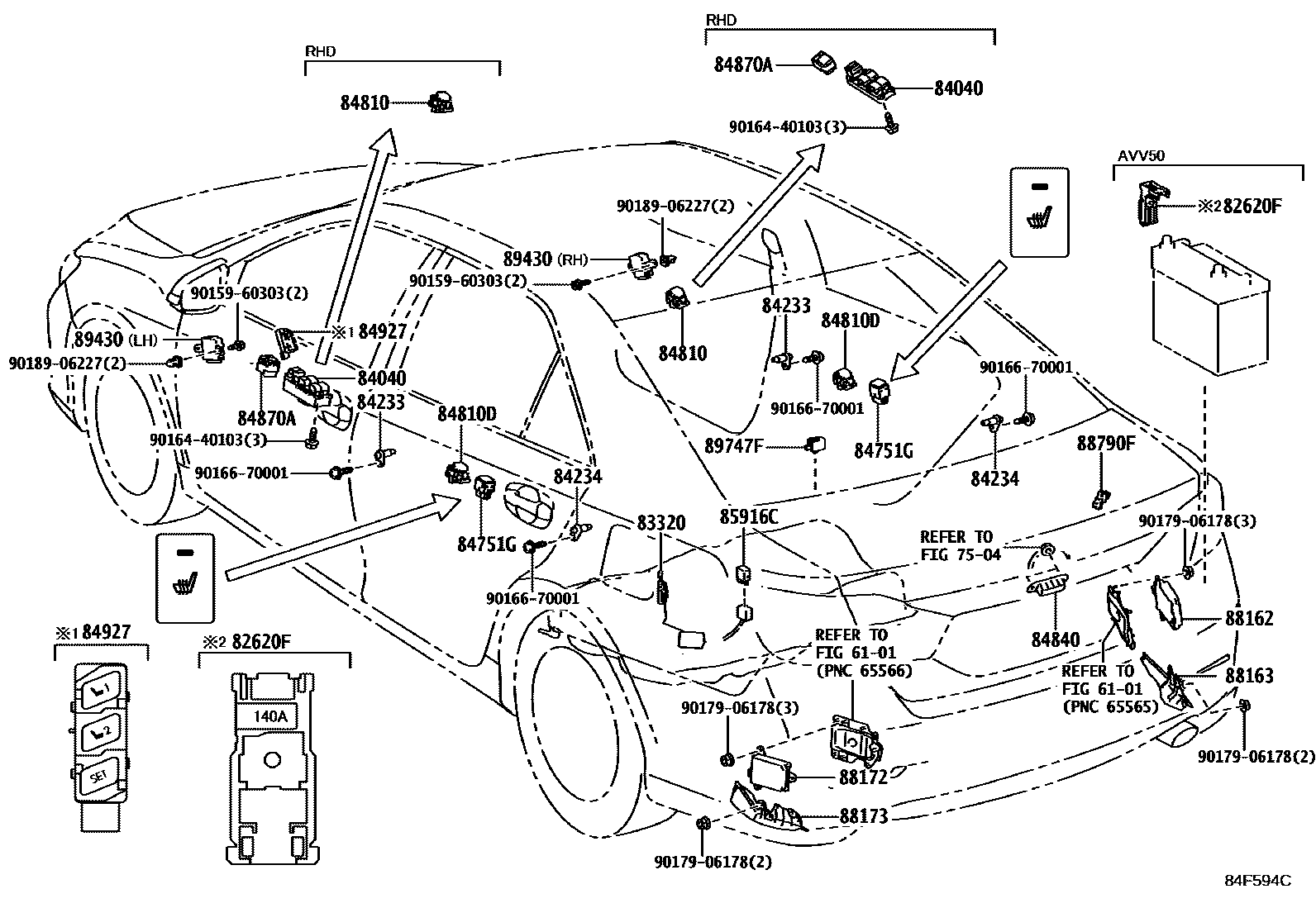

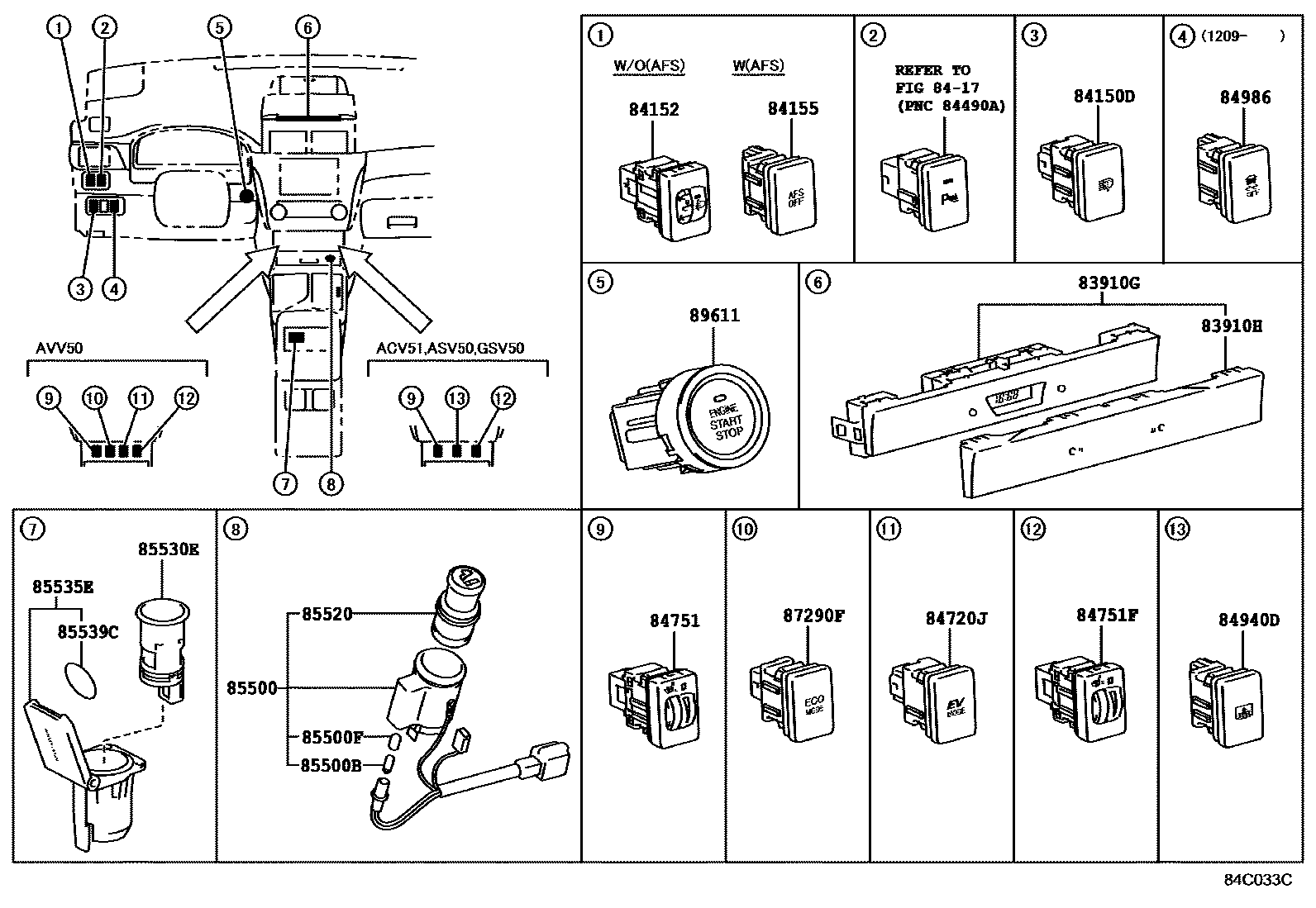

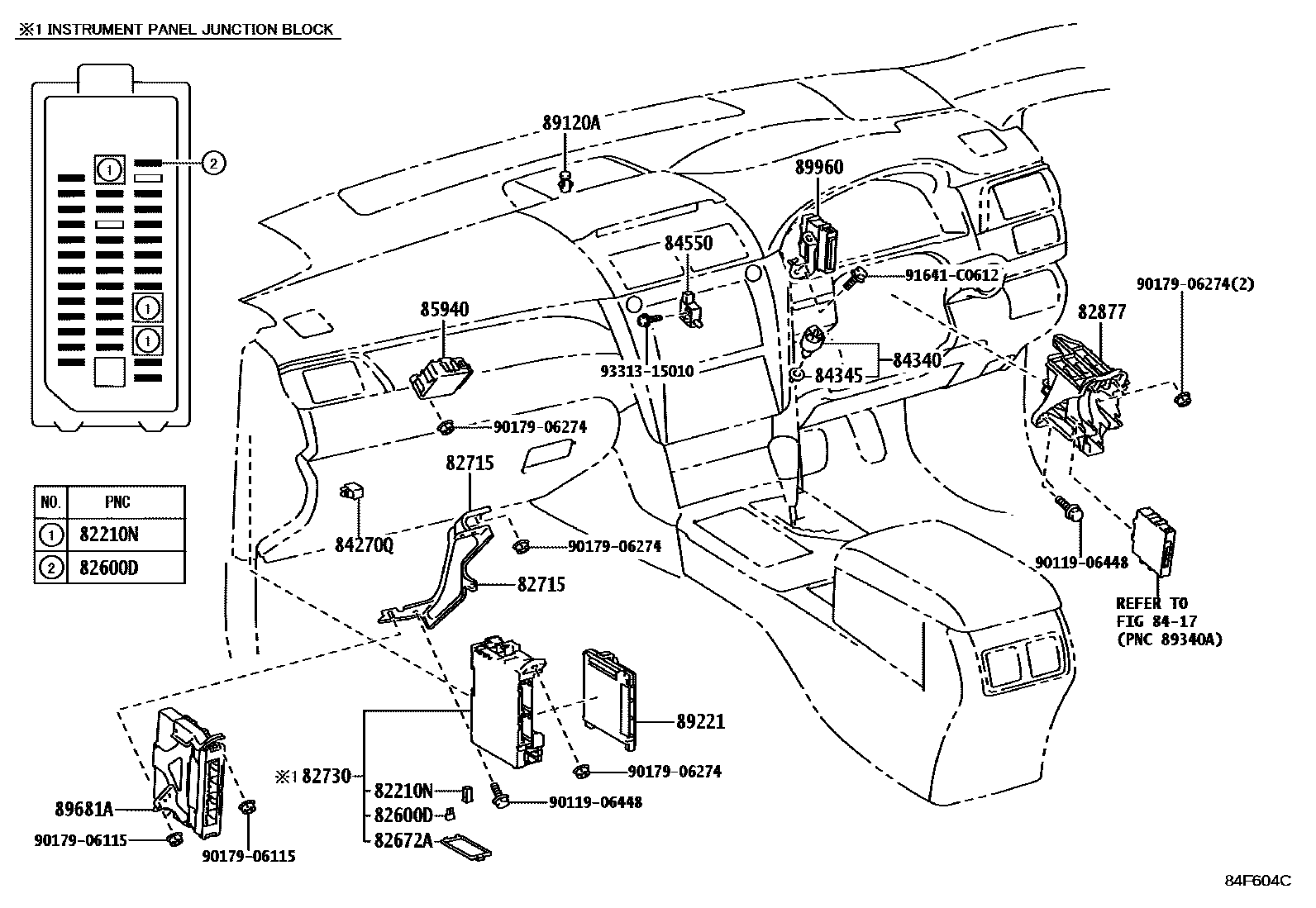

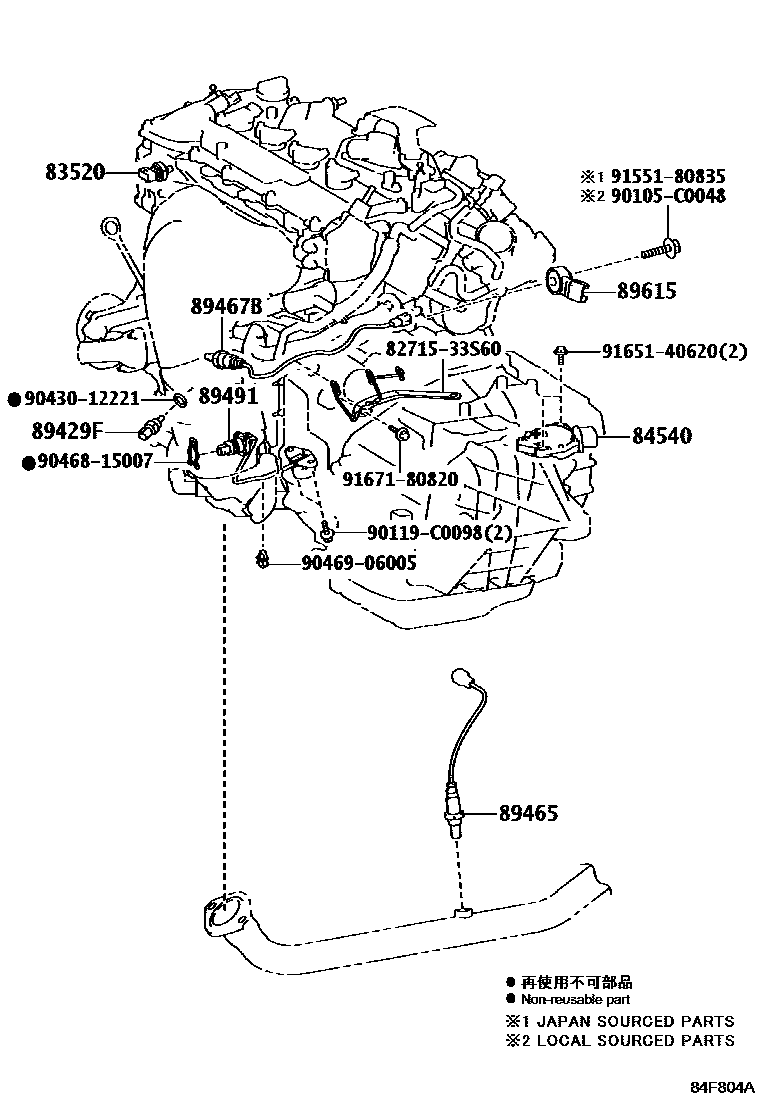

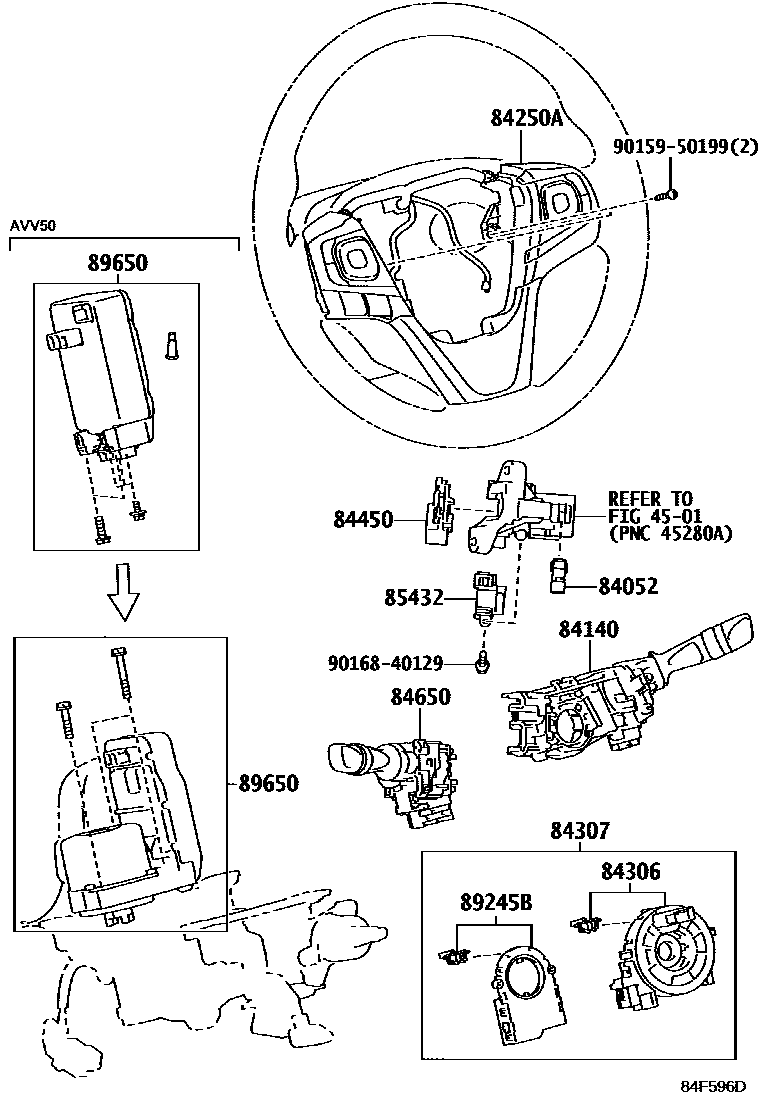

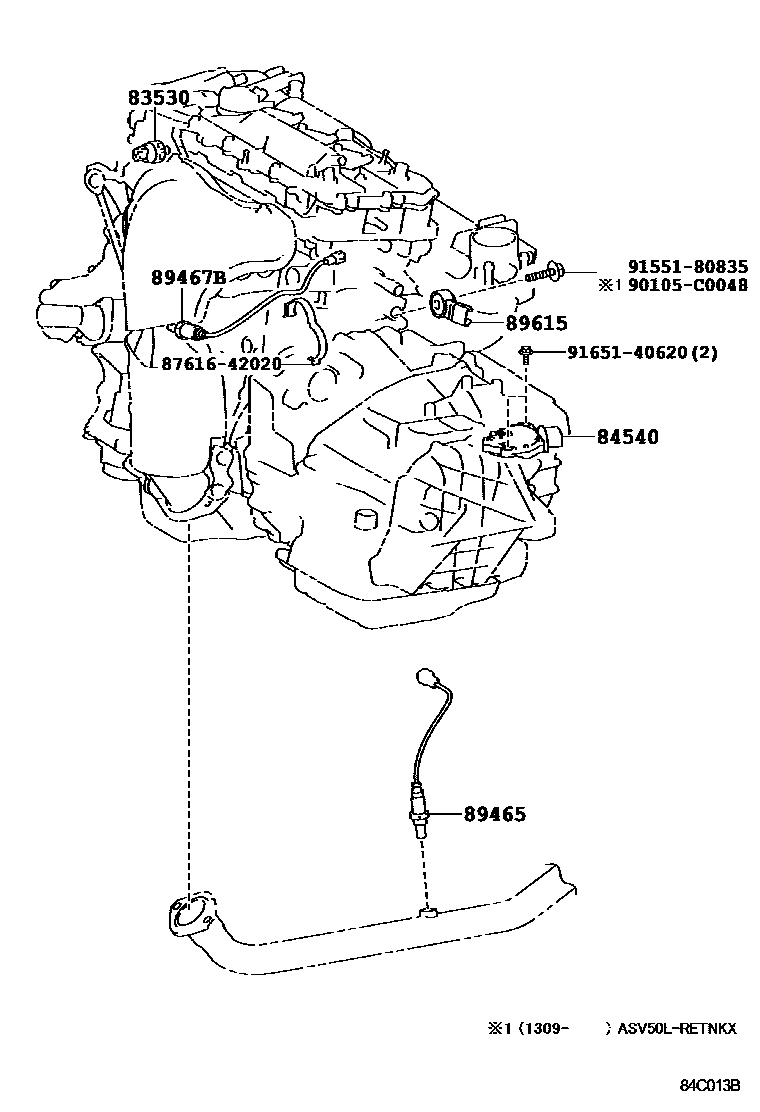

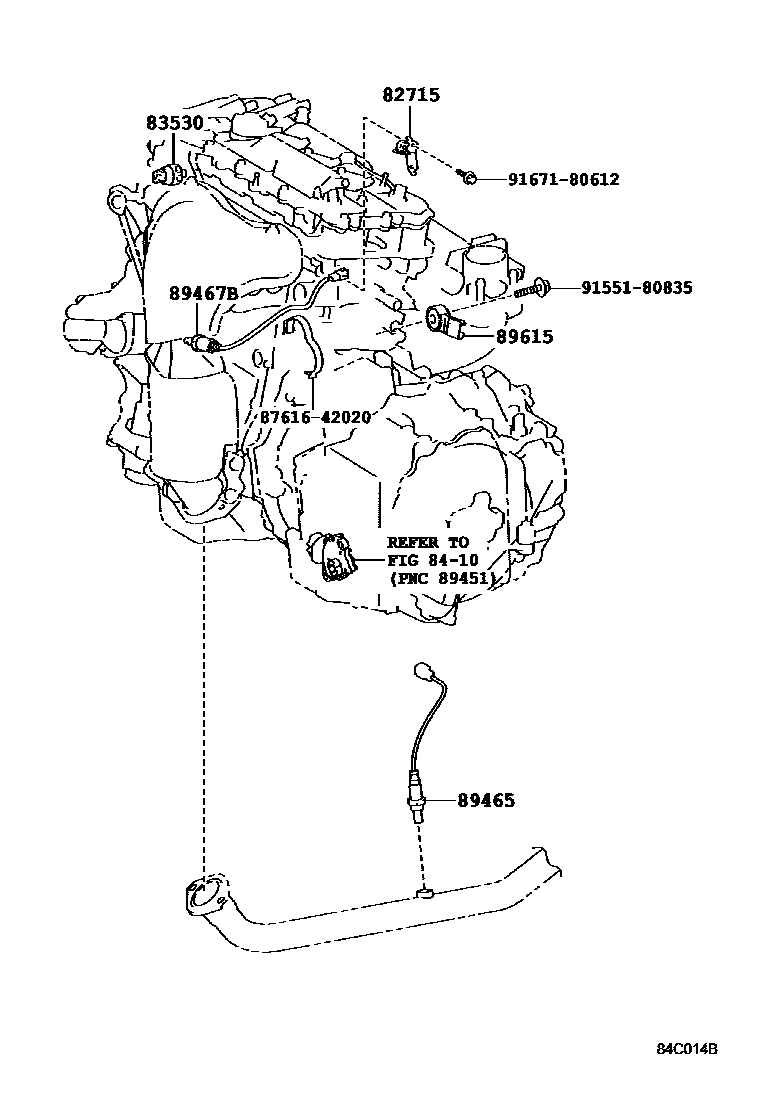

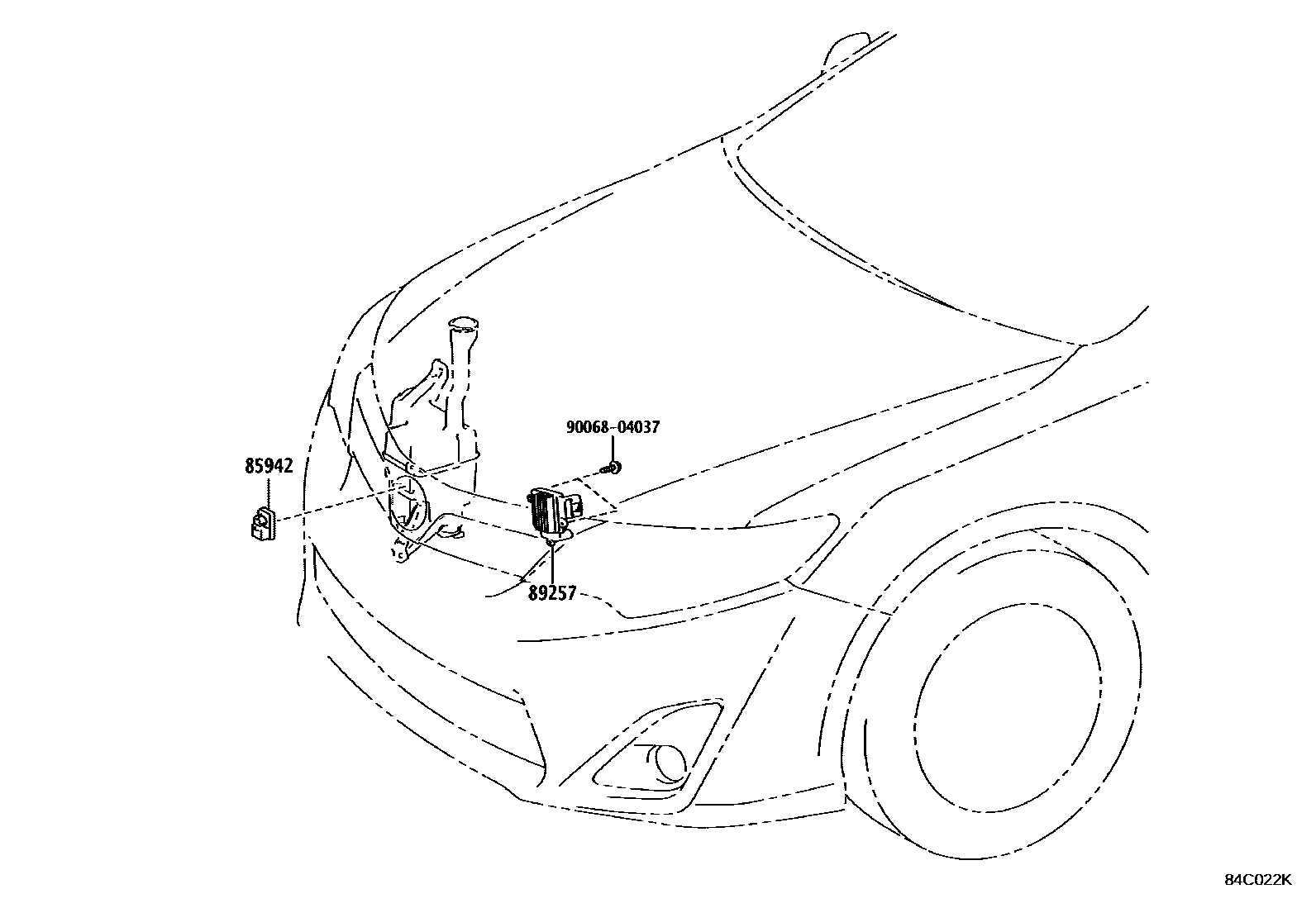

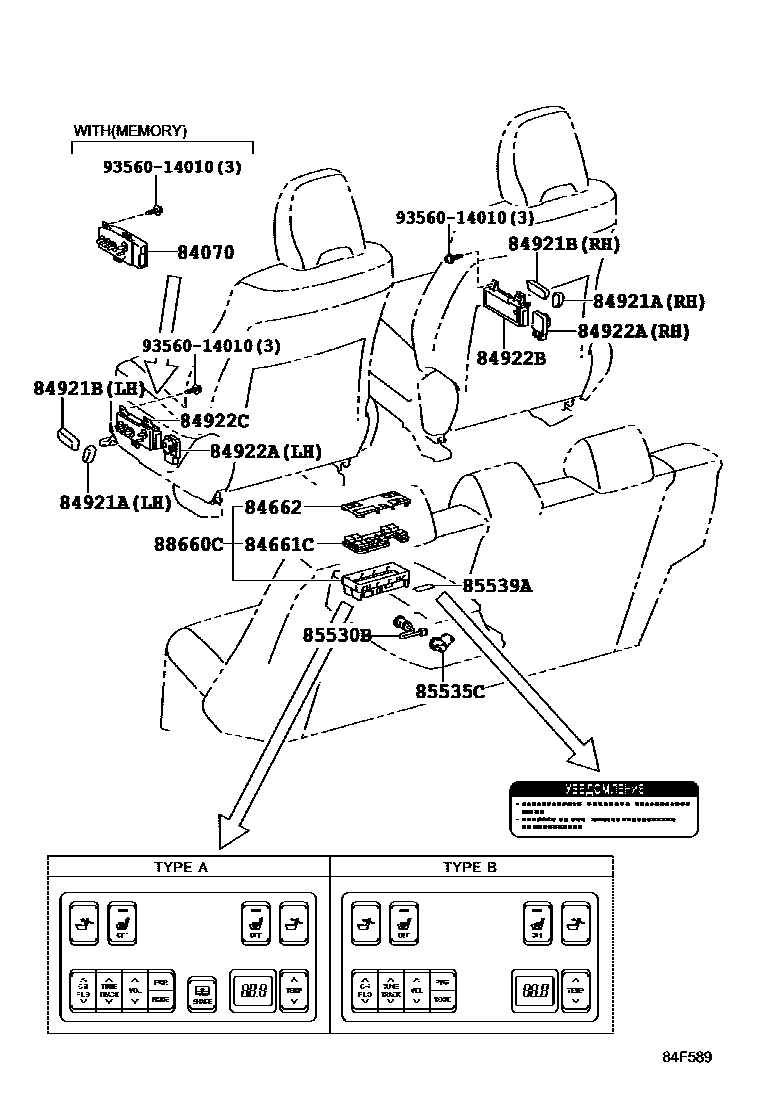

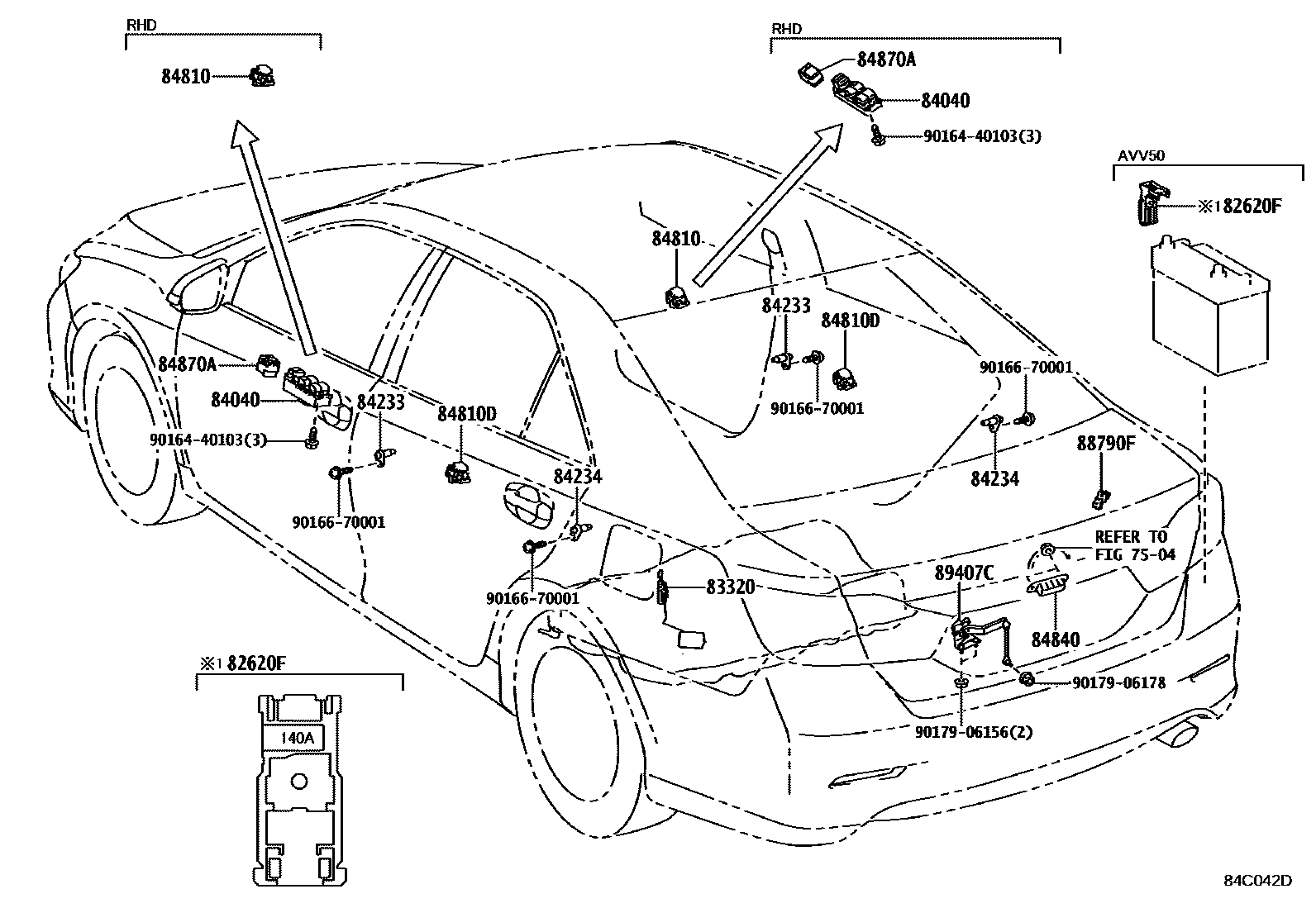

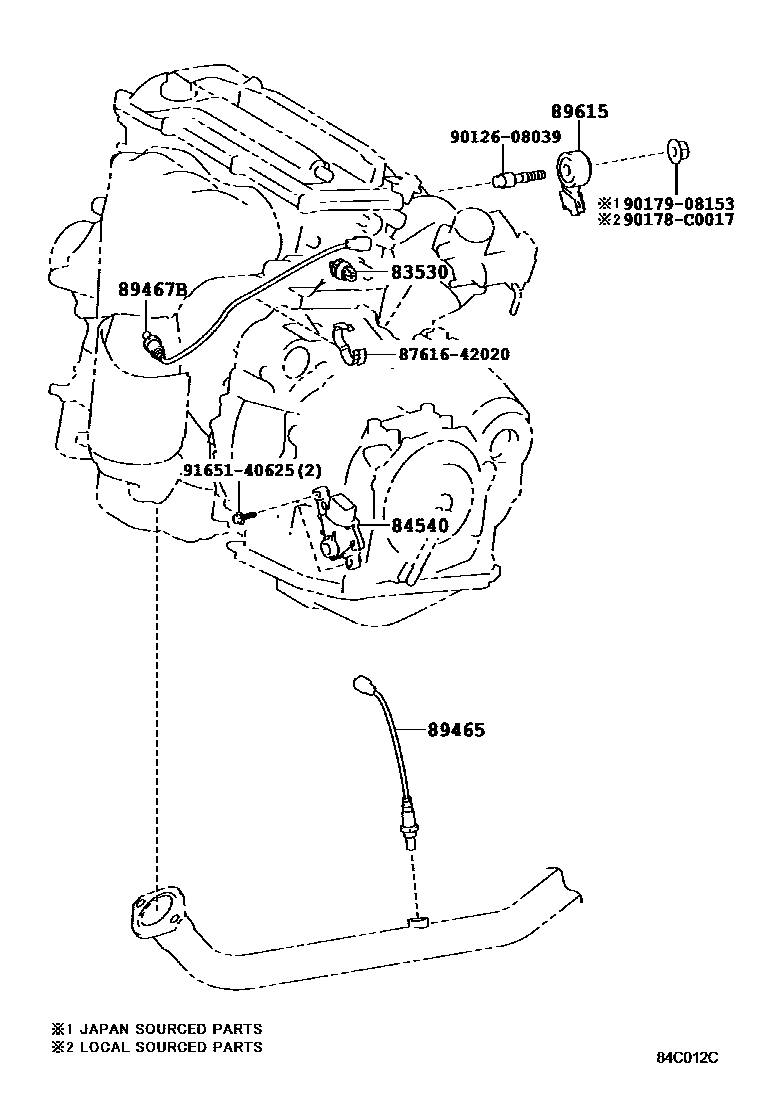

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 26 images and 139 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02025 |
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-33090 · 82610-33120 |
| 82610C | Fuse box assembly | 82610-33100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33050 |
| 82620B | Fuse box assembly | 82620-33070 |
| 82620D | Fuse box assembly | 82620-33060 · 82620-33080 |
| 82620E | Fuse box assembly | 82620-44040 |
| 82620F | ENSEMBLE BLOC, ELEMENT FUSIBLE | 82620-47070 |
| 82641 | Integrated relay No. 1 | 82641-33150 · 82641-33160 · 82641-33170 · 82641-33180 |
| 82660B | Relay assembly | 82660-48030 |
| 82660C | Relay assembly | 82660-33030 · 82660-33040 · 82660-33050 |
| 82660D | Relay assembly | 82660-48020 |
| 82660E | Relay assembly | 82660-33040 |
| 82662A | No. 1 relay box upper cover | 82662-33310 · 82662-33340 · 82662-33350 · 82662-33370 · 82662-33380 · 82662-33390 · 82662-33400 · 82662-33500 · 82662-33510 · 82662-33520 · 82662-33700 · 82662-33710 · 82662-33740 · 82662-33840 · 82662-33870 |
| 82662B | No. 2 relay box upper cover | 82662-33420 · 82662-33450 |
| 82662C | No. 3 relay box upper cover | 82662-33290 · 82662-33300 · 82662-33320 · 82662-33620 · 82662-33790 |
| 82663 | Relay box lower cover | 82663-33110 · 82663-33120 · 82663-33130 · 82663-33140 |
| 82663A | No. 2 relay box lower cover | 82663-33160 · 82663-33190 |
| 82663B | No. 3 relay box lower cover | 82663-33170 |
| 82663C | No. 4 relay box lower cover | 82663-33100 · 82663-33180 · 82663-33200 |
| 82672A | Junction box cover | 82672-33381 · 82672-33382 |
| 82715 | Wire harness clamp bracket | 82715-33E30 · 82715-33F20 · 82715-33F40 |
| 82720 | Engine room junction box assembly | 82720-33230 · 82720-33240 · 82720-33250 · 82720-33290 · 82720-33370 · 82720-33440 · 82720-33450 · 82720-33470 |
| 82730 | Instrument panel junction box assembly | 82730-33F71 · 82730-33F72 · 82730-33F91 · 82730-33F92 · 82730-33P40 · 82730-33P50 |
| 82740 | Engine room relay box assembly | 82740-33030 · 82740-33040 · 82740-33050 · 82740-33070 |
| 82742 | Engine room No. 2 relay box | 82742-33030 · 82742-33040 |
| 82821B | Connector cover | 82821-33400 |
| 82877 | Right ECU integrated box | 82877-33010 · 82877-33020 |
| 83320 | Fuel gauge sensor assembly | 83320-33100 · 83320-33101 · 83320-33130 |
| 83390 | Vacuum warning switch assembly | 83390-28120 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83910G | clock assembly | 83910-33210 |
| 83910H | clock cover | 8391B-33010 |
| 84040 | Multi-channel network main switch assembly | 84040-30250 · 84040-33080 · 84040-33100 · 84040-35060 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84070 | Position control ECU and switch assembly | 84070-33120 |
| 84140 | Headlight dimmer switch assembly | 84140-02720 · 84140-33230 · 84140-33231 · 84140-33240 · 84140-33250 |
| 84150D | Headlight washer switch assembly | 84150-33070 · 84150-33071 · 84150-47010 |
| 84152 | Headlight beam height adjustment switch | 84152-42050 · 84152-42051 · 84152-52100 |
| 84155 | Headlight rotary main switch | 84155-33020 · 84155-33030 · 84155-33031 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84247A | Steering wheel decorative cover left switch | 84247-06130 · 84247-33040 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06280 · 84250-06340 · 84250-33300 · 84250-33320 · 84250-33330 · 84250-33340 · 84250-33410 · 84250-33440 · 84250-33450 |
| 84270Q | headlight relay | 90987-02027 |
| 84306 | Spiral cable sub-assembly | 84306-39015 · 84308-33080 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-33070 · 84307-33140 · 84307-33190 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-69115 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-52020 |
| 84470 | Warning release switch assembly | 84470-33040 · 84470-33041 |
| 84540 | Neutral start switch assembly | 84540-33010 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-47010 |
| 84650 | Windshield wiper switch assembly | 84652-33490 · 84652-33500 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-33480 |
| 84661C | Cooler control switch button | 84661-33010 · 84661-33020 · 84661-33030 |
| 84662 | Cooler control switch board | 84662-33010 · 84662-33011 · 84662-33020 · 84662-33021 · 84662-33030 |
| 84720J | Mode selection switch assembly | 84720-33080 · 84720-33090 · 84720-33091 |
| 84751 | Seat heater switch | 84751-33080 · 84751-33100 · 84751-33101 |
| 84751F | Seat heater switch | 84751-35140 · 84751-35141 · 84751-60240 |
| 84751G | Seat heater switch | 84751-33090 |
| 84794 | Front wiper de-icer switch | 84794-48020 · 84794-48021 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84795 | INTERRUPTEUR, DEGIVRAGE DE VITRE AVANT | 84795-33010 · 84795-33011 |
| 84810 | Electric window lift switch assembly | 84810-30220 · 84810-33120 |
| 84810D | Rear electric window lift switch assembly | 84810-30220 · 84810-33120 |
| 84840 | Trunk door opening switch assembly | 84840-28030 |
| 84870A | Exterior rearview mirror switch assembly | 84872-48020 · 84872-52040 |
| 84922B | Front right electric seat switch | 84922-60160 · 84922-60190 |
| 84922C | Front left electric seat switch | 84922-60170 · 84922-60180 |
| 84927 | Seat memory switch | 84927-33090 |
| 84940D | Rear sunshade switch assembly | 84940-33060 · 84940-33070 · 84940-33071 · 84940-75010 · 84940-75011 |
| 84986 | vehicle stability control switch | 84988-06070 · 84988-06071 · 84988-33090 · 84988-33091 · 84988-48070 |
| 85432 | Key interlock solenoid valve | 85432-52010 |
| 85500 | Cigarette lighter assembly | 85500-33060 · 85500-33080 |
| 85500B | Cigarette lighter bulb | 90010-01167 · 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530B | No. 1 rear power socket assembly | 85530-30040 |
| 85530D | No. 2 power socket assembly | 85530-42010 |
| 85530E | No. 3 power socket assembly | 85530-42010 |
| 85535B | No. 1 power outlet cover | 85535-30020 |
| 85535C | Rear power outlet cover | 85535-30020 |
| 85535E | No. 2 power outlet cover | 85535-33130 · 85535-33150 |
| 85539A | Note label on rear power outlet | 85539-33030 |
| 85539C | Power socket attention labels | 85539-60020 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85910K | Rear seat heater relay | 90987-02027 |
| 85913C | Heater relay No. 1 | 90987-02025 |
| 85913D | Heater relay No. 2 | 90987-02025 |
| 85915E | relay | 90987-02025 |
| 85916C | Reversing light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85924 | Ignition control relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-02025 |
| 85927 | cooling fan relay | 90080-87020 · 90080-87030 · 90987-02025 · 90987-04004 |
| 85940 | Windshield wiper relay assembly | 85940-33150 · 85940-33160 |
| 85942 | Headlight washer control relay | 85942-30040 · 85942-58010 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87290F | ECO switch assembly | 87290-33030 · 87290-33031 · 87290-33060 |
| 87346K | PTC heater relay | 90987-02025 |
| 88162 | Blind spot monitor right sensor | 88162-0W220 · 88162-33060 |
| 88163 | Blind spot monitor right side cover | 88163-33020 |
| 88172 | Blind spot monitor left sensor | 88162-0W220 · 88162-33060 |
| 88173 | Blind spot monitor left cover | 88173-33020 |
| 88660C | Cooler control switch assembly | 84660-33040 · 84660-33050 · 84660-33060 · 84660-33120 · 84660-33130 · 84660-33150 · 84660-33160 |
| 88790F | Thermistor assembly | 88790-22131 |
| 89111 | Network gateway ECU | 89111-33120 |
| 89120A | Automatic light control sensor | 89121-50020 |
| 89221 | Multi-channel network body ECU | 89220-33020 · 89220-33030 · 89220-33040 · 89220-33050 · 89220-33060 · 89220-33070 · 89220-33080 · 89220-33090 · 89220-33100 · 89220-33110 · 89220-33430 · 89220-33440 · 89220-33450 · 89220-33460 · 89220-33470 · 89220-33480 · 89220-33490 · 89220-33500 · 89220-33A40 · 89220-33A50 · 89220-33A60 · 89220-33P30 · 89220-33P40 · 89221-06260 · 89221-06270 · 89221-33640 · 89221-33660 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-33020 |
| 89235A | Tilt-telescoping steering column switch | 89235-33010 |
| 89245B | steering sensor | 89245-39015 · 89245-39055 |
| 89257 | Cooling fan ECU | 89257-30060 · 89257-30080 |
| 89407C | Rear height control sensor sub-assembly | 89407-41010 |
| 89429F | temperature sensor | 89429-12010 |
| 89430 | Exterior rearview mirror control ECU assembly | 89430-33170 · 89430-33180 |
| 89465 | oxygen sensor | 89465-06250 · 89465-06290 · 89465-06350 · 89465-07080 · 89465-33360 · 89465-33420 · 89465-33470 · 89465-33480 · 89465-33560 · 89465-33570 |
| 89465A | Oxygen sensor No. 2 | 89465-06360 · 89465-33420 |
| 89467B | air fuel ratio sensor | 89467-06070 · 89467-06130 · 89467-06140 · 89467-06170 · 89467-06220 · 89467-0E130 · 89467-33160 · 89467-33220 · 89467-33230 · 89467-48190 · 89467-48220 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-06140 · 89467-33230 |
| 89491 | Engine oil level sensor | 89491-33040 |
| 89530C | Transmission control ECU assembly | 89530-33250 · 89530-33260 · 89530-33320 · 89530-33400 · 89530-33410 · 89530-33420 |
| 89611 | push button start switch | 89611-0R020 · 89611-0R021 · 89611-0R022 · 89611-30140 · 89611-30141 · 89611-30142 · 89611-33020 · 89611-33021 · 89611-33031 · 89611-33032 · 89611-42010 · 89611-42011 · 89611-42012 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-33150 · 89650-33160 · 89650-33331 · 89650-33340 · 89650-33341 · 89650-33440 · 89650-33490 · 89650-33520 · 89650-33530 |
| 89681A | Power management control ECU | 89690-33010 · 89690-33030 · 89690-33110 · 89690-33120 · 89690-33130 · 89690-33150 · 89690-33170 · 89690-33250 · 89690-33260 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89940 | Headlight rotating ECU assembly | 89940-33240 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33420 · 89960-33430 · 89960-33460 · 89960-33510 |
| G9020E | Hybrid water pump relay | 90987-02027 |
