Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201

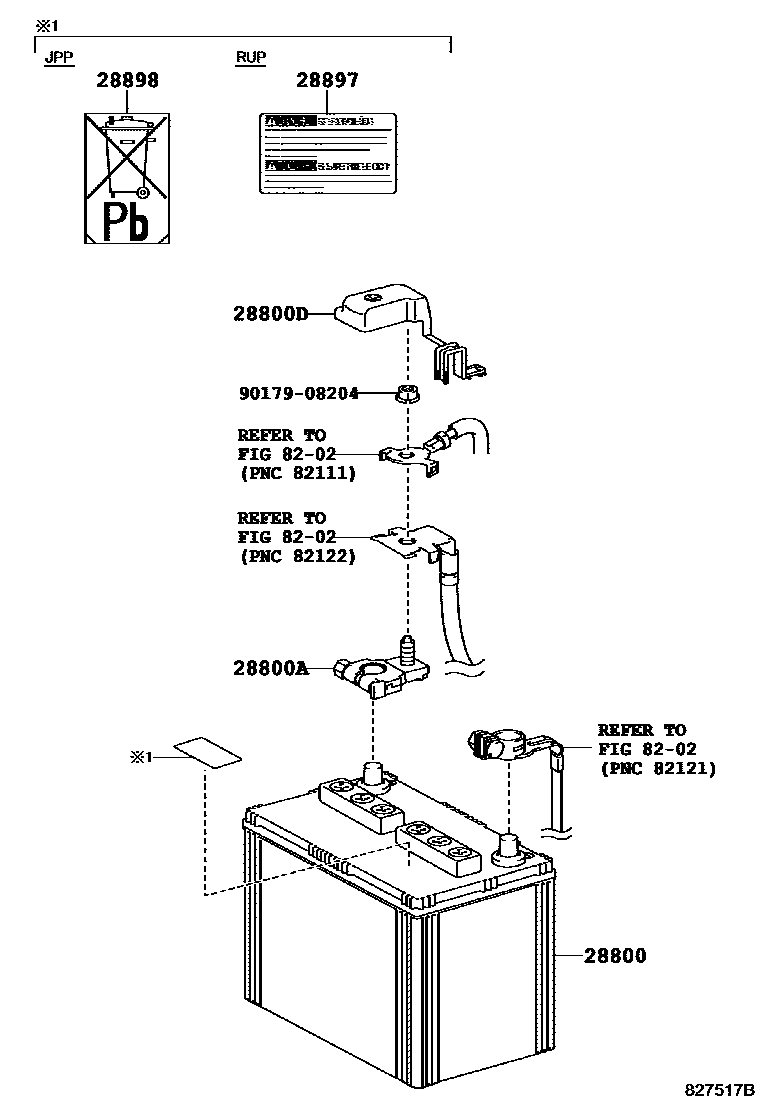

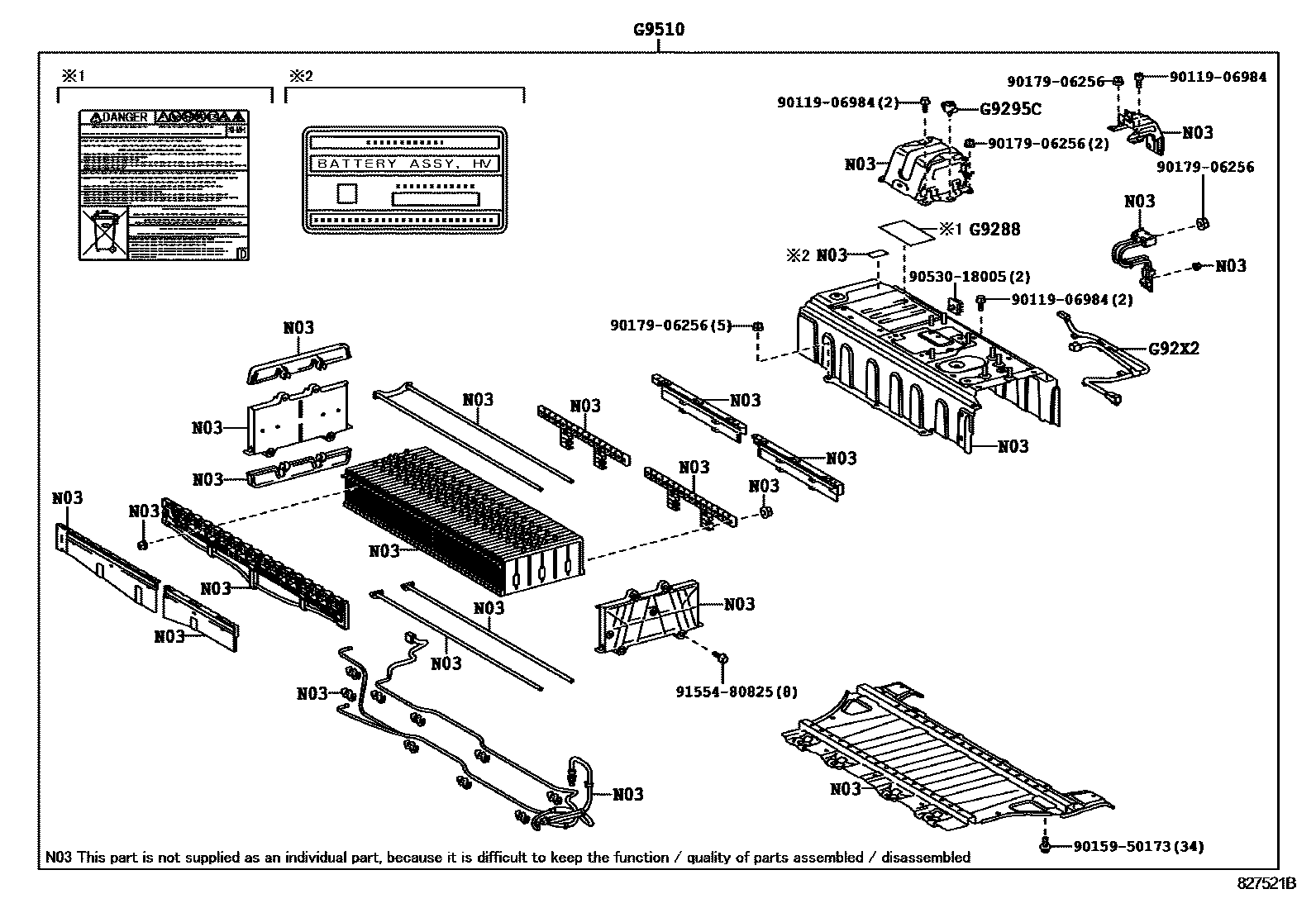

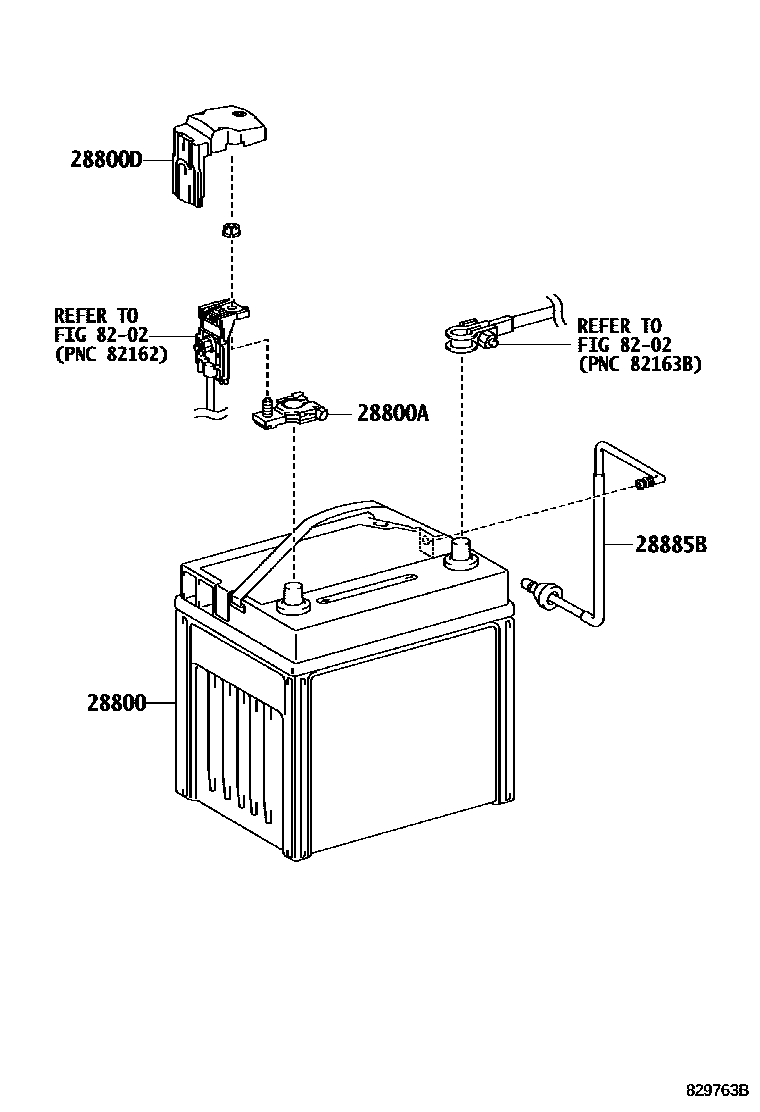

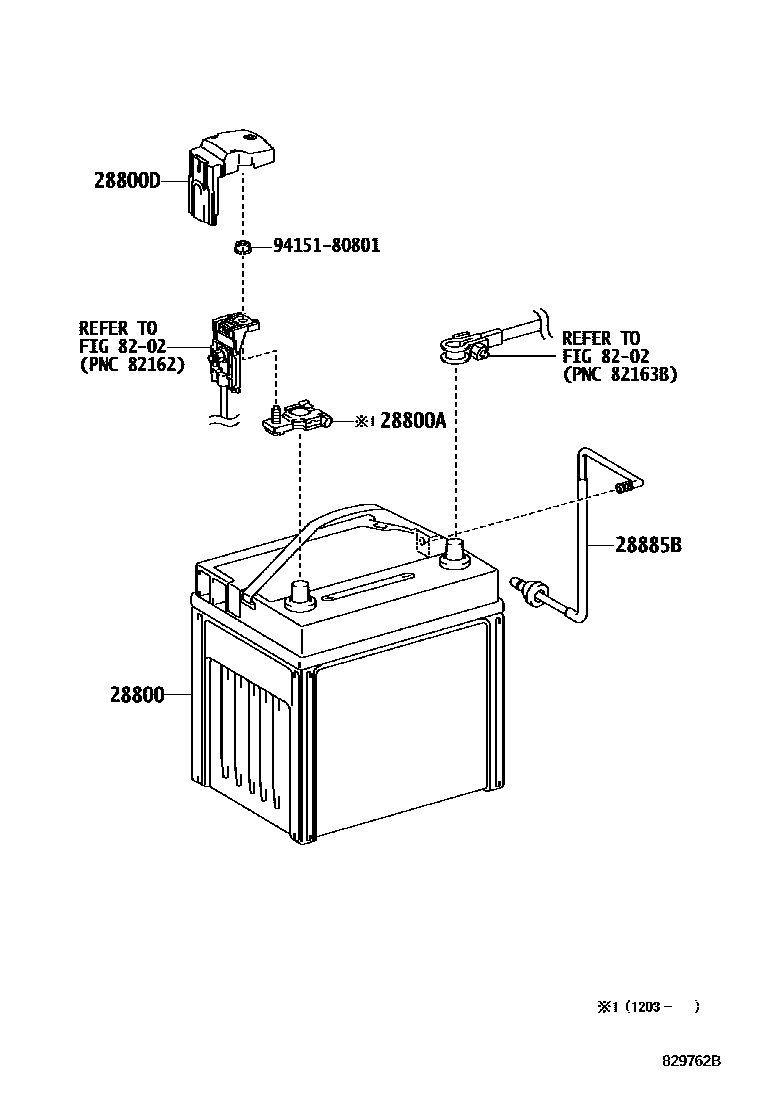

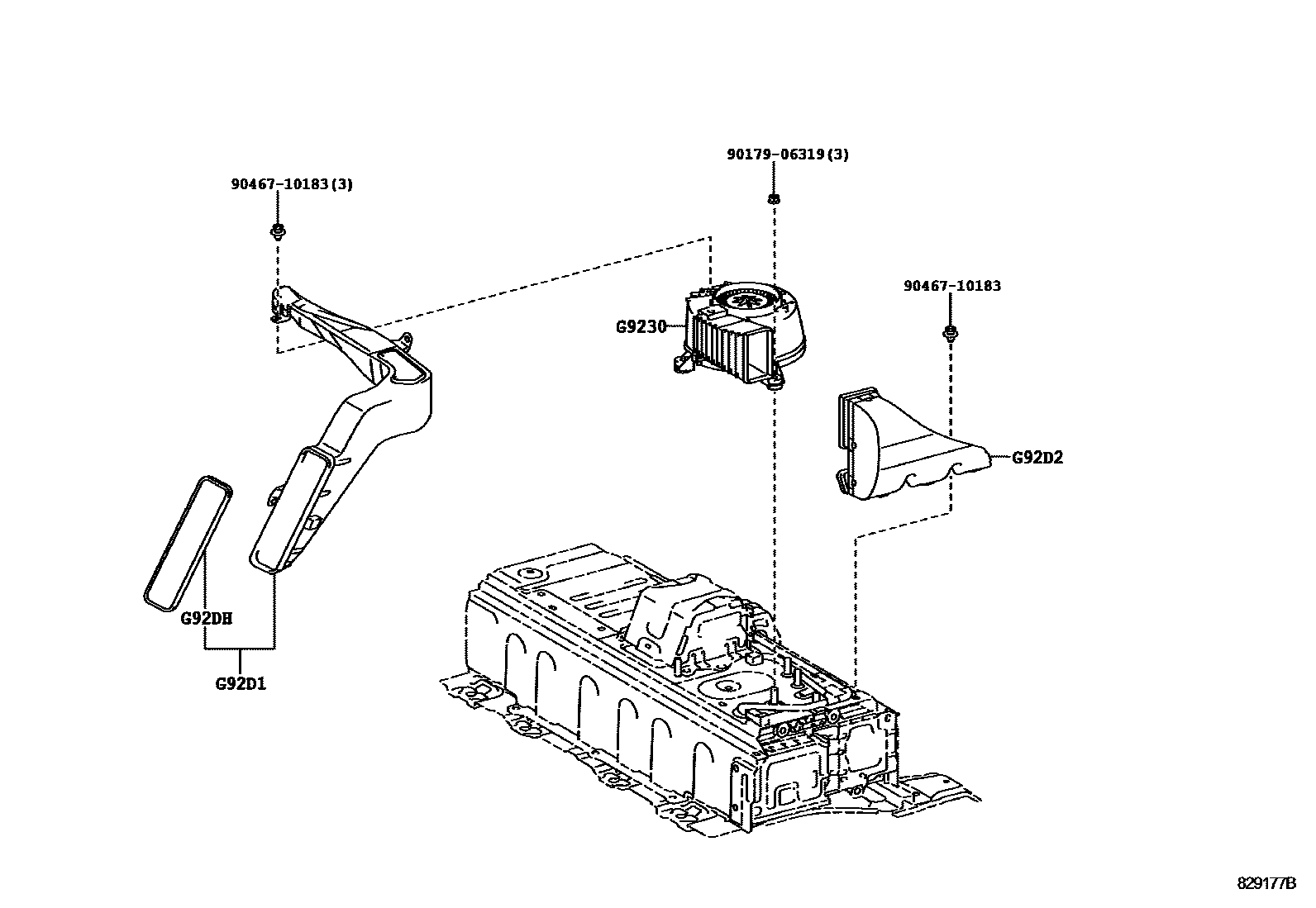

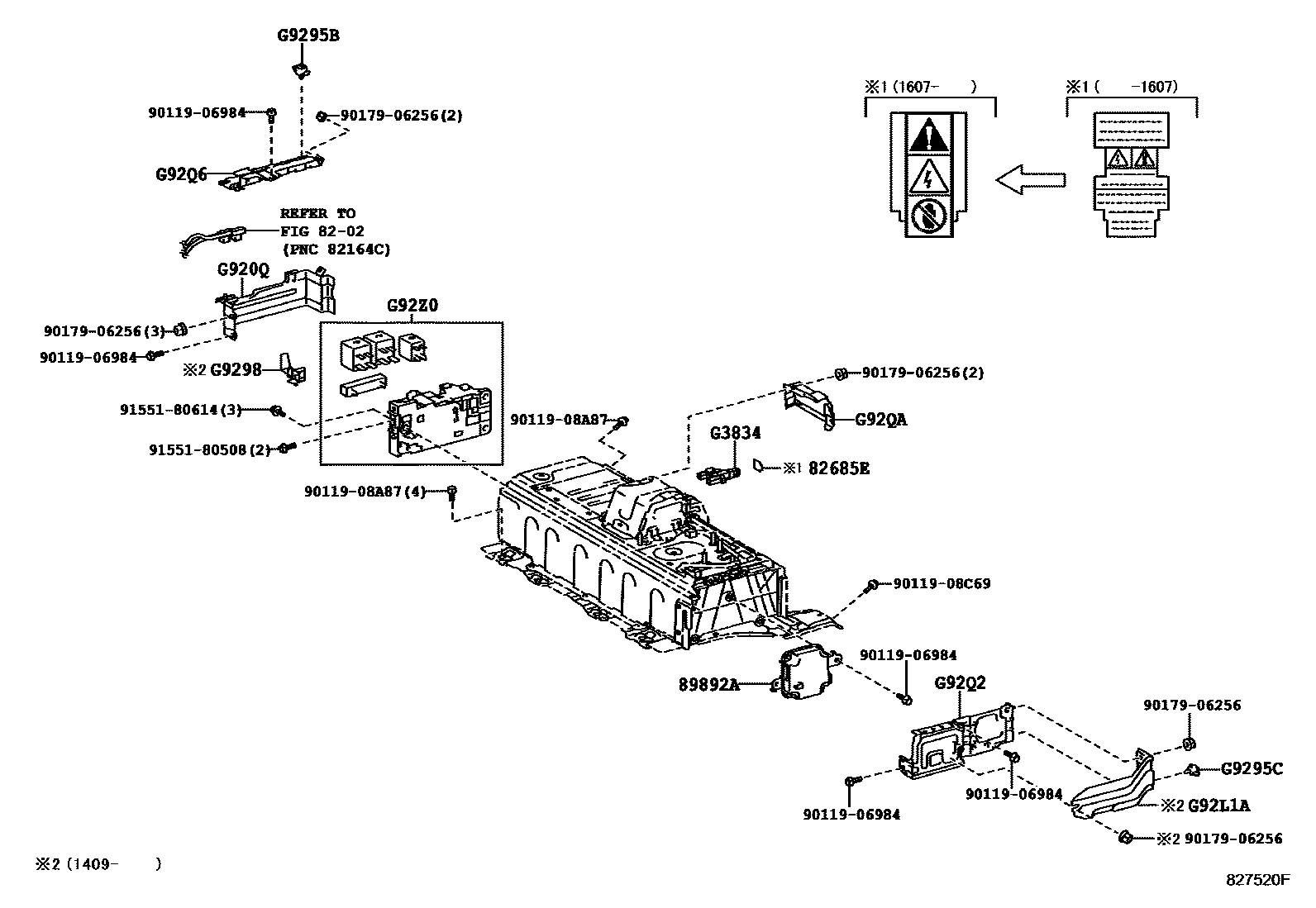

Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0H161 · 28800-17121 · 28800-28100 · 28800-28150 · 28800-28151 · 28800-28160 · 28800-28161 · 28800-28210 · 28800-38080 · 28800-42041 · 28800-42061 · 28800-42062 · 28800-54020 |
| 28800A | battery positive terminal | 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-33350 · 82821-47110 |
| 28885B | battery hose | 28885-36010 · 28885-36011 |
| 28897 | Battery warning nameplate | 28897-31040 |
| 28898 | battery plates | 28898-46020 |
| 82685E | Maintenance plug warning nameplate | 82685-50050 · 82685-76020 |
| 89892A | battery voltage sensor | 89892-33020 · 89892-33030 |
| G3834 | Service plug handle | G3834-48010 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-33010 |
| G9230 | Battery cooling blower assembly | G9230-33030 |
| G9288 | Battery charging precautions label | G9288-47100 |
| G9295B | Battery cover lock | G9295-30020 |
| G9295C | Battery cover No. 2 lock | G9295-30020 |
| G9298 | HV battery clip | G9298-33010 |
| G92D1 | No. 1 HV battery air inlet | G92D1-33020 · G92D1-33021 · G92D1-33022 |
| G92D2 | No. 2 HV battery air inlet | G92D2-33020 |
| G92DH | FILTRE, ENTREE BATTERIE HAUTE TENSION, NO.1 | G92DH-33040 · G92DH-33060 |
| G92L1A | SUPPORT, CACHE GAUCHE DE BATTERIE VE, NO.1 | G92L1-33030 |
| G92Q2 | No. 2 HV battery shielding plate | G92Q2-33010 |
| G92Q6 | HV battery No. 4 shielding plate | G92Q6-33010 · G92Q6-33020 |
| G92QA | No. 8 HV battery shielding plate | G92QA-33010 |
| G92X2 | No. 2 HV battery pack wiring harness | G92X2-33010 |
| G92Z0 | HV battery junction box assembly | G92Z0-33020 · G92Z0-33030 |
| G9510 | HV power supply battery assembly | G9510-33060 · G9510-33080 · G9510-33090 |
