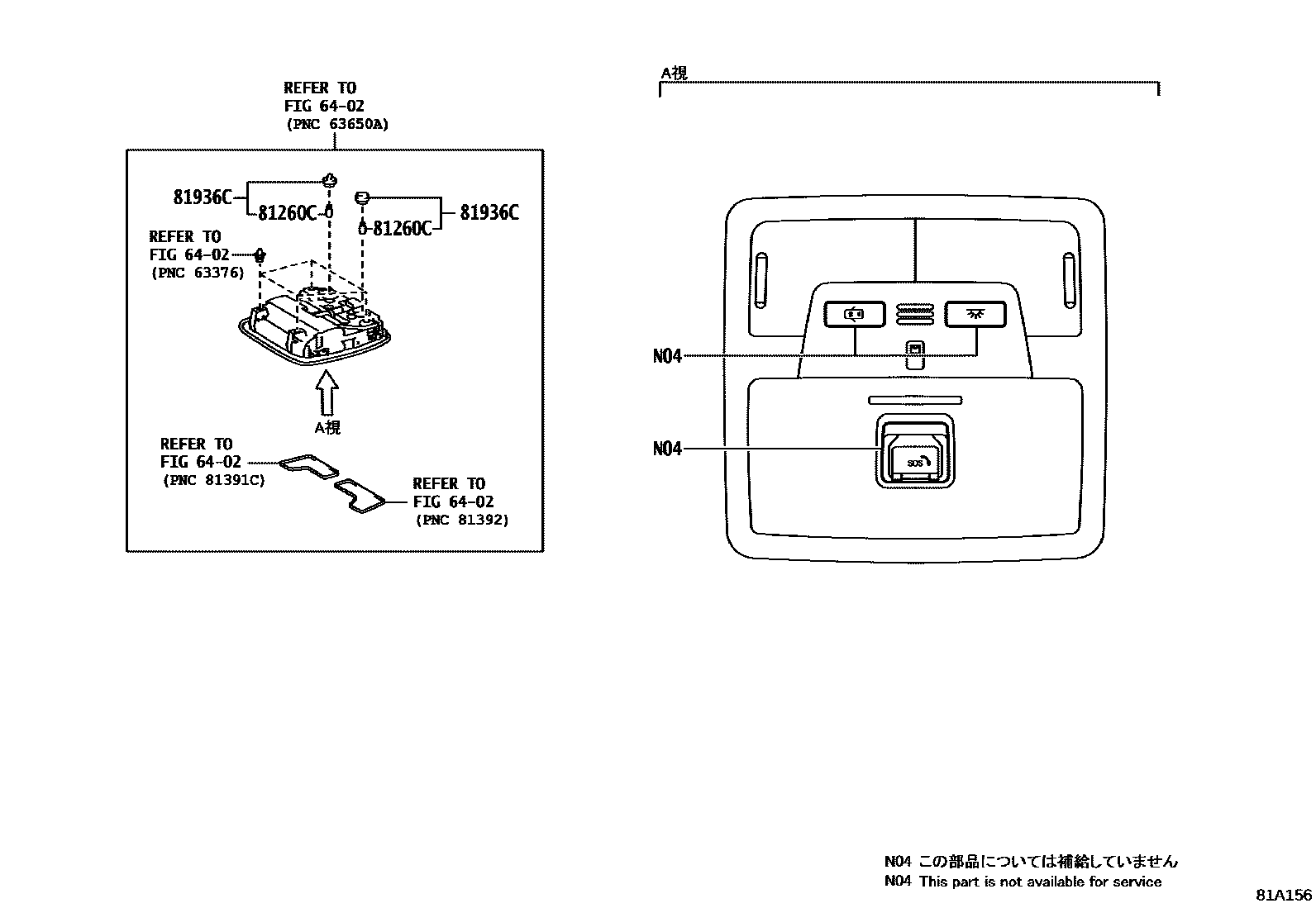

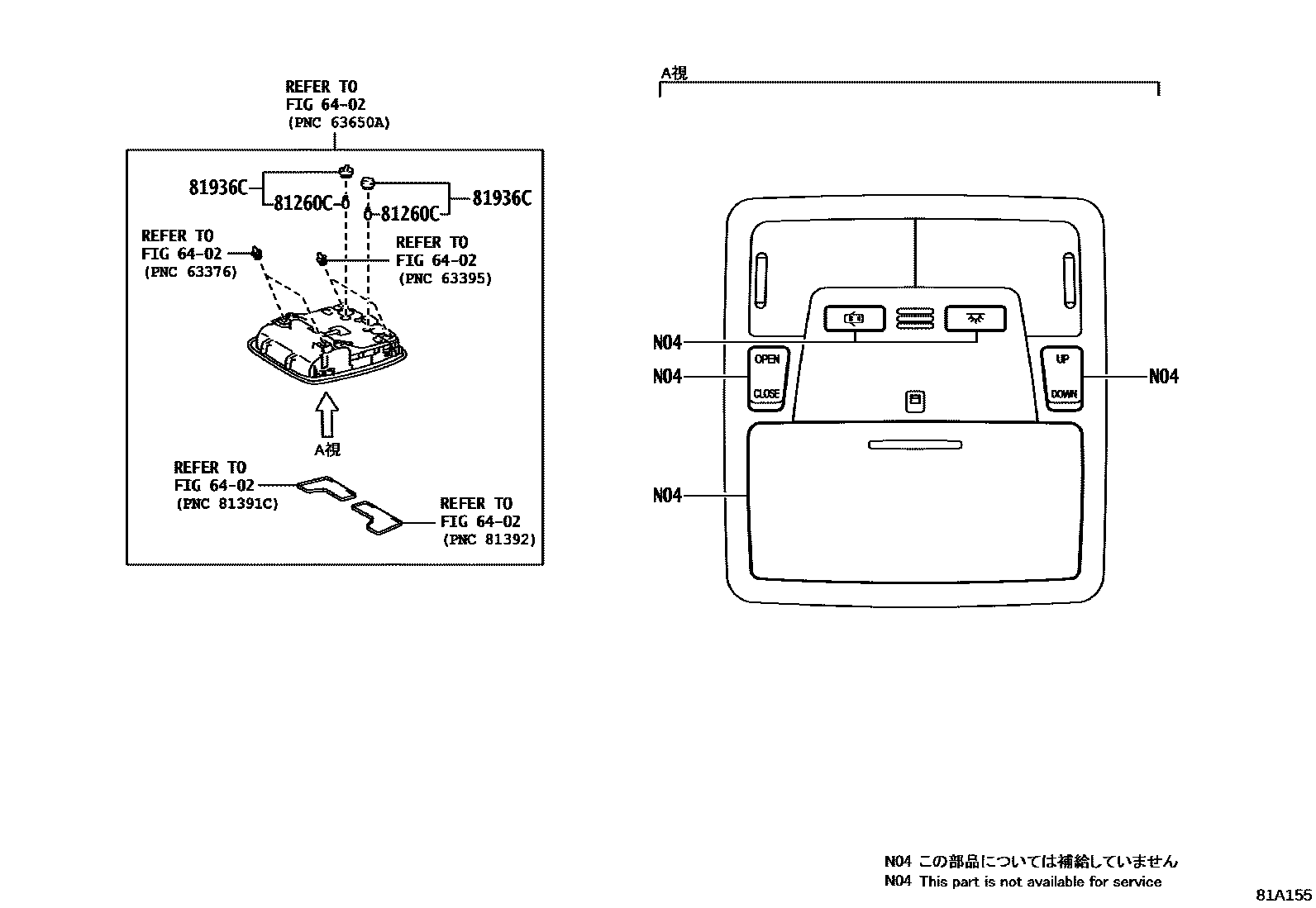

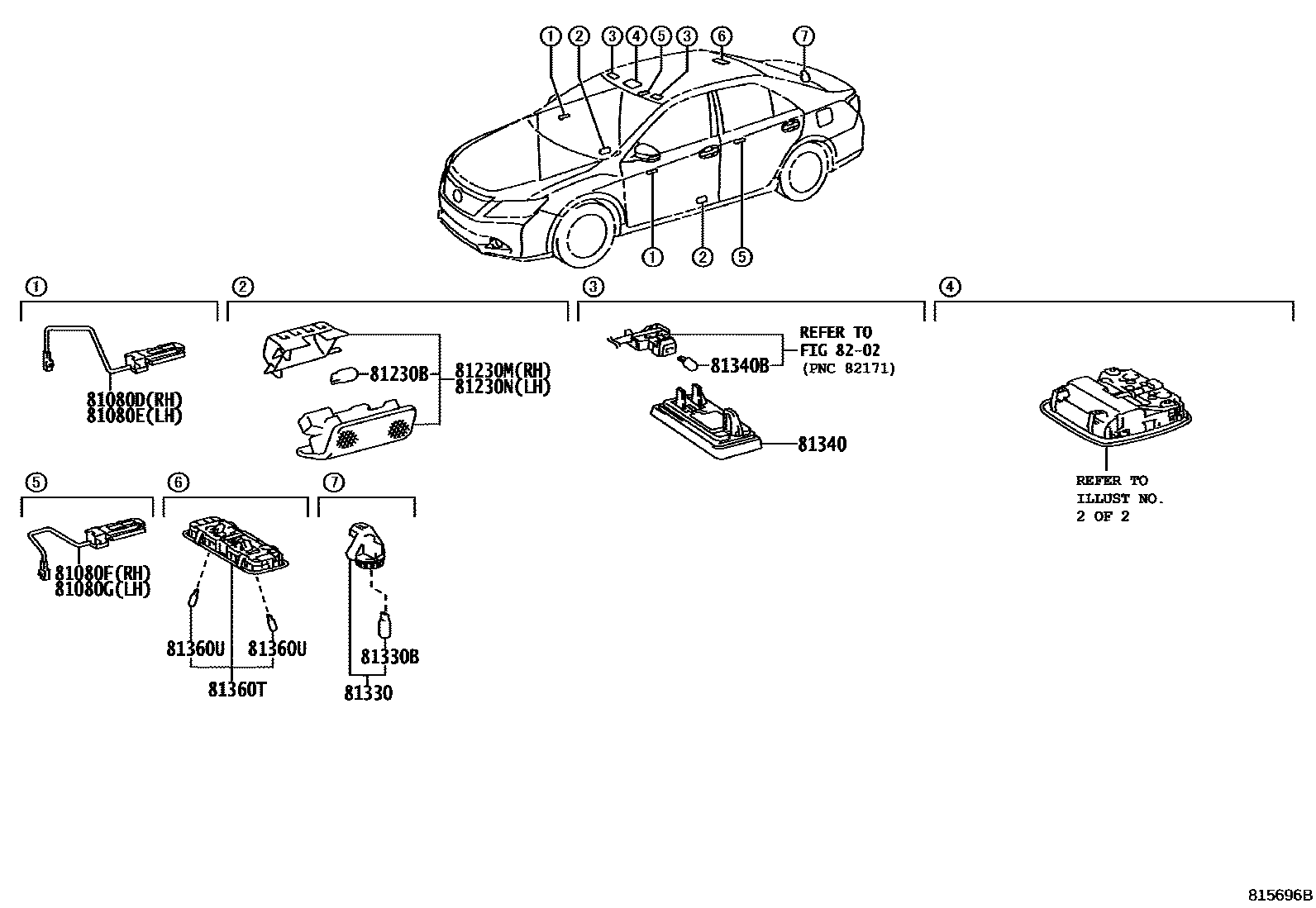

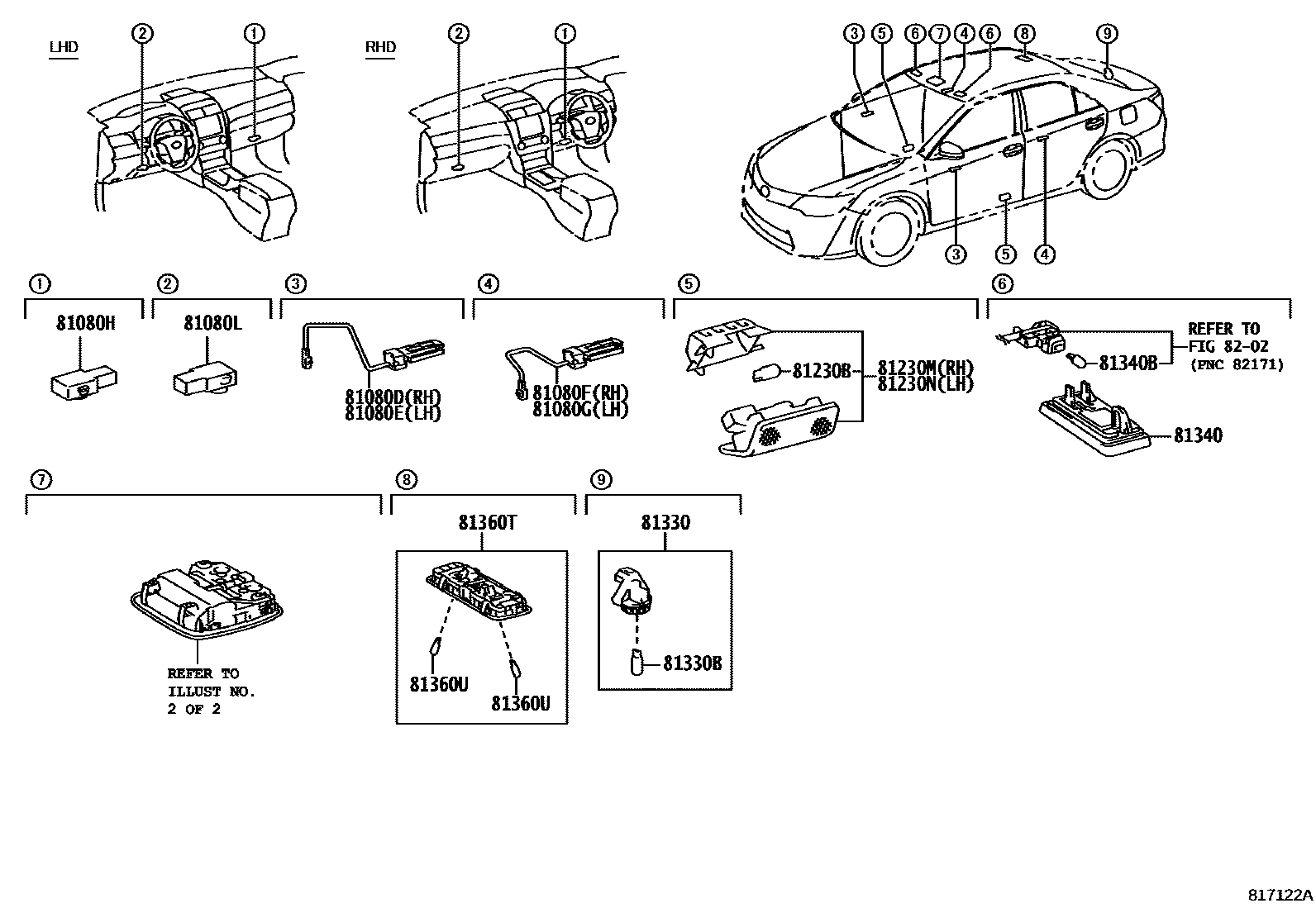

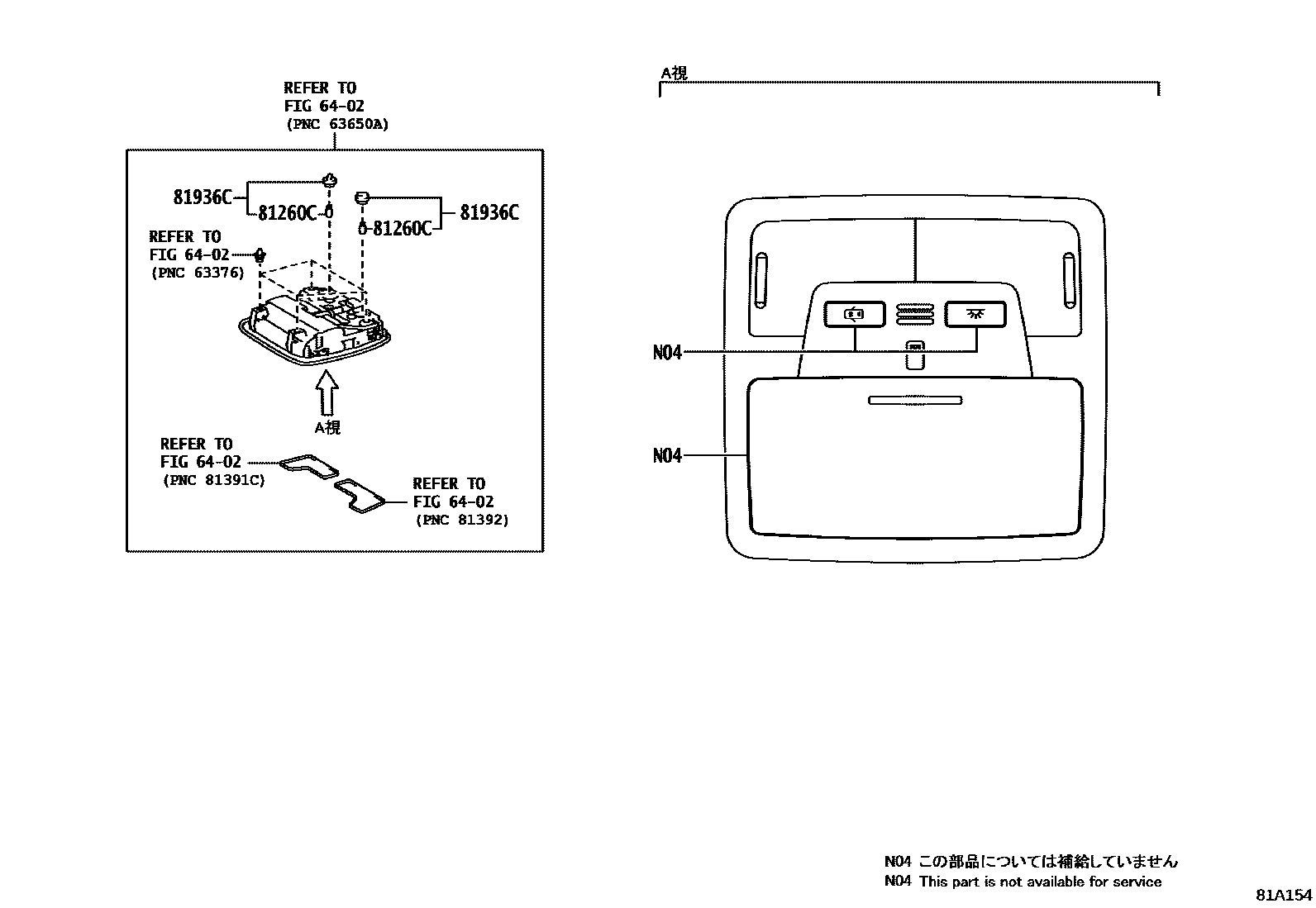

Toyota CAMRY 车内灯 — Figure 8121
Toyota CAMRY EPC diagram 8121, 车内灯, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080D | Right front door inner handle lighting assembly | 81080-33040 · 81080-33100 |
| 81080E | Left front door inner handle lighting assembly | 81080-33050 · 81080-33110 |
| 81080F | Right rear door inner handle lighting assembly | 81080-33060 · 81080-33120 |
| 81080G | Left rear door inner handle lighting assembly | 81080-33070 · 81080-33130 |
| 81080H | Right No. 1 interior lighting assembly | 81080-48020 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-48020 |
| 81230B | Bulb (for gated lights) | 90981-12010 |
| 81230M | Right door control light assembly | 81230-30200 · 81230-47010 |
| 81230N | Left door control light assembly | 81230-30200 · 81230-47010 |
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81330 | No. 1 trunk light assembly | 81330-12020 |
| 81330B | trunk light bulb | 90981-11020 |
| 81340 | Vanity light assembly | 81340-30110 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81360U | spotlight light bulb | 90981-11062 |
| 81936C | Bulb assembly | 81936-28010 |
