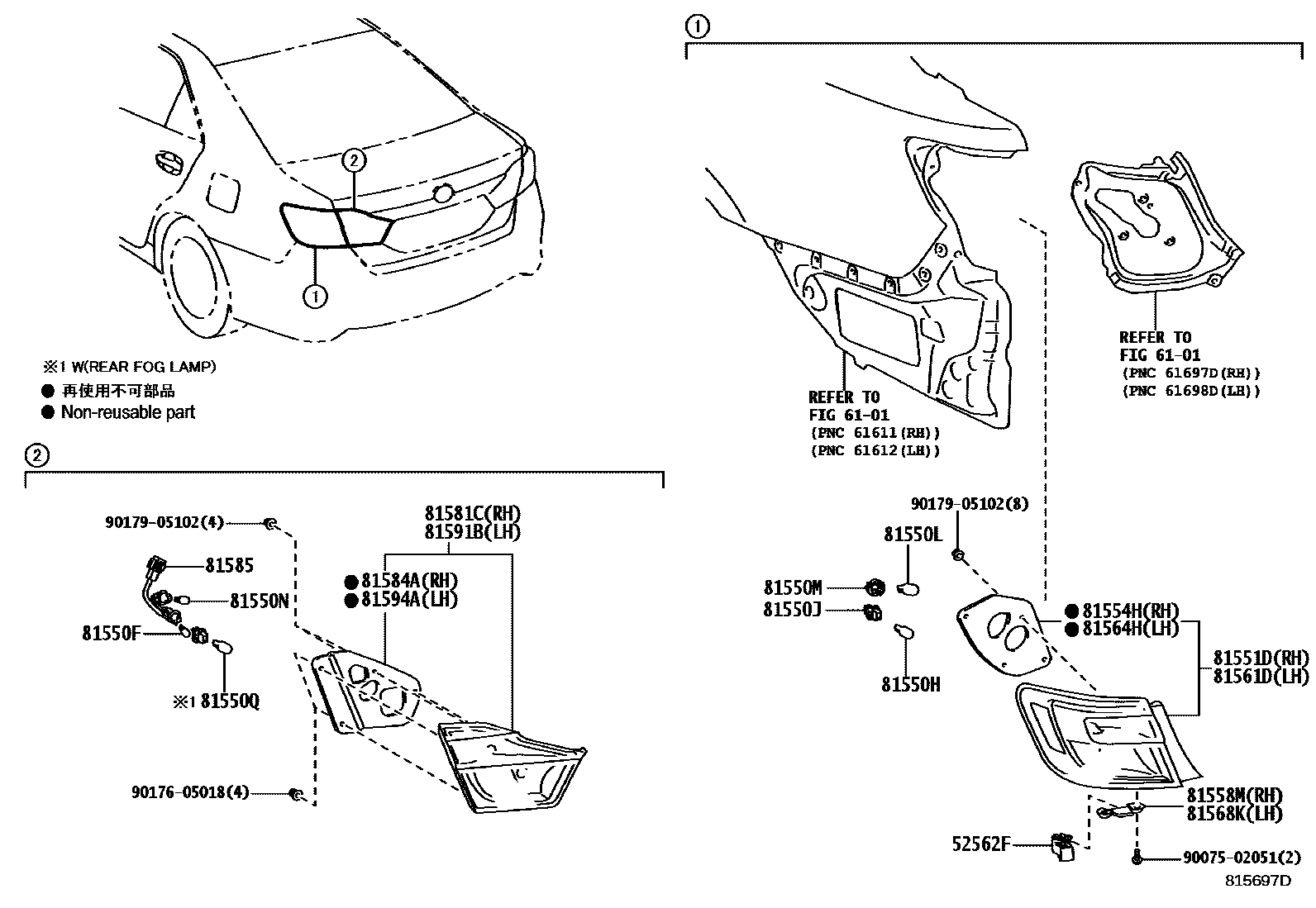

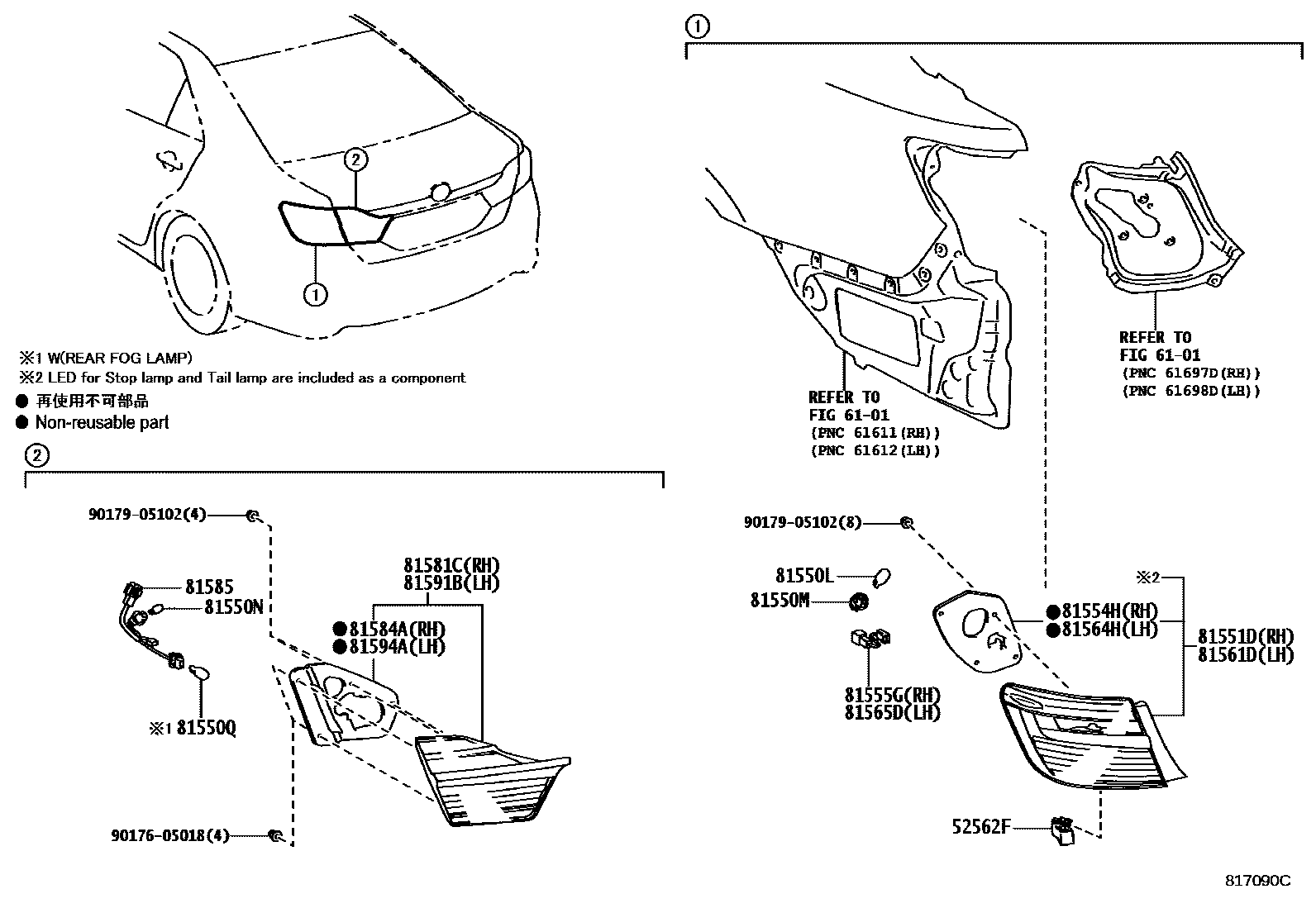

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562F | Rear bumper upper side fixing bracket | 52562-33040 |
| 81550F | tail light bulb | 99132-12050 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60002 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60026 · 90075-60088 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-33550 · 81551-33600 · 81551-33610 · 81551-33611 |
| 81554H | Right rear combination lamp seal | 81554-33550 · 81554-33600 |
| 81555G | CABLE, BLOC OPTIQUE ARRIERE, MD | 81555-33600 |
| 81558M | Right rear combination light bracket | 81558-33550 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-33550 · 81561-33600 · 81561-33610 · 81561-33611 |
| 81564H | Left rear combination lamp seal | 81564-33550 · 81564-33600 |
| 81565D | CABLE, BLOC OPTIQUE ARRIERE, MG | 81555-33600 |
| 81568K | Left rear combination light bracket | 81568-33550 |
| 81581C | Right rear light lampshade and lamp body | 81581-33220 · 81581-33230 · 81581-33270 · 81581-33280 · 81581-33290 · 81581-33291 |
| 81584A | Right rear light gasket | 81584-33220 · 81584-33270 |
| 81585 | Rear lamp holder and wiring harness | 81585-33220 · 81585-33230 · 81585-33270 · 81585-33280 |
| 81591B | Left rear light shade and body | 81591-33200 · 81591-33220 · 81591-33270 · 81591-33280 · 81591-33290 · 81591-33291 |
| 81594A | Left rear light gasket | 81594-33200 · 81594-33270 |
