Toyota CAMRY 前转向灯 — Figure 8103

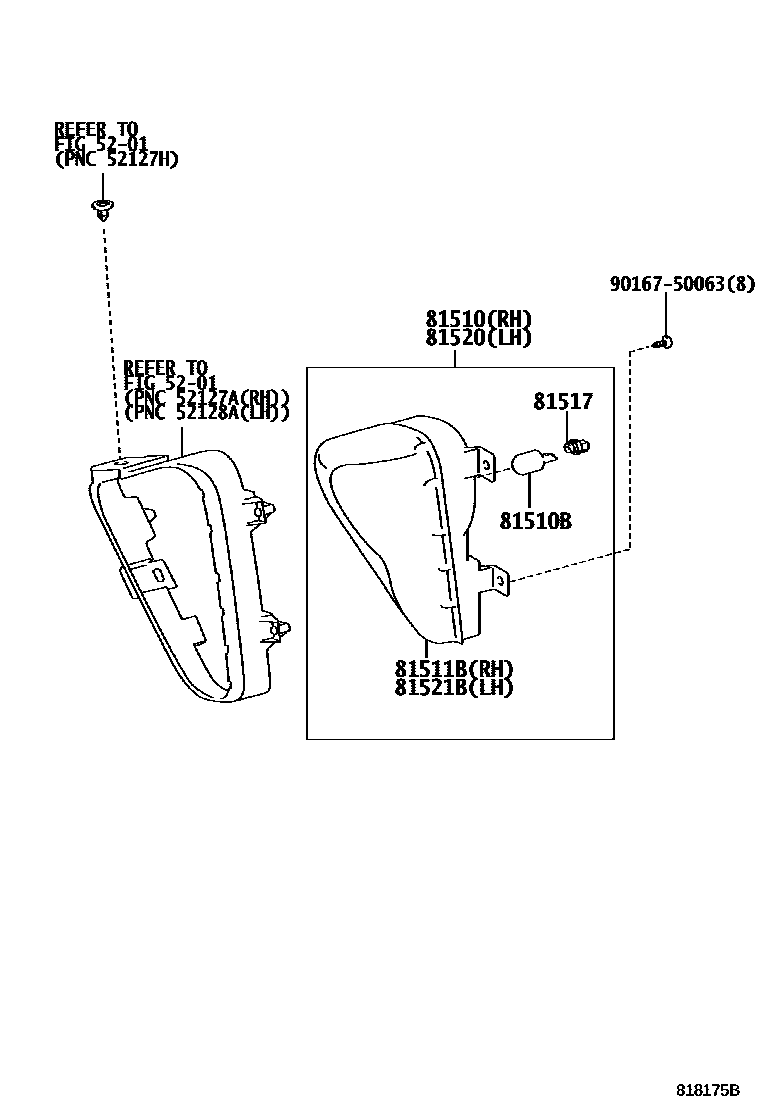

Toyota CAMRY EPC diagram 8103, 前转向灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-33120 |
| 81510B | Bulb (for front turn signal lamp) | 90981-15021 |
| 81511B | LENTILLE ET CARROSSERIE, FEU DE DIRECTION AVANT, DROIT | 81511-33120 |
| 81517 | Front turn signal lamp holder | 90075-60028 |
| 81520 | Left front turn signal lamp assembly | 81520-33120 |
| 81521B | LENTILLE ET CARROSSERIE, FEU DE DIRECTION AVANT, GAUCHE | 81521-33120 |
