Toyota CAMRY Fog Lamp — Figure 8102

Toyota CAMRY EPC diagram 8102, Fog Lamp, with 2 images and 5 PNC and OE references.

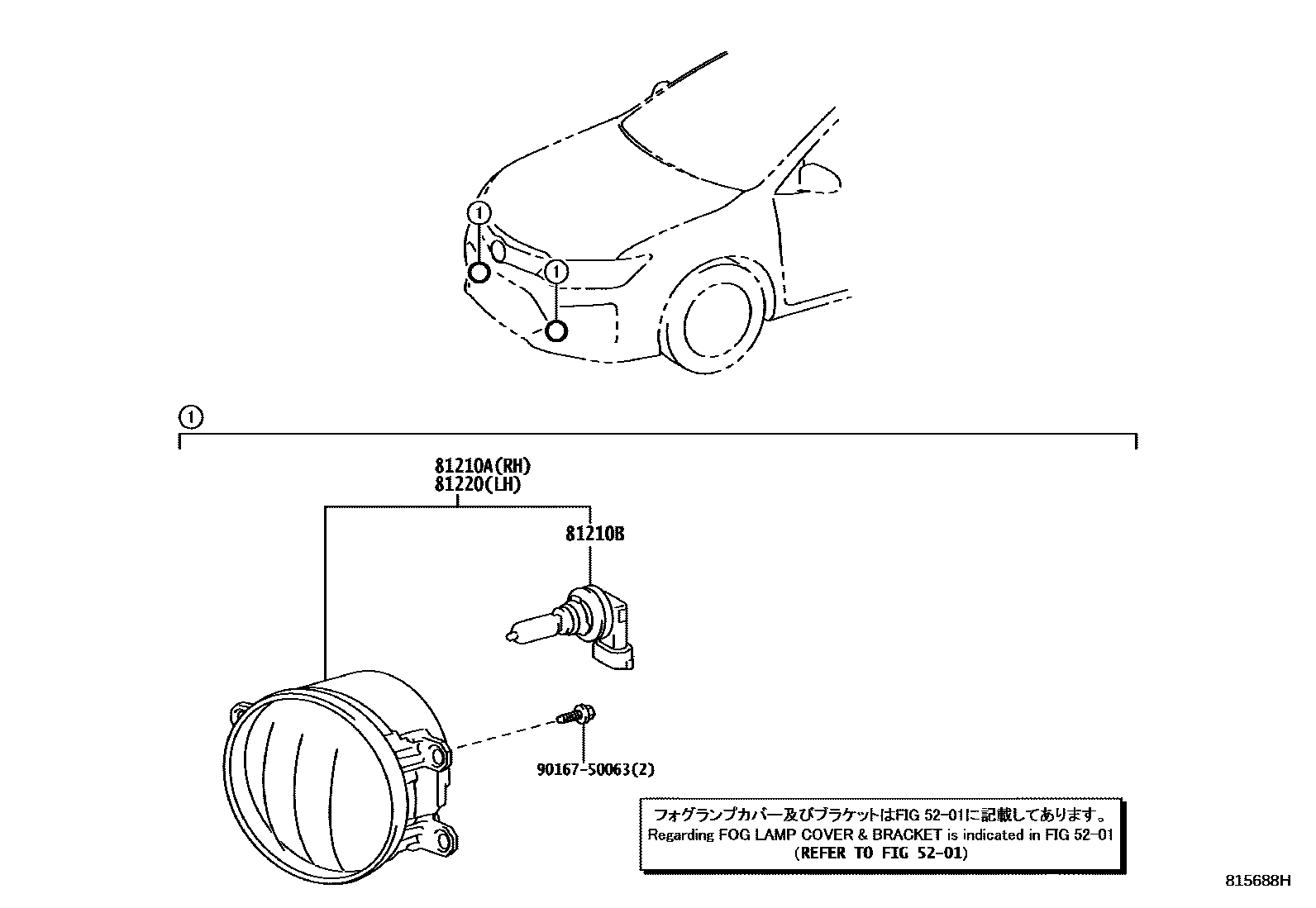

Toyota CAMRY Fog Lamp EPC diagram — 815688H
Fog Lamp — 815688H (201108 – 999999)

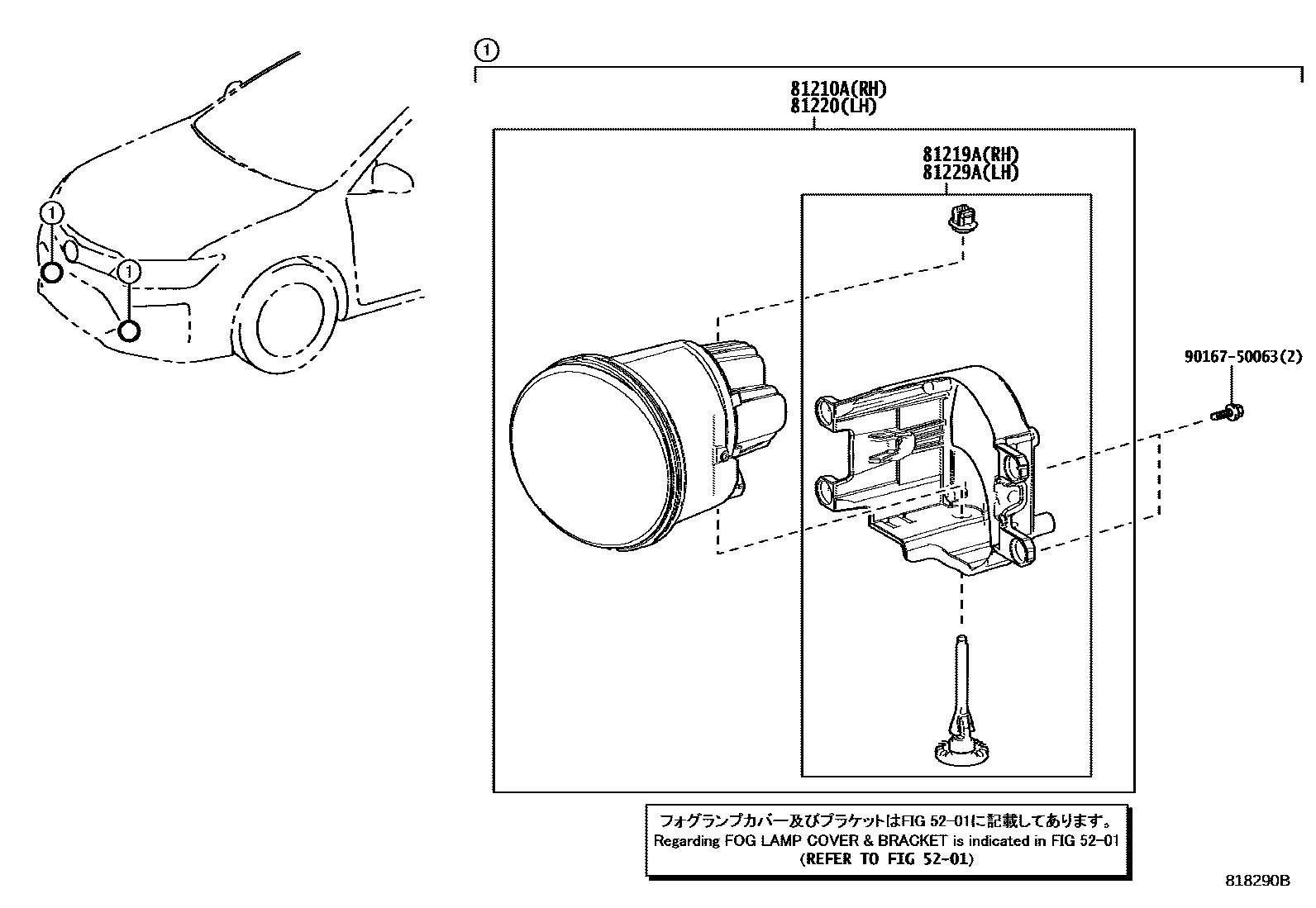

Toyota CAMRY Fog Lamp EPC diagram — 818290B
Fog Lamp — 818290B (201704 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-0D042 · 81210-48051
81210Bfog light bulb90981-13075 · 90981-13081
81219ARight fog light bracket81219-48051
81220Left fog light assembly81220-0D042 · 81220-48051
81229ALeft fog light bracket81229-48051
