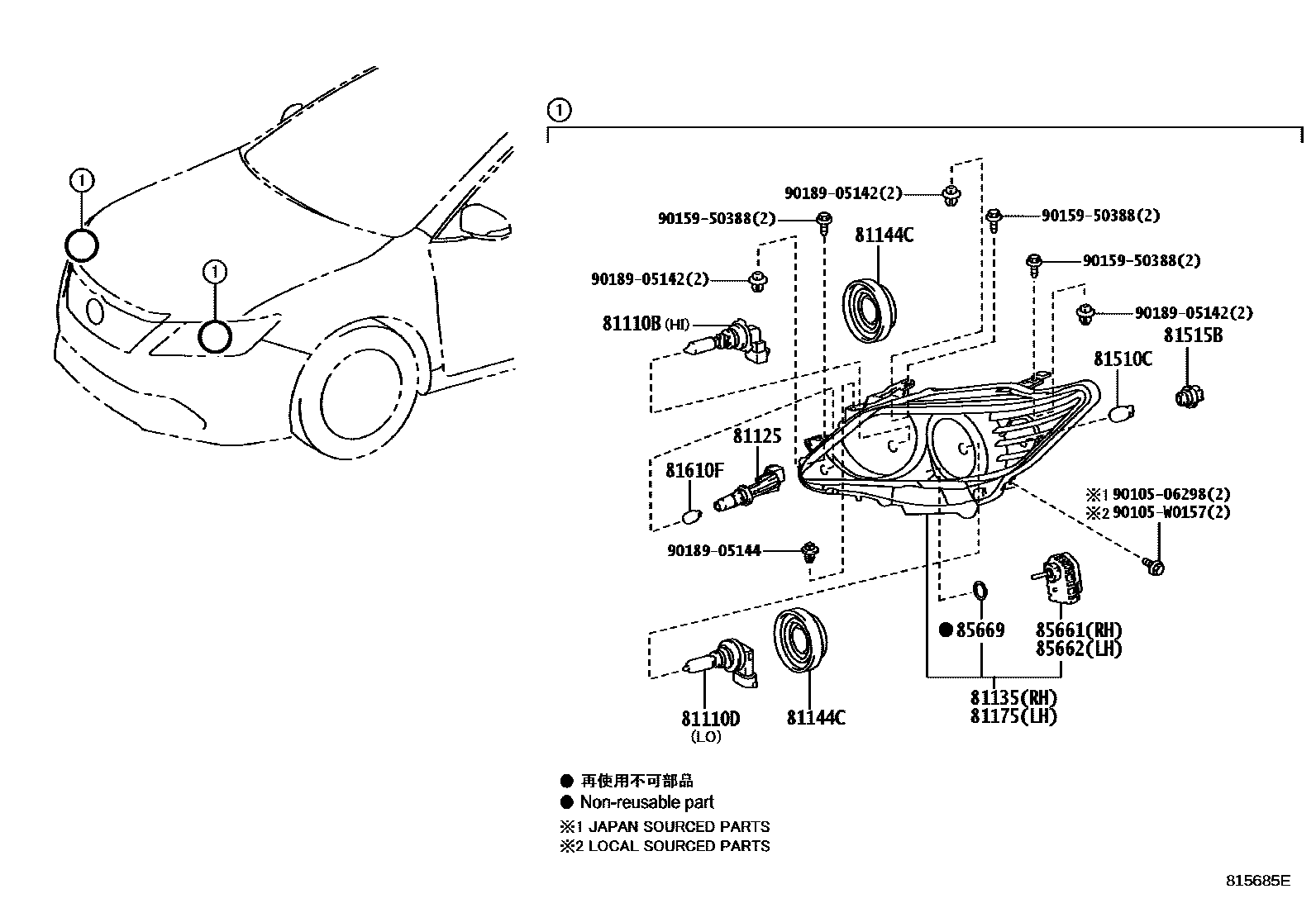

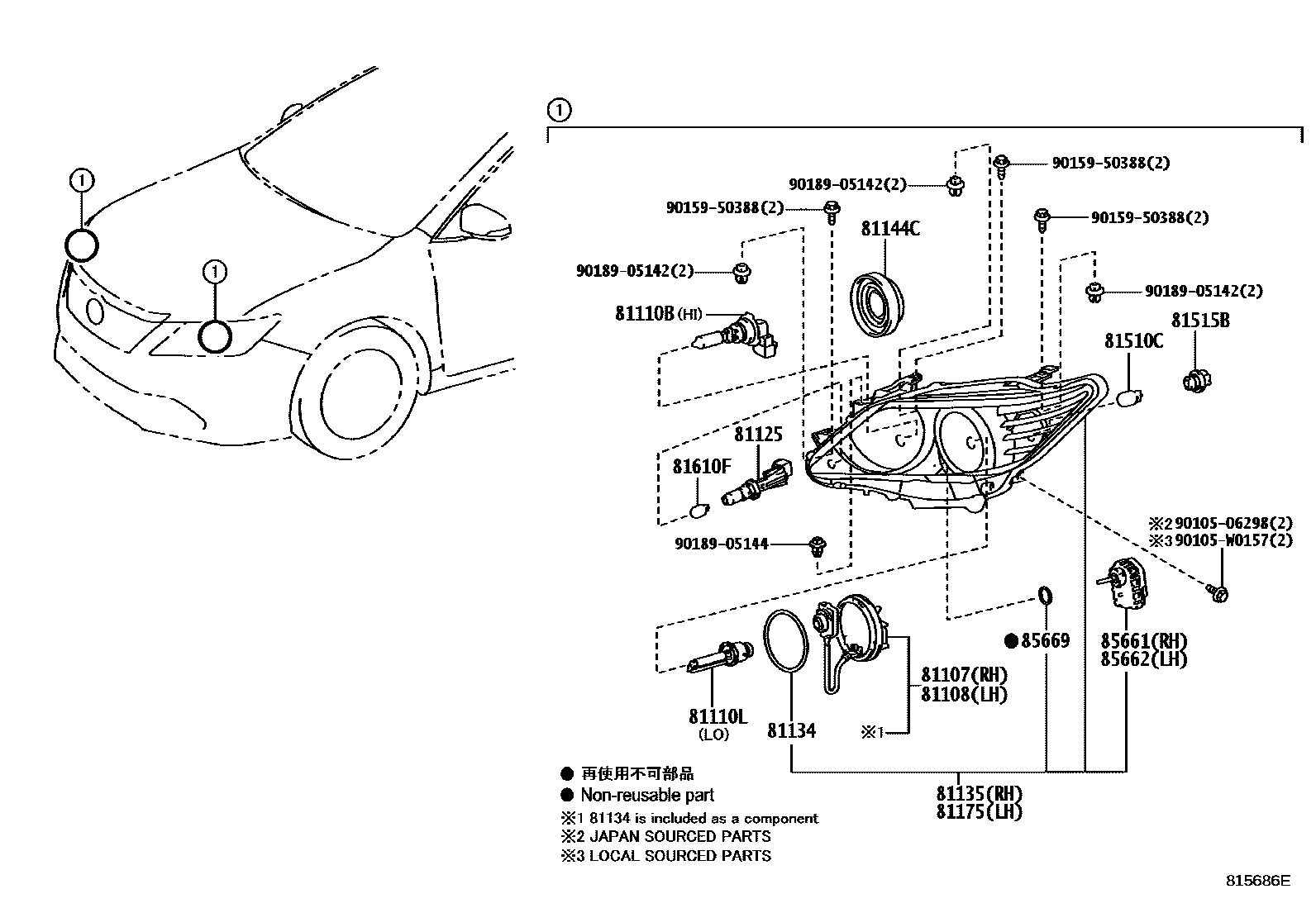

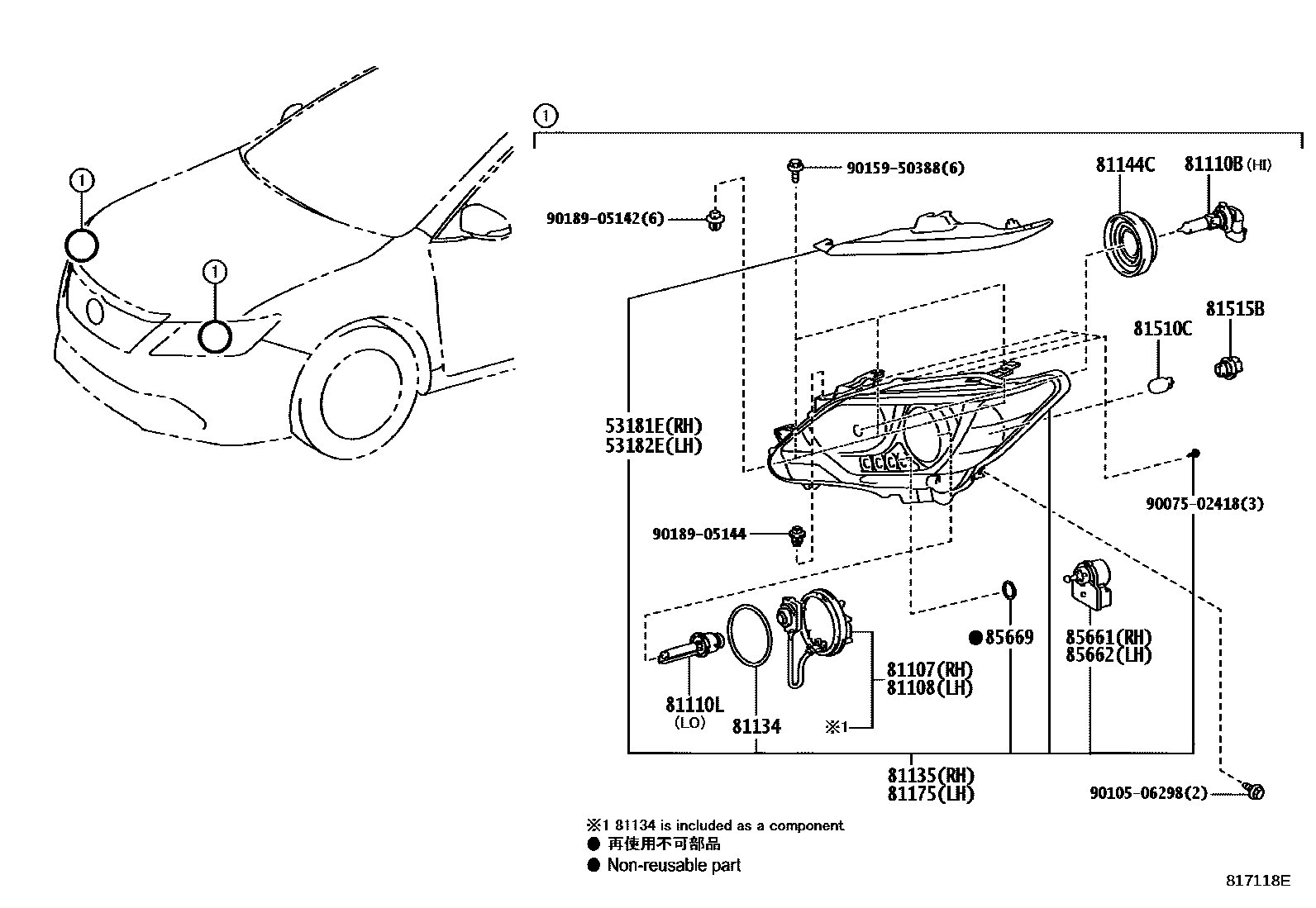

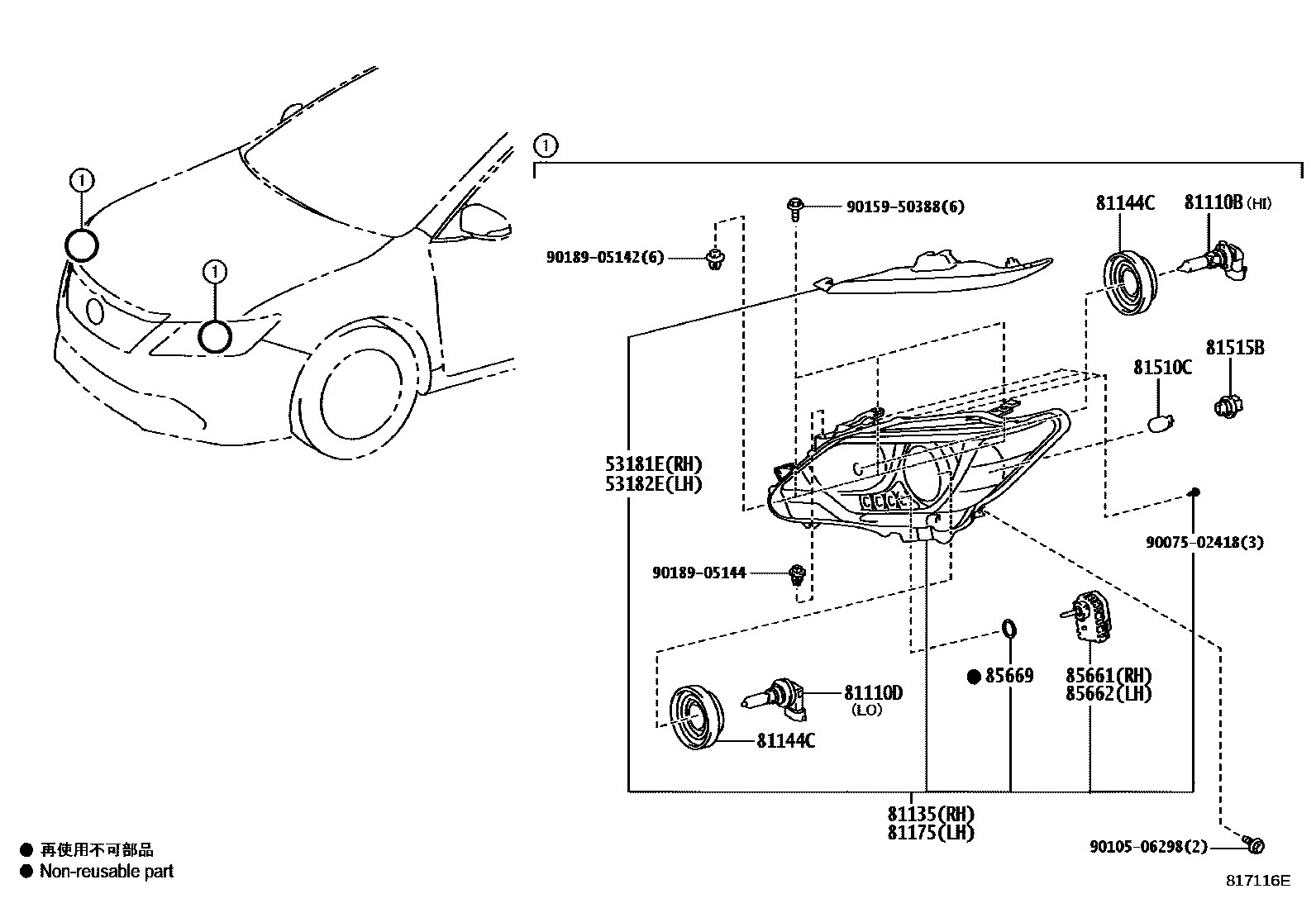

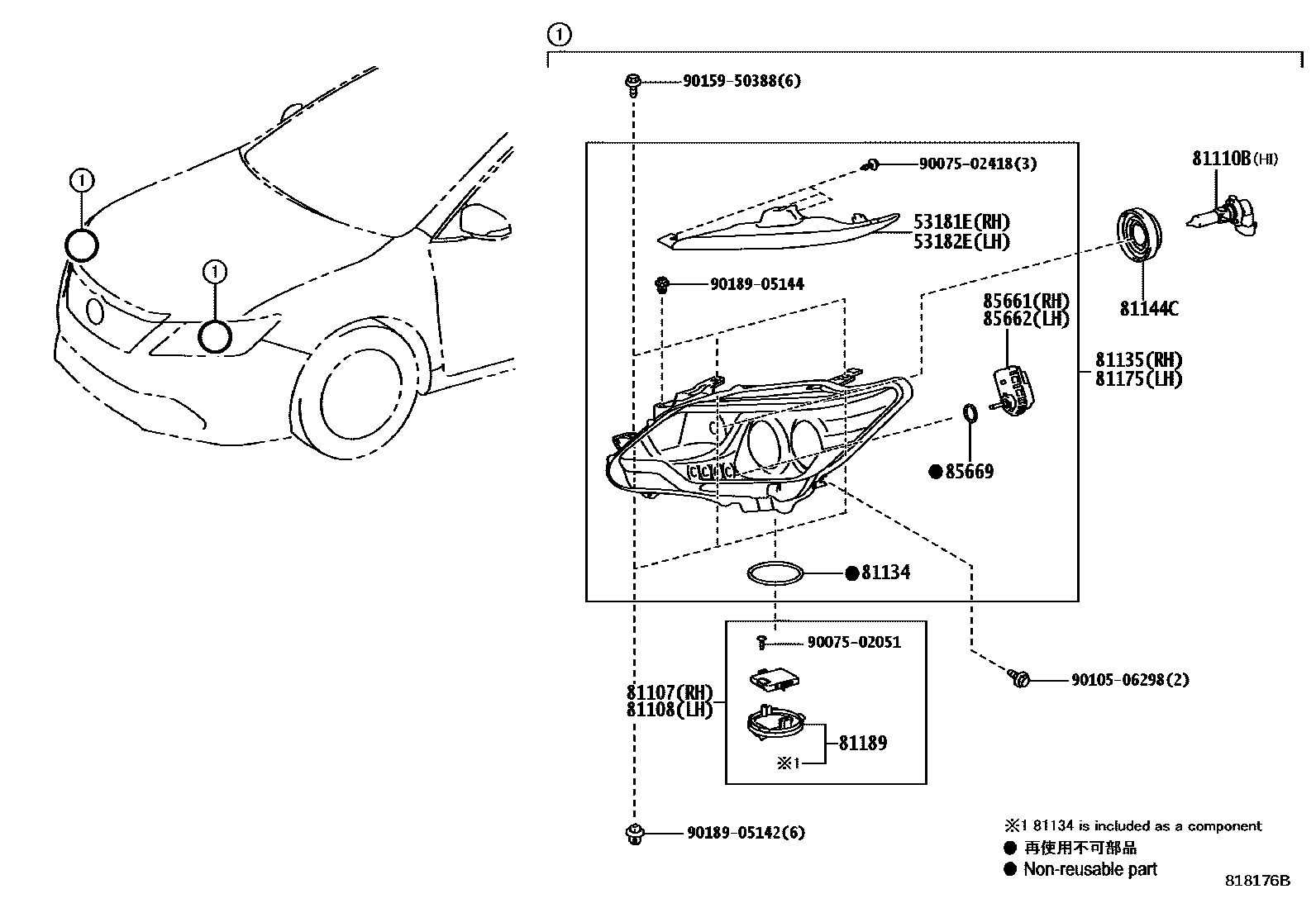

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53181E | Right headlight cover | 53181-33010 · 53181-33020 |
| 53182E | Left headlight cover | 53182-33010 · 53182-33020 |
| 81107 | Right headlight control ECU sub-assembly | 81107-60G20 · 81107-75020 |
| 81108 | Left headlight control ECU sub-assembly | 81107-60G20 · 81107-75020 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 |
| 81110L | Discharge headlight bulb | 90981-20024 |
| 81125 | headlight wire | 81125-48470 |
| 81134 | headlight gasket | 90075-23002 |
| 81135 | Right headlight assembly | 81130-33770 · 81130-33771 · 81130-33810 · 81130-33840 · 81130-33841 · 81130-33880 · 81130-33881 · 81145-33780 · 81145-33781 · 81145-33790 · 81145-33791 · 81145-33800 · 81145-33801 · 81145-33850 · 81145-33870 · 81145-33890 · 81145-33891 · 81145-33A00 · 81145-33A01 · 81145-33B00 · 81145-33G40 |
| 81144C | Headlight lamp holder cover | 90075-65006 |
| 81175 | Left headlight assembly | 81170-33770 · 81170-33771 · 81170-33810 · 81170-33840 · 81170-33841 · 81170-33880 · 81170-33881 · 81185-33780 · 81185-33781 · 81185-33790 · 81185-33791 · 81185-33800 · 81185-33801 · 81185-33850 · 81185-33870 · 81185-33890 · 81185-33891 · 81185-33A00 · 81185-33A01 · 81185-33A50 · 81185-33G40 |
| 81189 | headlight cover | 81135-60G20 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 · 85661-12020 · 85661-28011 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 · 85661-12020 · 85691-28011 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
