Toyota CAMRY 前防护条 — Figure 7502

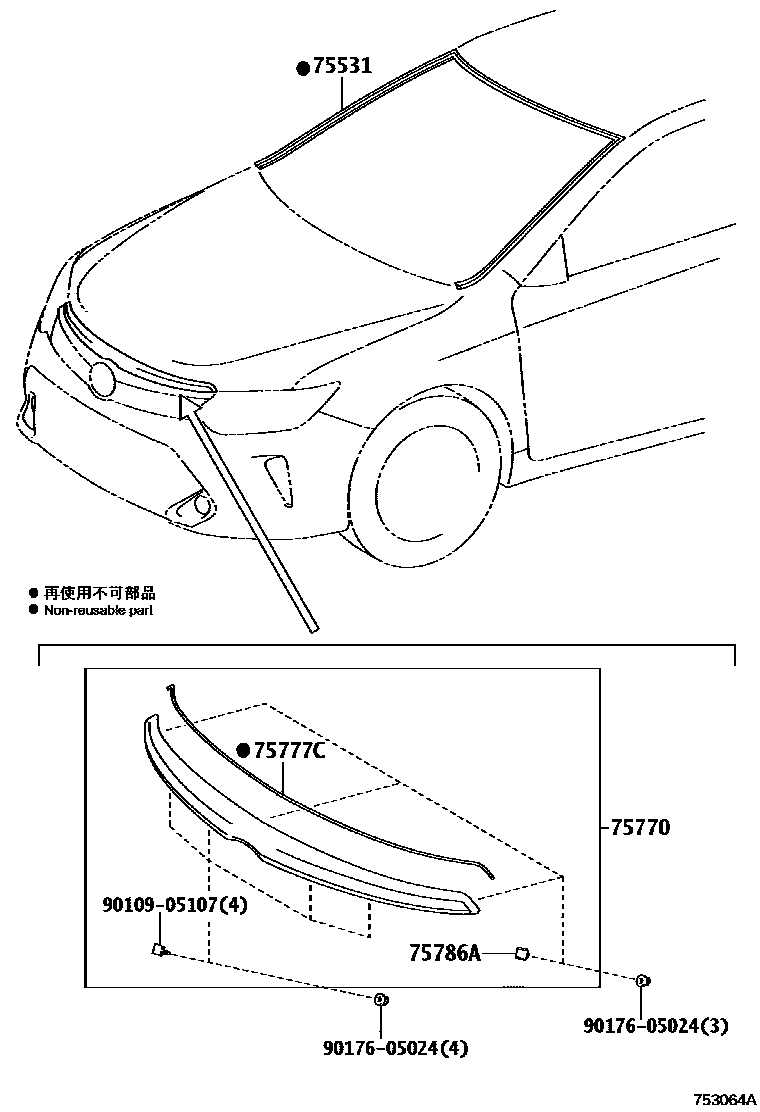

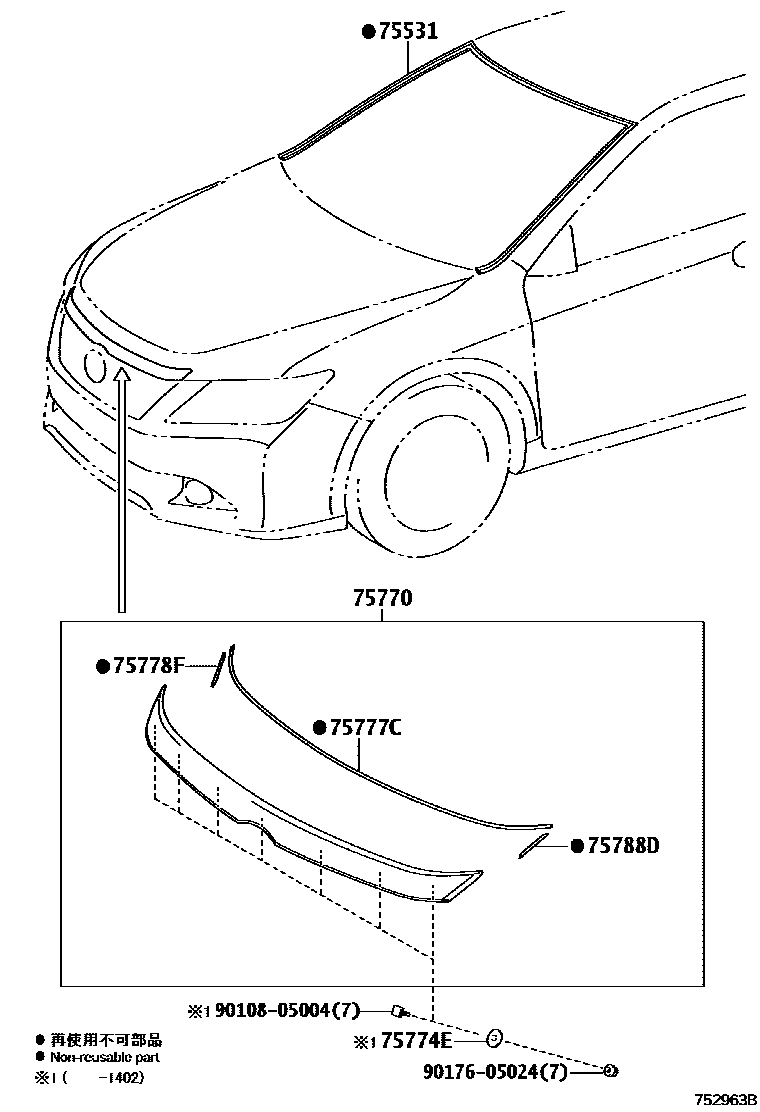

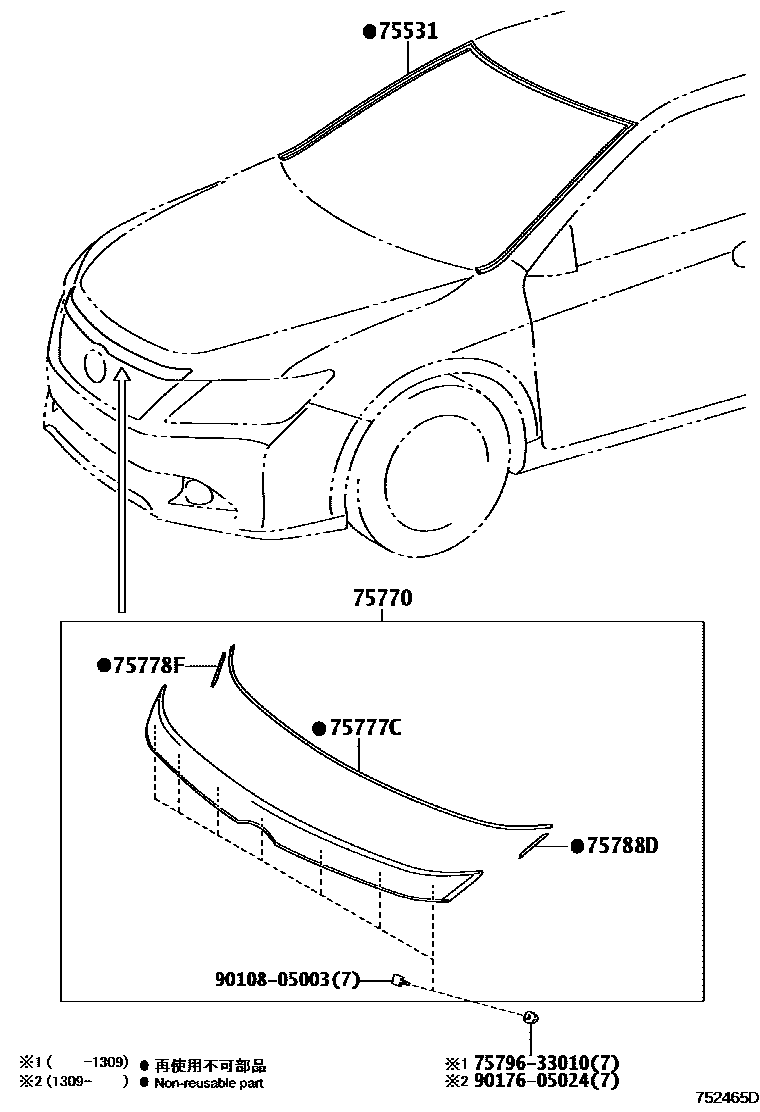

Toyota CAMRY EPC diagram 7502, 前防护条, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-33140 |
| 75770 | Engine cover front protective strip assembly | 75770-33010 · 75770-33011 · 75770-33020 · 75770-33021 · 75770-33022 · 75770-33023 · 75770-33030 · 75770-33040 · 75770-33050 · 75770-33060 |
| 75774E | Engine cover protective strip spacer | 75774-33010 |
| 75777C | Engine cover front protective strip liner | 75777-33010 · 75777-33030 |
| 75778F | Engine cover front protective strip right gasket | 75778-33010 |
| 75786A | Engine cover front protective strip fixings | 75786-33010 |
| 75788D | Engine cover front protective strip left gasket | 75788-33020 |
