Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 8 PNC and OE references.

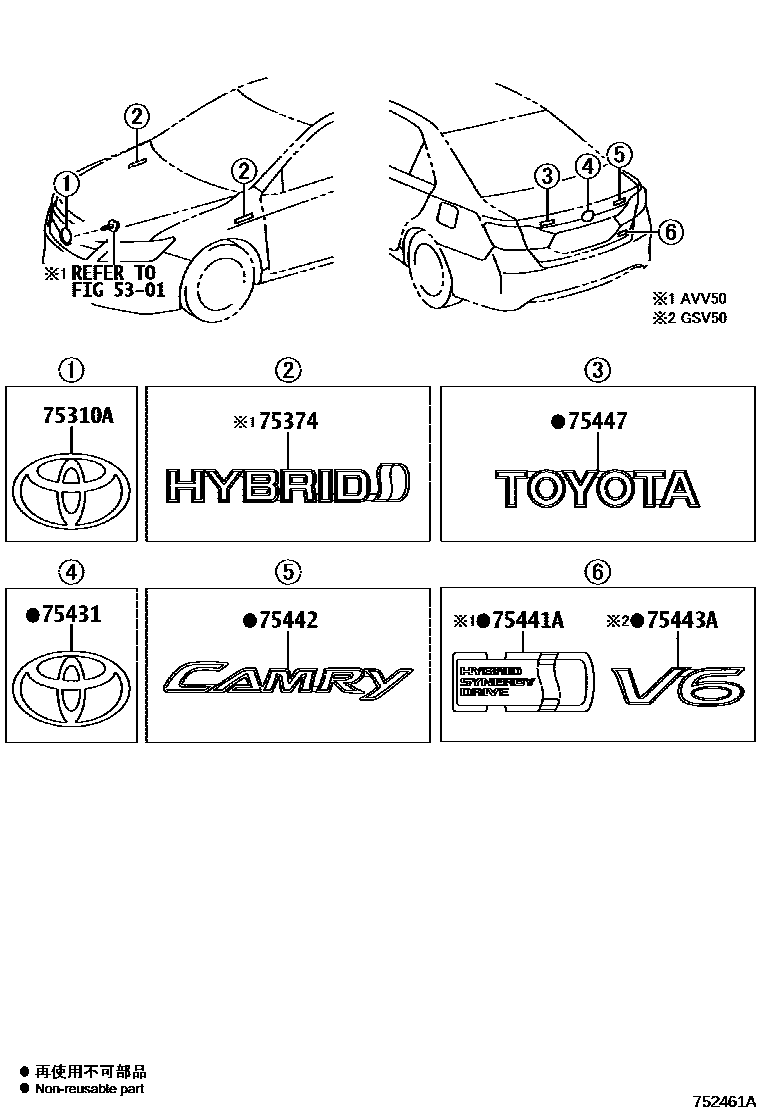

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 752461A
丰田徽标和铭牌(车外和车内) — 752461A (201108 – 201411)

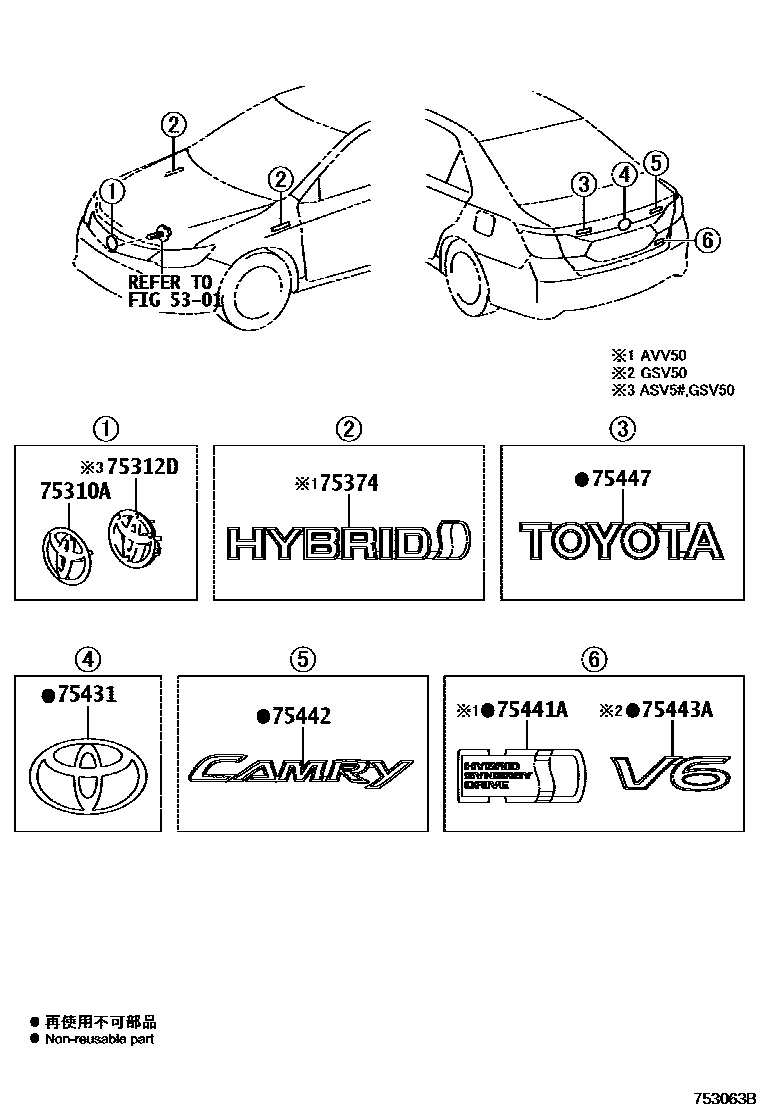

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 753063B
丰田徽标和铭牌(车外和车内) — 753063B (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly75310-47010 · 90975-02189 · 90975-02192 · 90975-T2022
75312DRadiator grille plate base75311-06250 · 75311-33200
75374side panel sign75374-52050 · 75374-52060
75431luggage compartment door sign75403-33030 · 75403-33040 · 75403-48010 · 90975-02071 · 90975-02127
75441ATrunk door No. 1 name plate75441-33151
75442Trunk door number plate No. 275442-33330 · 75442-33350
75443ATrunk door No. 3 nameplate75443-33530 · 75443-33550
75447Trunk door No. 7 nameplate75447-33140 · 75447-33150
