Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

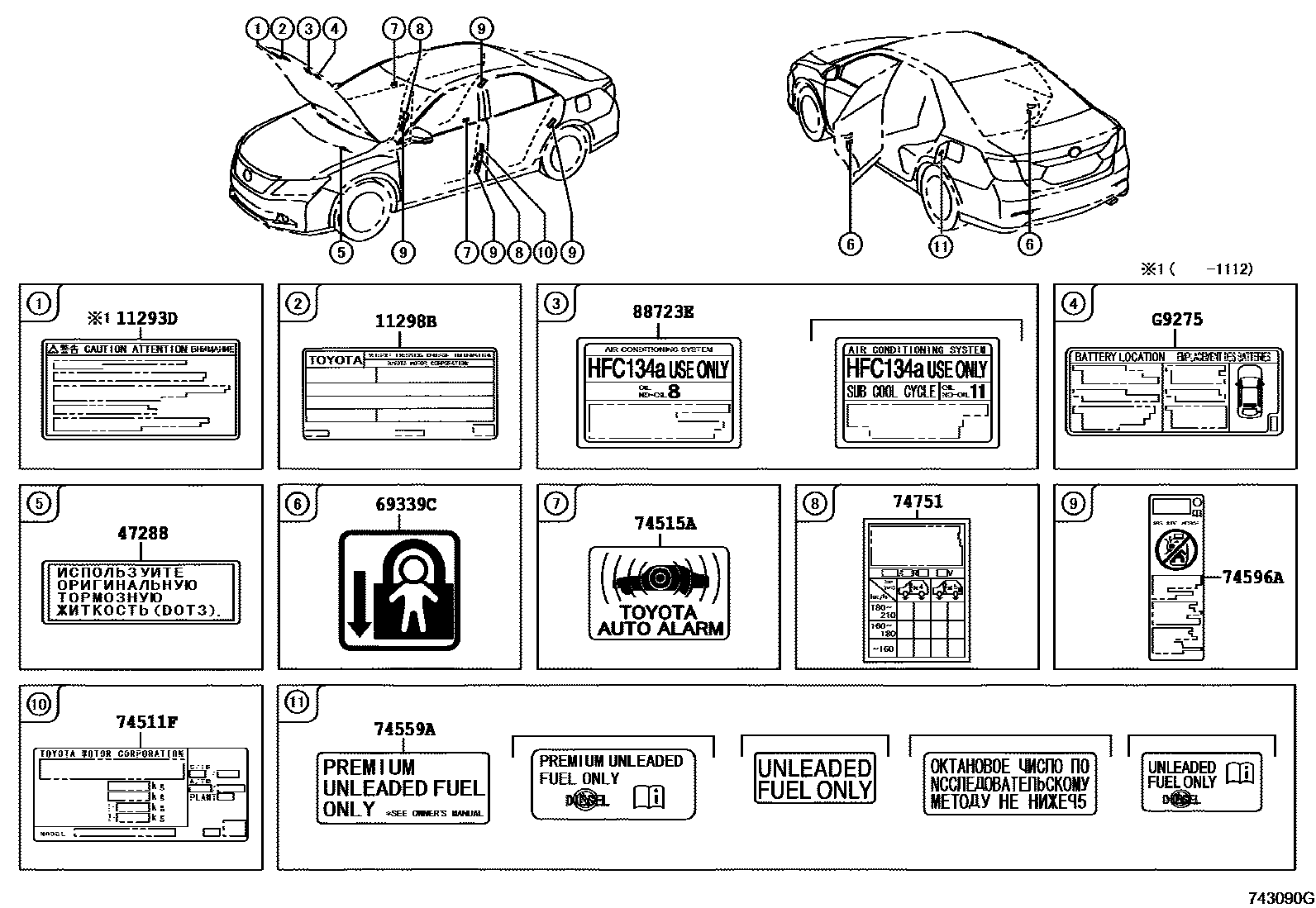

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

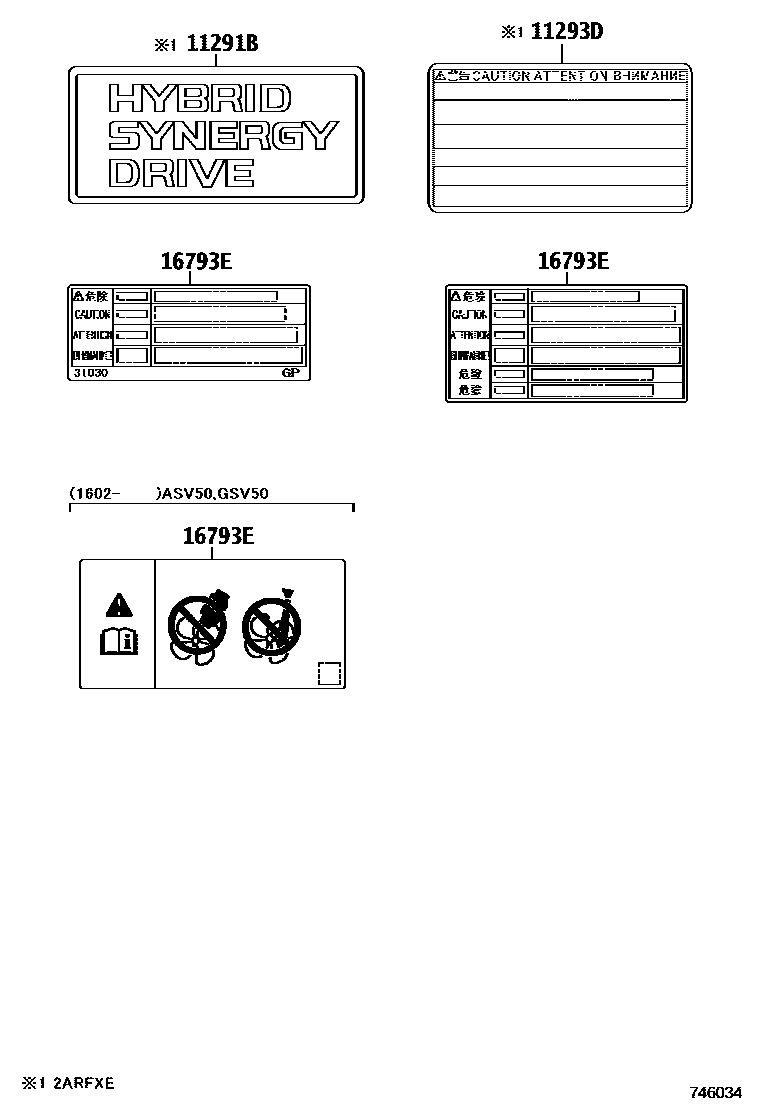

| 11291B | PLAQUE INDICATRICE DE MOTEUR | 11291-36040 |
| 11293D | engine warning label | 11293-21090 · 11293-36070 |
| 11298B | Emission Control Information Label | 11298-31150 · 11298-31K80 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-31030 · 16793-31040 · 16793-36050 |
| 47288 | Brake Fluid Caution Label | 47288-33010 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-48020 |
| 74515A | Anti-theft warning nameplate | 74515-33020 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-20140 · 74559-33020 · 74559-50010 · 74559-60030 |
| 74596A | Side air bag warning label | 74596-53011 |

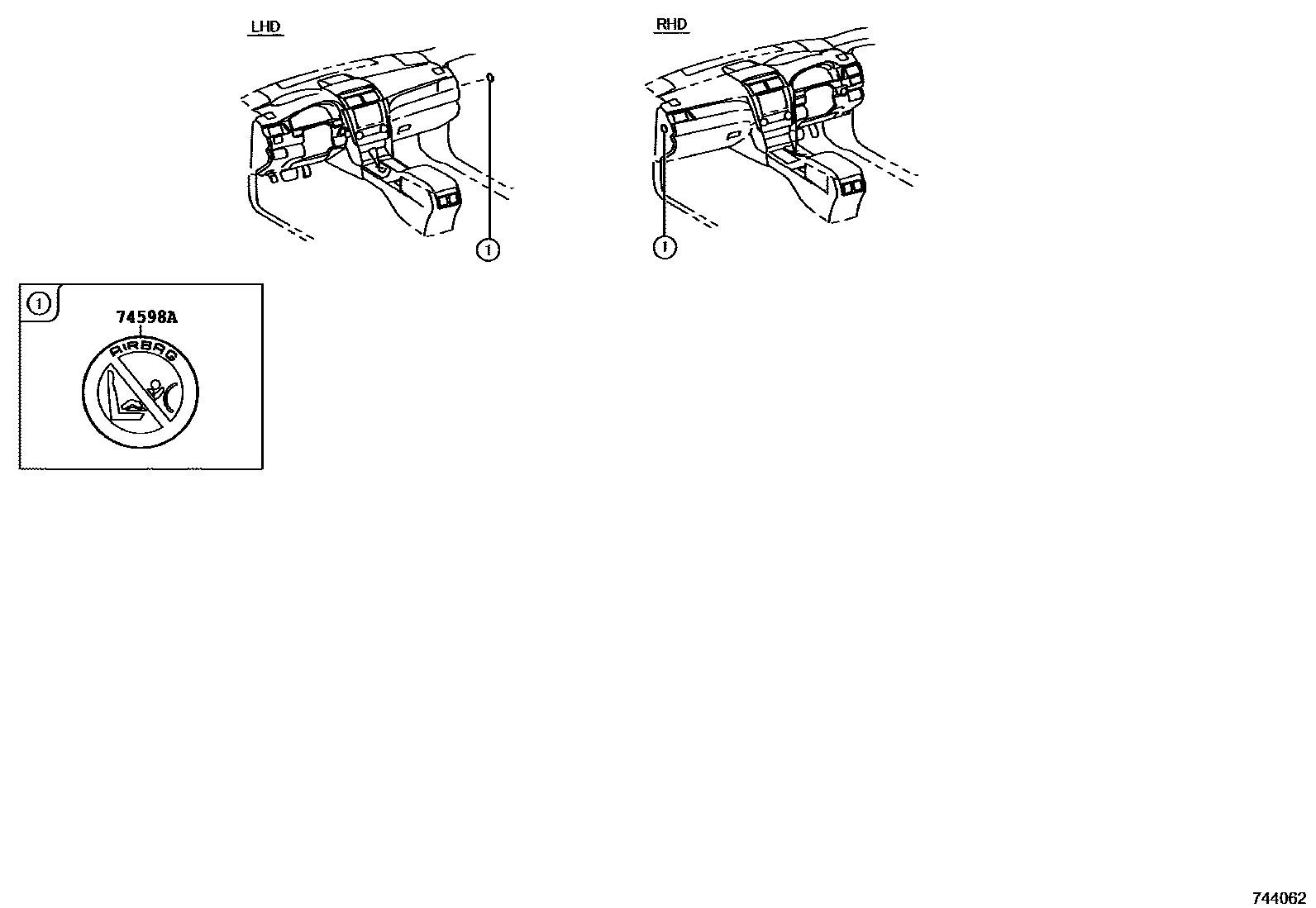

| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-33860 · 42661-33870 · 42661-33871 |
| 88723E | Cooler maintenance warning label | 88723-28220 · 88723-47070 |
| G9275 | No. 1 battery warning label | G9275-76020 |
