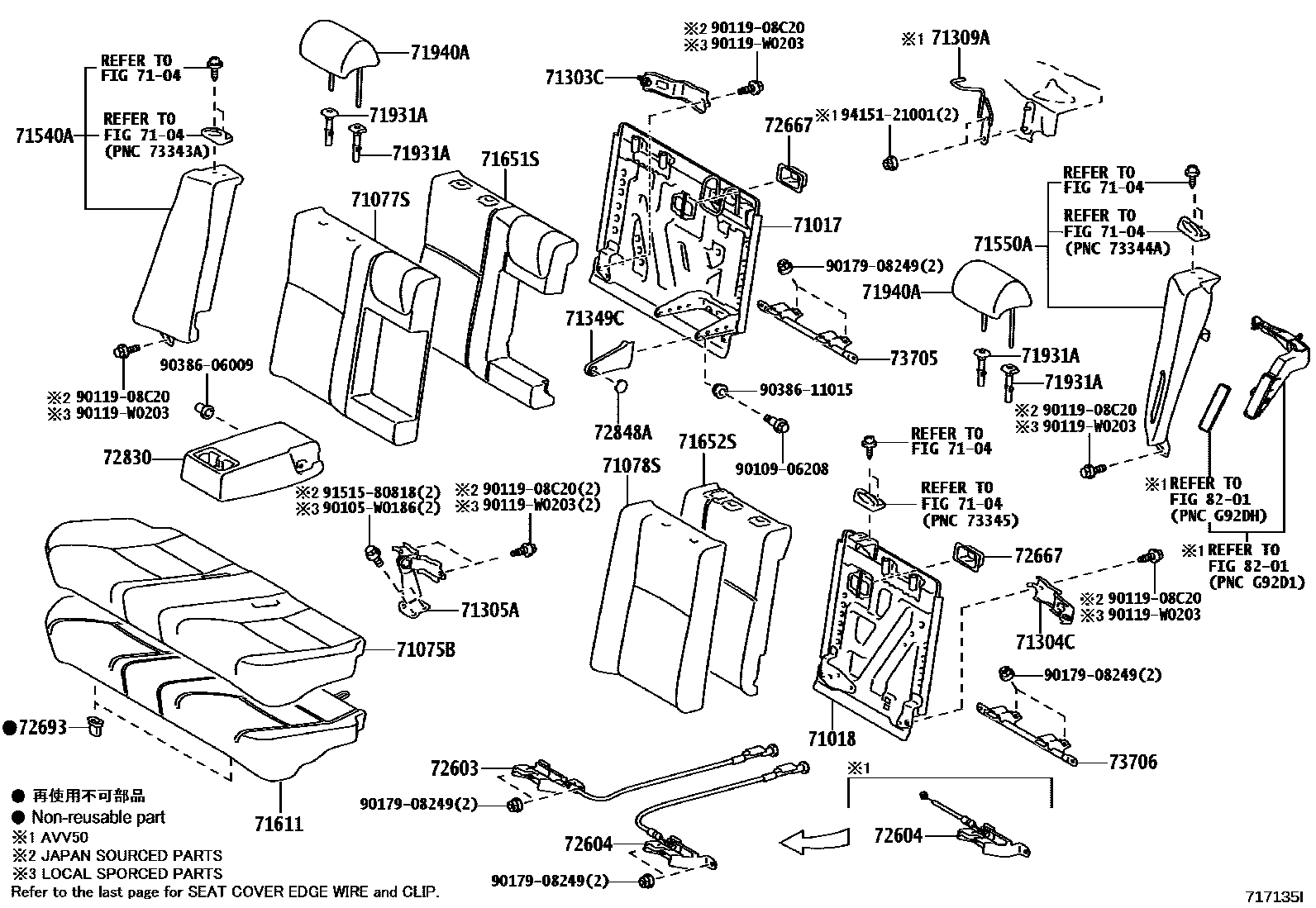

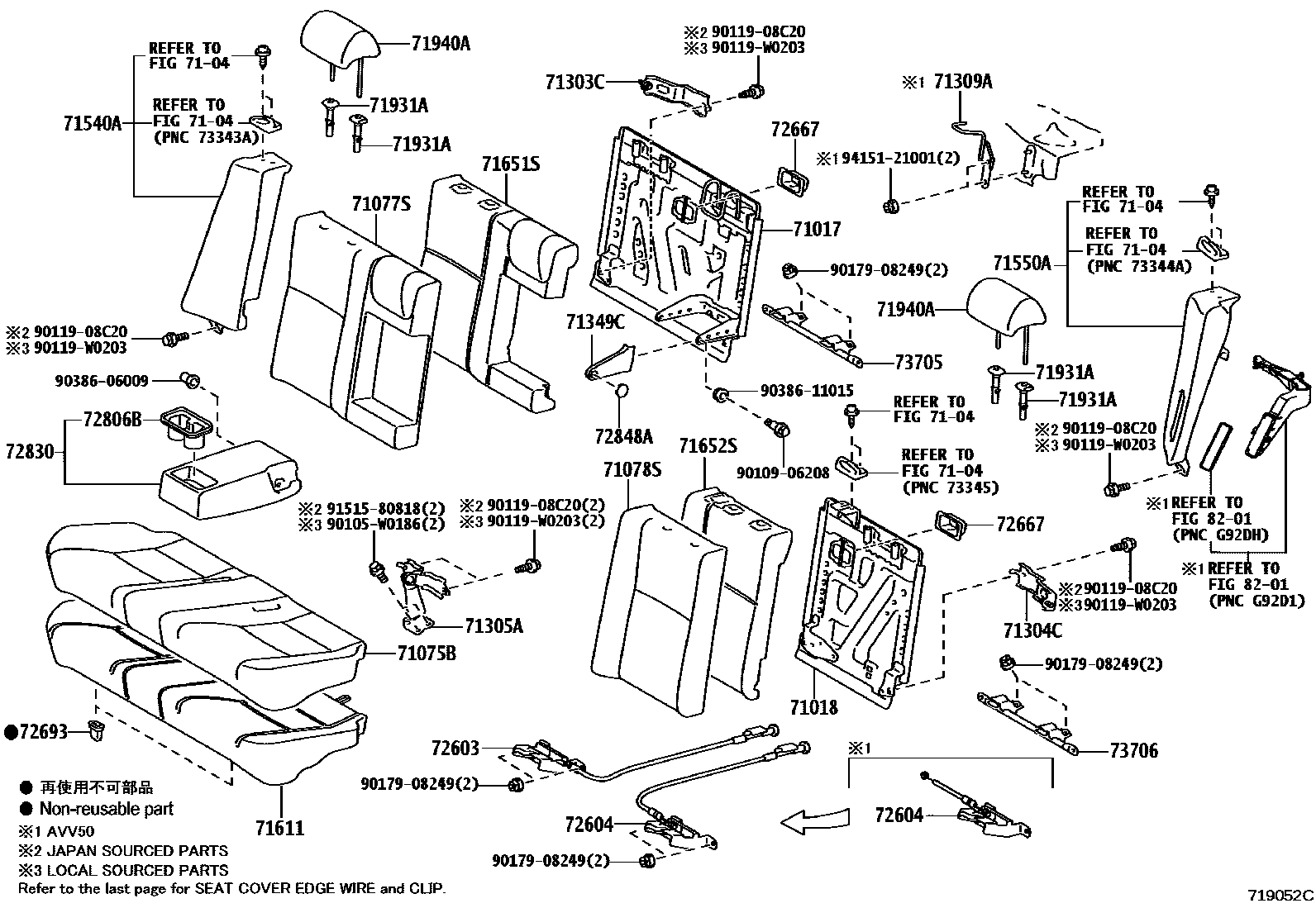

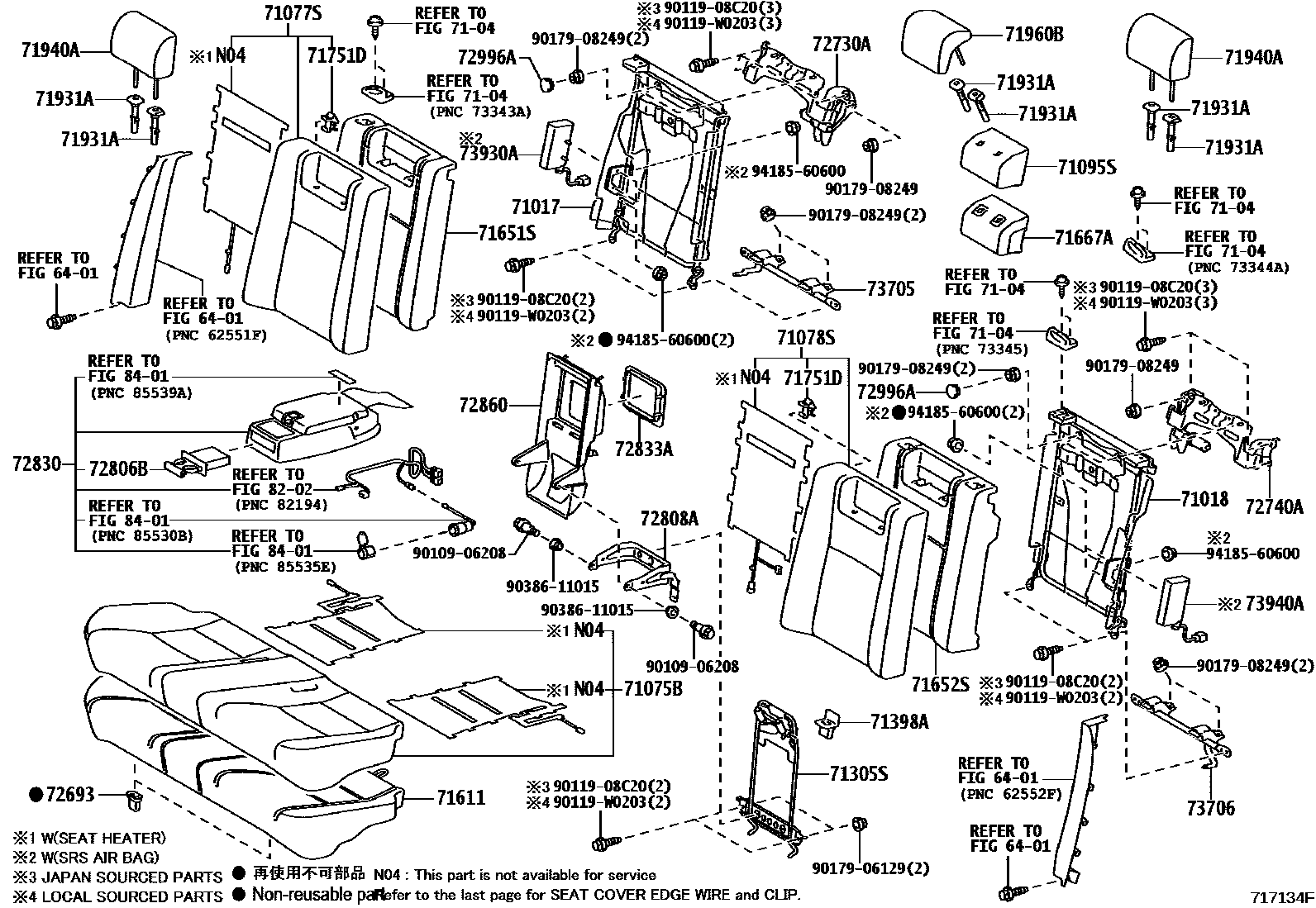

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-33200 · 71017-33210 · 71017-33220 |
| 71018 | Rear left seat back frame sub-assembly | 71018-33130 · 71018-33140 · 71018-33150 |
| 71077S | Right rear seat back cover (for split seats) | 71077-06J31 · 71077-06L21 · 71077-06L30 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-33051 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-33051 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33060 |
| 71305S | Center seat back frame sub-assembly | 71305-33080 |
| 71309A | Rear seat backrest retainer bracket sub-assembly | 71309-33050 |
| 71540A | Rear right side seat back assembly | 71540-06550 |
| 71550A | Rear left seat back assembly | 71550-06670 |
| 71611 | Rear seat cushion cushion | 71503-33120 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-33190 · 71651-33200 · 71651-33210 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-33110 · 71652-33120 · 71652-33130 |
| 71667A | Rear center A seat back cushion | 71507-33080 |
| 71751D | Rear seat cover hanger | 71751-33050 |
| 72603 | Rear right seat back lock sub-assembly | 72630-33070 · 72630-33071 · 72630-33072 |
| 72604 | Rear left seat back lock sub-assembly | 72640-33070 · 72640-33071 · 72640-33072 · 72640-33080 |
| 72667 | Rear seat back locking frame | 72667-33010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-33050 · 72730-33051 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-33040 · 72740-33041 |
| 72808A | Seat center armrest bracket sub-assembly | 72883-33040 |
| 72830 | Rear seat center armrest assembly | 72830-06D80 · 72830-06D90 |
| 72833A | Seat center armrest inner panel | 72831-33090 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-33050 · 73705-33090 · 73705-33120 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-33050 · 73706-33090 · 73706-33120 |
| 73930A | Rear right seat airbag assembly | 73930-33030 |
| 73940A | Rear left seat air bag assembly | 73940-33030 |
