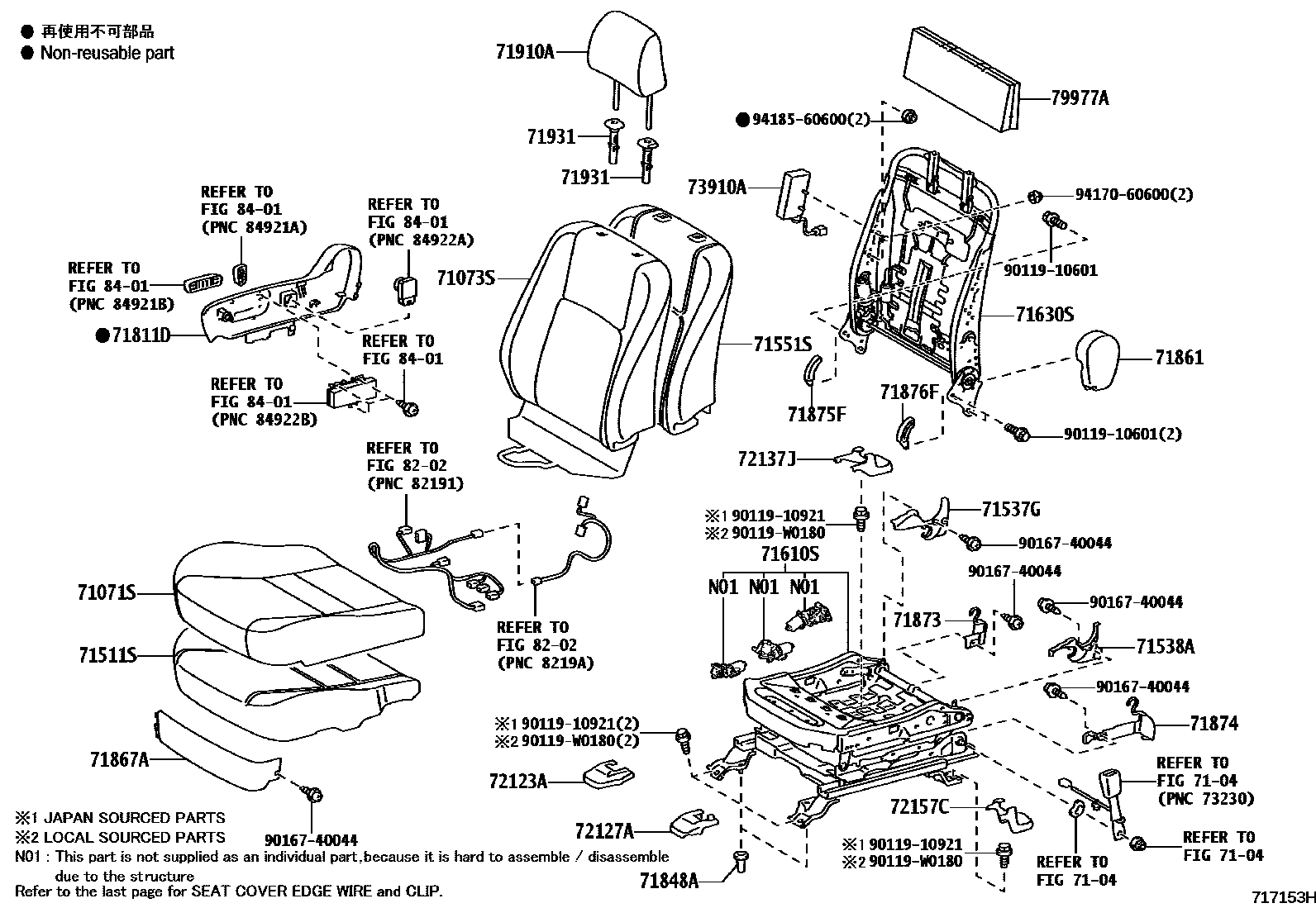

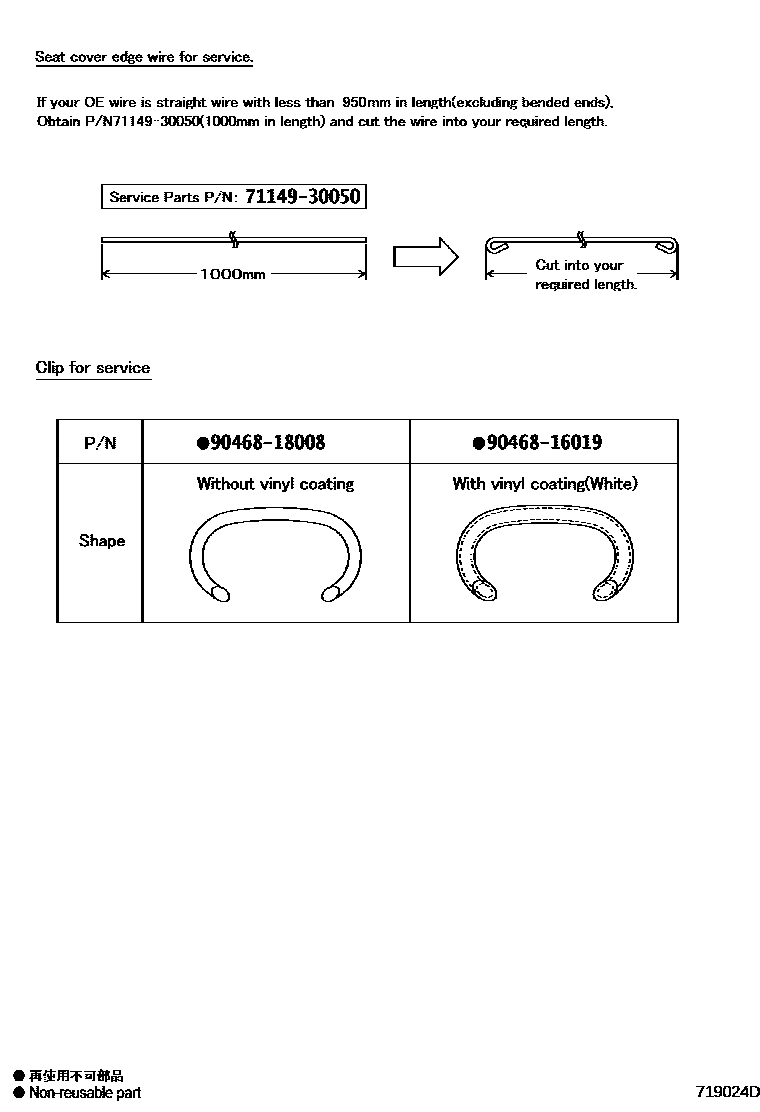

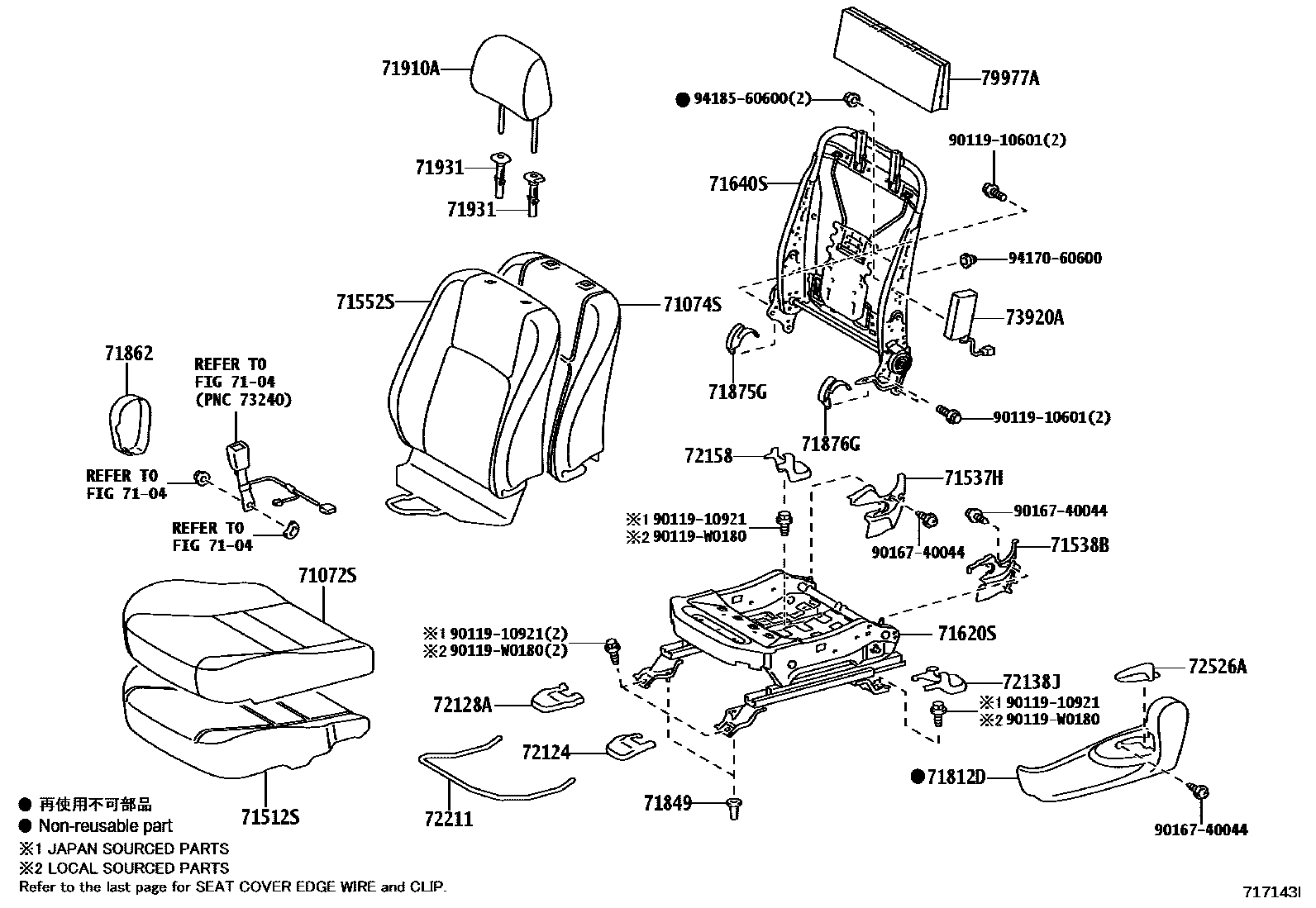

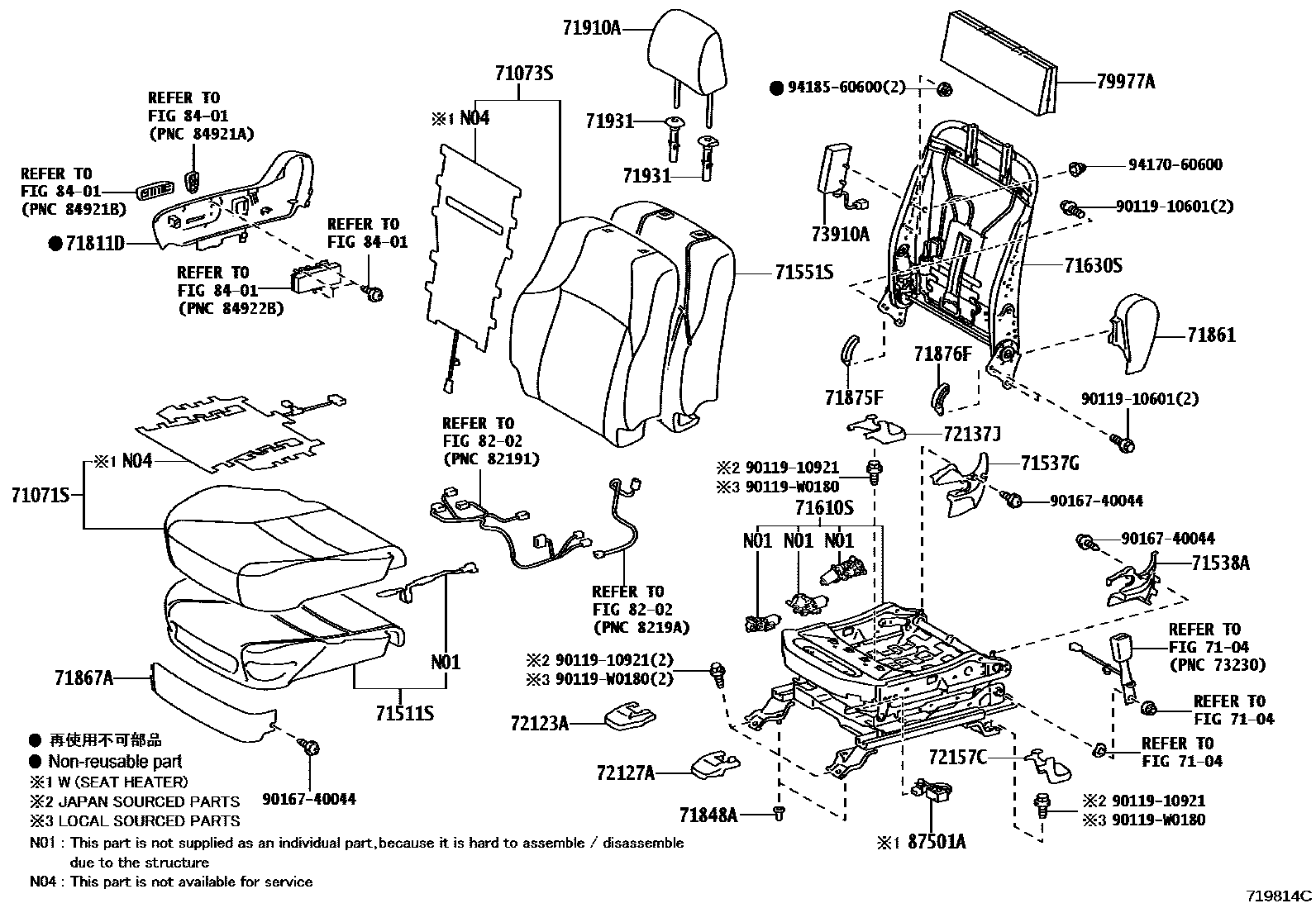

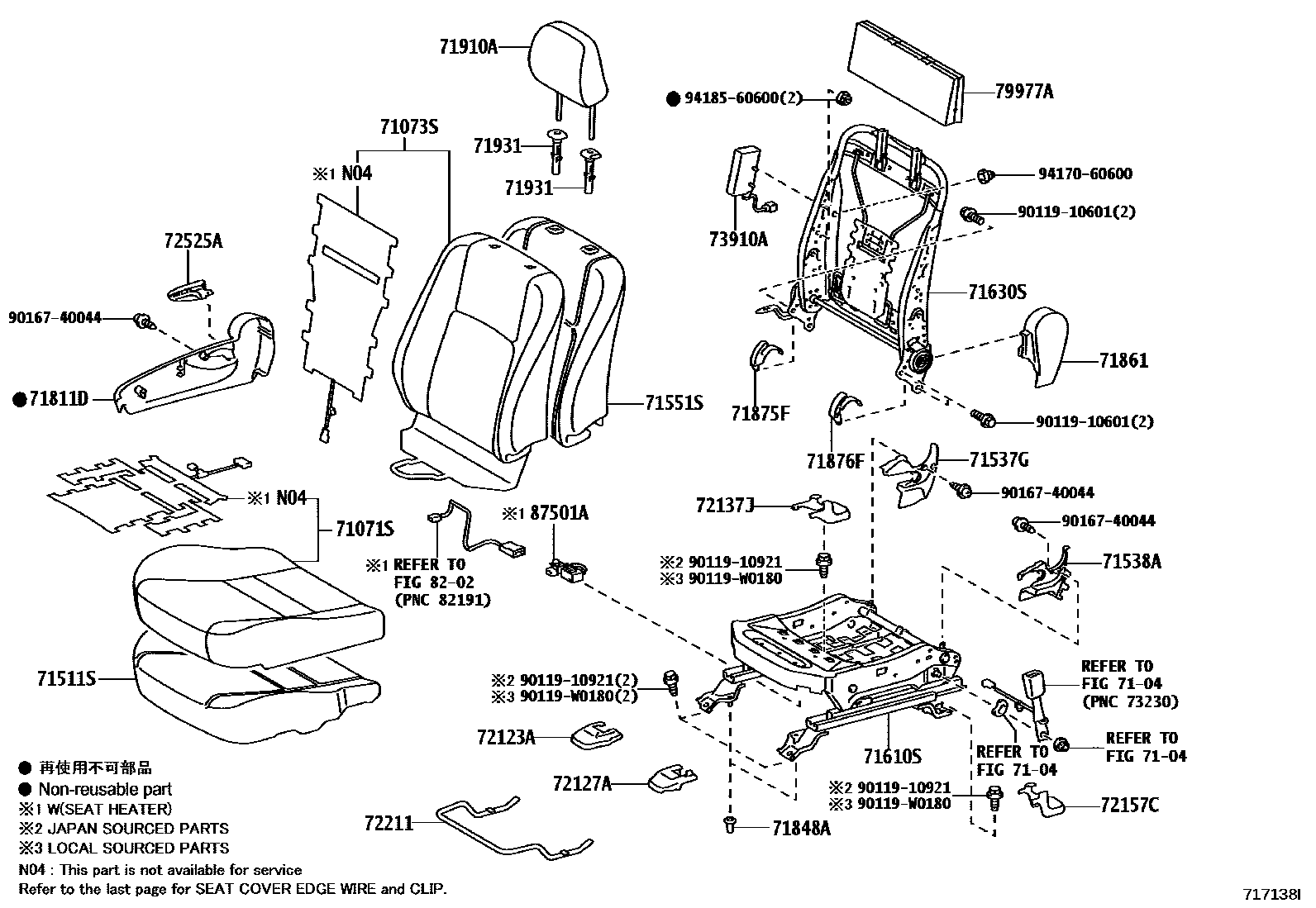

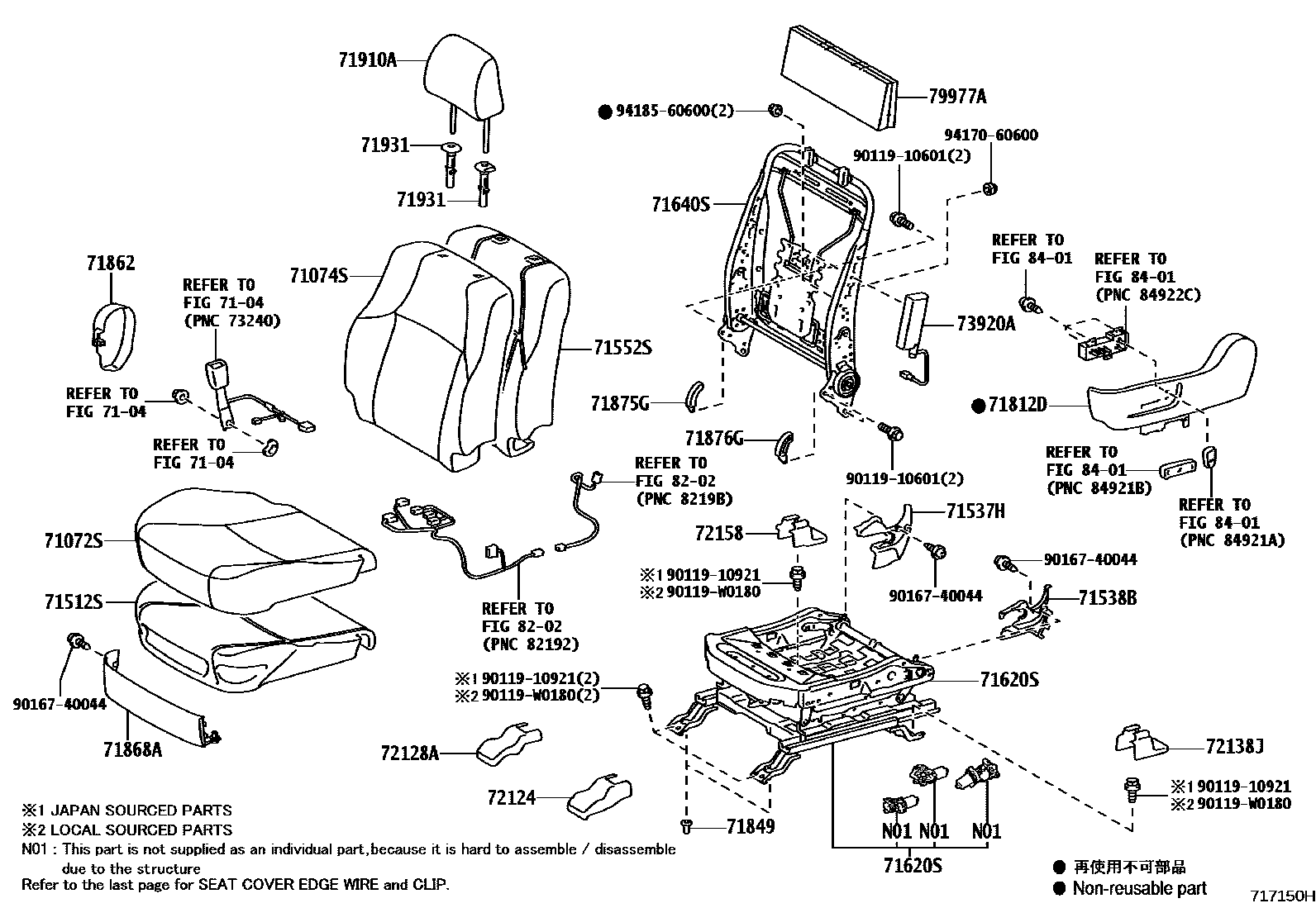

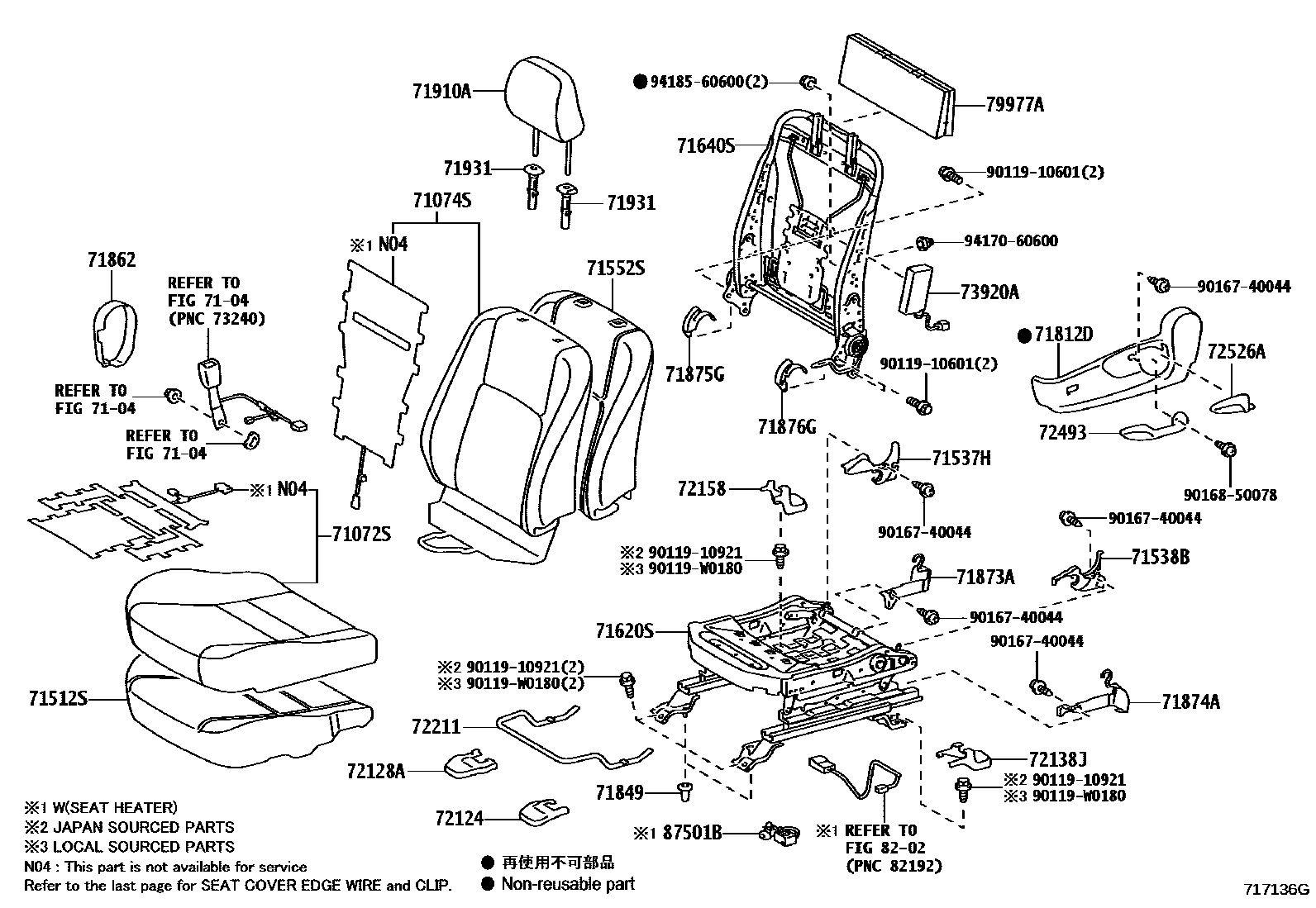

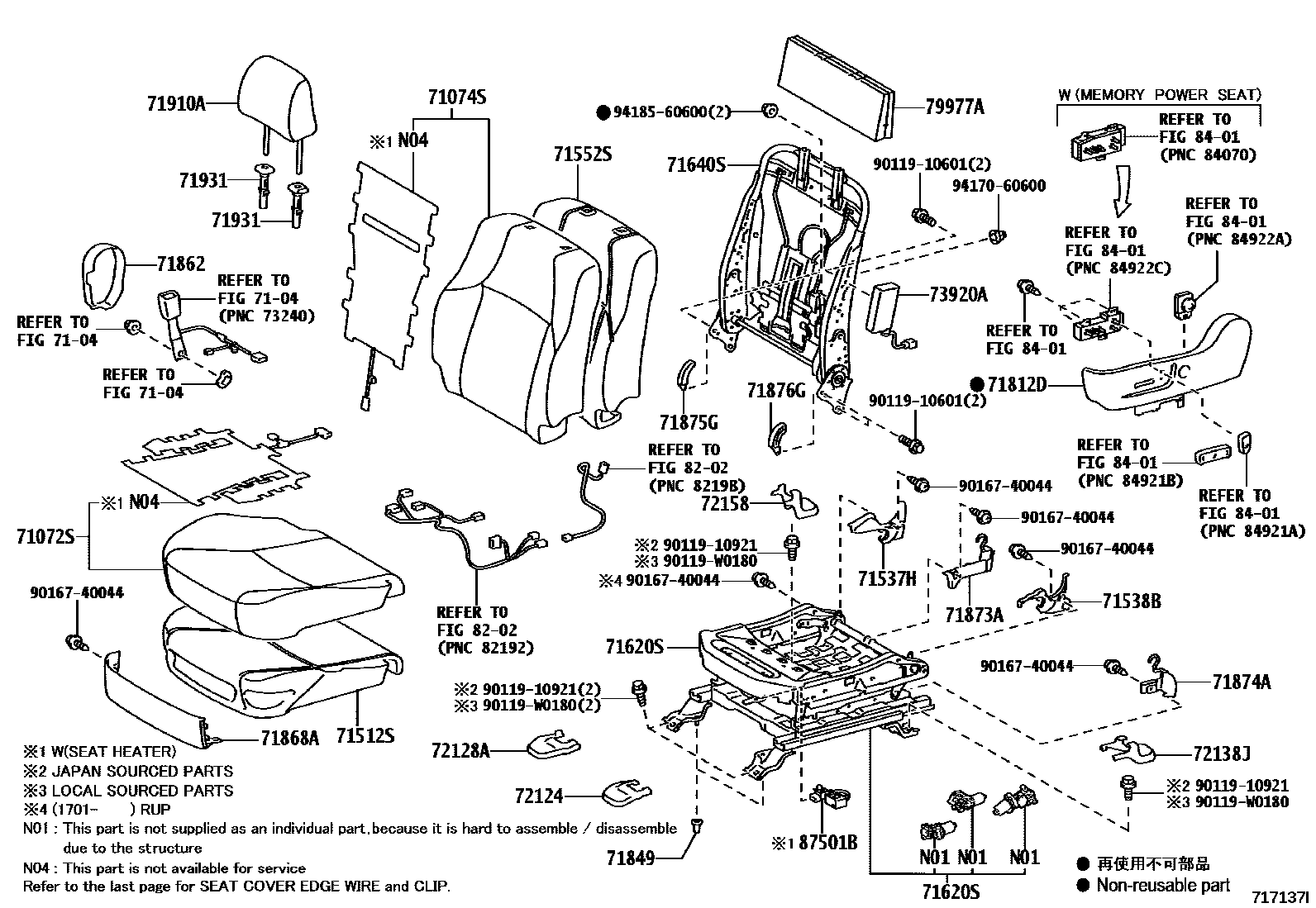

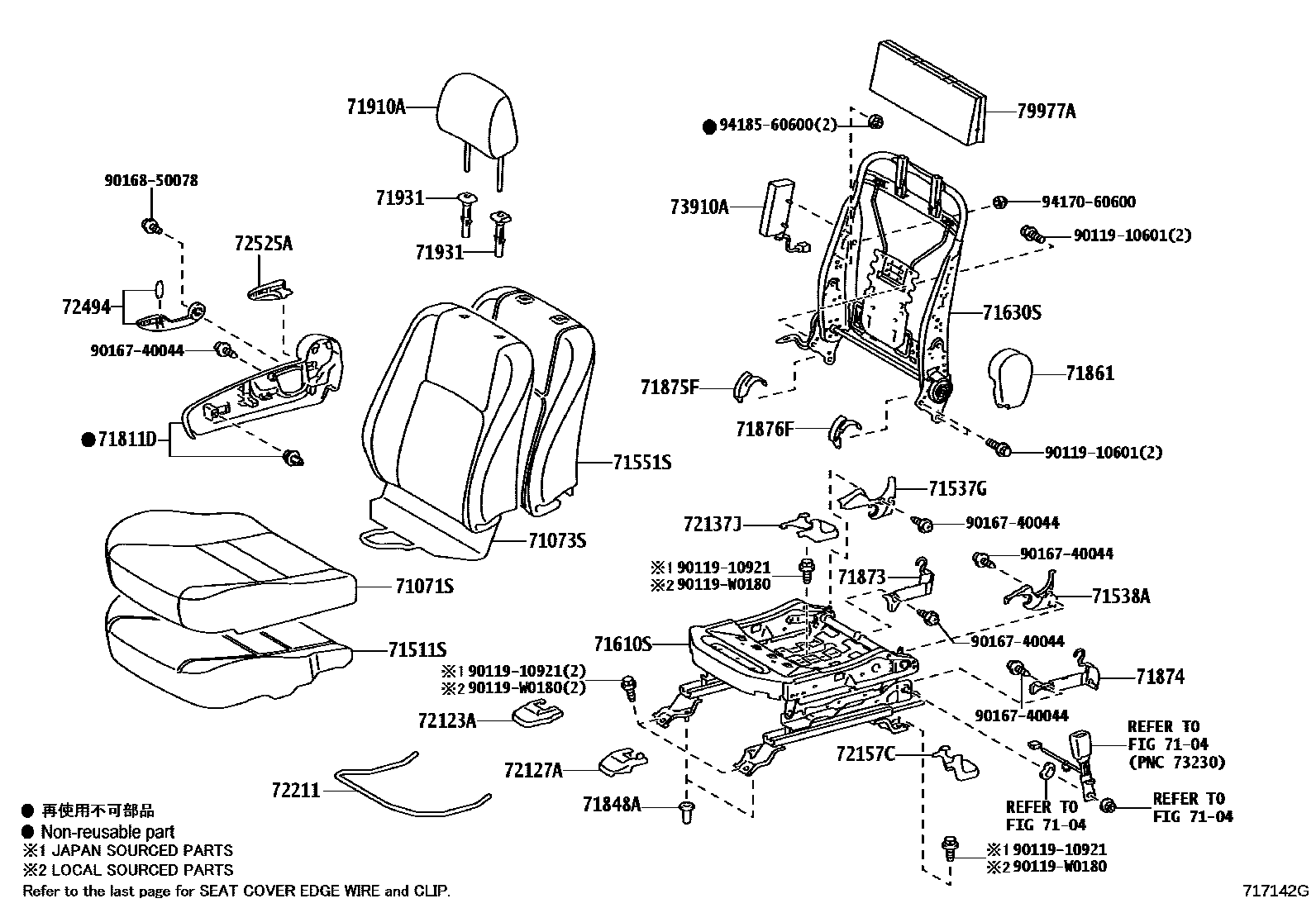

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 9 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-33320 · 71511-33330 · 71511-33331 · 71511-33430 · 71511-33431 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-33330 · 71512-33331 · 71512-33340 · 71512-33341 |
| 71551S | Front right seat back cushion (for split seats) | 71551-33340 |
| 71552S | Front left seat back cushion (for split seats) | 71552-33230 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-33010 · 71610-33011 · 71610-33020 · 71610-33021 · 71610-33040 · 71610-33041 · 71610-33050 · 71610-33051 · 71610-33060 · 71610-33061 · 71610-33070 · 71610-33071 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-06490 · 71620-33030 · 71620-33031 · 71620-33050 · 71620-33051 · 71620-33060 · 71620-33061 · 71620-33070 · 71620-33071 · 71620-33080 · 71620-33081 · 71620-33090 · 71620-33091 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-33120 · 71630-33130 · 71630-33160 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-06680 · 71640-33030 · 71640-33040 · 71640-33050 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47040 · 71873-60030 |
| 71874 | Front left seat cushion lower guard | 71874-33110 |
| 71874A | Front left seat cushion lower guard | 71874-47040 · 71874-60110 |
| 72211 | Seat slide adjustment handle | 72211-33040 |
| 73910A | Front right seat airbag assembly | 73910-33040 |
| 73920A | Front left seat airbag assembly | 73920-33040 |
| 79977A | Seat back felt pad | 79977-33010 |
| 87501A | Right seat heater control sub-assembly | 87501-60030 · 87501-60040 · 87501-60050 |
| 87501B | Left side seat heater control sub-assembly | 87501-60030 · 87501-60040 · 87501-60050 |
