Toyota CAMRY 锁芯组件 — Figure 6712

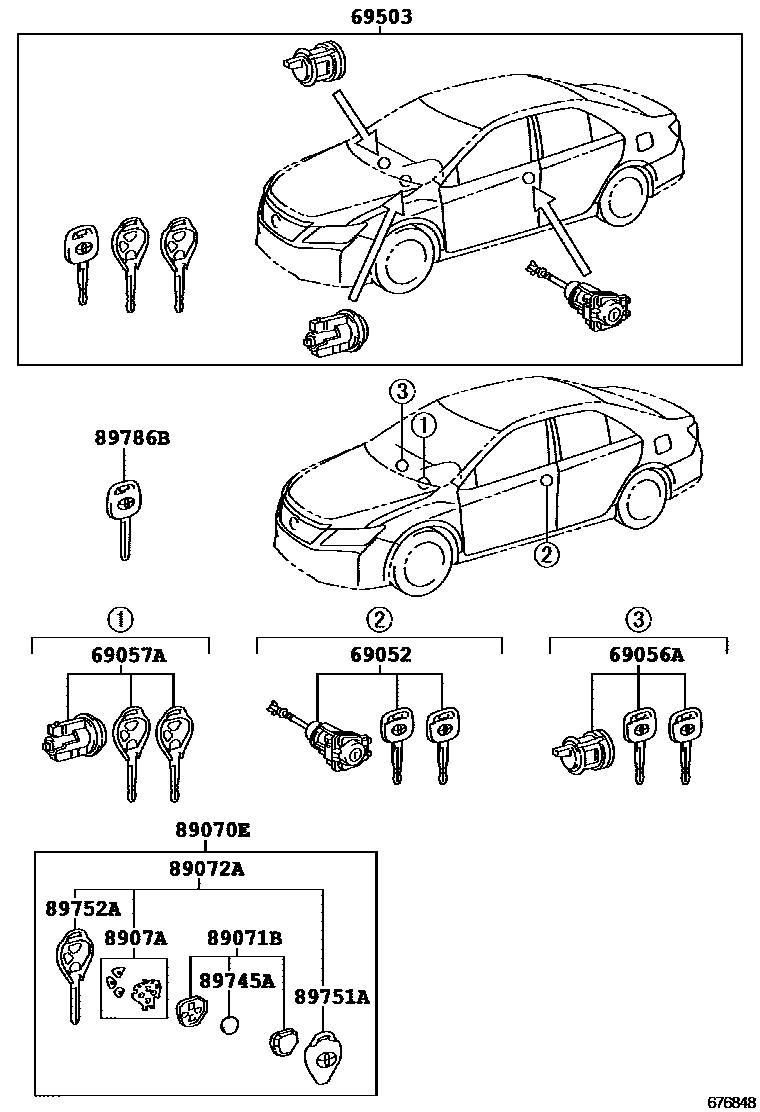

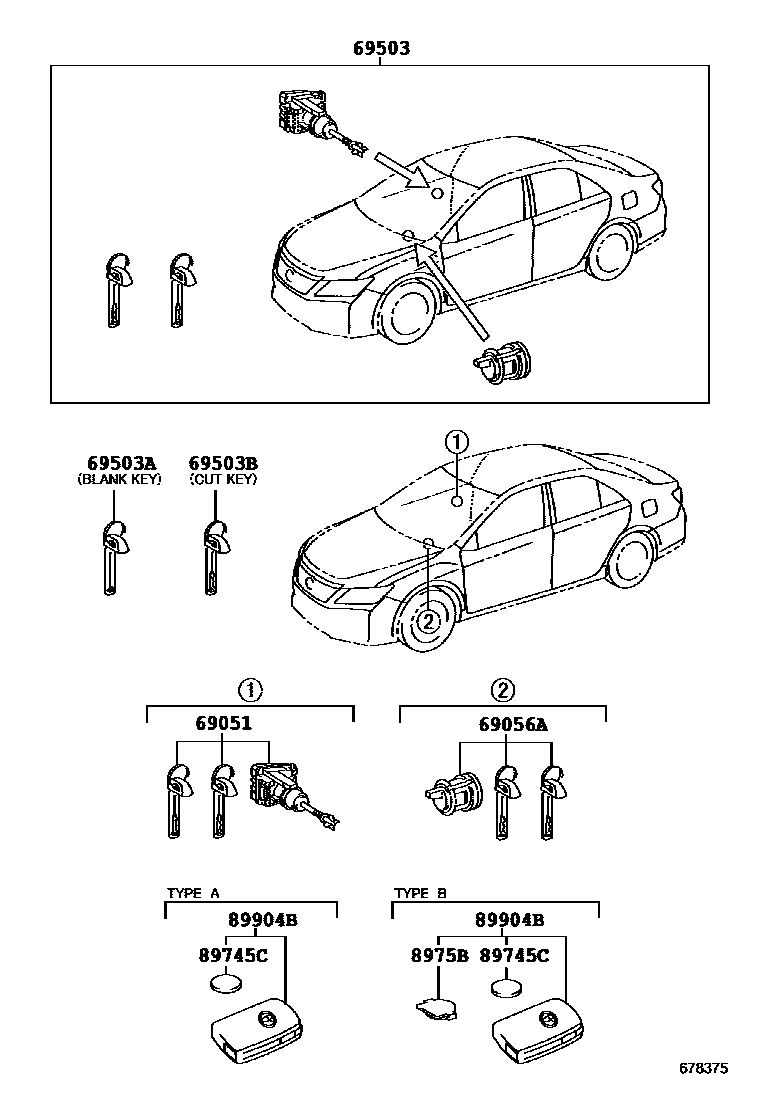

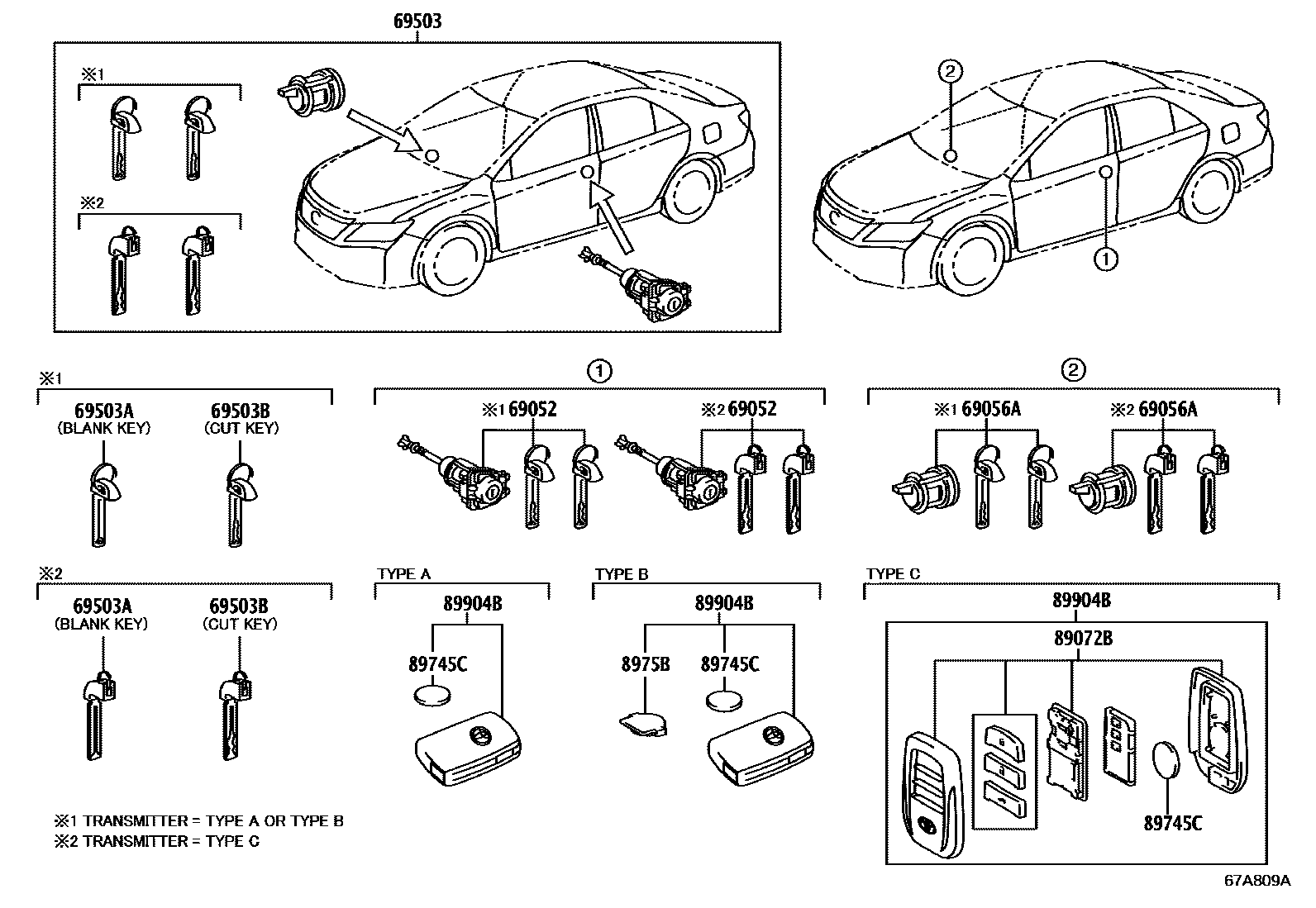

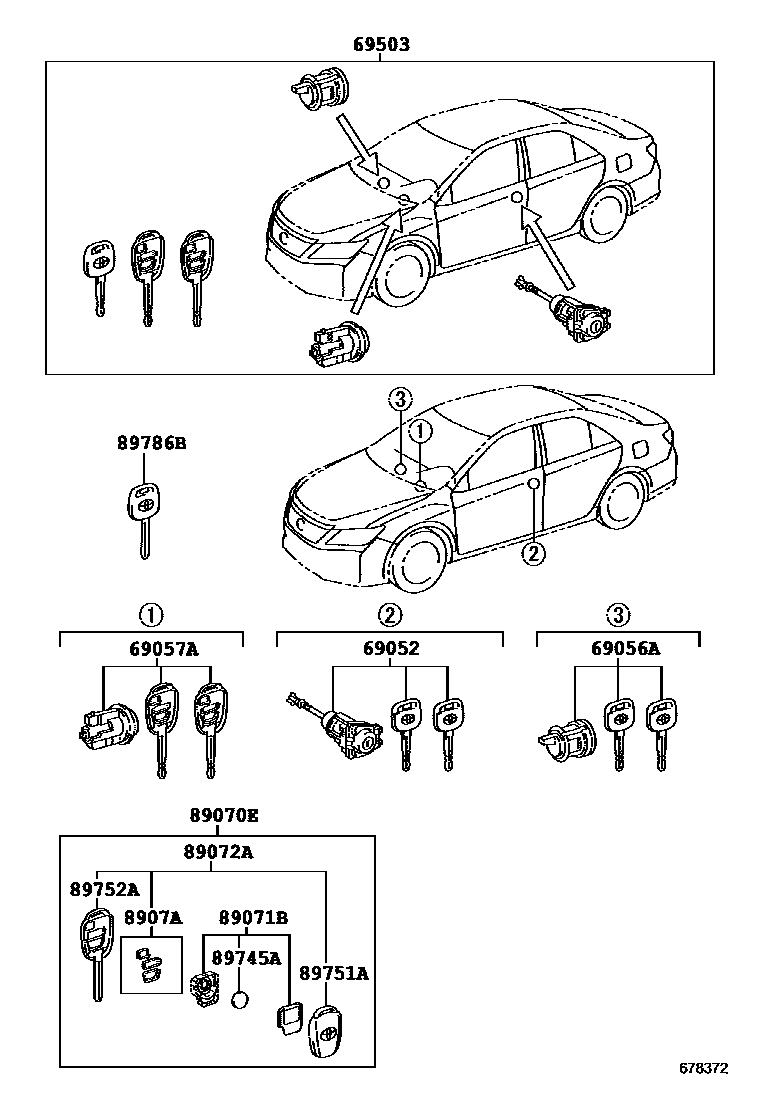

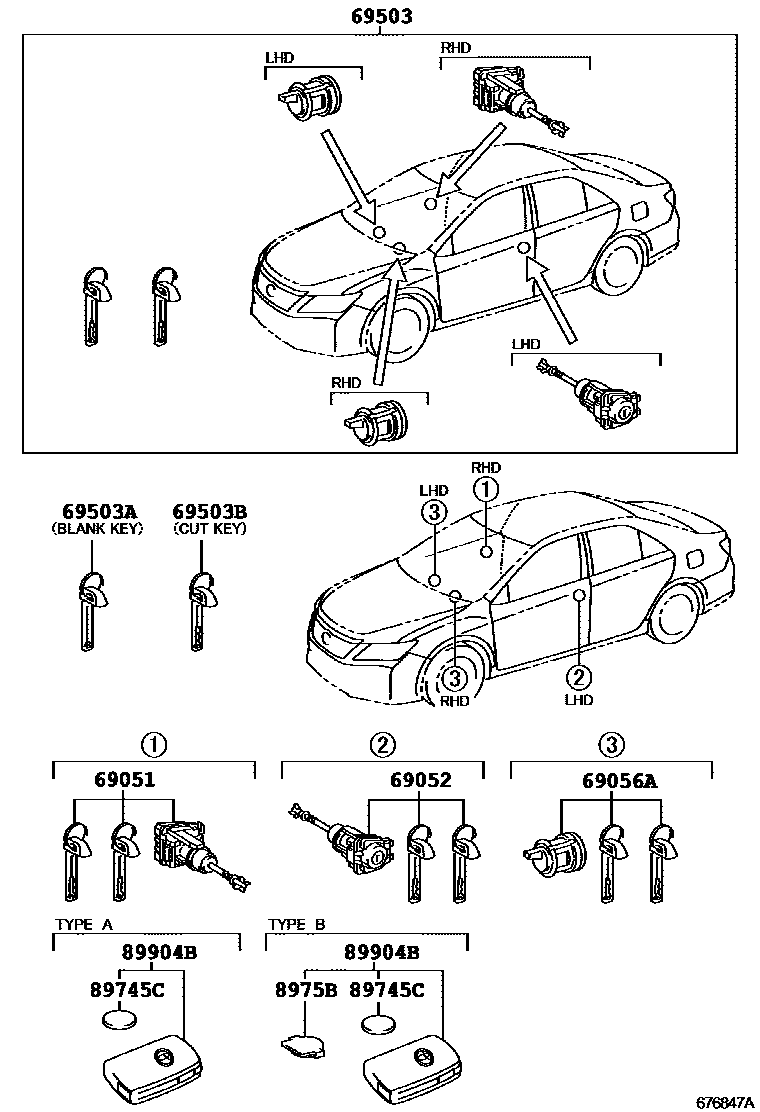

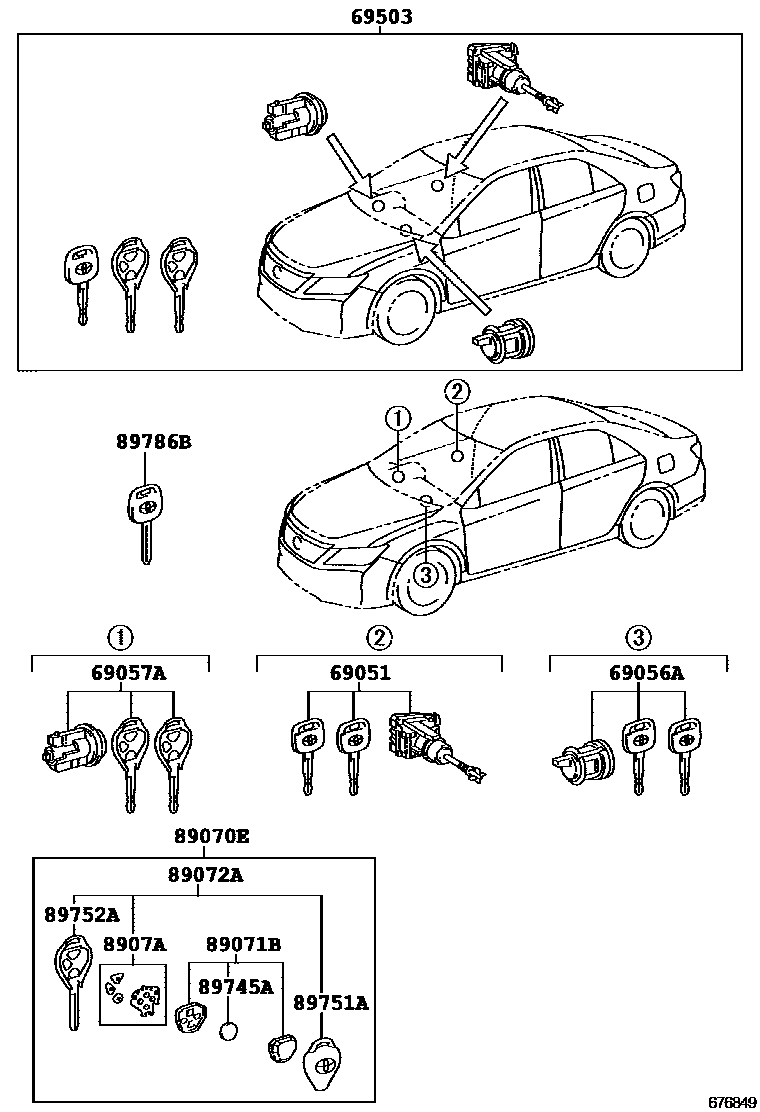

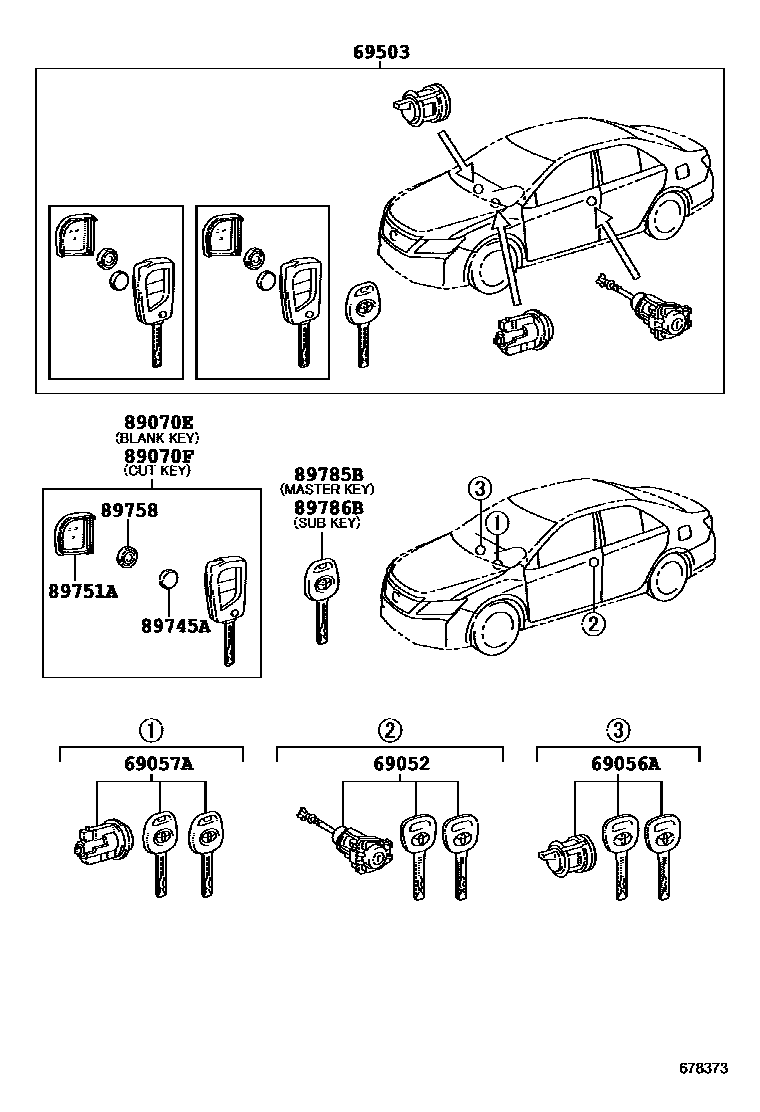

Toyota CAMRY EPC diagram 6712, 锁芯组件, with 7 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-33331 · 69051-33341 |
| 69052 | Left door lock cylinder and key assembly | 69052-33291 · 69052-33341 · 69052-33380 · 69052-33390 |
| 69056A | Glove box lock cylinder and key assembly | 69056-30240 · 69056-33190 · 69056-33230 · 69056-33240 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12880 · 69057-42320 · 69057-60620 |
| 69503 | Door lock cylinder components | 69005-33C51 · 69005-33C71 · 69005-33C81 · 69005-33C91 · 69005-33D00 · 69005-33D40 · 89704-33800 |
| 69503A | external tooth key | 69515-33100 · 69515-33120 |
| 69503B | internal tooth key | 69515-33090 · 69515-33110 |
| 89070E | Remote key assembly | 89070-33B40 · 89070-33B80 · 89070-33B90 · 89070-33C00 · 89070-33D90 · 89070-33E00 · 89070-33E10 |
| 89070F | Remote key assembly (internal tooth key) | 89070-33D50 |
| 89071B | Remote key sub-assembly module assembly | 89071-33450 · 89071-33460 · 89071-33470 · 89071-33520 · 89071-33530 · 89071-33540 |
| 89072A | Remote key shell assembly | 89072-22100 · 89072-33780 · 89072-33790 · 89072-33830 |
| 89072B | Remote key shell assembly (for smart key) | 89072-33800 |
| 8907A | Transmitter switch assembly | 8907A-22010 · 8907A-33020 |
| 89745A | Transmitter battery | 89745-12010 · 89745-48030 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-33140 · 89751-33150 · 89751-42090 · 89751-42130 · 89751-52140 · 89751-60080 |
| 89752A | transmitter housing | 89752-22070 · 89752-42060 |
| 89758 | Remote key seal | 89758-12010 |
| 8975B | Remote control battery case cover | 8975B-33010 |
| 89785B | transceiver key master transmitter | 89785-12140 · 89785-12150 |
| 89786B | transceiver key secondary transmitter | 89786-33040 · 89786-33060 · 89786-42040 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33470 · 89904-33490 · 89904-33500 · 89904-33501 · 89904-33502 · 89904-33530 · 89904-33660 |
