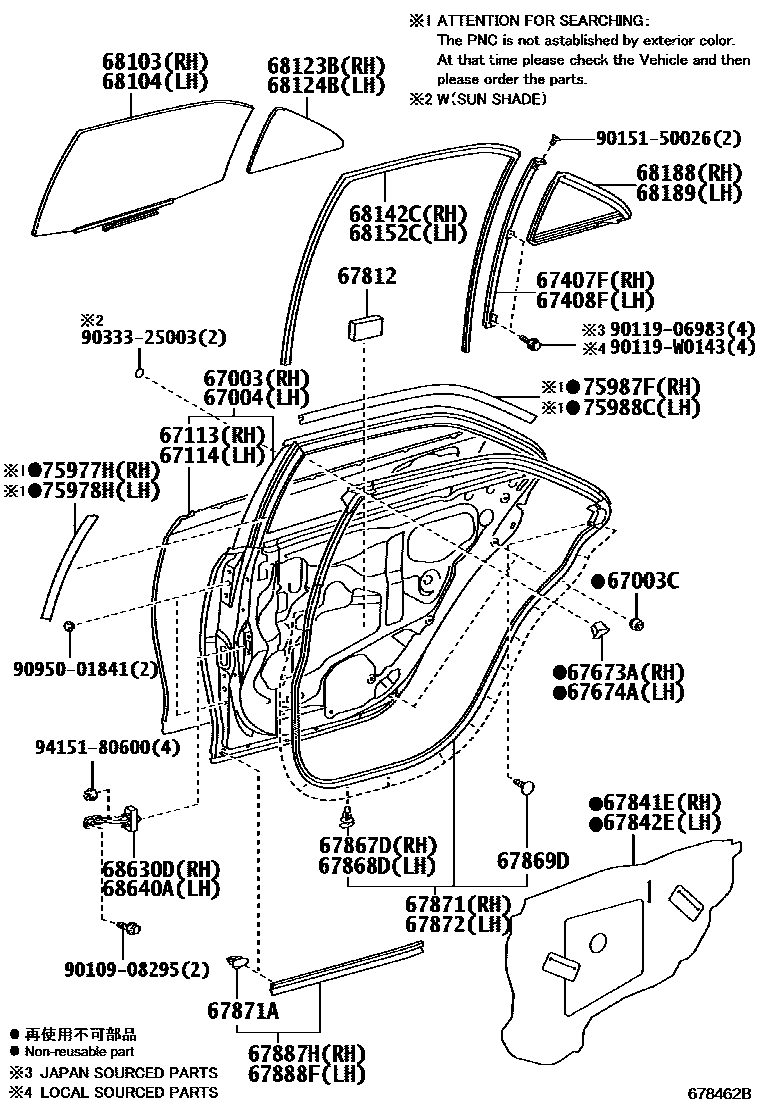

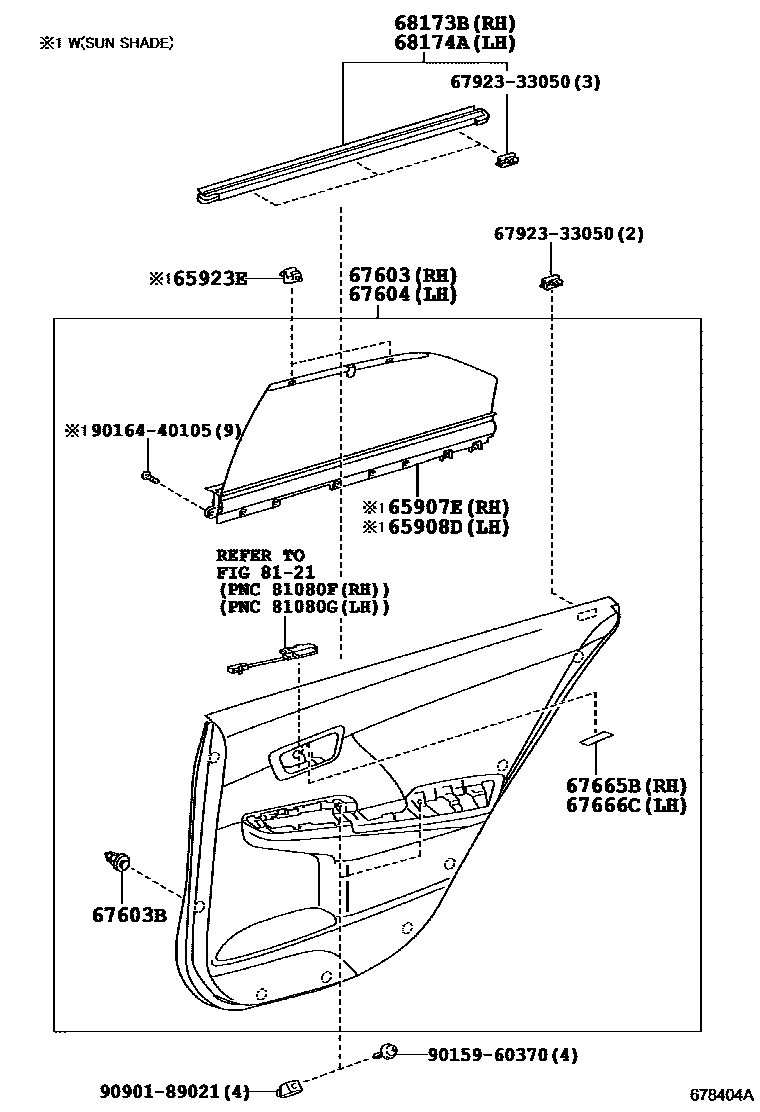

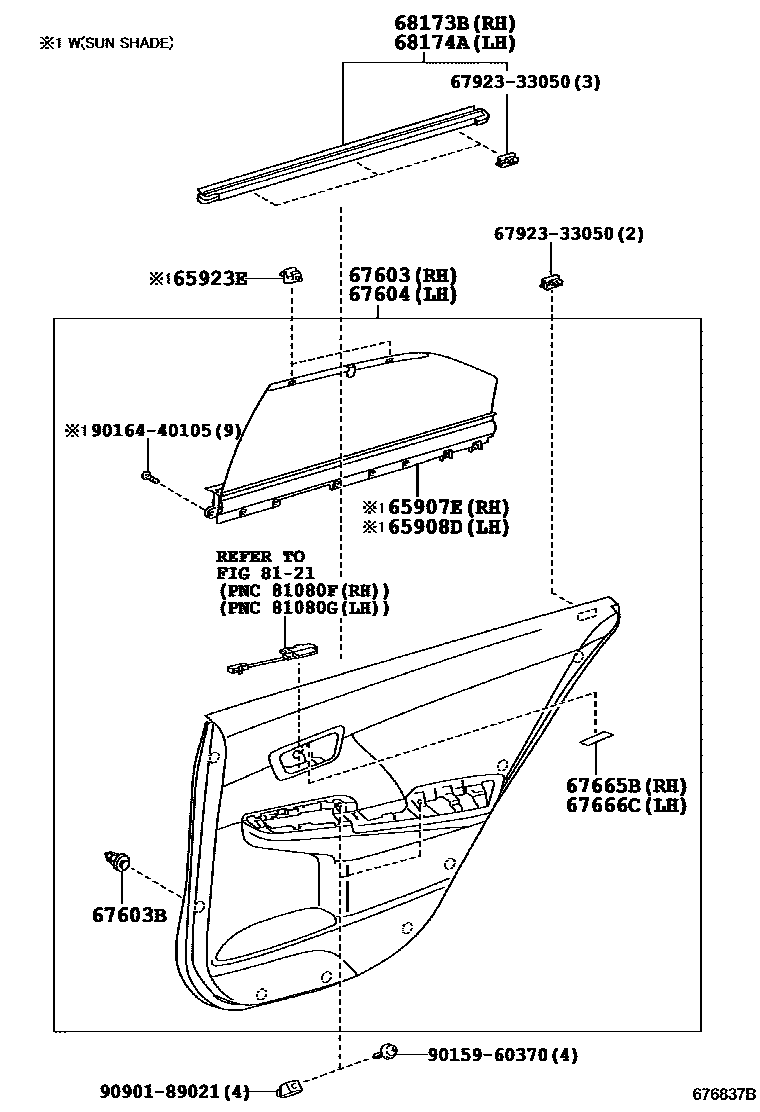

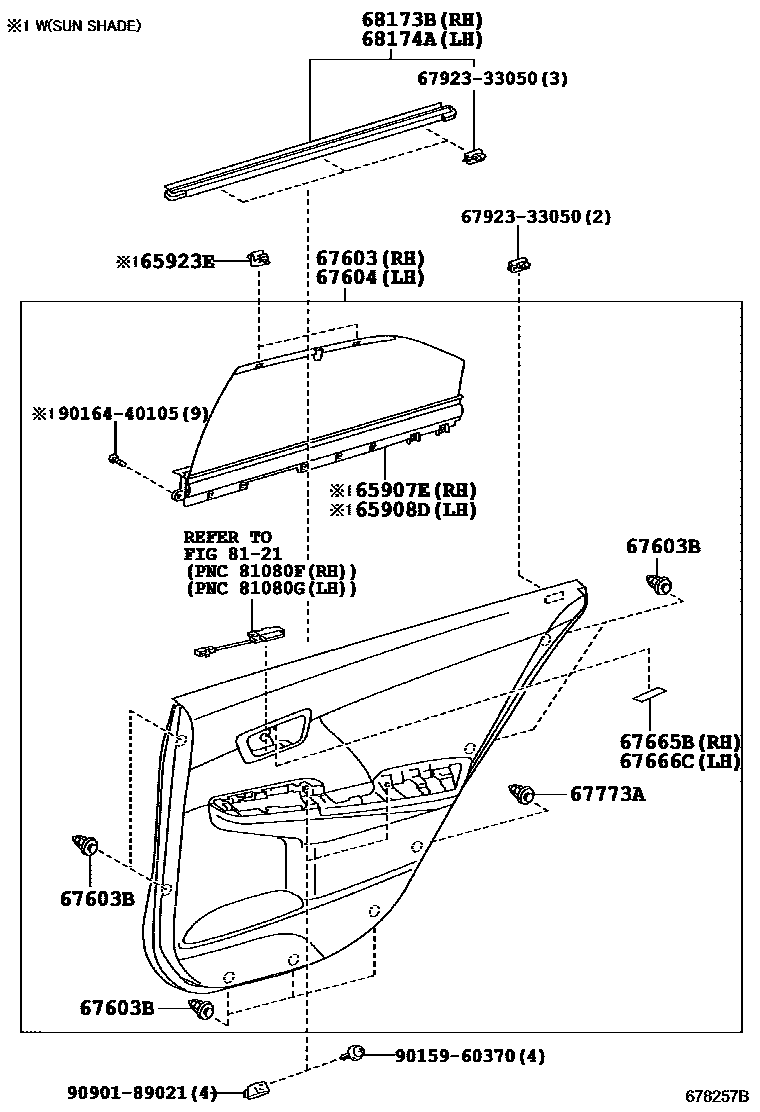

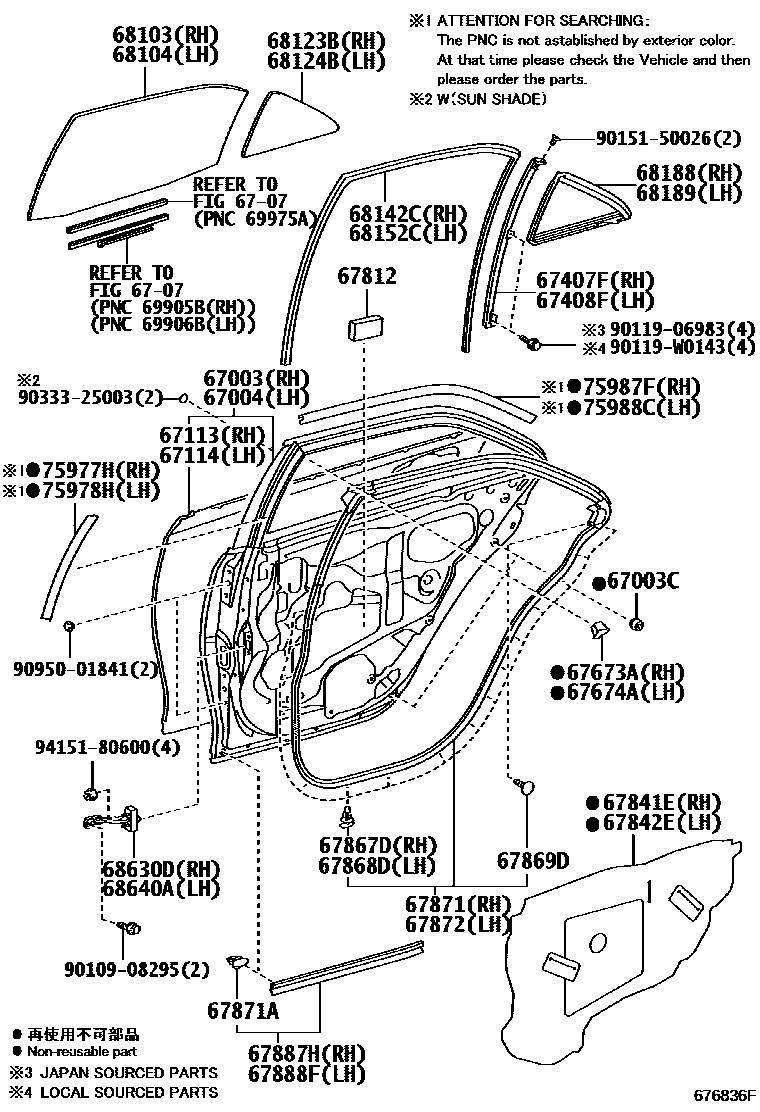

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 5 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65923E | curtain hooks | 65923-33030 |
| 67003 | Right rear door panel sub-assembly | 67003-06260 · 67003-06270 · 67003-33200 · 67003-33210 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-06250 · 67004-06260 · 67004-33200 · 67004-33210 |
| 67113 | Right rear door outer panel | 67113-06170 · 67113-33120 |
| 67114 | Left rear door outer panel | 67114-06170 · 67114-33120 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-33100 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-33100 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67665B | Right rear door trim panel reflector | 67665-33020 |
| 67666C | Left rear door trim panel reflector | 67665-33020 |
| 67673A | Right rear door frame decorative strip | 67673-33120 · 67673-33121 |
| 67674A | Left rear door frame decorative strip | 67674-33120 · 67674-33121 |
| 67773A | Rear door No. 1 decorative panel fixing clip | 67773-26030 |
| 67812 | Rear door silencer pad | 67811-33040 |
| 67841E | Right rear door access hole cover | 67841-33120 |
| 67842E | Left rear door access hole cover | 67842-33120 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869D | Car door seal strip clip | 67868-30030 |
| 67871 | Right rear door sealing strip | 67871-33100 |
| 67871A | Fixings (for rear door sealing strip) | 67867-12150 |
| 67872 | Left rear door sealing strip | 67872-33100 |
| 67887H | Right rear door seal No. 2 | 67887-06070 · 67887-33030 |
| 67888F | Left rear door seal No. 2 | 67888-06060 · 67888-33030 |
| 68103 | Right rear door glass sub-assembly | 68103-06240 · 68113-33170 |
| 68104 | Left rear door glass sub-assembly | 68104-06240 · 68114-33170 |
| 68123B | Right rear door corner window glass | 68123-06200 · 68123-33080 |
| 68124B | Left rear door corner window glass | 68124-06200 · 68124-33080 |
| 68142C | Right rear door glass lift slot | 68142-33110 |
| 68152C | Left rear door glass lift slot | 68152-33110 |
| 68173B | Right rear door glass inner sealing strip | 68173-33080 · 68173-33081 |
| 68174A | Left rear door glass inner sealing strip | 68174-33080 · 68174-33081 |
| 68188 | Right rear door corner window seal | 68188-33060 |
| 68189 | Left rear door corner window seal | 68189-33060 |
| 68630D | Right rear door opening limiter assembly | 68630-33092 |
| 68640A | Left rear door opening limiter assembly | 68630-33092 |
| 75977H | Right rear door outer lower trim strip | 75977-33020 |
| 75978H | Left rear door outer lower trim strip | 75978-33020 |
| 75987F | Right rear door outer trim | 75987-33040 · 75987-33050 |
| 75988C | Left rear door outer trim | 75988-33040 · 75988-33050 |
