Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

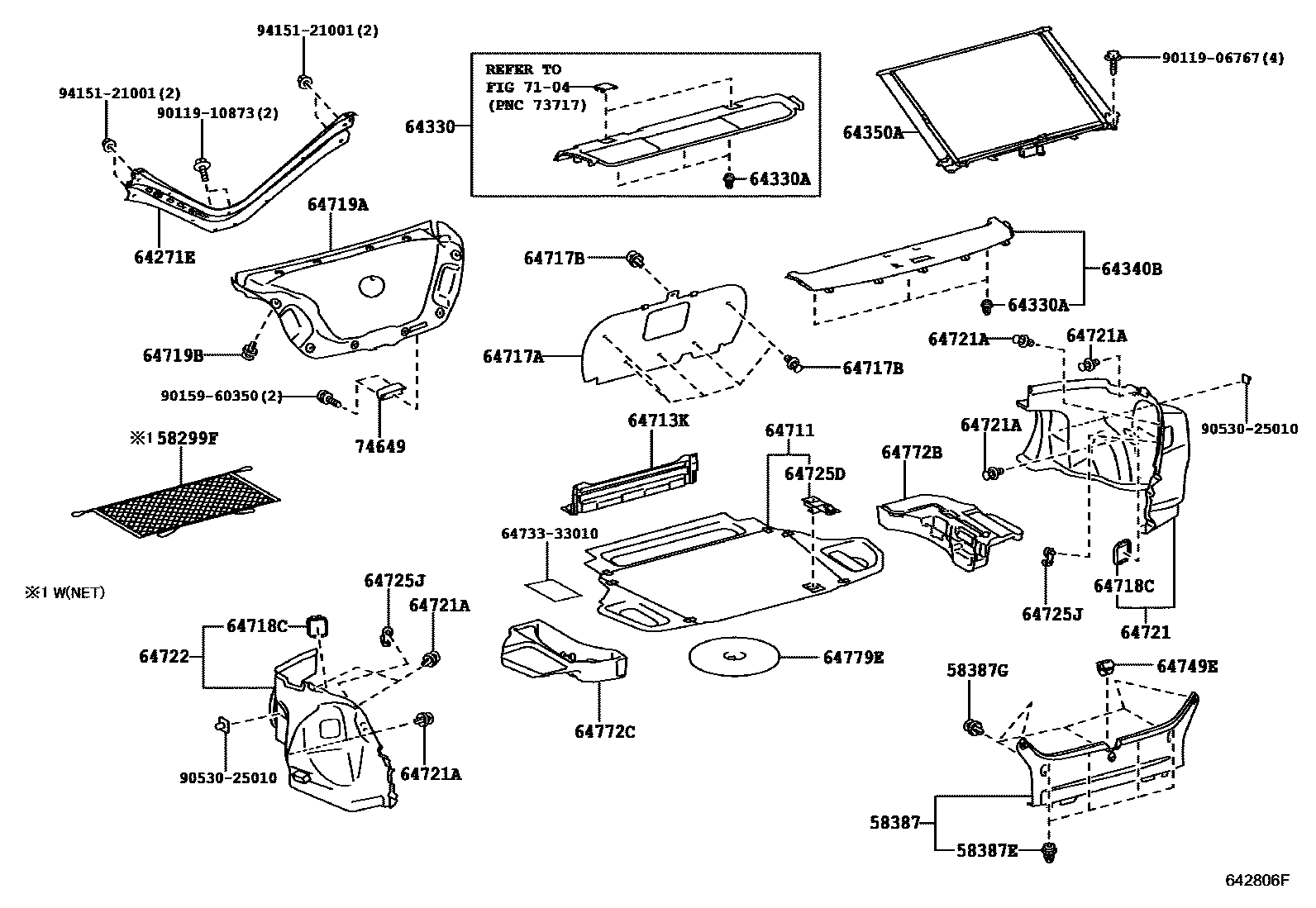

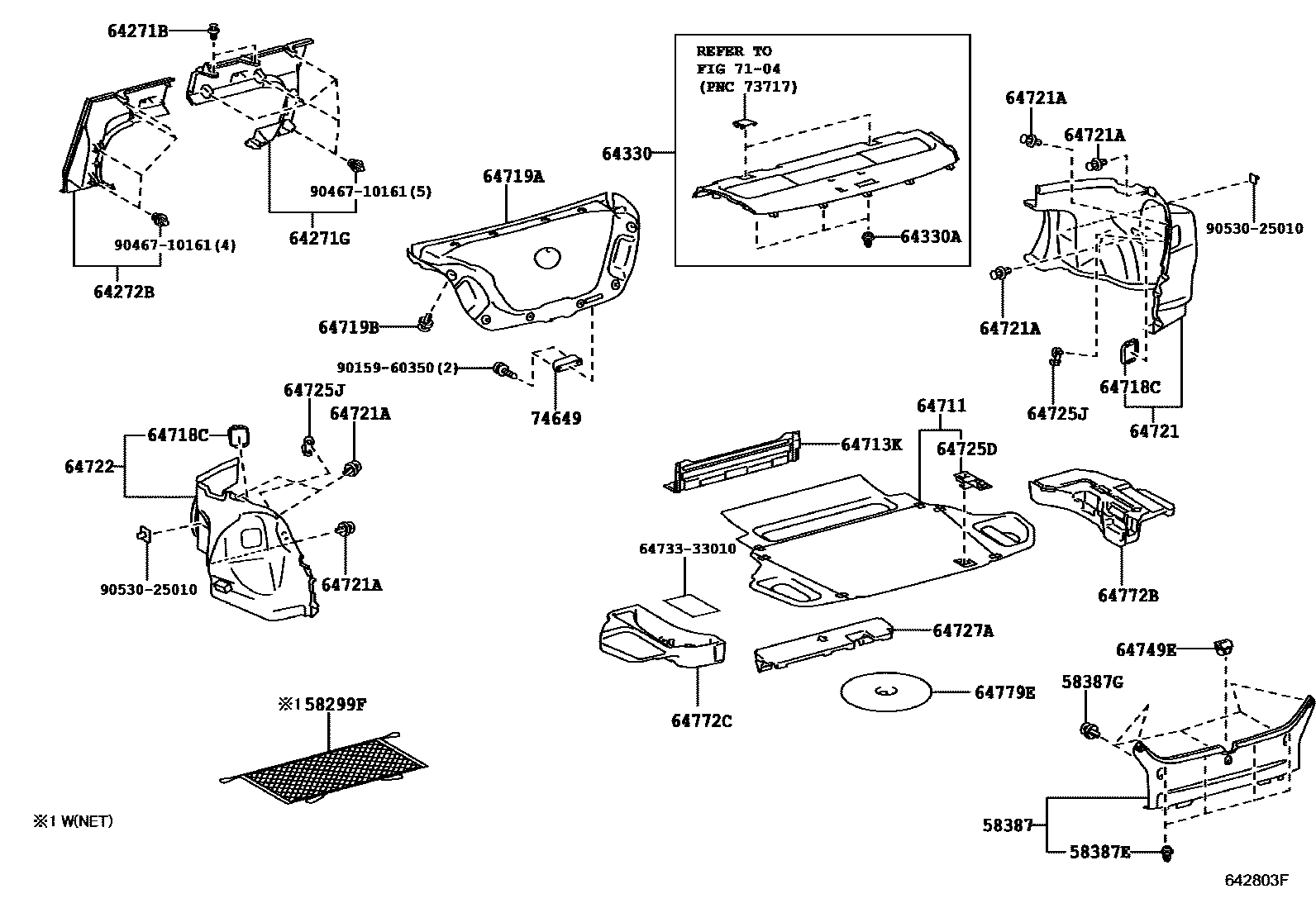

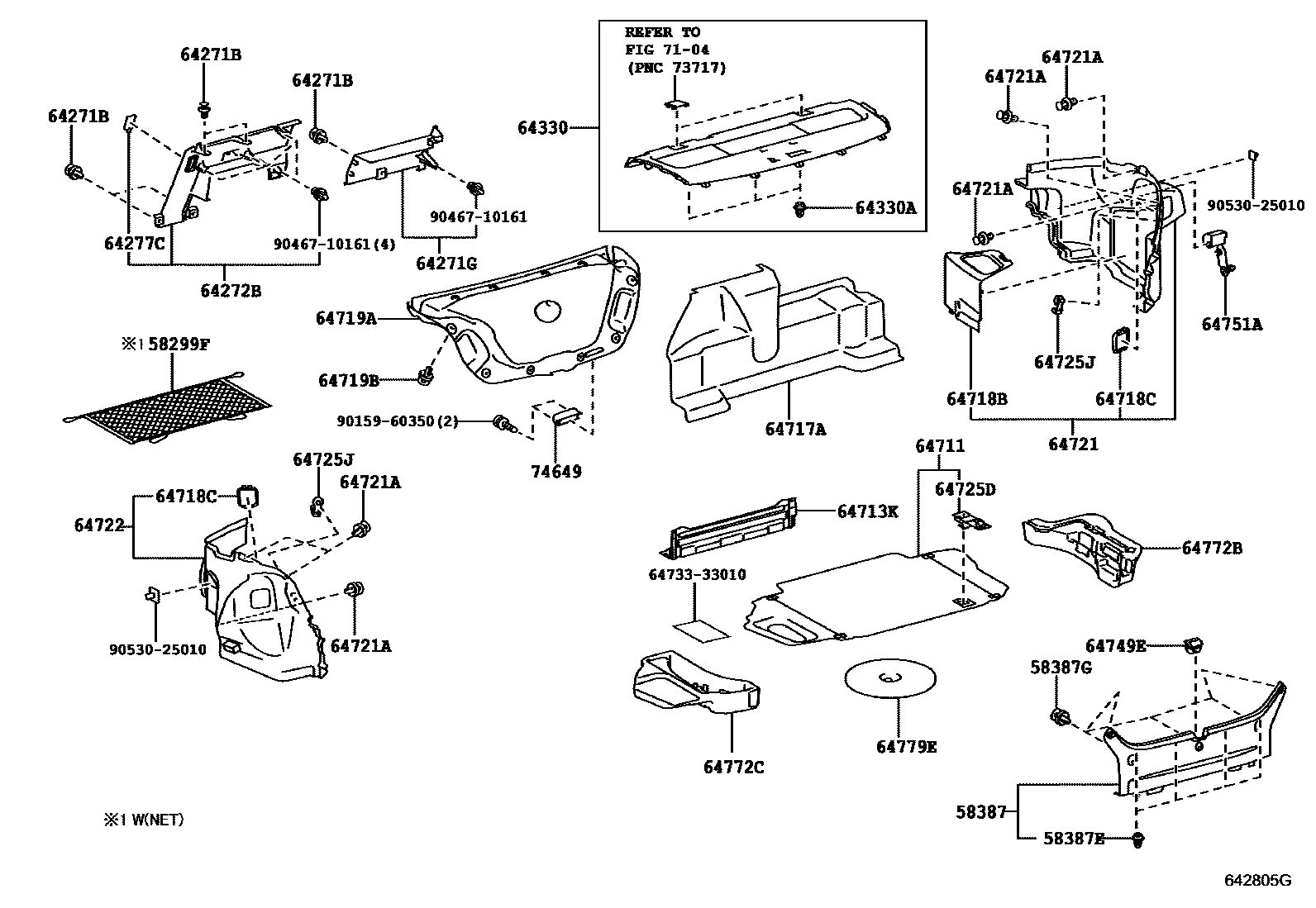

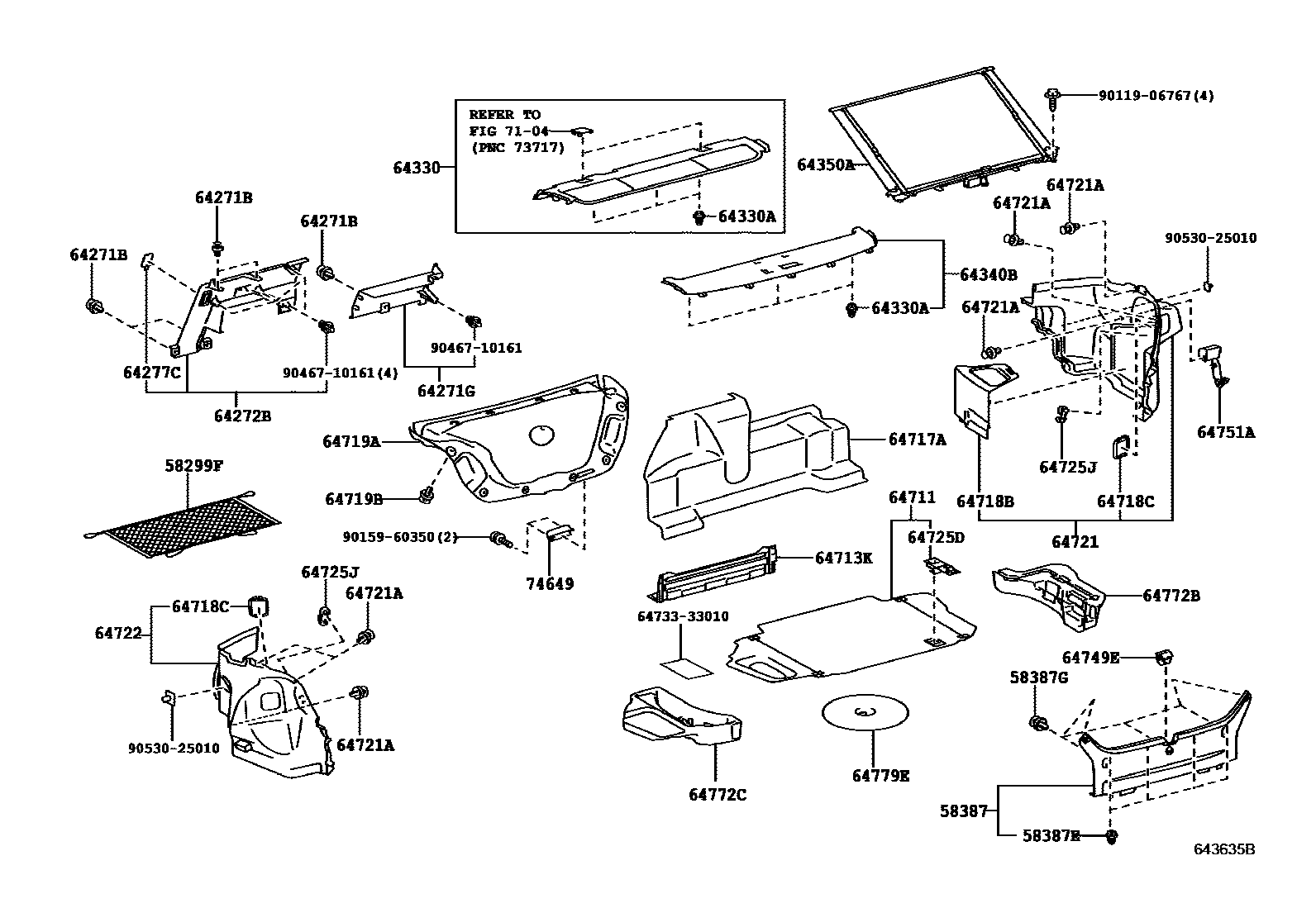

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58299F | Luggage rack net | 58299-33020 |
| 58387 | Rear floor decorative panel | 58387-33111 |
| 58387E | Clip (for rear floor trim panel) | 90467-10161 |
| 58387G | Clip (for rear floor trim panel) | 90467-07201 · 90467-07215 |
| 64271B | Clip (for compartment partition) | 90467-07201 · 90467-07220 |
| 64271E | compartment partition | 64241-33040 |
| 64271G | Right compartment partition | 64271-33070 · 64277-33010 |
| 64272B | Left compartment partition | 64271-33100 · 64272-33040 |
| 64277C | No. 2 carriage partition cover | 64275-33030 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 |
| 64350A | Rear window sun visor assembly | 64350-33060 |
| 64718B | Trunk trim access hole cover | 64718-33040 |
| 64718C | Trunk trim access hole cover | 64718-06060 · 64718-33010 |
| 64719A | Trunk door decorative cover | 64719-33121 |
| 64719B | Catch (for trunk door) | 90467-07201 · 90467-07215 |
| 64721A | Clip (for trunk interior decoration cover) | 90467-07201 · 90467-07215 |
| 64727A | Luggage interior decorative mat | 64727-06080 · 64727-33031 |
| 64749E | Trunk door latch cover | 64749-33010 |
| 64751A | No. 1 trunk door decorative cover bracket | 64751-33010 |
| 64772B | Spare tire cover liner | 64772-06230 · 64772-06231 · 64772-33111 · 64772-33121 |
| 64772C | Spare tire cover liner | 64773-06200 · 64773-06210 · 64773-33111 |
| 64779E | Spare tire cover bracket | 64779-06060 · 64779-33071 |
