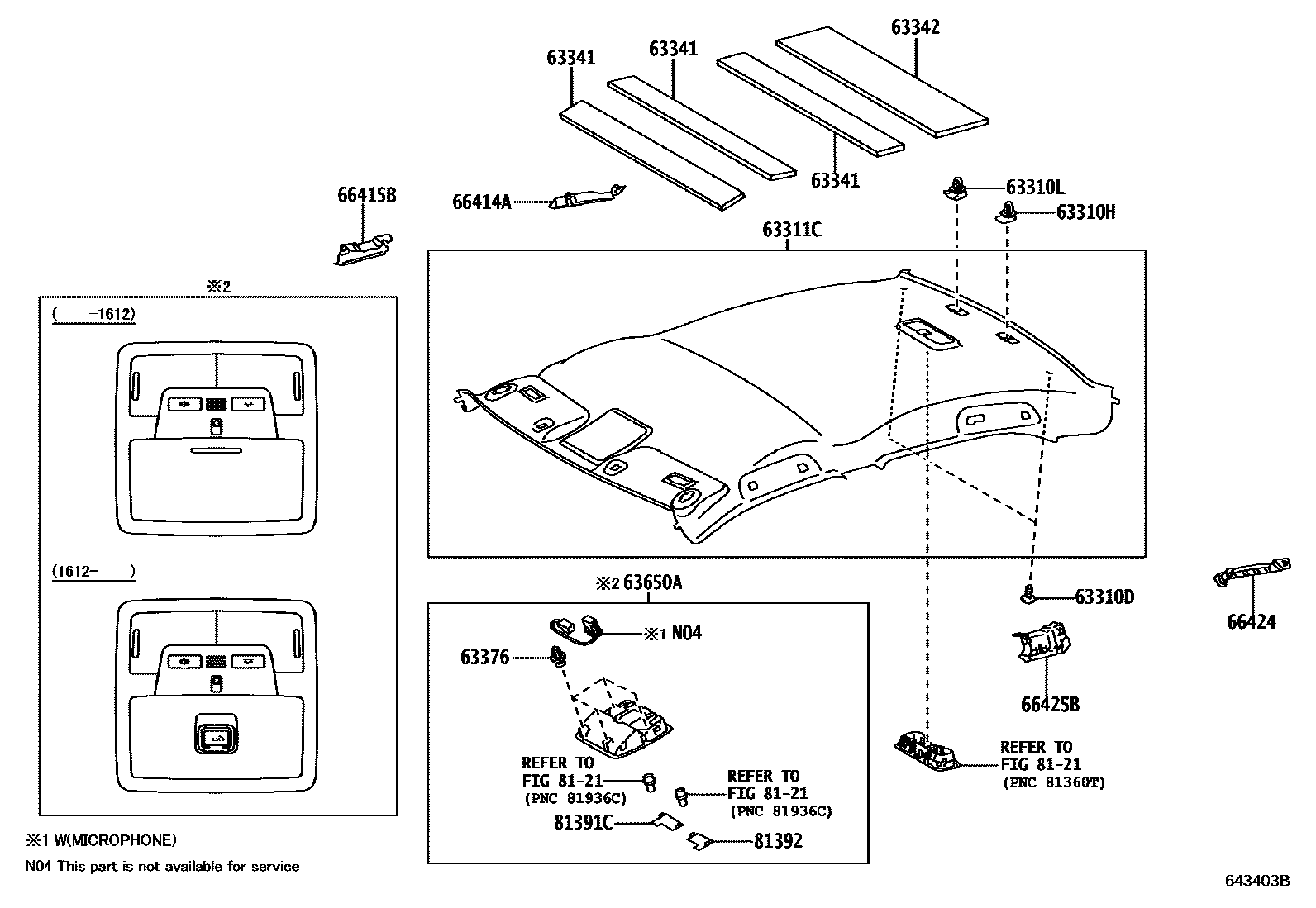

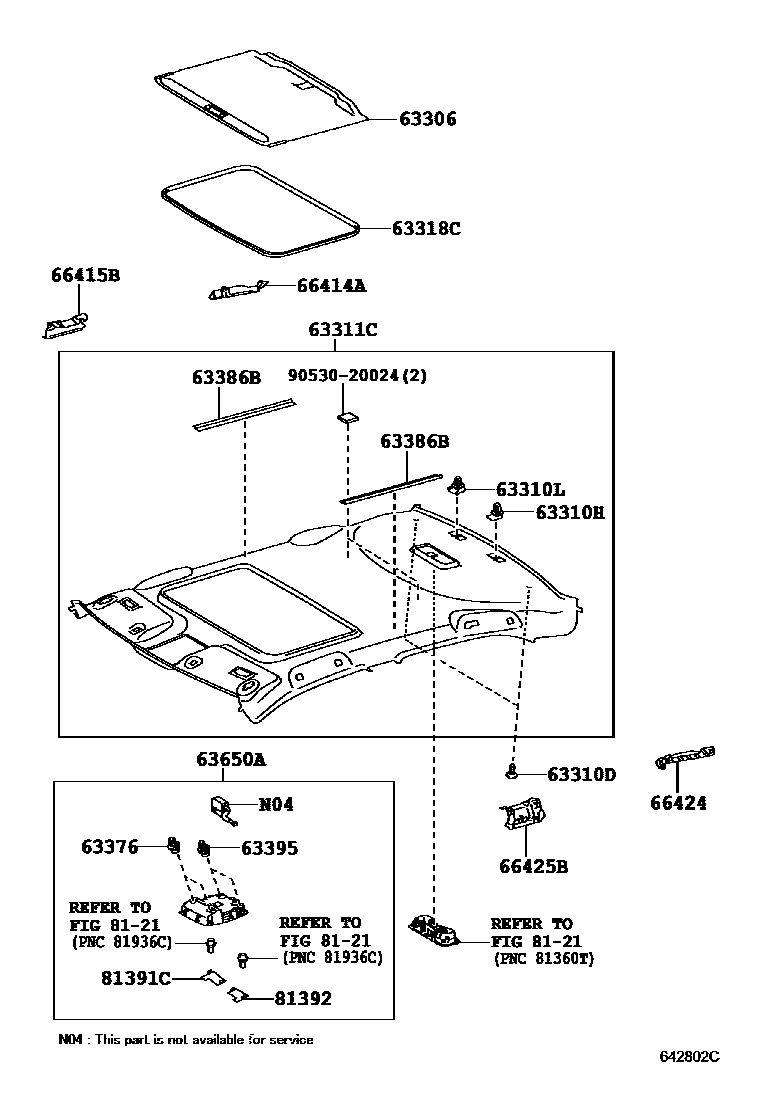

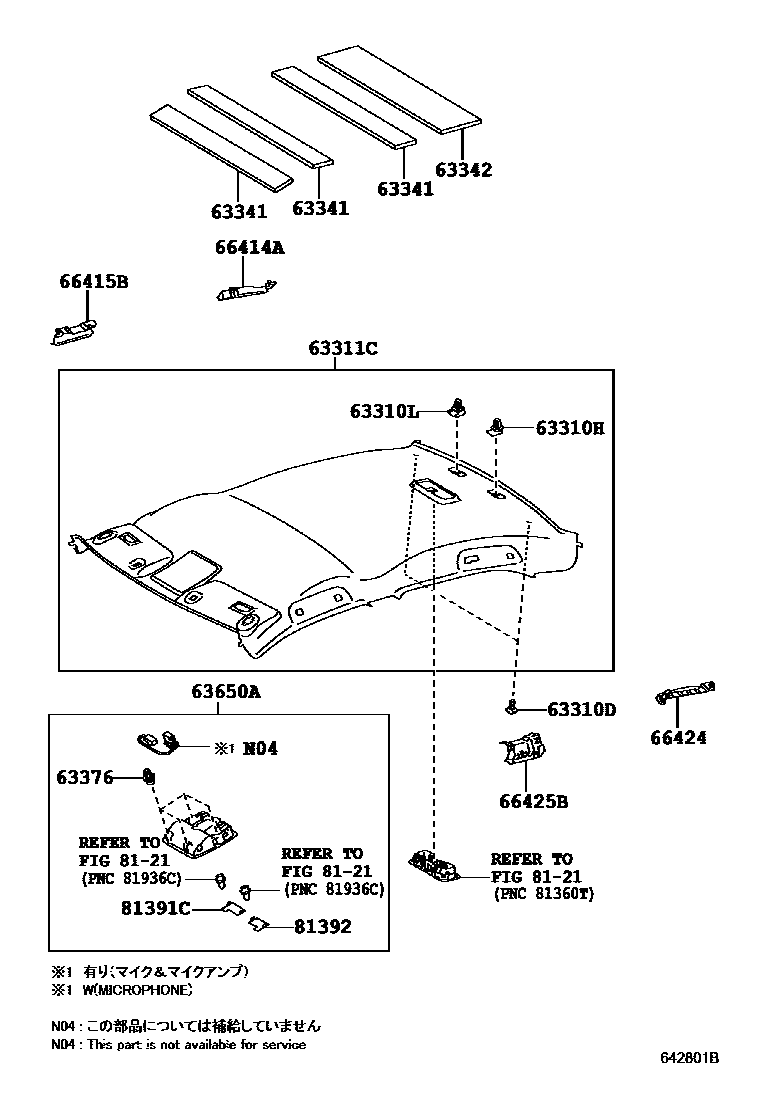

Toyota CAMRY 车顶内衬和消声垫 — Figure 6402
Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310H | Clip (for headliner) | 90467-09126 |
| 63310L | Cover (for headliner) | 90467-10181 |
| 63341 | No. 1 roof silencer mat | 63341-33060 |
| 63342 | No. 2 roof muffler pad | 63342-33120 |
| 63376 | Lined clips | 90467-10167 |
| 63386B | Headlining trim reinforcement | 63386-33010 |
| 63395 | Headlining trim panel clip | 63395-12150 |
| 66414A | Right rear longitudinal member spacer | 62495-33010 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-33020 |
| 66424 | Left rear longitudinal member spacer | 62496-33010 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-33020 |
| 81391C | Lampshade right front fixing piece | 81391-33010 · 81391-33020 |
| 81392 | Lampshade left front fixing piece | 81392-33010 · 81392-33020 |
