Toyota CAMRY 侧梁 — Figure 6101

Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 56 PNC and OE references.

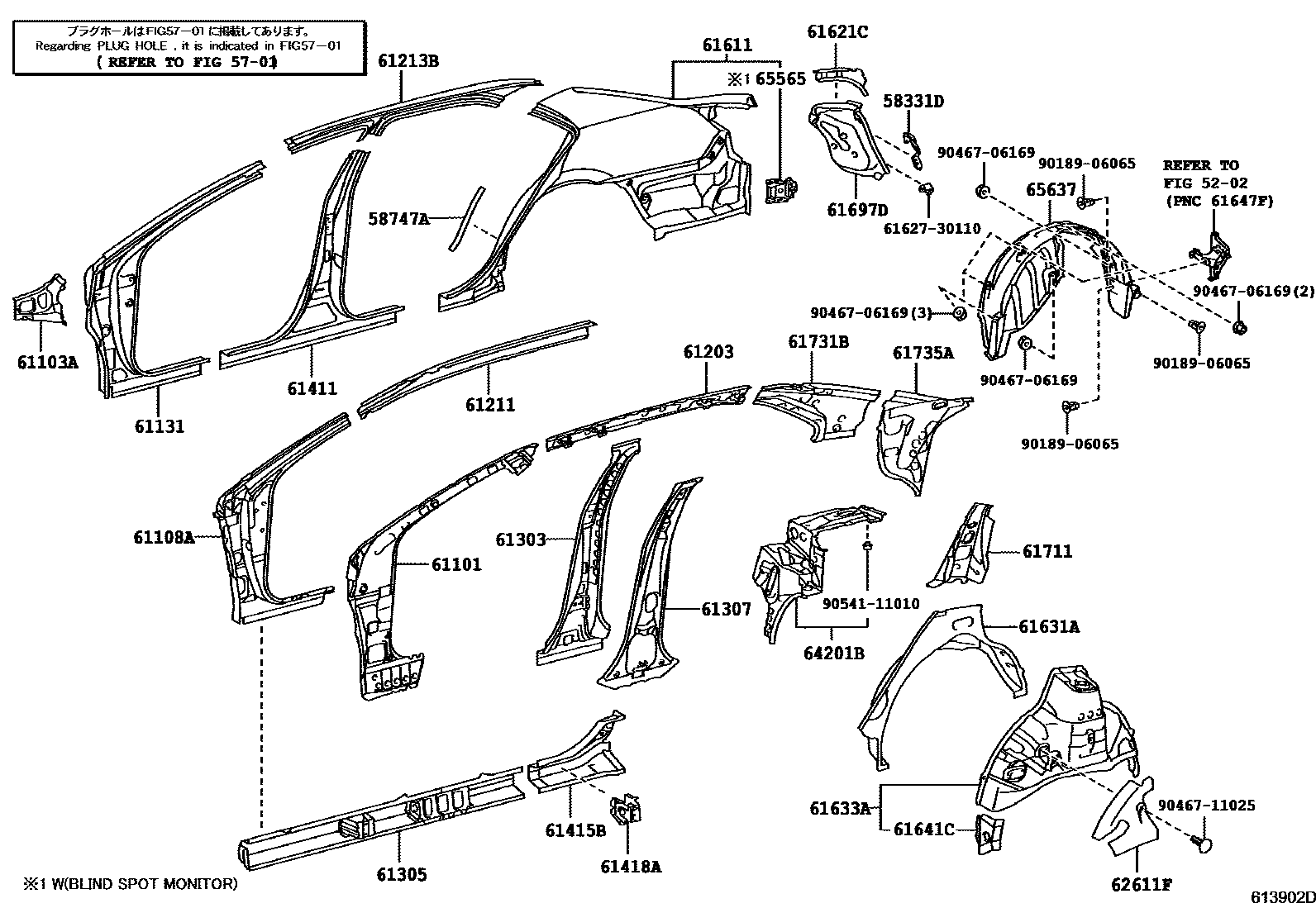

Toyota CAMRY 侧梁 EPC diagram — 613902D
侧梁 — 613902D (201108 – 999999)

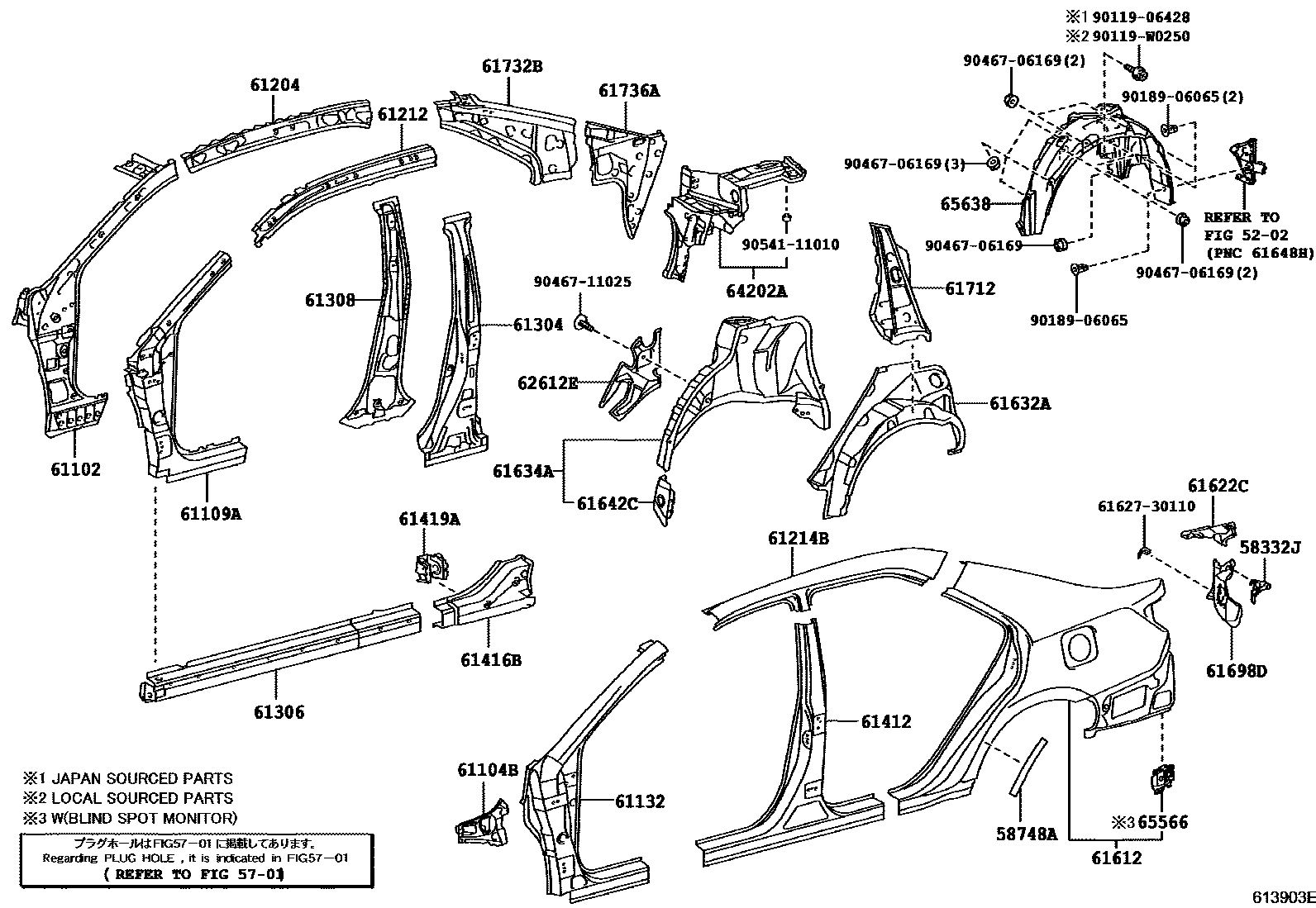

Toyota CAMRY 侧梁 EPC diagram — 613903E
侧梁 — 613903E (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
58331DNo. 1 suitcase decorative panel bracket58331-33050
58332JNo. 2 suitcase decorative panel bracket58332-33040
58747ARight rear side panel protector58747-33060
58748ALeft rear side panel protector58748-33060
61101Right front wall side panel sub-assembly61101-33130 · 61101-33131
61102Left front wall side panel sub-assembly61102-33150 · 61102-33151
61103ARight front wall side reinforcement sub-assembly61103-33060
61104BLeft front wall side reinforcement sub-assembly61104-33060
61108ARight body front pillar lower reinforcement sub-assembly61108-33180
61109ALeft side body front pillar lower reinforcement sub-assembly61109-33180
61131Right body outer front upper pillar61131-33070
61132Left body outer front upper pillar61132-33070
61203Roof right inner longitudinal beam sub-assembly61203-33060
61204Roof left inner longitudinal beam sub-assembly61204-33060
61211Roof right outer longitudinal beam61201-33040
61212Roof left outer longitudinal beam61202-33040
61213BNo. 2 longitudinal beam on the outer right side of the roof61213-33100
61214BNo. 2 longitudinal beam on the left side of the roof61214-33100
61303Right body center pillar reinforcement sub-assembly61303-33070
61304Left body center pillar reinforcement sub-assembly61304-33070
61305Right body center pillar lower reinforcement sub-assembly61305-33070
61306Left body center pillar lower reinforcement sub-assembly61306-33070
61307Right body inner center pillar sub-assembly61307-33080
61308Left body inner center pillar sub-assembly61308-33080
61411Right door outer sill panel61411-33040
61412Left door outer sill panel61412-33040
61415BRight door outer sill extension61415-33070
61416BLeft door outer sill extension61416-33070
61418ARight side door sill panel reinforcement61418-33070
61419ALeft side rocker panel reinforcement61418-33070
61611Right side hoarding61601-33350 · 61601-33370
61612left side panel61602-33200 · 61602-33250
61621CLuggage right opening slot61621-33070
61622CLuggage trunk left opening slot61622-33070
61631ARight wheel cover outer panel61631-33100
61632ALeft side wheel cover outer panel61632-33100
61633ARight wheel housing lining panel61633-33902
61634ALeft side wheel housing lining panel61634-33902
61641CRight front side wheel housing corner panel61641-33070
61642CLeft front side wheel housing corner panel61642-33070
61697DRight side enclosure end cover61697-33100
61698DLeft side enclosure end cover61698-33100
61711Roof right side outer panel61711-33100
61712Roof left outer panel61712-33090
61731BRoof right inner panel61731-33130
61732BRoof left inner panel61732-33120
61735ARight rear roof inner panel61735-33100
61736ALeft rear roof inner panel61736-33100
62611FRight wheel cover vibration isolation pad62611-33050
62612ELeft side wheel cover vibration isolation pad62612-33050
64201BGlove box to floor right filter sub-assembly64201-33070 · 64201-33071
64202AGlove box to floor left filter sub-assembly64202-33070 · 64202-33071
65565Right side panel rear end lining65565-33040
65566Left side panel rear end lining65565-33040
65637Right rear wheel house lining65637-33050 · 65637-33070
65638Left rear wheel house lining65638-33050 · 65638-33070
