Toyota CAMRY 中央扶手箱和支架 — Figure 5806

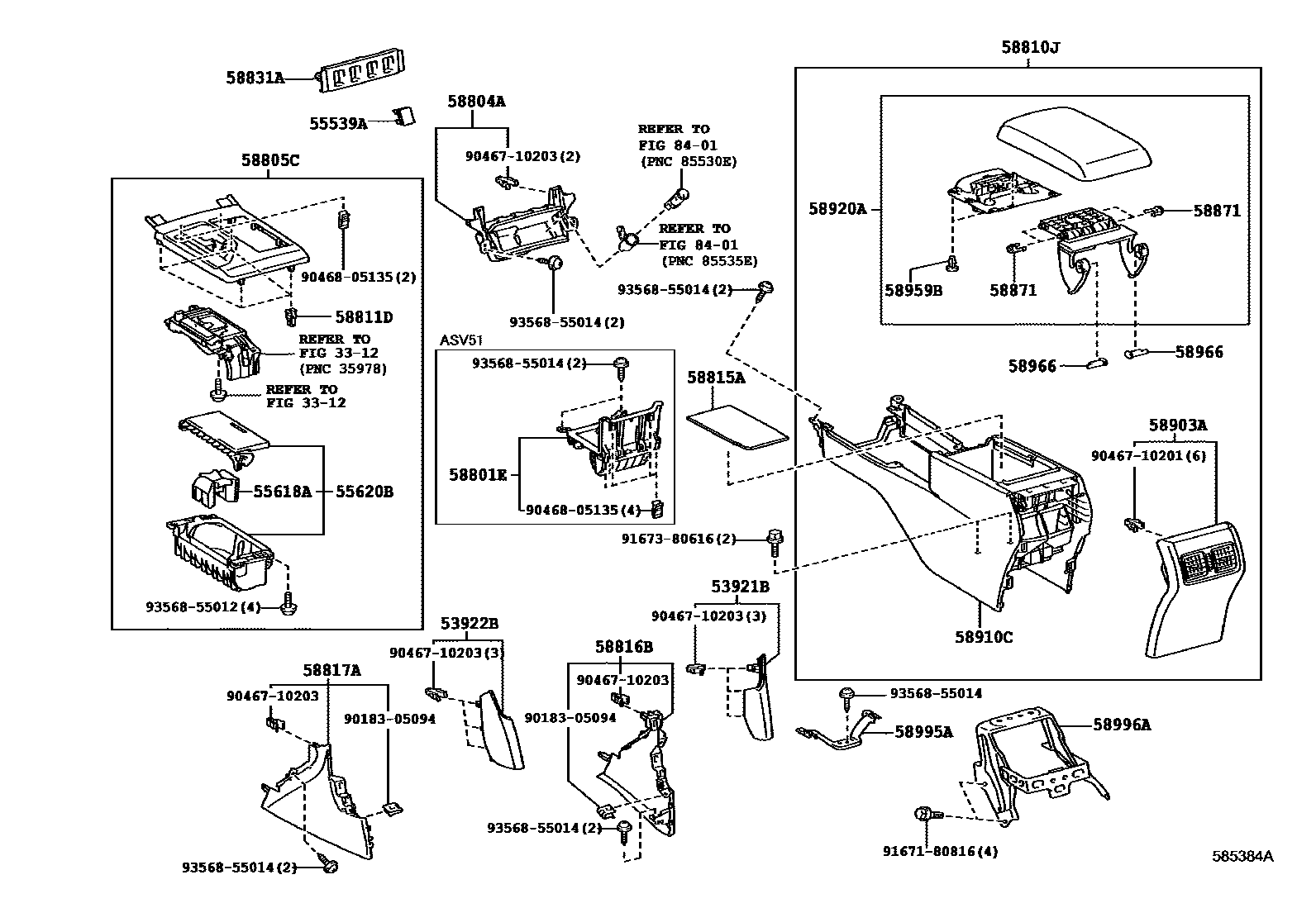

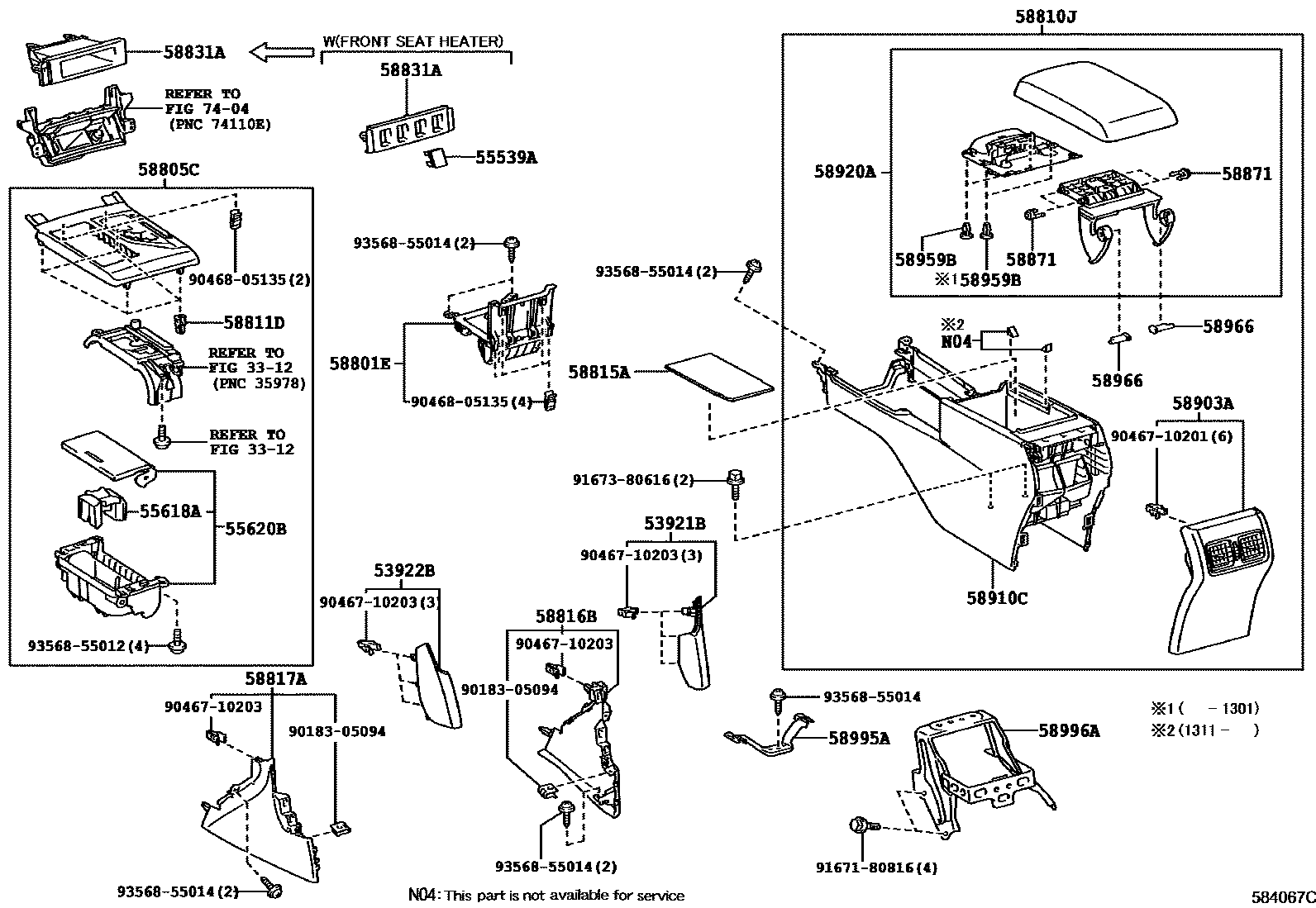

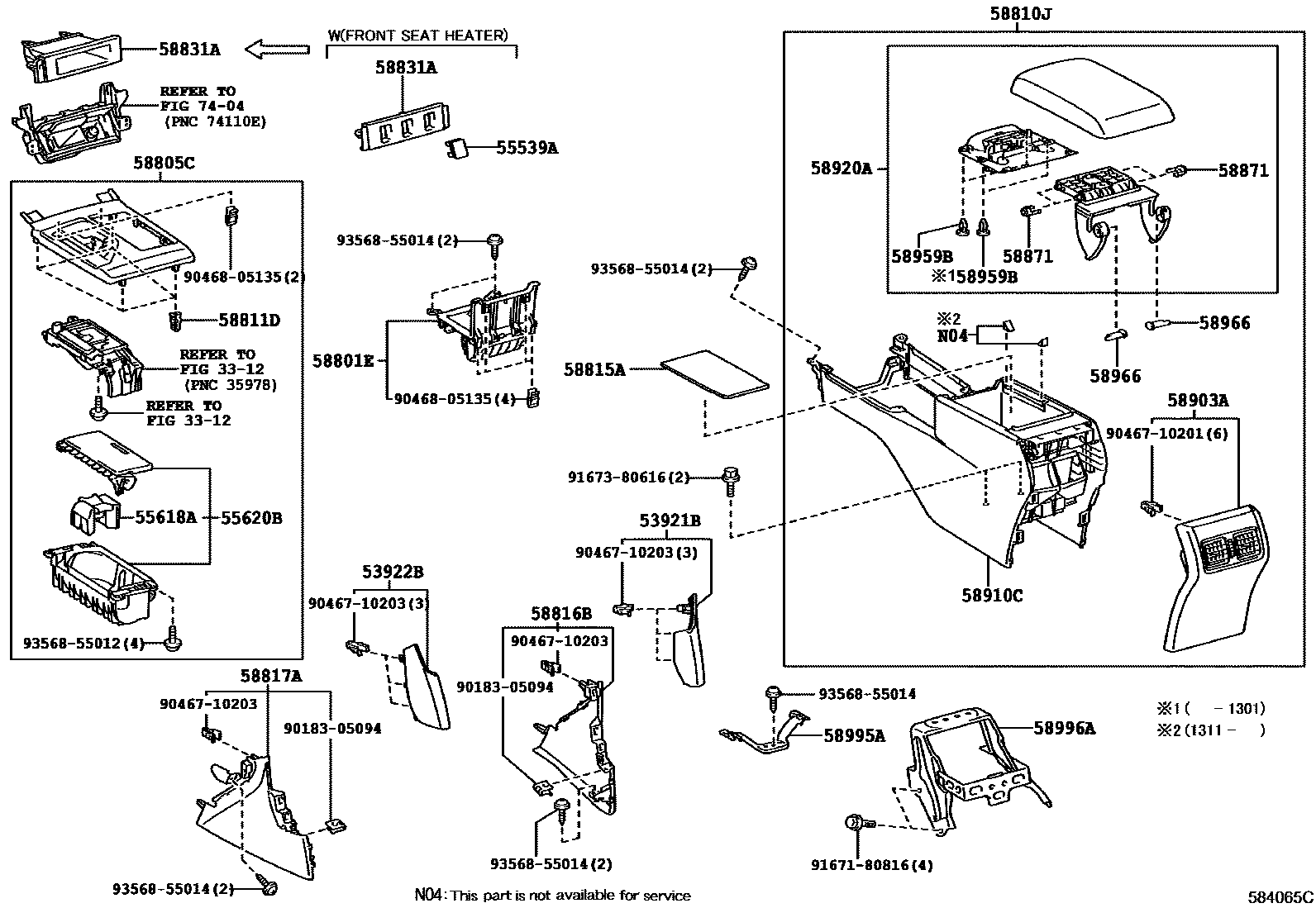

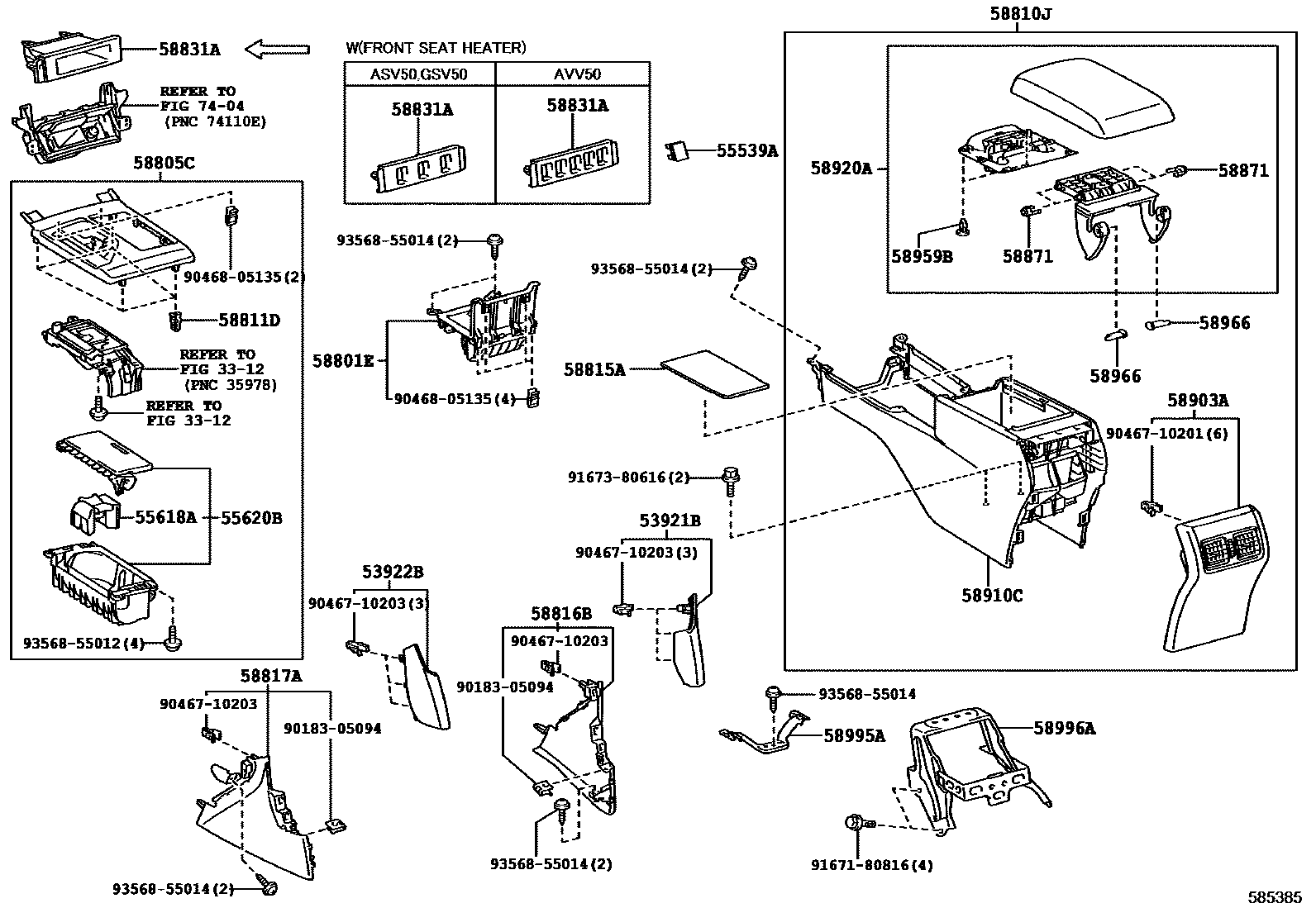

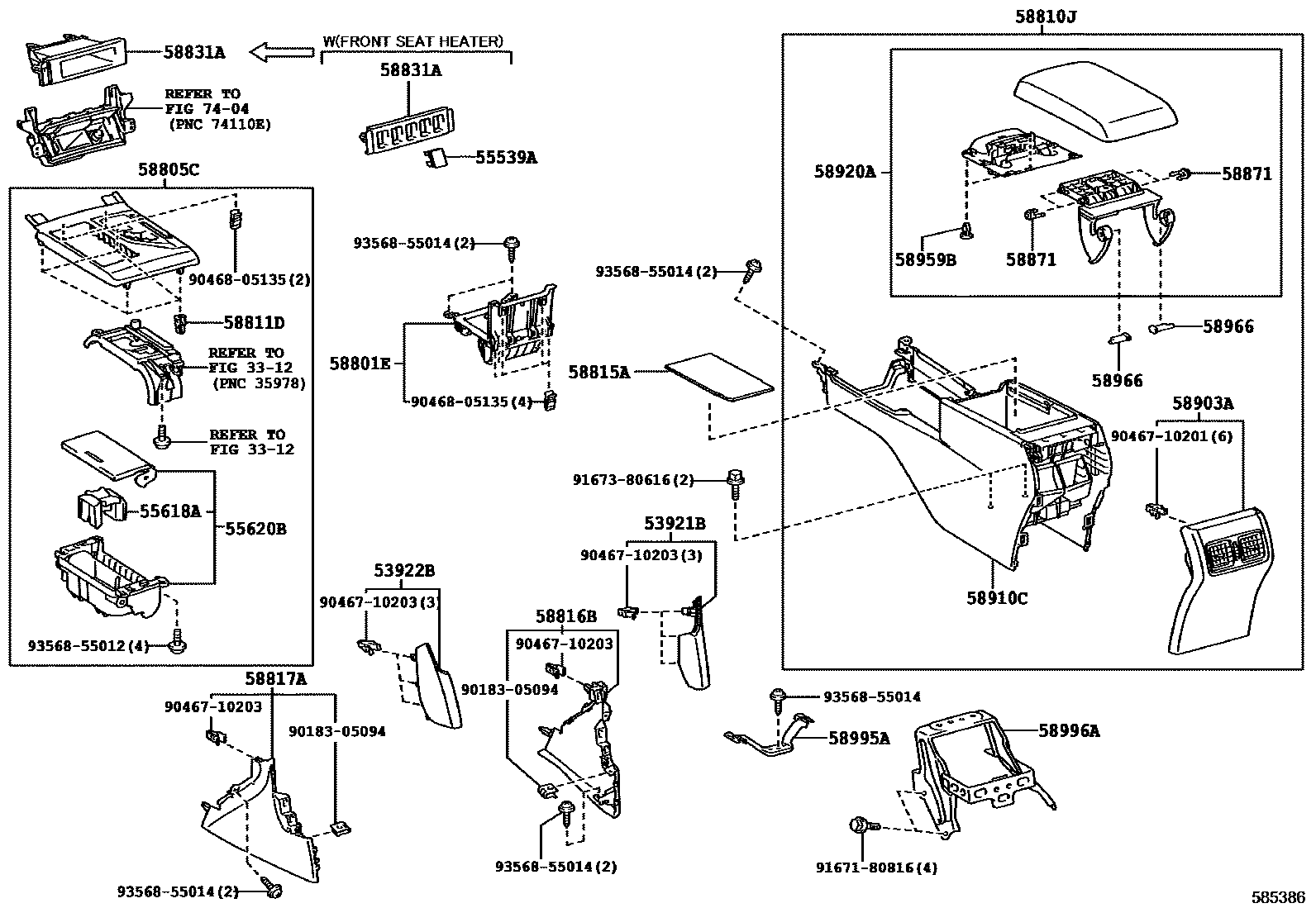

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55618A | Armrest box cup holder | 55618-33010 |
| 58811D | Clip (for armrest box) | 90467-10203 |
| 58815A | Armrest box felt pad | 58815-06170 · 58815-33140 |
| 58831A | Front armrest box upper panel decorative parts | 58831-33120 · 58831-33121 · 58831-33130 · 58831-33140 · 58831-33160 |
| 58871 | Armrest box cushion | 58871-30070 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58966 | Armrest box cover hinge shaft | 58966-30030 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06200 · 58995-33080 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-06130 · 58996-33070 |
