Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801

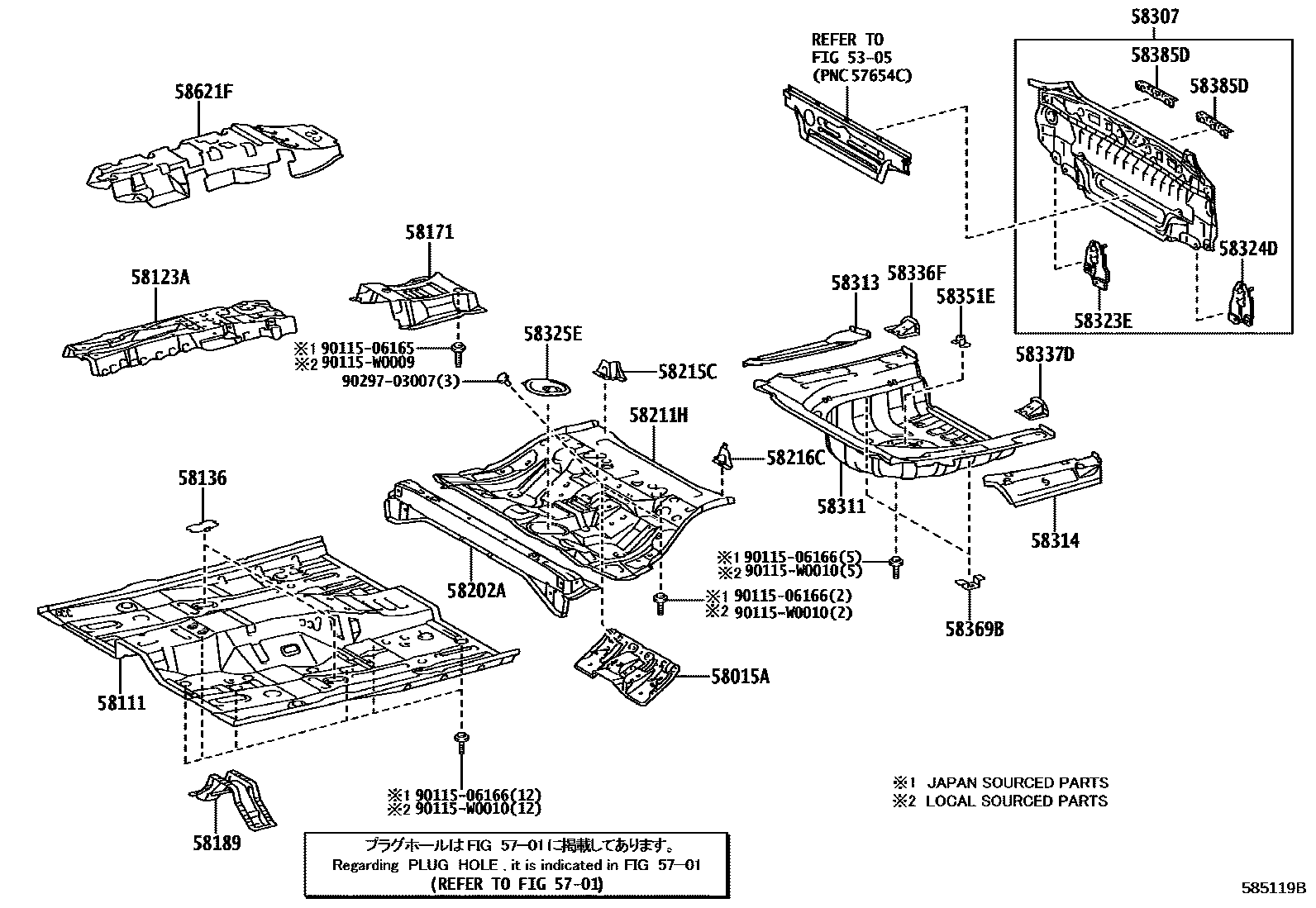

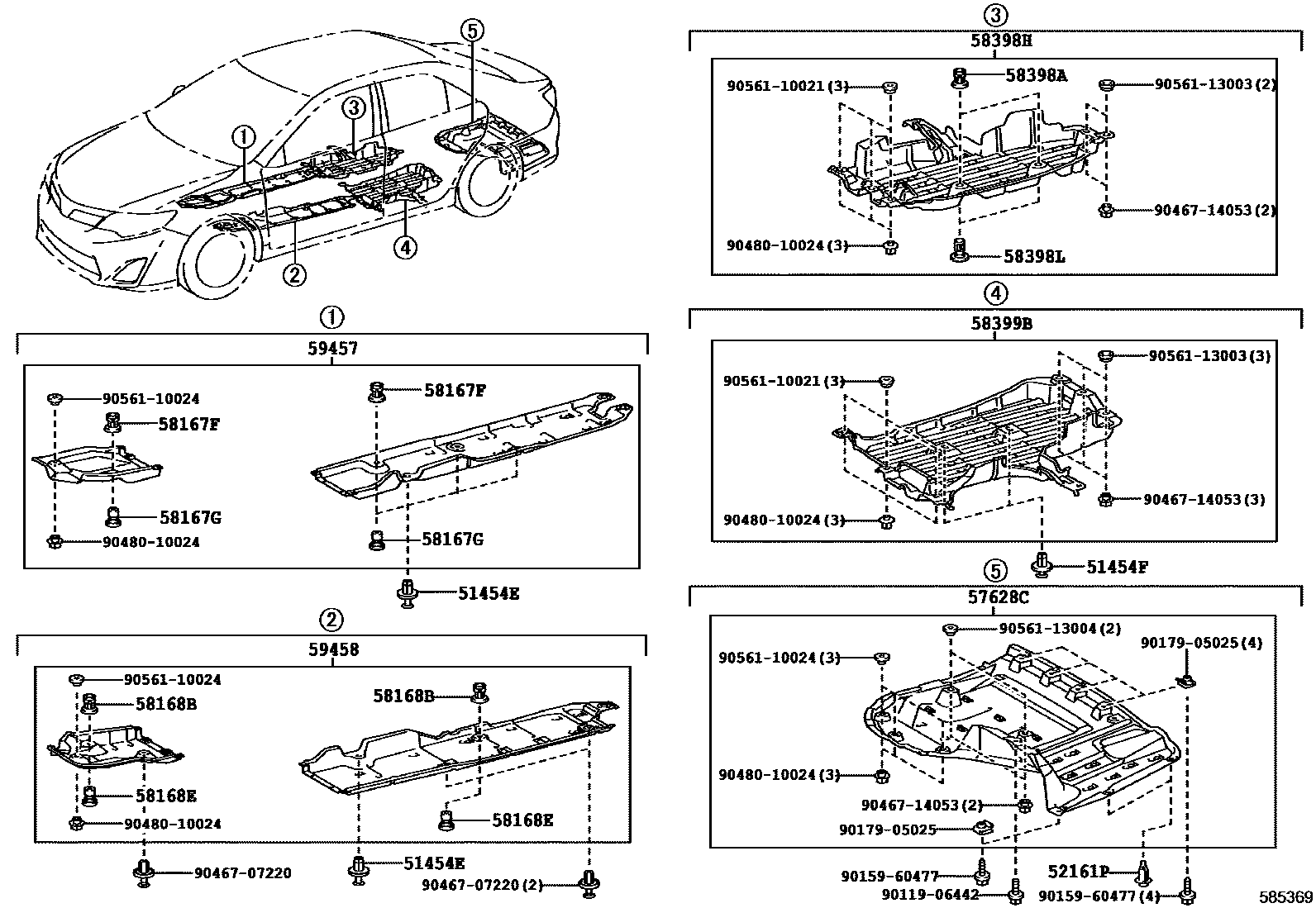

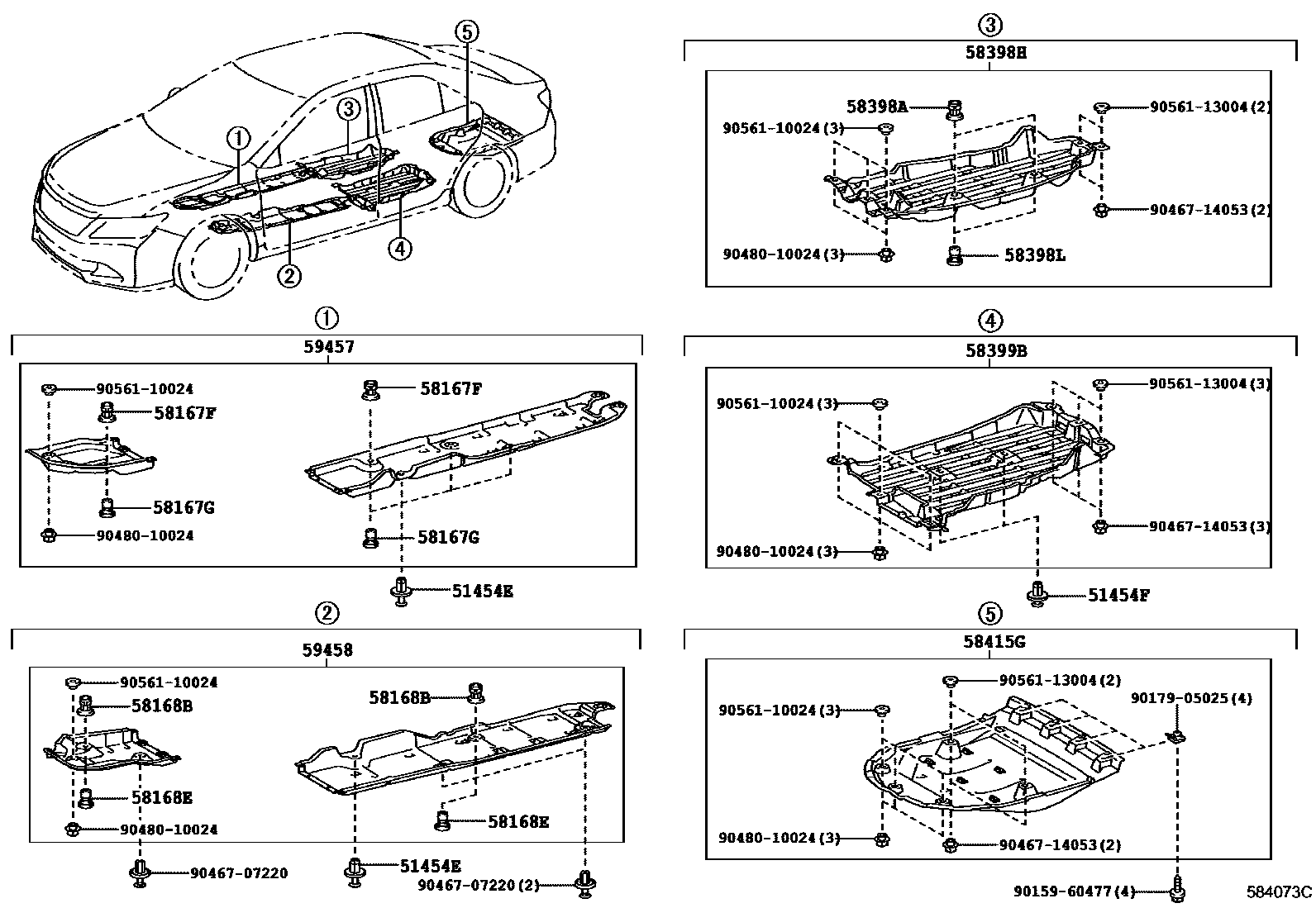

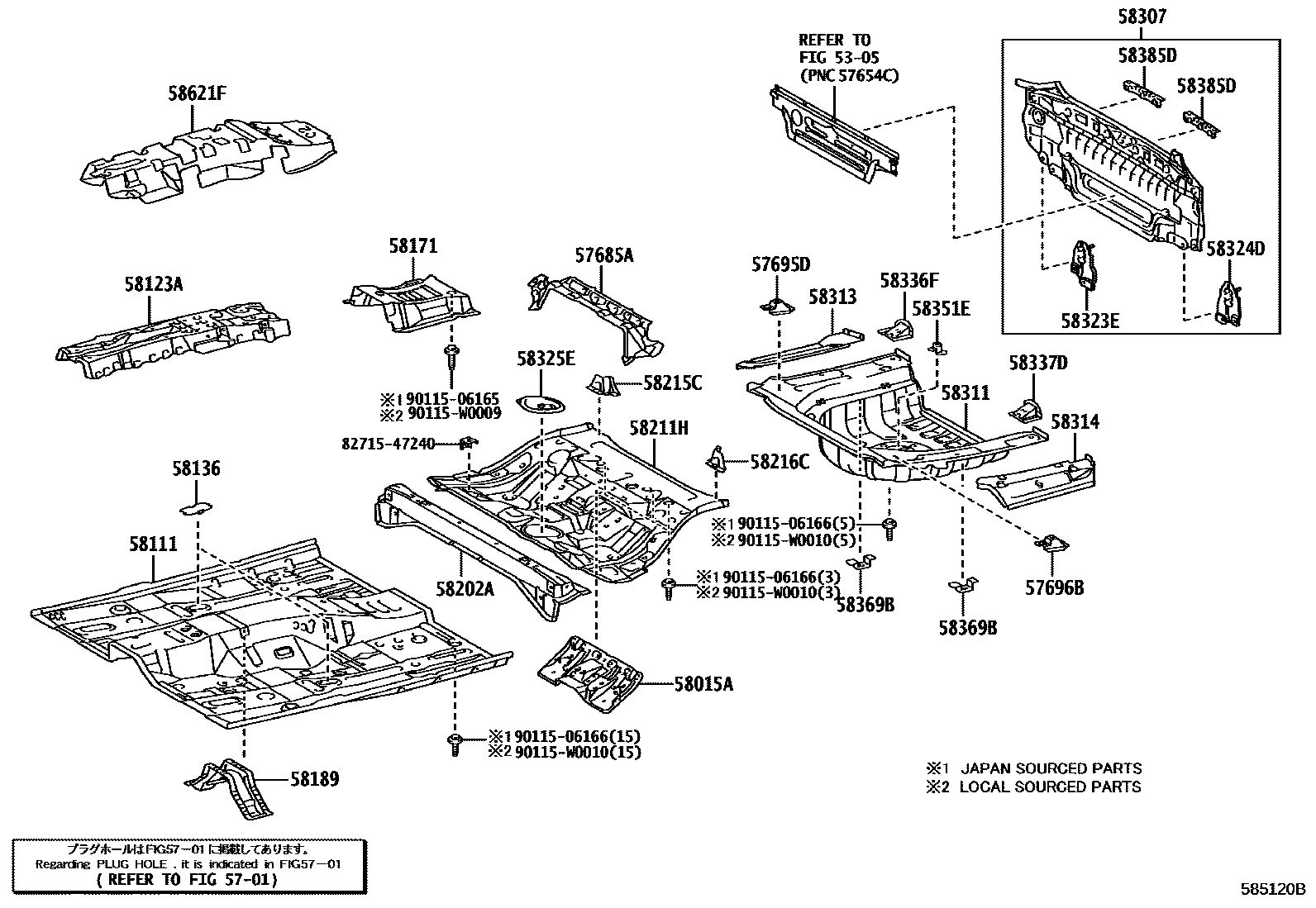

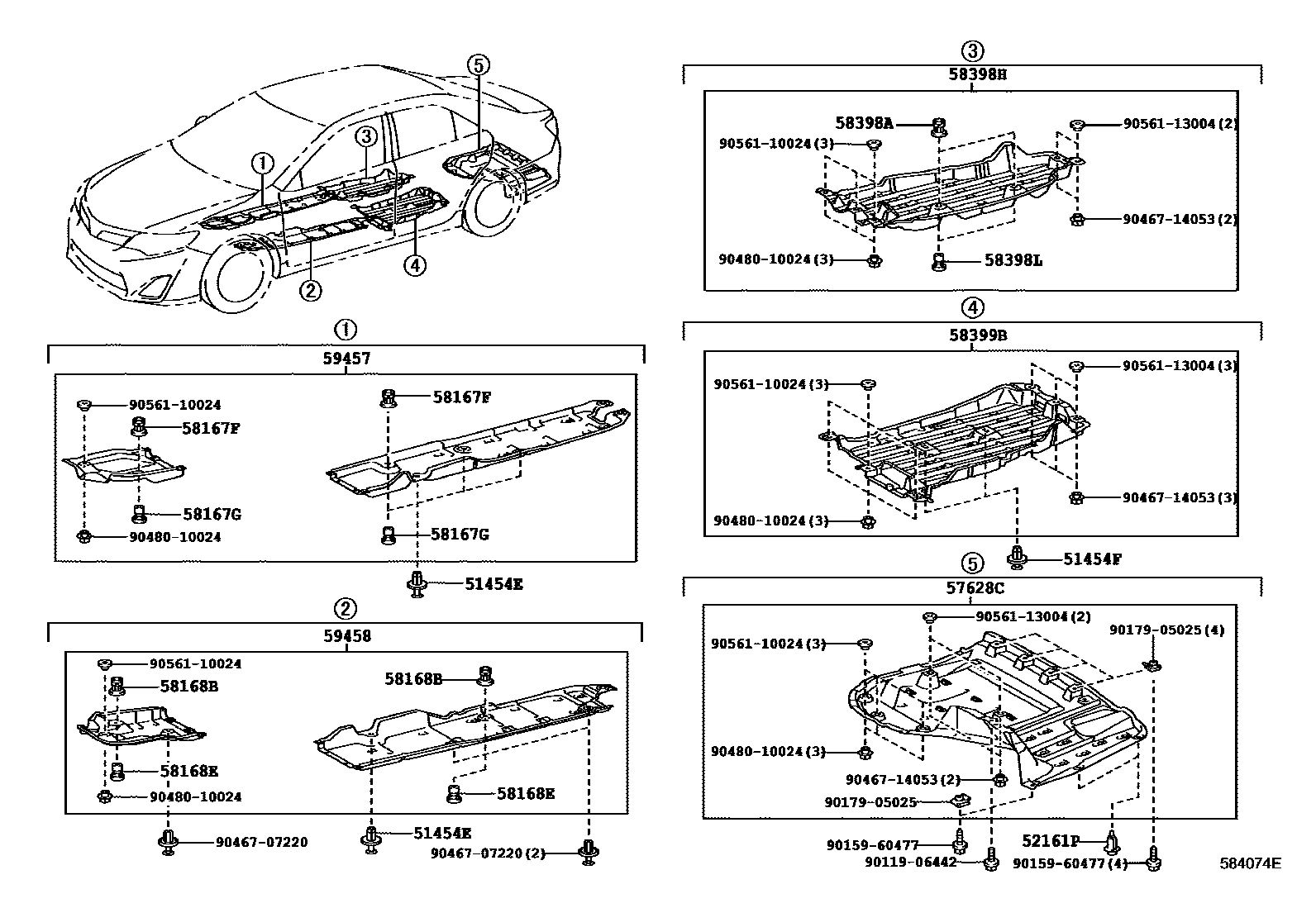

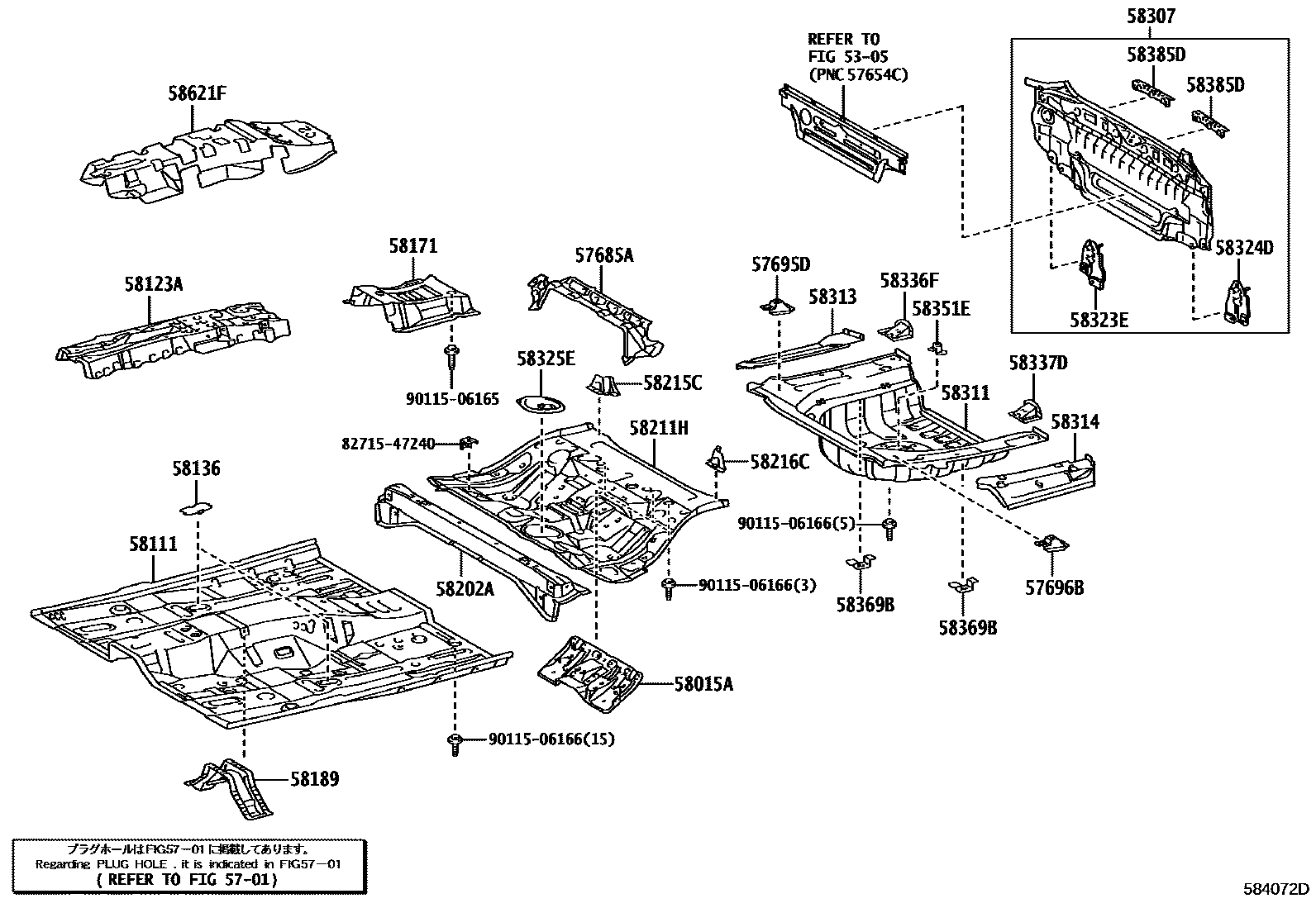

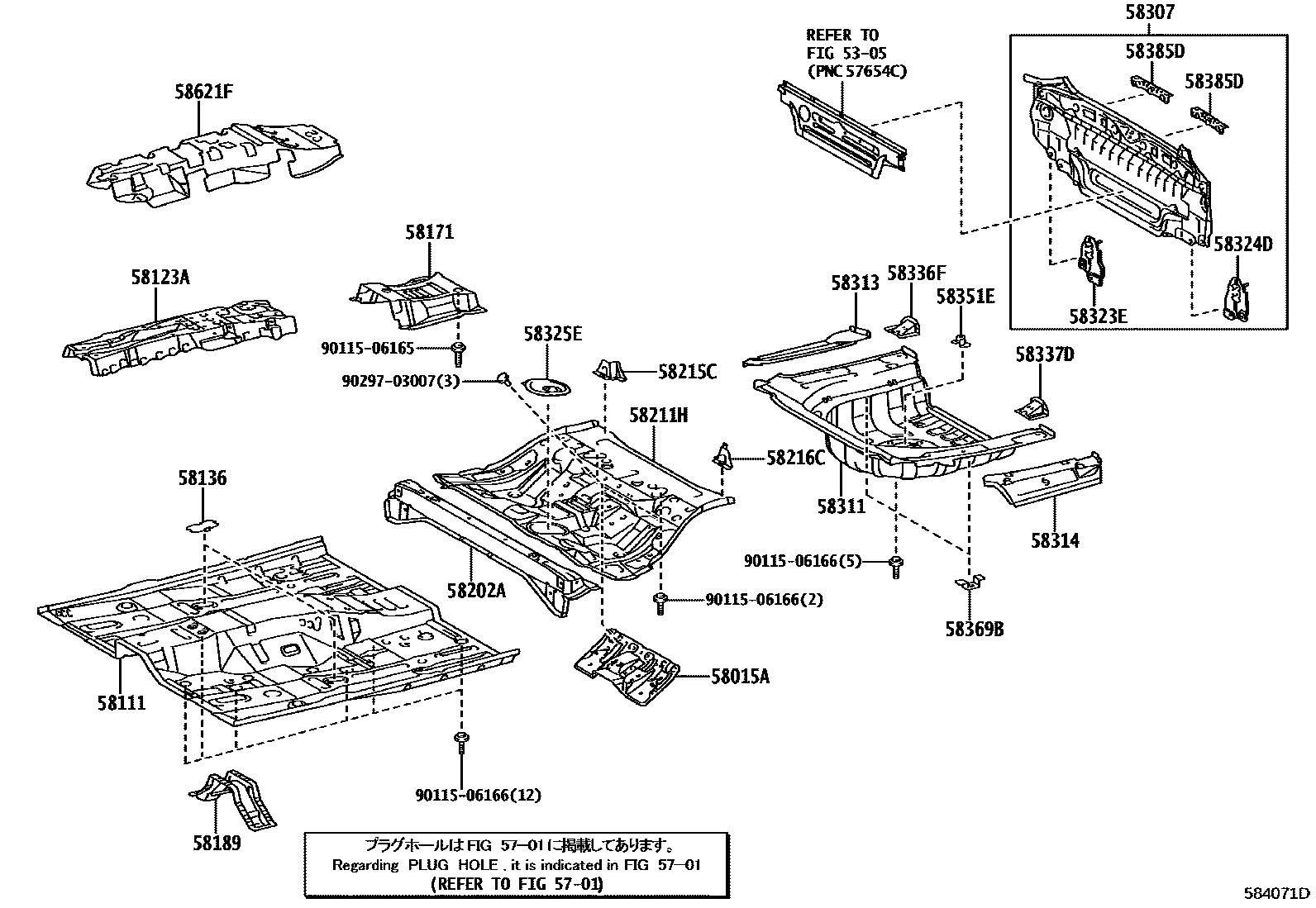

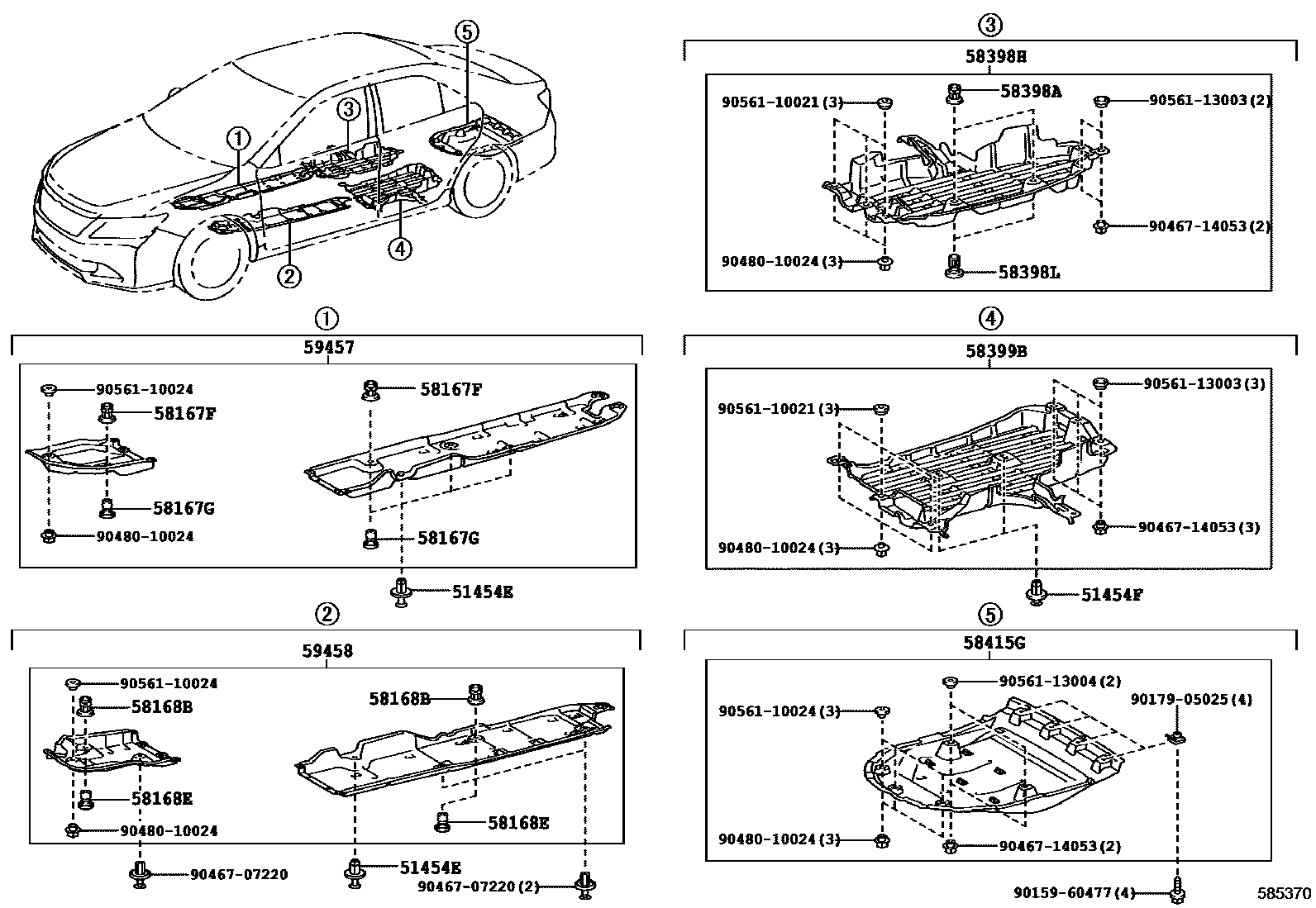

Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 8 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51454E | Front floor cover silencer | 51454-08010 |
| 51454F | Rear floor cover silencer | 51453-33010 |
| 52161P | Rear bumper insert | 52161-16010 |
| 57628C | Rear floor left longitudinal member cover | 57628-33080 · 57628-33100 |
| 57685A | Rear floor No. 1 right mounting bracket | 57685-33010 |
| 57695D | Rear floor No. 2 right mounting bracket | 57695-33020 |
| 57696B | Rear floor No. 2 left mounting bracket | 57695-33020 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-33030 · 58015-33041 |
| 58111 | front floor pan | 58111-33070 |
| 58123A | shift lever bracket | 58013-33070 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58171 | Parking brake base reinforcement | 58171-33080 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-33050 · 58189-33070 |
| 58202A | Center floor front floor sub-assembly | 58202-33010 |
| 58211H | central floor base | 58211-33142 · 58211-33160 |
| 58215C | Center floor No. 2 right reinforcement | 58215-33040 |
| 58216C | Center floor No. 2 left reinforcement | 58216-33030 |
| 58307 | Body lower back panel sub-assembly | 58307-33160 |
| 58311 | rear floor pan | 58311-06180 · 58311-33071 |
| 58313 | Rear floor right panel | 58313-33050 · 58313-33060 |
| 58314 | rear floor left panel | 58314-33060 |
| 58323E | Rear bumper arm right bracket reinforcement | 58323-33080 |
| 58324D | Rear bumper arm left bracket reinforcement | 58324-33060 |
| 58325E | Rear floor access hole cover | 58325-33050 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-33020 |
| 58337D | Rear floor bottom left reinforcement | 58337-33030 |
| 58351E | Spare tire clip bracket | 58351-33010 |
| 58369B | No. 3 fuel pipe bracket | 58369-32010 |
| 58385D | Rear bumper cover bracket | 58385-33050 |
| 58398H | No. 1 floor under cover | 58398-33020 · 58398-33040 |
| 58399B | Floor No. 2 lower cover | 58399-33030 · 58399-33050 |
| 58415G | Rear floor panel No. 1 | 58415-33010 · 58415-33040 |
| 58621F | Center console silencer No. 1 | 58621-06140 · 58621-33090 |
| 59457 | No. 2 right front floor footrest cover | 59407-33010 · 59407-33020 |
| 59458 | No. 2 left front floor footrest cover | 59408-33010 |
