Toyota CAMRY 前围板和挡风玻璃 — Figure 5503

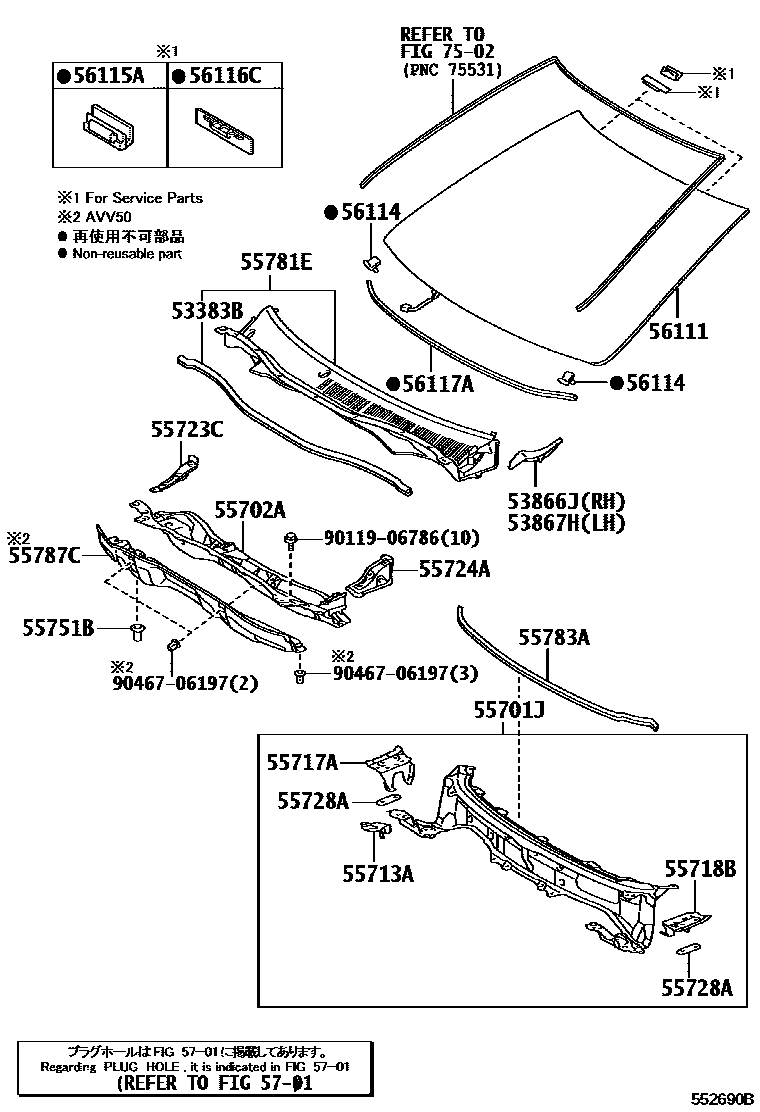

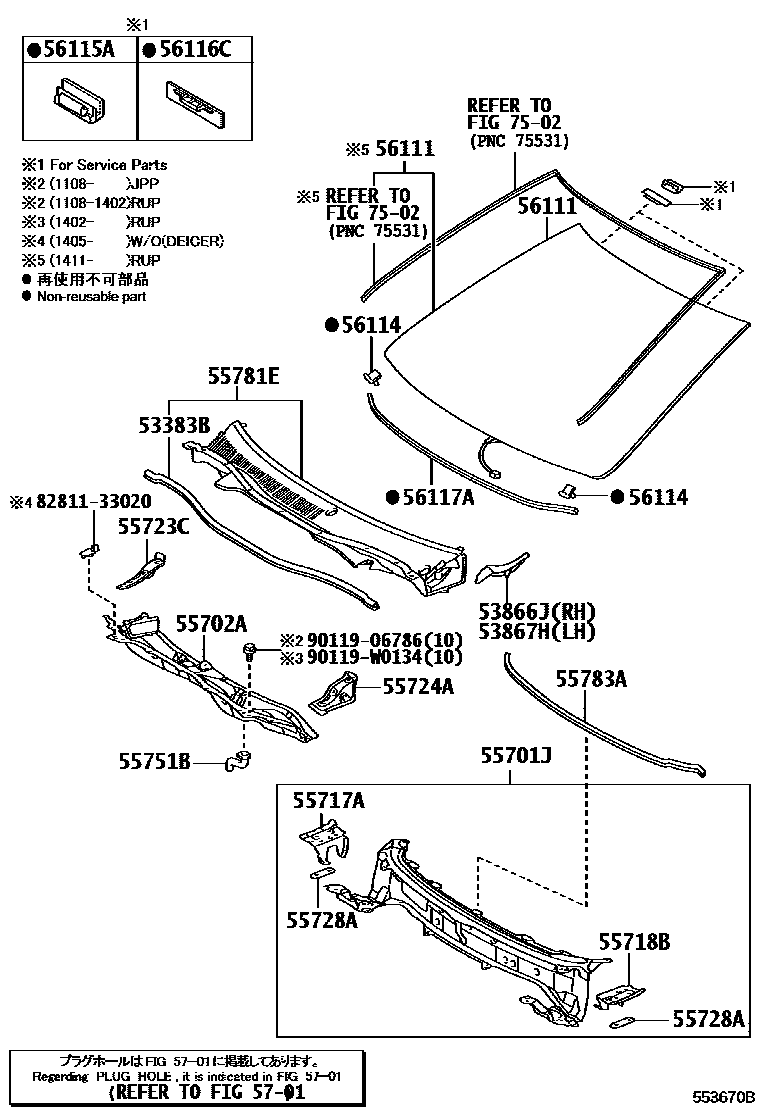

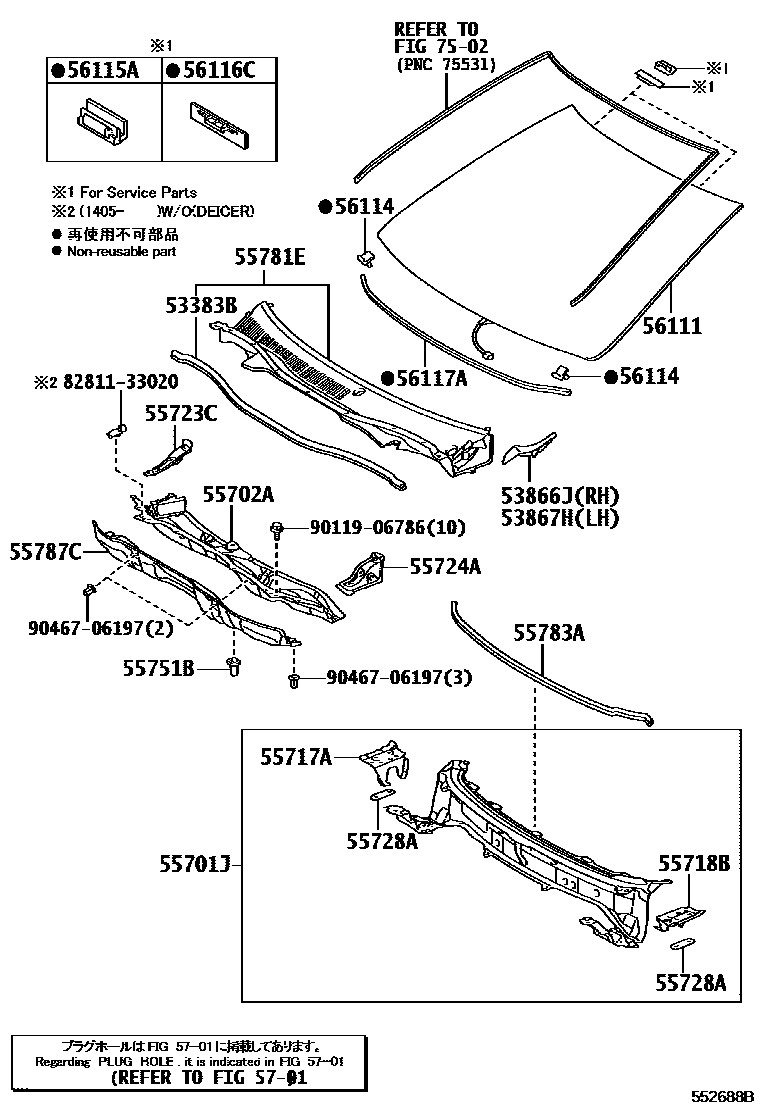

Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-06120 · 53383-33090 · 53383-33130 |
| 53866J | Right front fender to cowl side seal | 53866-33080 |
| 53867H | Left front fender to cowl side seal | 53867-33080 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-33170 · 55701-33180 |
| 55702A | Front cowl upper outer front panel sub-assembly | 55702-33060 · 55702-33061 · 55702-33062 · 55702-33070 · 55702-33071 · 55702-33080 · 55702-33081 · 55702-33082 · 55702-33090 · 55702-33091 · 55702-33190 |
| 55713A | Right front wall upper side panel | 55713-33050 |
| 55717A | Upper right inner panel of cowl | 55717-33060 |
| 55718B | Upper left inner panel of front wall | 55718-33060 |
| 55723C | Right front wall upper side reinforcement | 55723-33060 · 55723-33070 |
| 55724A | Left front wall upper side reinforcement | 55724-33070 · 55724-33080 |
| 55728A | Engine cover block reinforcement | 55728-33040 |
| 55751B | Front no. 1 water hose | 55751-33040 · 55751-33050 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-06240 · 55708-33150 · 55708-33151 · 55708-33160 · 55708-33161 · 55708-33170 · 55708-33171 · 55708-33250 |
| 55783A | Front cowl upper cover silencer pad | 55783-33080 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-33090 · 55787-33100 |
| 56111 | windshield | 56101-06830 · 56101-06831 · 56101-06832 · 56101-06833 · 56101-06840 · 56101-06841 · 56101-06842 · 56101-06953 · 56101-06A00 · 56101-06A01 · 56101-33913 · 56101-33914 · 56101-33954 · 56101-33955 · 56101-33972 · 56101-33989 · 56101-33990 · 56101-33995 |
| 56114 | windshield stopper | 56114-33050 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
