Toyota CAMRY 发动机盖和前翼子板 — Figure 5302

Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 28 PNC and OE references.

Toyota CAMRY 发动机盖和前翼子板 EPC diagram — 536517F — 发动机盖和前翼子板 — 536517F (201108 – 999999)

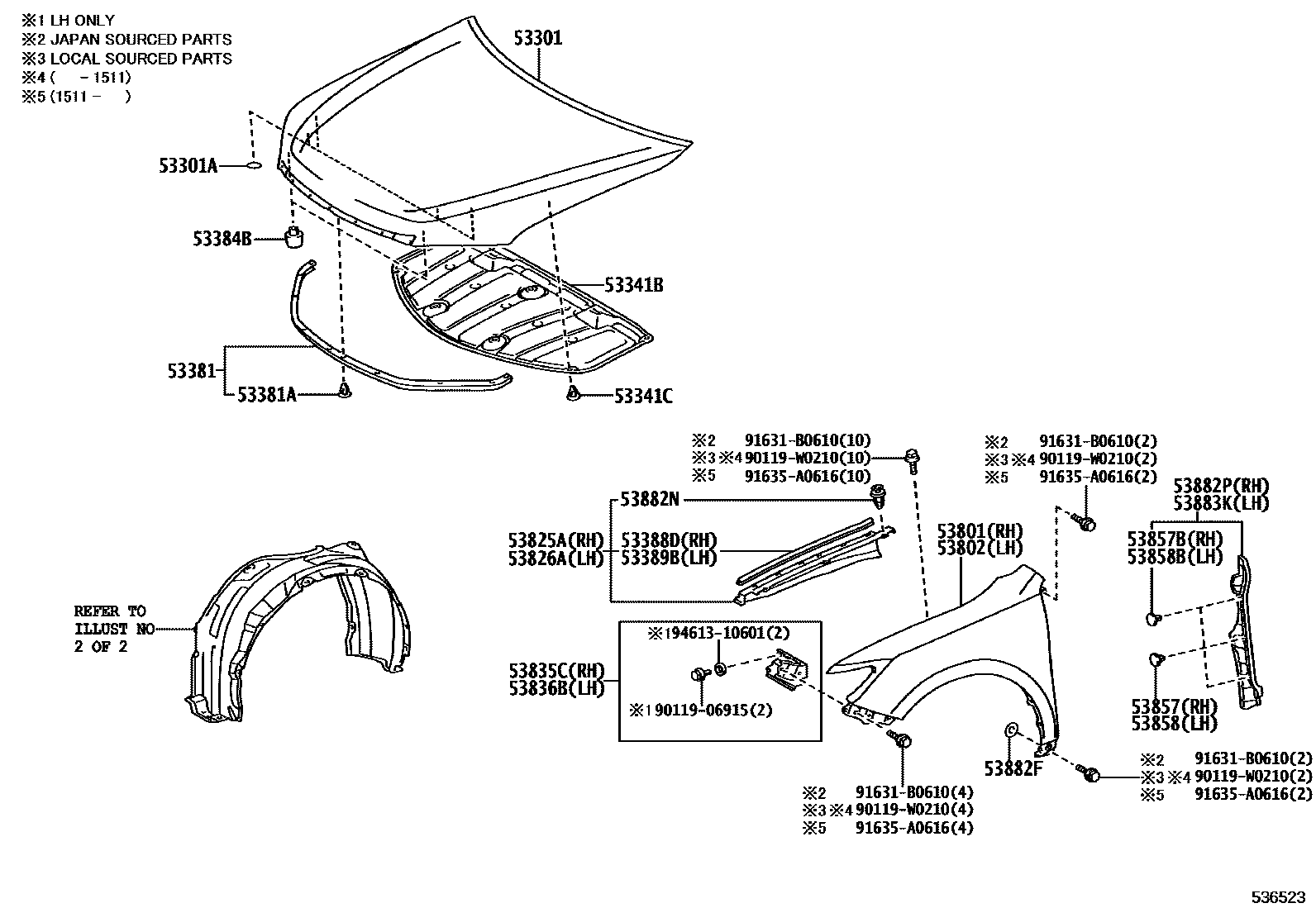

Toyota CAMRY 发动机盖和前翼子板 EPC diagram — 536523 — 发动机盖和前翼子板 — 536523 (201108 – 999999)

PNC and OE references

PNC	Part name	OE numbers
53301	Engine cover sub-assembly	53301-06260 · 53301-33110 · 53301-33190 · 53301-33191 · 53301-33200 · 53301-33201 · 53301-33210
53301A	Hole plug (for engine cover)	90950-06124
53341B	engine cover gasket	53341-06380 · 53341-06390 · 53341-33150 · 53341-33170 · 53341-33180
53341C	Clip (for engine cover gasket)	90467-09050
53381	Engine cover to radiator bracket seal	53381-06160 · 53381-33070
53381A	Clip (for engine cover to radiator bracket seal)	90467-08011
53384B	Engine cover center cushion	53384-22080
53388D	Engine cover to right front fender seal	53388-33050
53389B	Engine cover to left front fender seal	53388-33050
53801	Right front fender sub-assembly	53811-06230 · 53811-33210
53802	Left front fender sub-assembly	53812-06240 · 53812-33210
53825A	Right front fender protection piece	53825-33030
53826A	Protection piece on left front fender	53826-33040
53835C	Right front side panel bracket	53835-33080
53836B	Left front side panel bracket	53804-33030
53857	Right front fender external panel fixing piece	53857-47011
53857B	Right front fender external panel fixing piece	53857-47011
53858	Left front fender external panel fixing piece	53857-47011
53858B	Left front fender external panel fixing piece	53857-47011
53875A	Right front fender lining	53805-33010 · 53805-33050 · 53875-33190 · 53875-33230
53875C	Front fender lining clip	90467-07166
53875P	VIS, NO.1	90159-60431
53876A	Left front fender lining	53806-33040 · 53806-33060 · 53876-33190 · 53876-33220
53879A	Front fender lining fixing parts	53879-28040
53882F	front fender seal	53882-30030
53882N	Clip (for front fender seal)	90467-09219
53882P	Right front fender seal	53882-33050
53883K	Left front fender seal	53883-33050
