Toyota CAMRY radiator grille — Figure 5301

Toyota CAMRY EPC diagram 5301, radiator grille, with 3 images and 7 PNC and OE references.

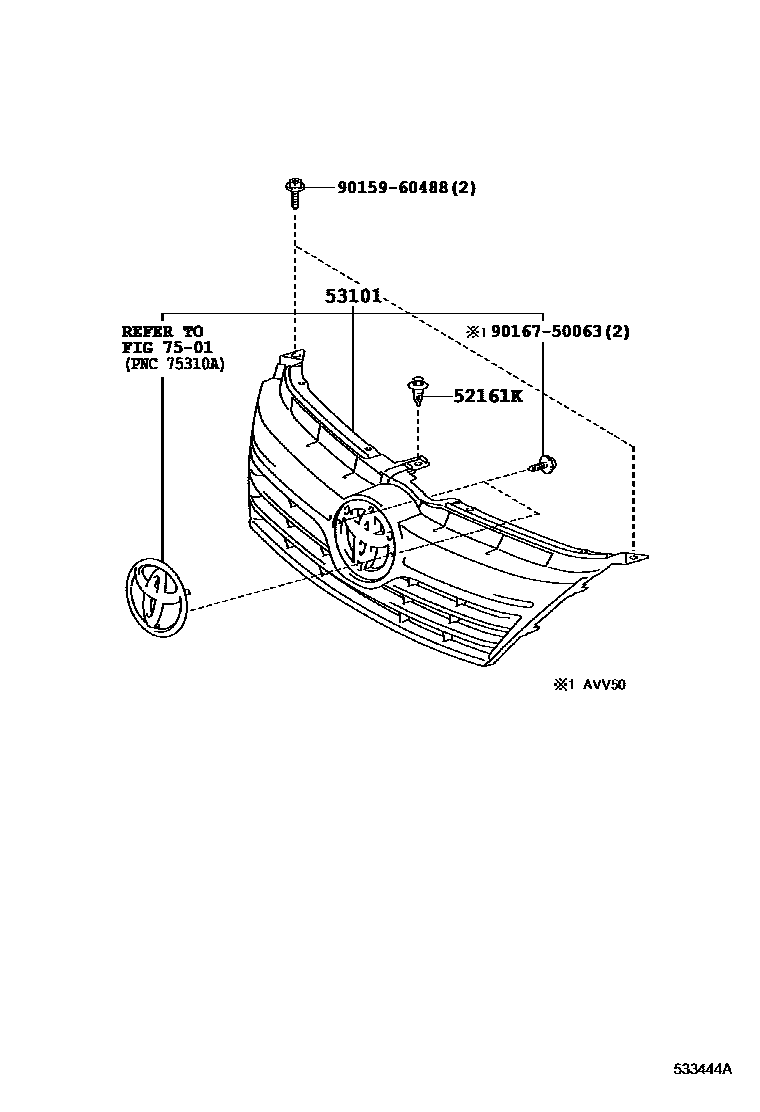

Toyota CAMRY radiator grille EPC diagram — 533444A
radiator grille — 533444A (201108 – 201411)

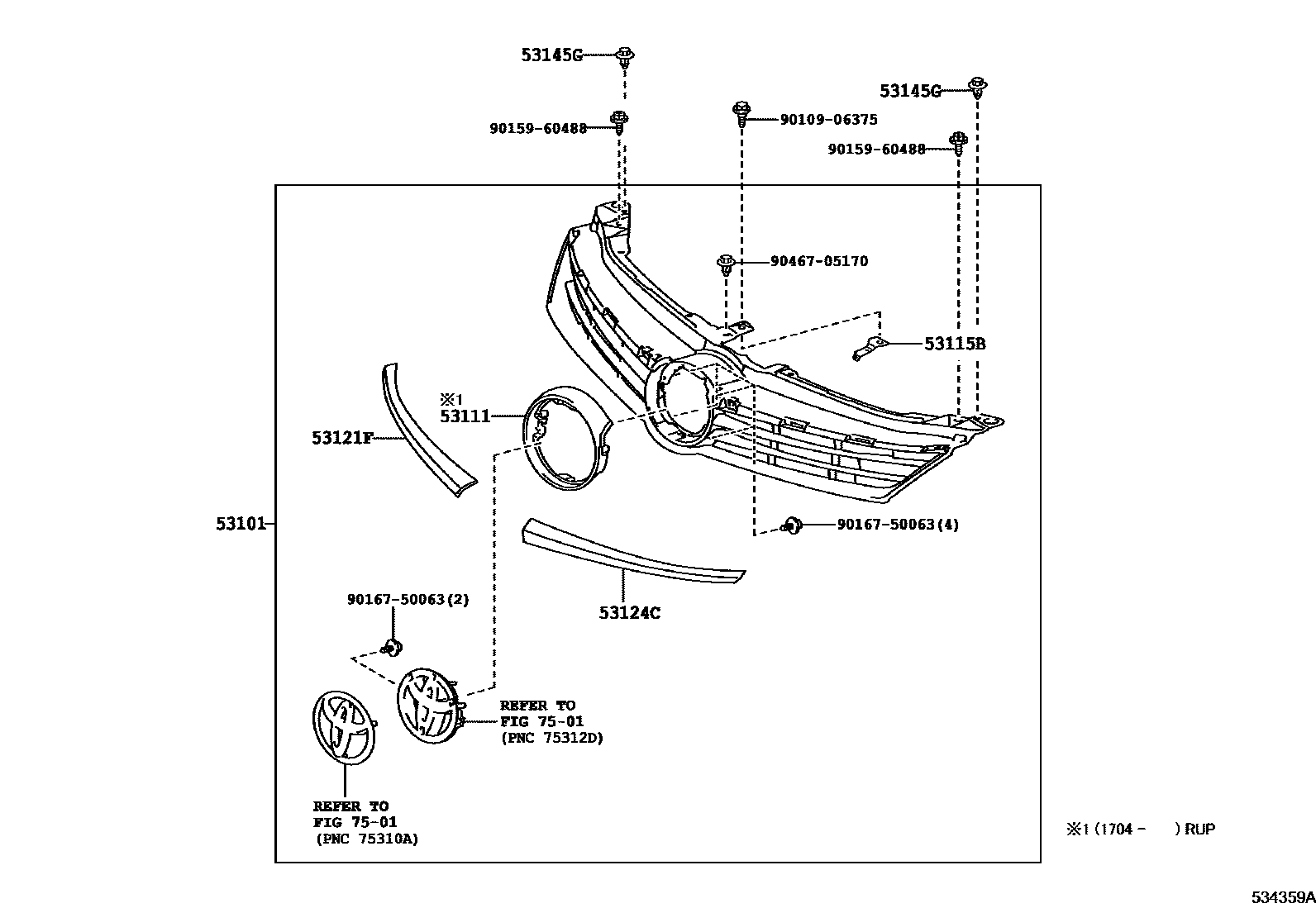

Toyota CAMRY radiator grille EPC diagram — 534359A
radiator grille — 534359A (201409 – 999999)

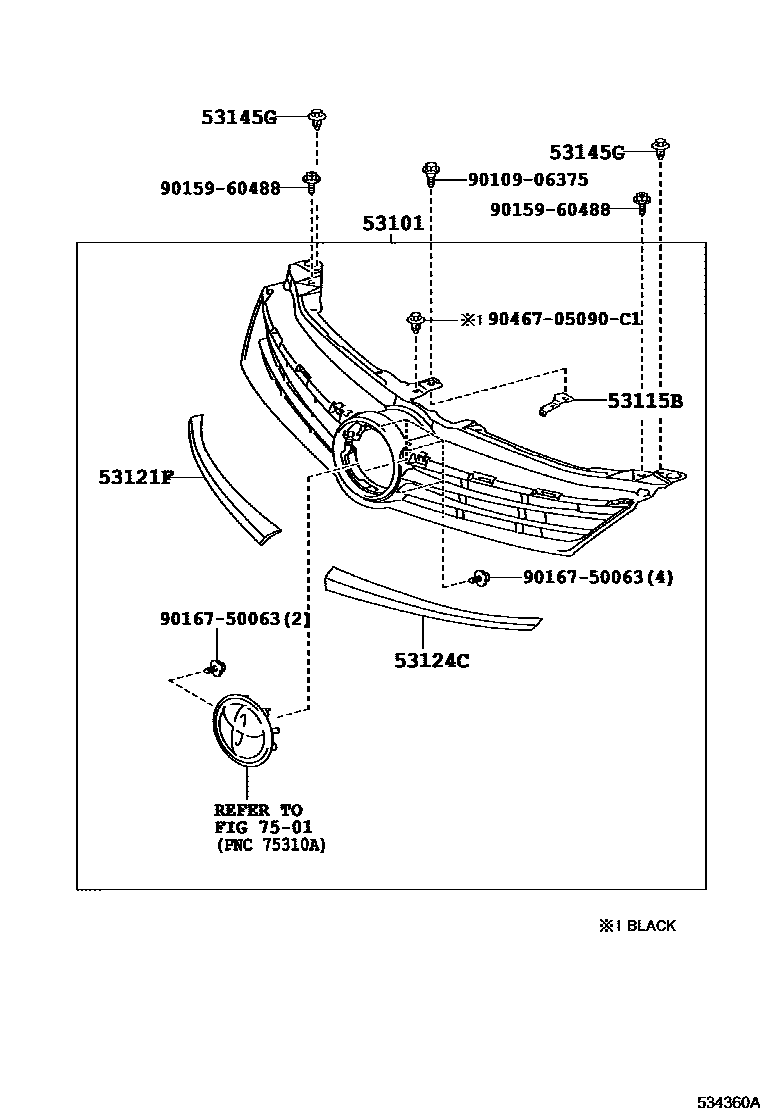

Toyota CAMRY radiator grille EPC diagram — 534360A
radiator grille — 534360A (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Kfront bumper insert52161-16010
53101Radiator grille sub-assembly53101-06E40 · 53101-33360 · 53101-33370 · 53101-33371 · 53101-33380 · 53101-33470 · 53101-33471 · 53101-33472 · 53101-33490 · 53101-33491 · 53101-33492 · 53101-33510 · 53101-33511 · 53101-33512
53111radiator grille53111-06830
53115BRadiator grille bracket53115-33040
53121FRadiator grille upper right protective strip53121-06070 · 53121-33030 · 53121-33070
53124CRadiator grille upper left protective strip53124-06060 · 53124-33010 · 53124-33020
53145GRadiator grille clip90467-05170
