Toyota CAMRY 后保险杠及附件 — Figure 5202

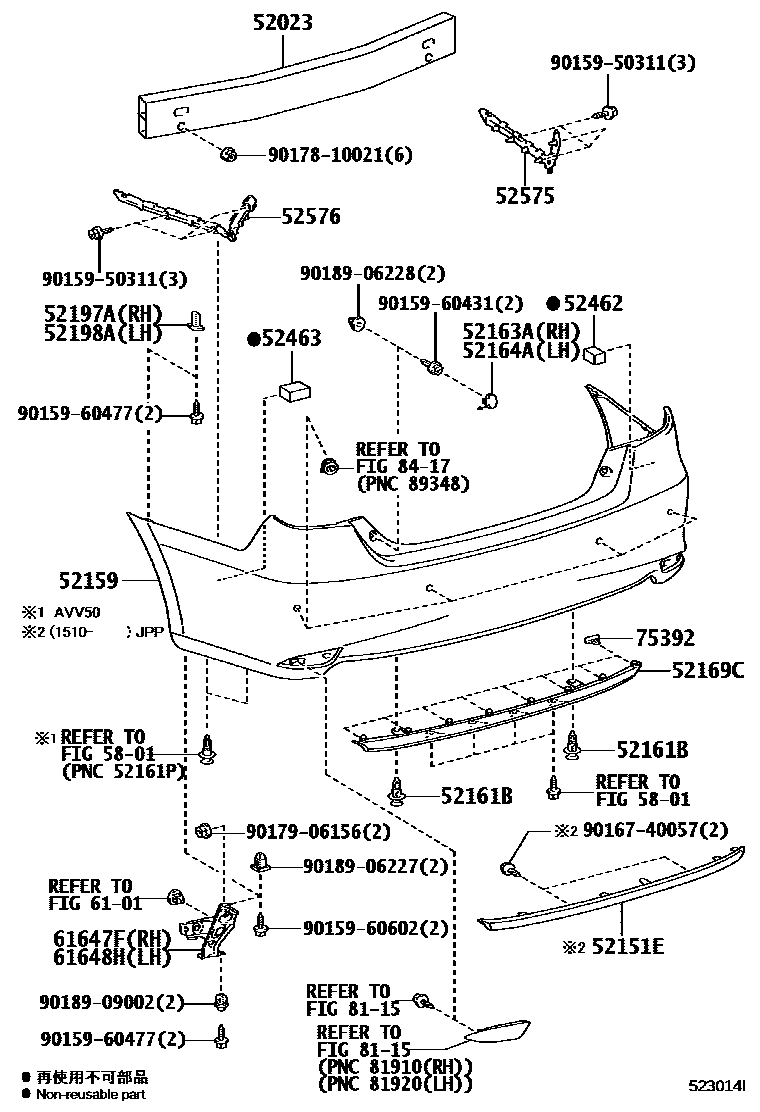

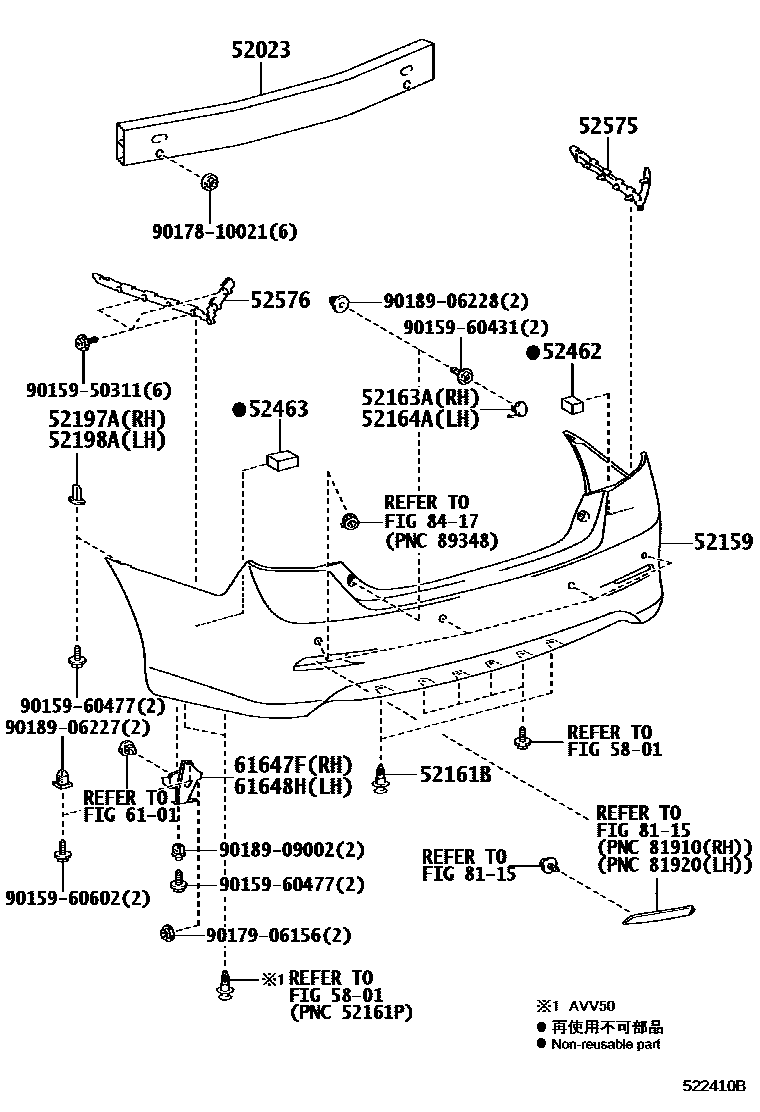

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52171-33150 |
| 52151E | rear bumper | 52151-33040 |
| 52159 | rear bumper cover | 52159-06991 · 52159-33939 · 52159-33940 · 52159-33946 · 52159-33947 · 52159-33956 · 52159-33957 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-33901 · 52163-33902 |
| 52164A | Rear bumper left fender | 52164-33901 · 52164-33902 |
| 52169C | Rear bumper lower cover | 52169-33020 · 52169-33021 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52198A | Rear bumper left seal support | 52197-22020 |
| 52462 | Rear bumper right side lining | 52462-33020 · 52462-33040 |
| 52463 | Rear bumper left lining | 52463-33010 · 52463-33030 |
| 52575 | Rear bumper right side fixing bracket | 52575-33120 · 52575-33121 |
| 52576 | Rear bumper left side fixing bracket | 52576-33090 · 52576-33091 |
| 61647F | Right wheel arch reinforcement | 61647-33060 · 61647-33070 |
| 61648H | Left wheel arch reinforcement | 61648-33060 · 61648-33070 |
| 75392 | External protective strip fixings | 75392-33030 |
