Toyota CAMRY 前保险杠及附件 — Figure 5201

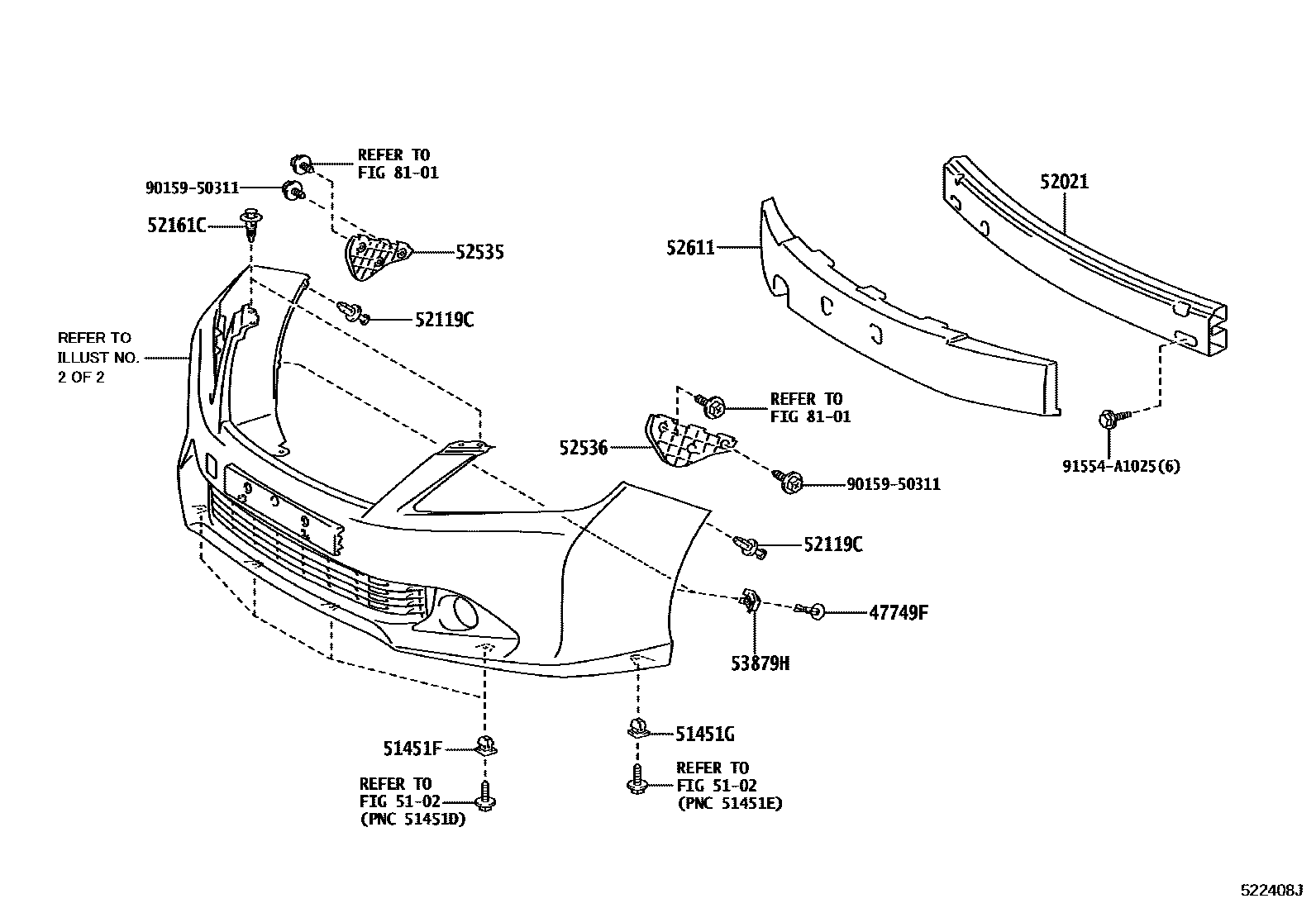

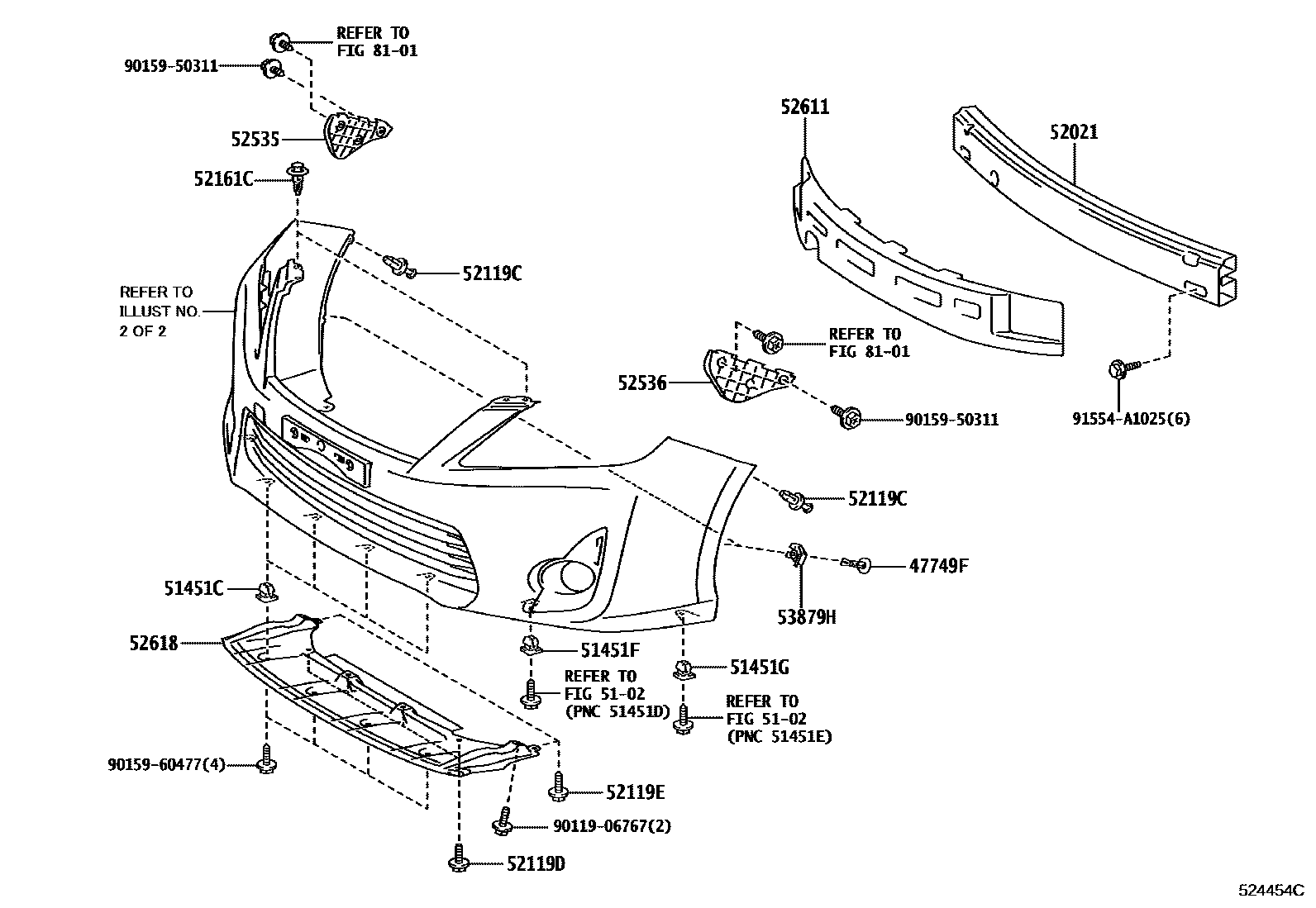

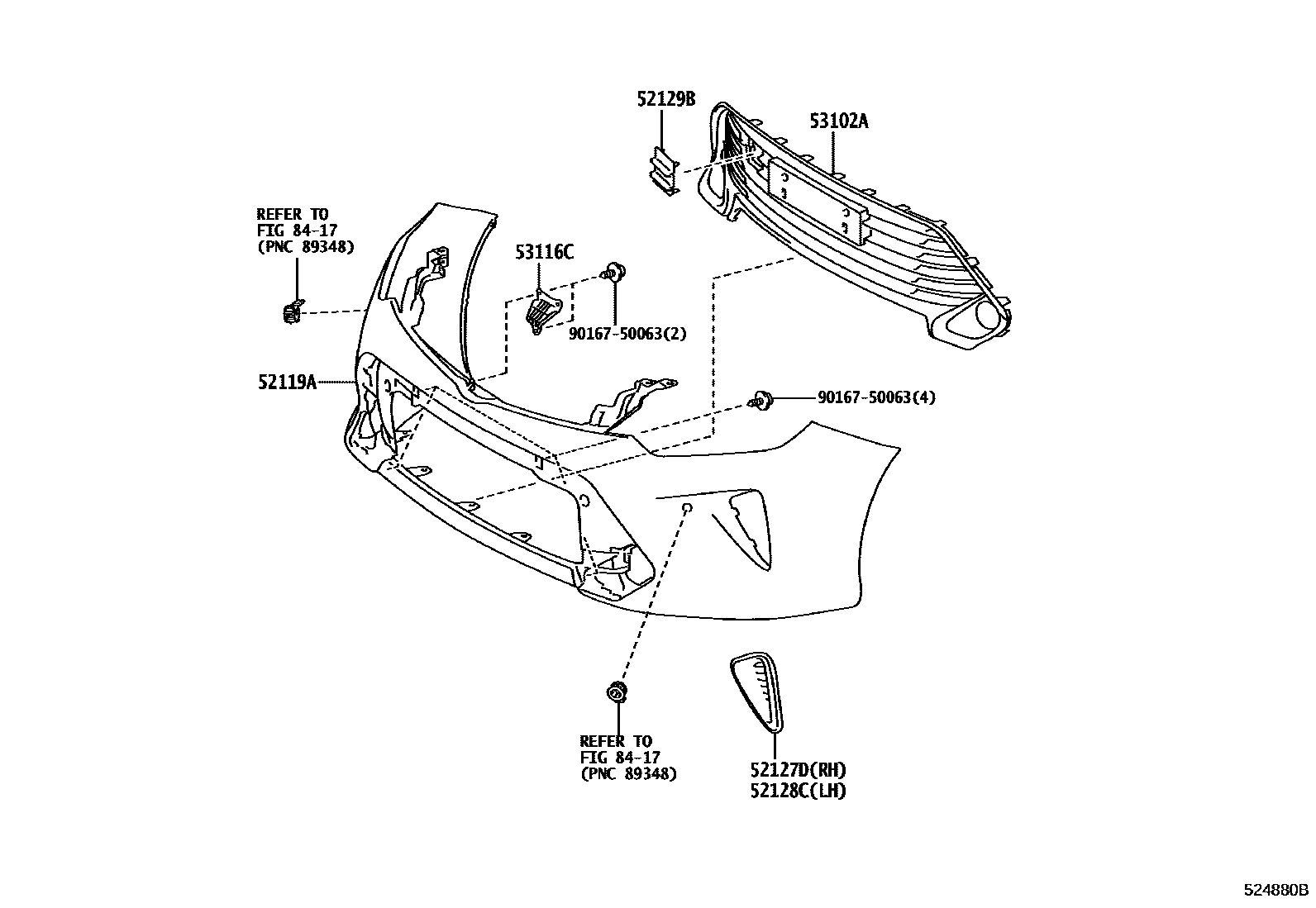

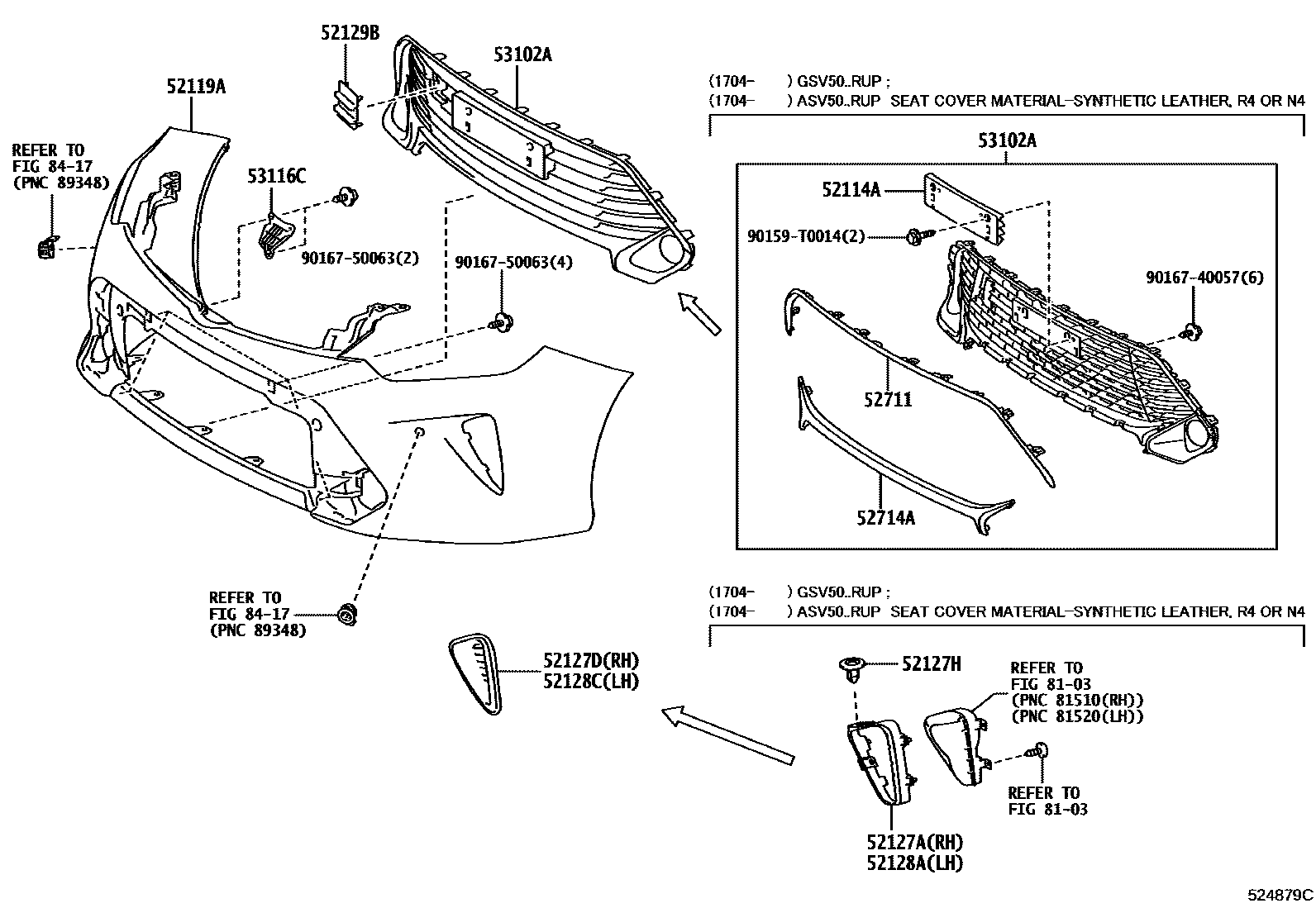

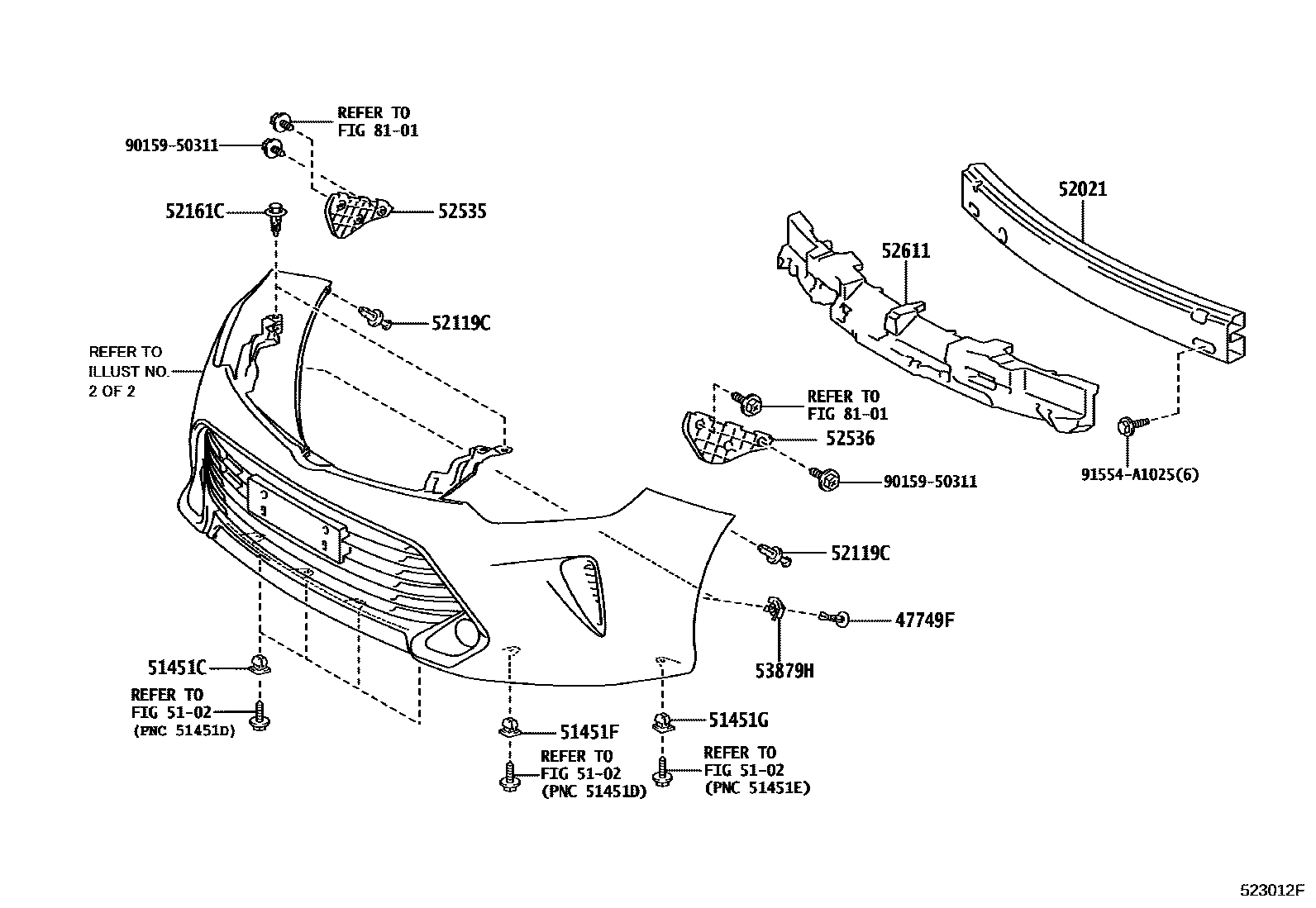

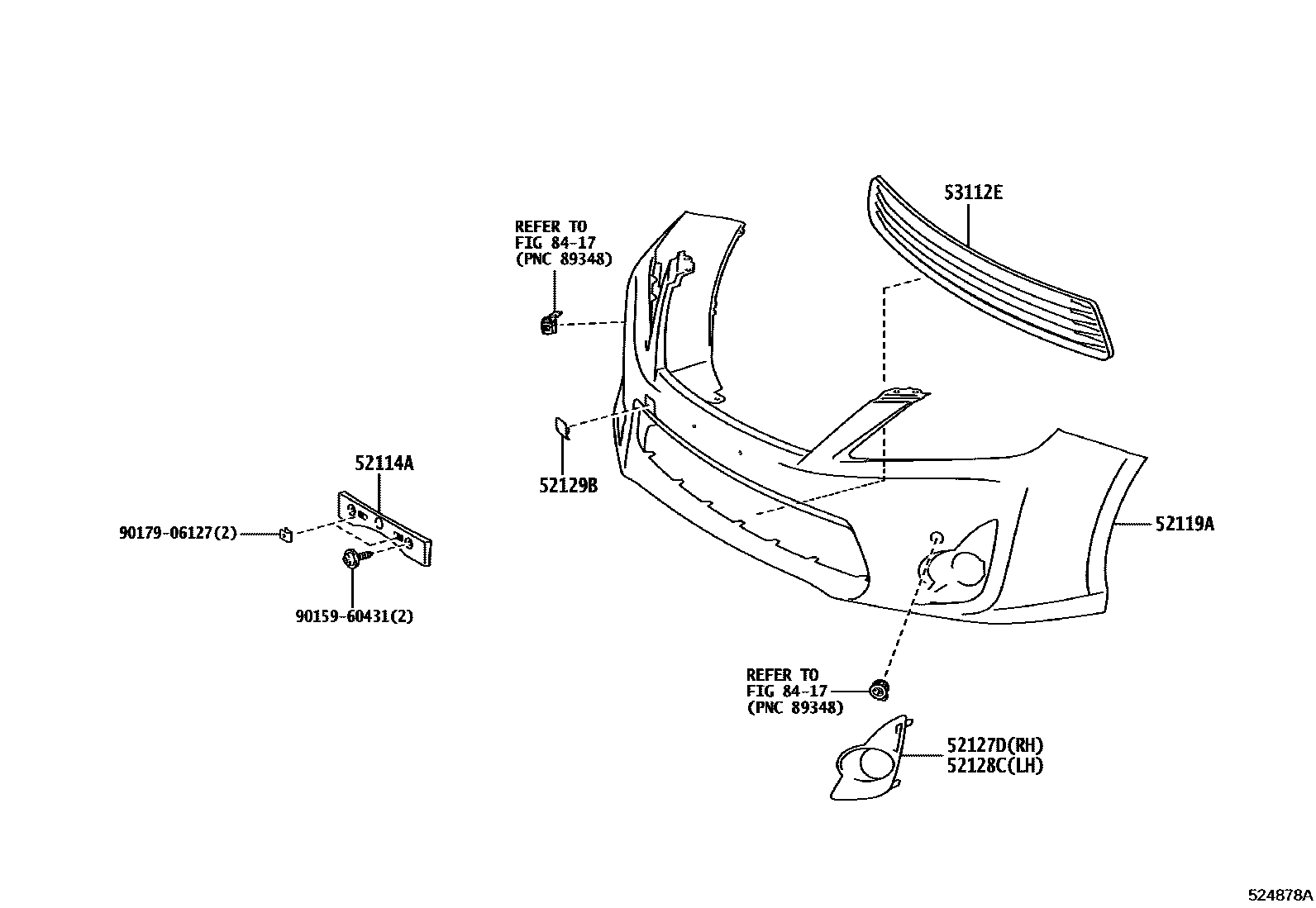

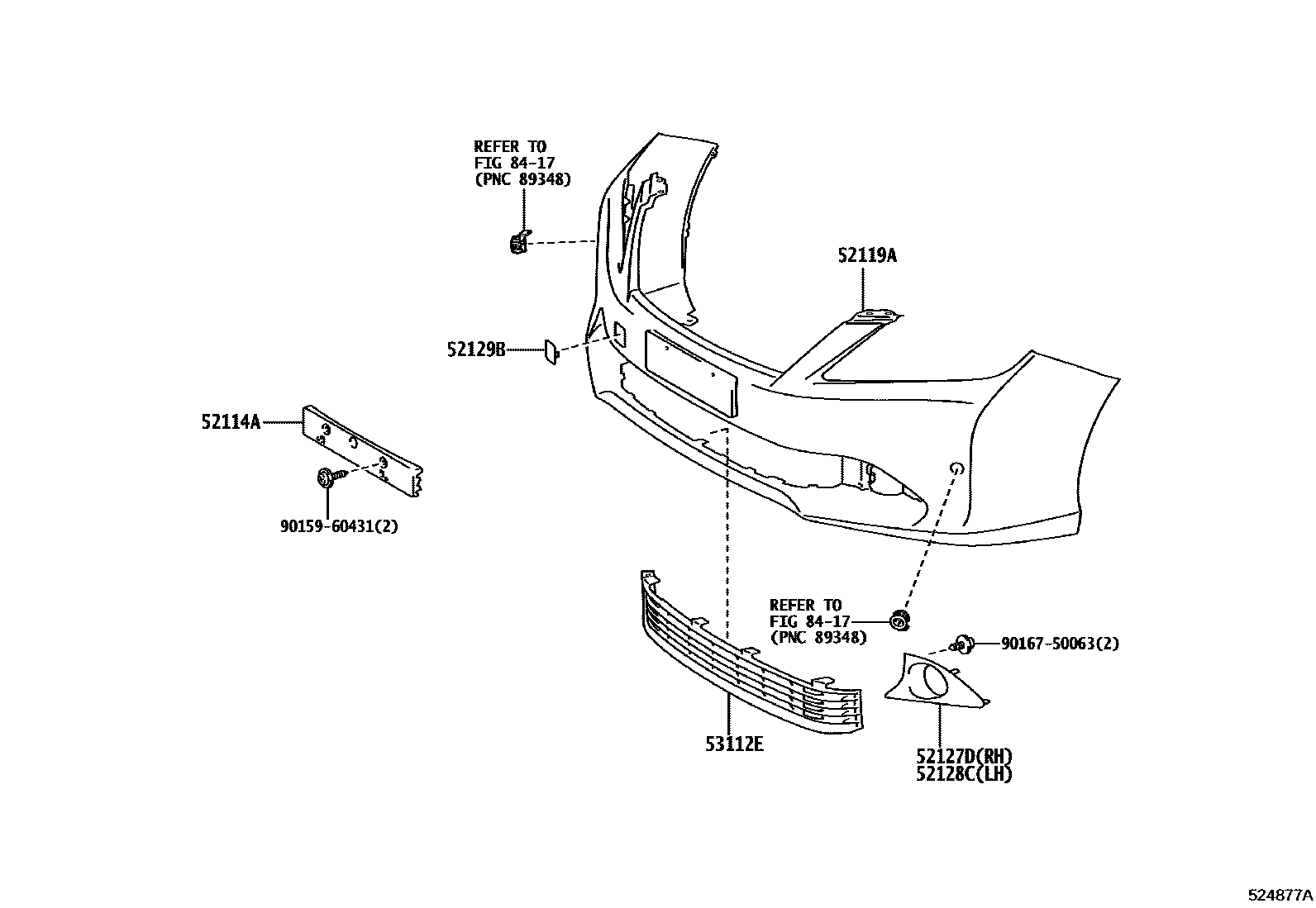

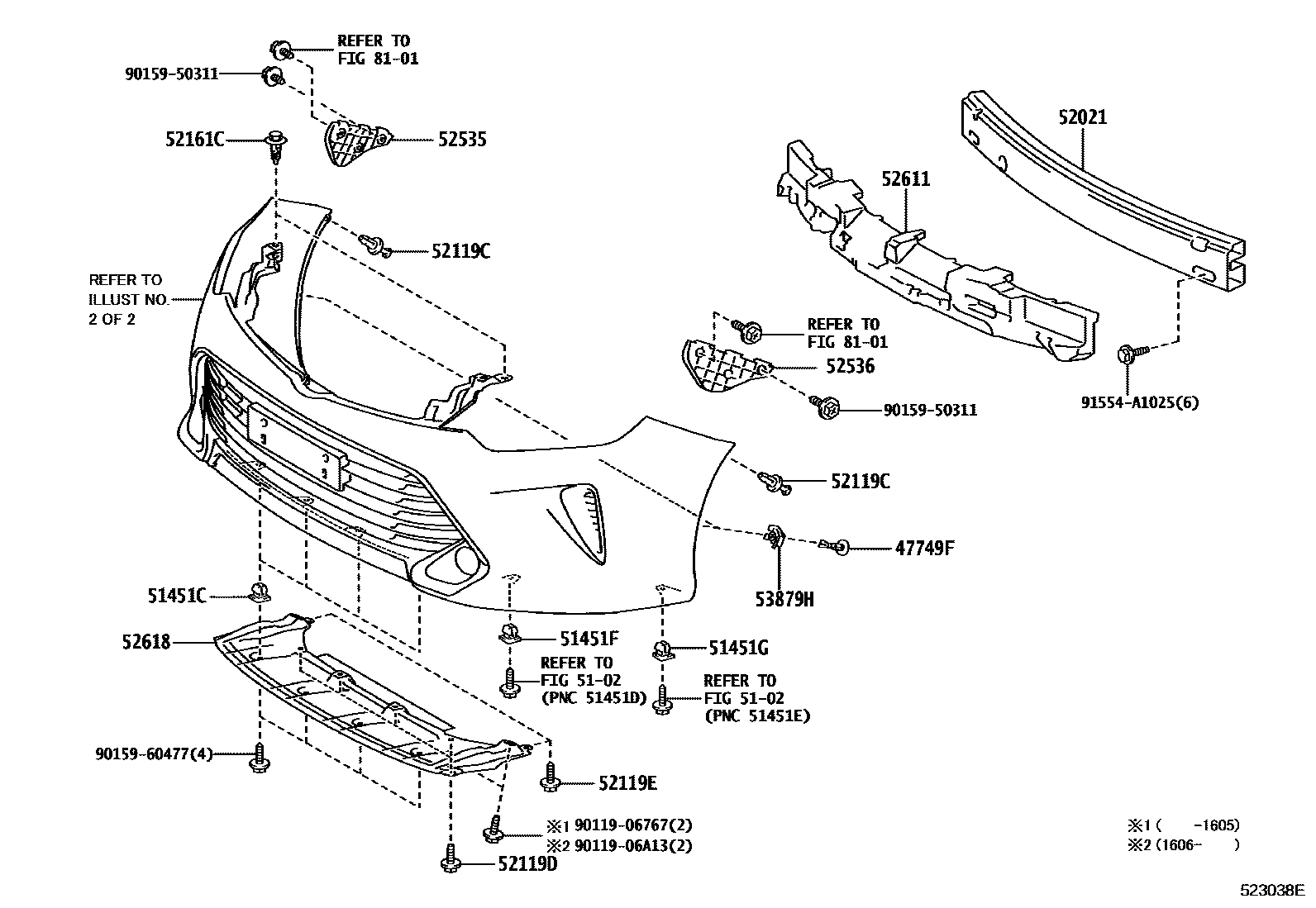

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 8 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-50090 · 47749-58010 |
| 51451C | OEILLET(POUR PROTECTION SOUS MOTEUR) | 90189-06193 |
| 51451F | OEILLET, NO.1 | 90189-06193 |
| 51451G | OEILLET, NO.2 | 90189-06193 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-33180 · 52021-33181 |
| 52114A | Front bumper extension mounting bracket | 52114-06370 · 52114-33280 · 52114-33300 |
| 52119A | front bumper cover | 52119-0X910 · 52119-0X911 · 52119-33983 · 52119-33984 · 52119-33985 · 52119-33986 · 52119-33987 · 52119-33988 · 52119-3T904 · 52119-3T905 · 52119-3T906 · 52119-3T927 · 52119-3T928 · 52119-3T929 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-05170 |
| 52119D | VIS, NO.1 | 90119-06767 · 90119-06A13 |
| 52119E | VIS, NO.2 | 90159-60477 |
| 52127A | Right front turn signal lamp mounting bracket | 81481-33080 |
| 52127D | Front bumper right hole cover | 52127-33060 · 52127-33130 · 52127-33131 · 52127-33140 · 52127-33150 · 52127-33151 · 52127-33152 |
| 52128A | Left front turn signal lamp mounting bracket | 81482-33080 |
| 52128C | Front bumper left hole cover | 52128-33130 · 52128-33131 · 52128-33140 · 52128-33150 · 52128-33151 · 52128-33152 · 52128-33180 |
| 52129B | Front bumper lower cover | 52129-06480 · 52129-33070 · 52129-33071 · 52129-33906 · 52129-33907 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-33050 |
| 52536 | Front bumper left fixed bracket | 52536-33050 |
| 52611 | front bumper energy absorber | 52611-06370 · 52611-06440 · 52611-33200 · 52611-33210 · 52611-33260 |
| 52618 | Front bumper lower shock absorber | 52618-33020 · 52618-33021 · 52618-33022 |
| 52711 | Front bumper protection strip | 52711-06400 |
| 52714A | MOULURE, PARE-CHOCS AVANT, NO.2 | 52714-06050 |
| 53102A | SOUS-ENSEMBLE GRILLE, RADIATEUR, INFERIEURE | 53102-06590 · 53102-33020 · 53102-33021 · 53102-33040 · 53102-33041 |
| 53112E | No. 1 radiator lower grille | 53112-33120 · 53112-33130 |
| 53116C | Radiator grille bracket No. 2 | 53115-33030 |
| 53879H | Front fender lining fixing parts | 53879-30040 · 53879-30050 |
