Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

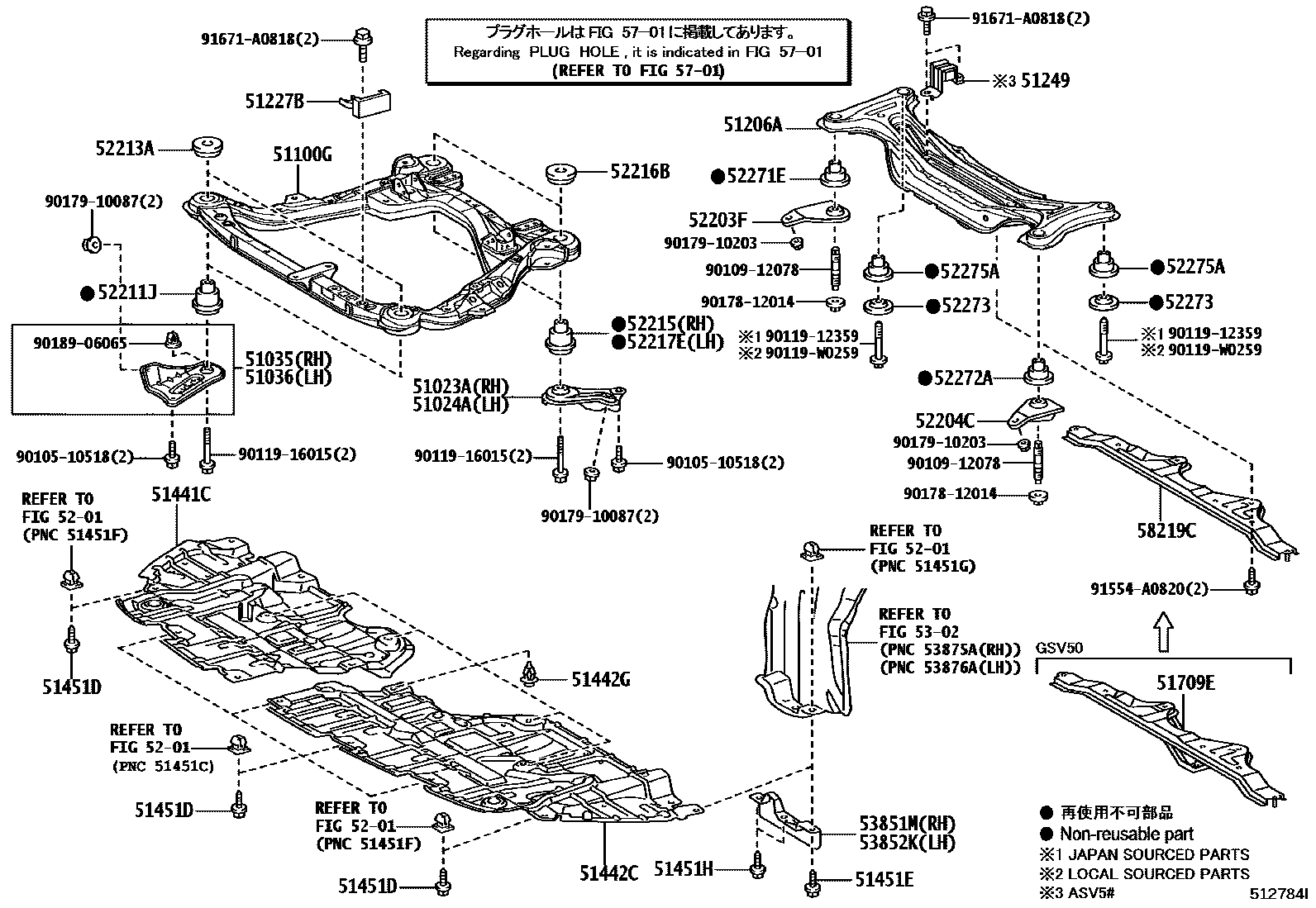

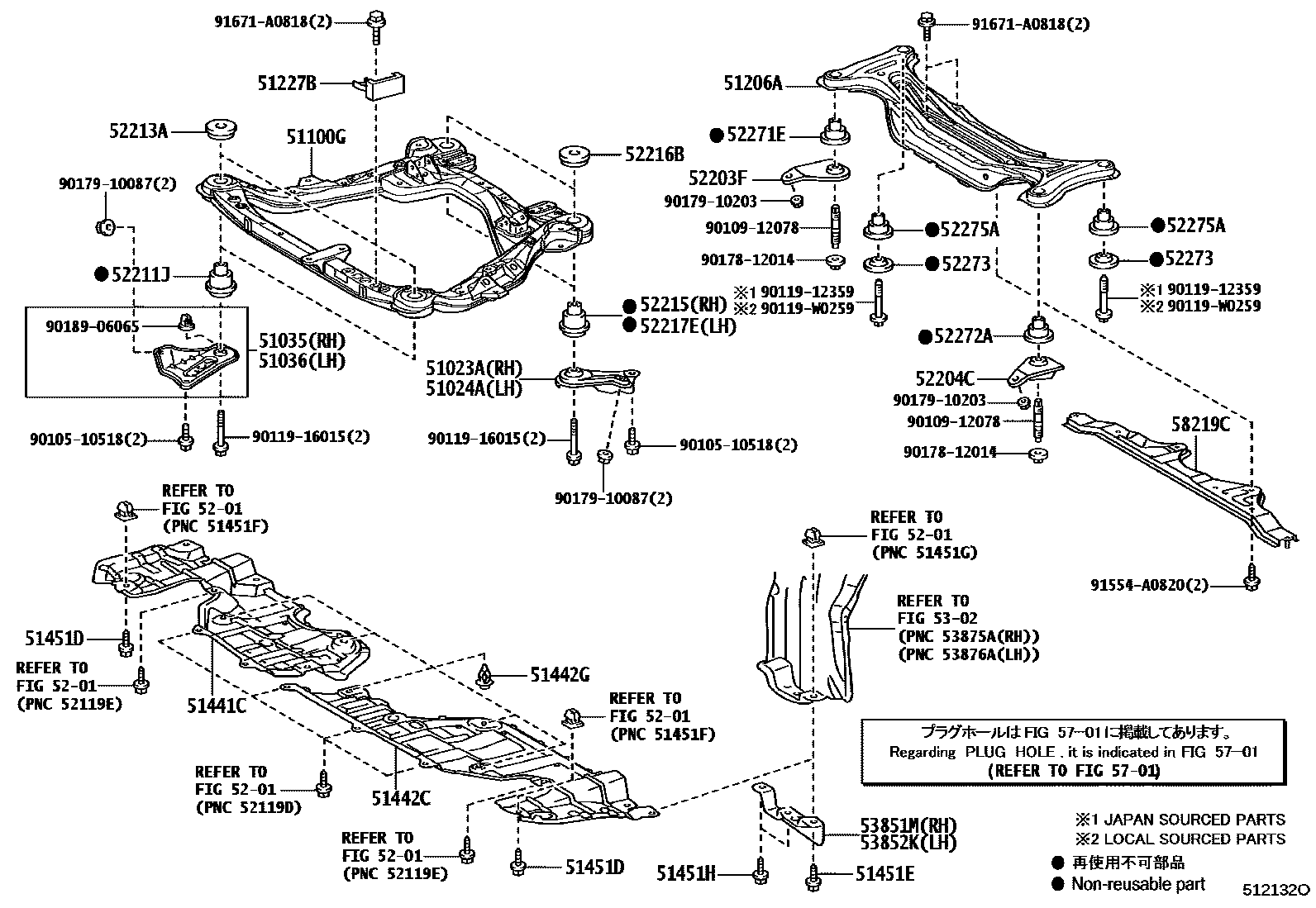

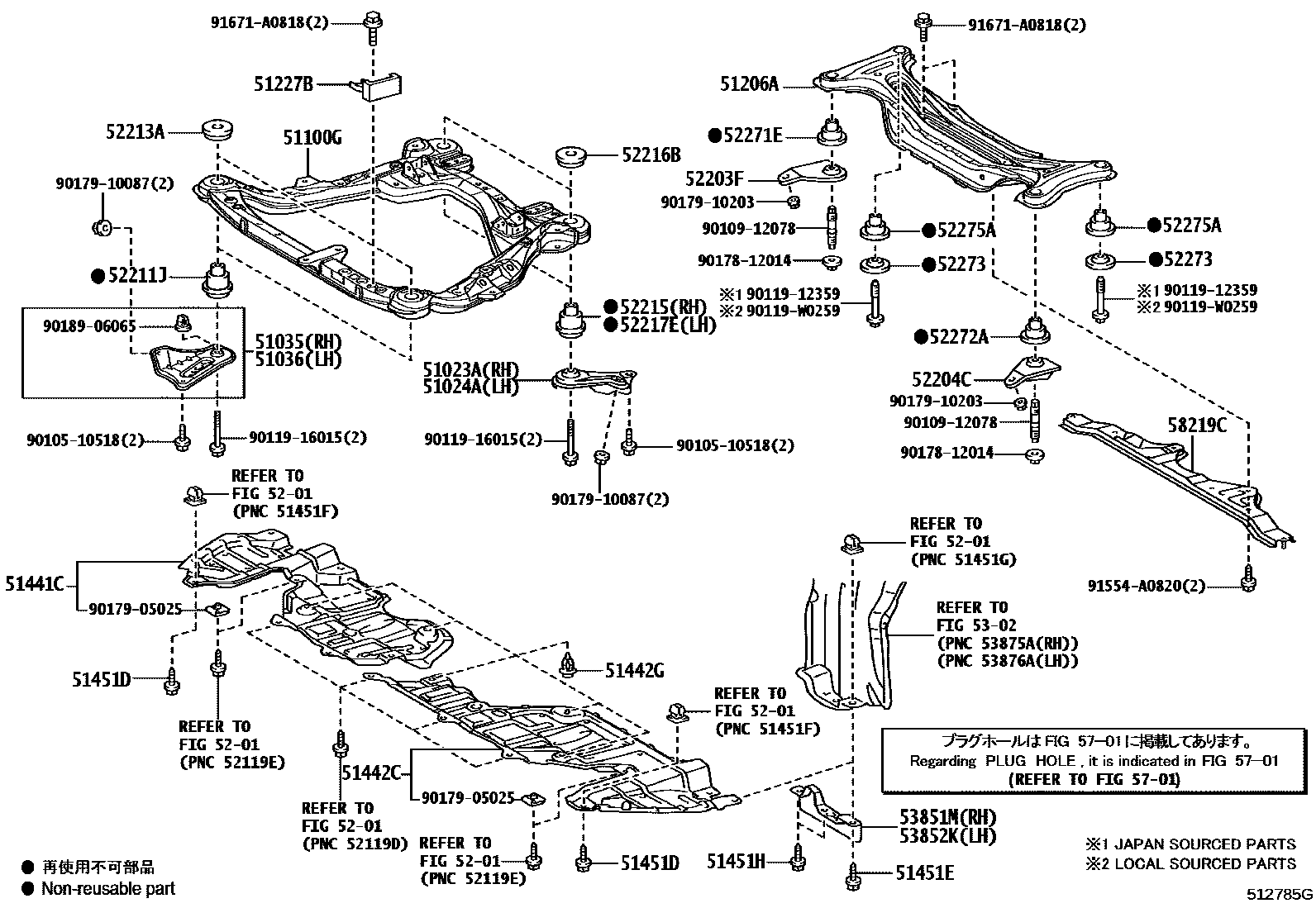

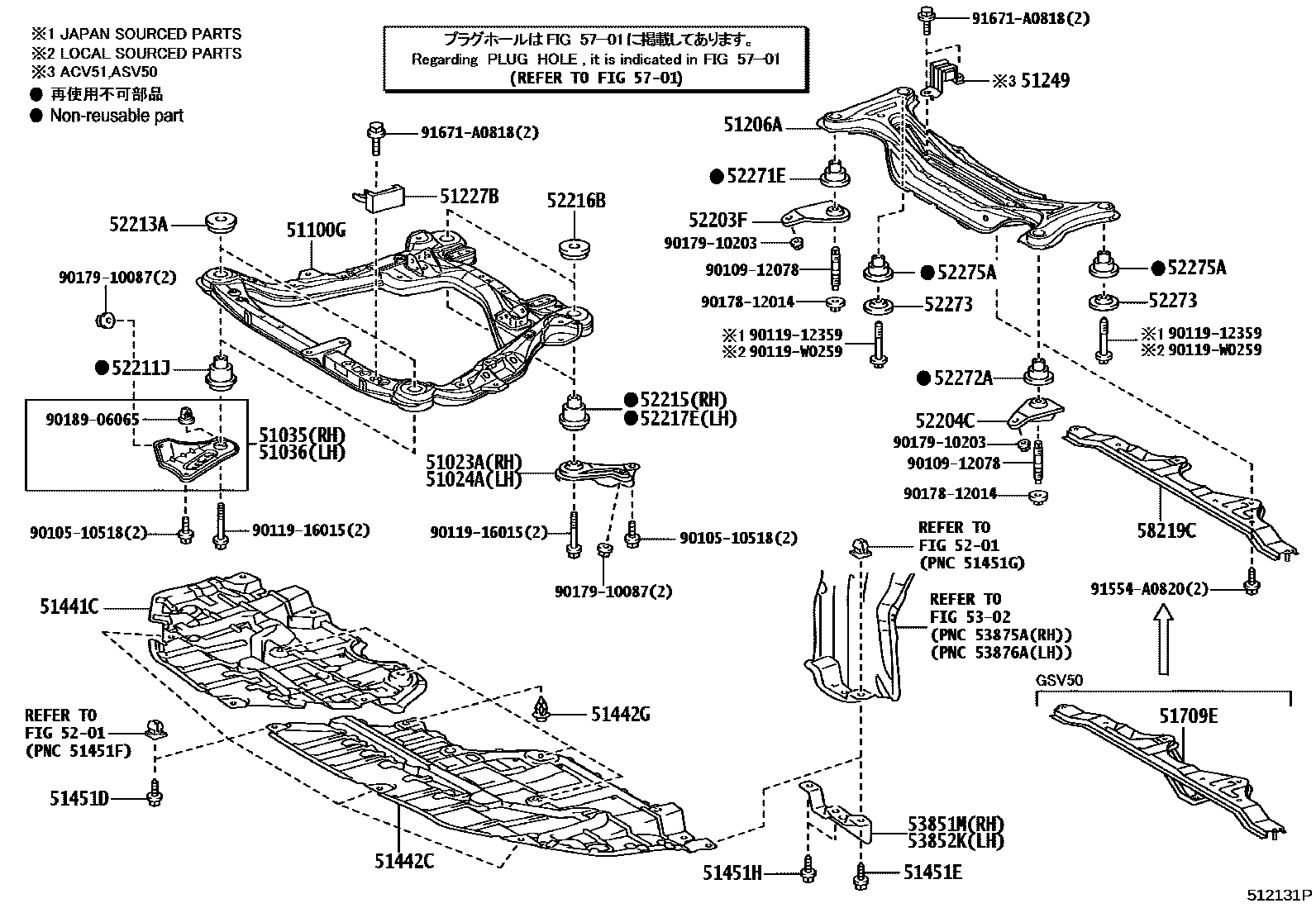

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51023A | Front suspension cross member right side bracket sub-assembly | 51023-33060 |
| 51024A | Front suspension cross member left bracket sub-assembly | 51024-33070 |
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-33030 · 51035-33050 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-33050 |
| 51100G | Front frame assembly | 51100-33070 · 51100-33071 · 51100-33072 · 51100-33073 · 51100-33100 · 51100-33101 · 51100-33103 · 51100-33111 |
| 51206A | Rear suspension cross member sub-assembly | 51206-33100 |
| 51227B | Front suspension beam dynamic damper | 51227-33110 |
| 51249 | Rear suspension cross member shock absorber | 51249-33010 |
| 51441C | Engine right bottom cover | 51441-33140 · 51441-33150 · 51441-33180 · 51441-33190 |
| 51442C | Engine left bottom cover | 51442-33140 · 51442-33150 · 51442-33180 · 51442-33190 |
| 51442G | No. 1 engine bottom cover clip | 90467-07214 · 90467-07220 |
| 51451D | VIS, NO.1 | 90159-60477 |
| 51451E | VIS, NO.2 | 90159-60477 |
| 51451H | VIS, NO.3 | 90159-60477 |
| 51709E | Body rear end mounting bracket sub-assembly | 51709-33010 |
| 52203F | Rear suspension cross member right lower block sub-assembly | 52203-33030 |
| 52204C | Rear suspension cross member left lower block sub-assembly | 52204-33030 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-33080 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-33080 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-33100 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-33080 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-33030 |
| 52271E | Rear suspension cross member right front body fixed cushion | 52271-33051 |
| 52272A | Rear suspension cross member left front body fixed cushion | 52272-33051 |
| 52273 | Rear suspension cross member lower block | 52273-33010 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-33051 |
| 53851M | PATIN, EXTENSION PASSAGE ROUE AVT, RH | 53851-33040 |
| 53852K | Left front fender exterior panel pad | 53852-33040 |
| 58219C | Center floor rear end panel | 58219-33010 |
