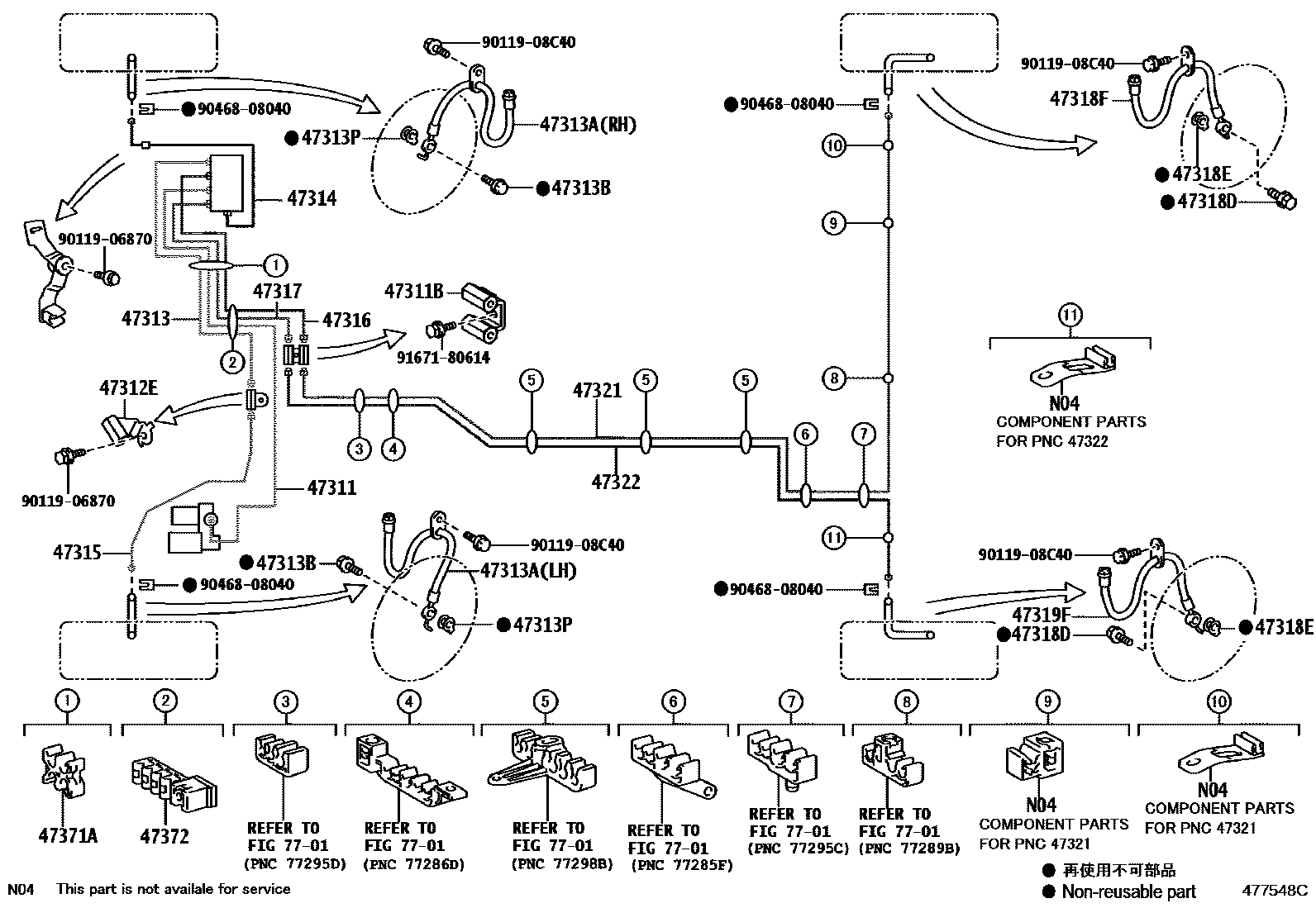

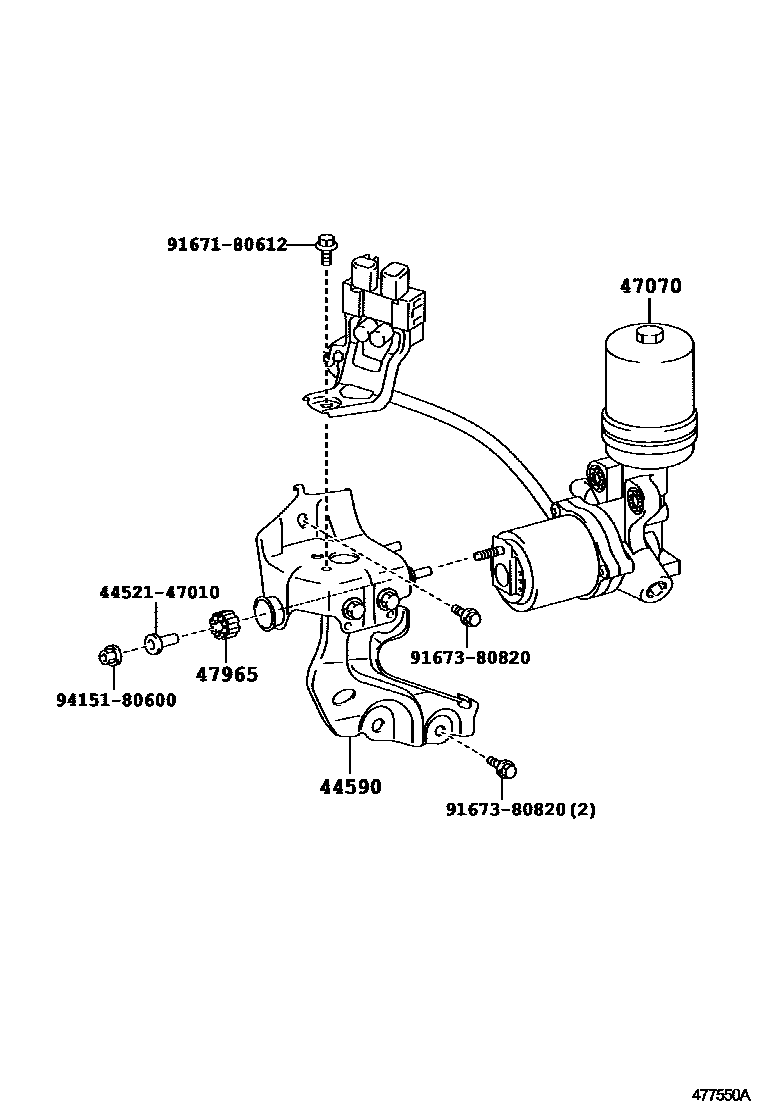

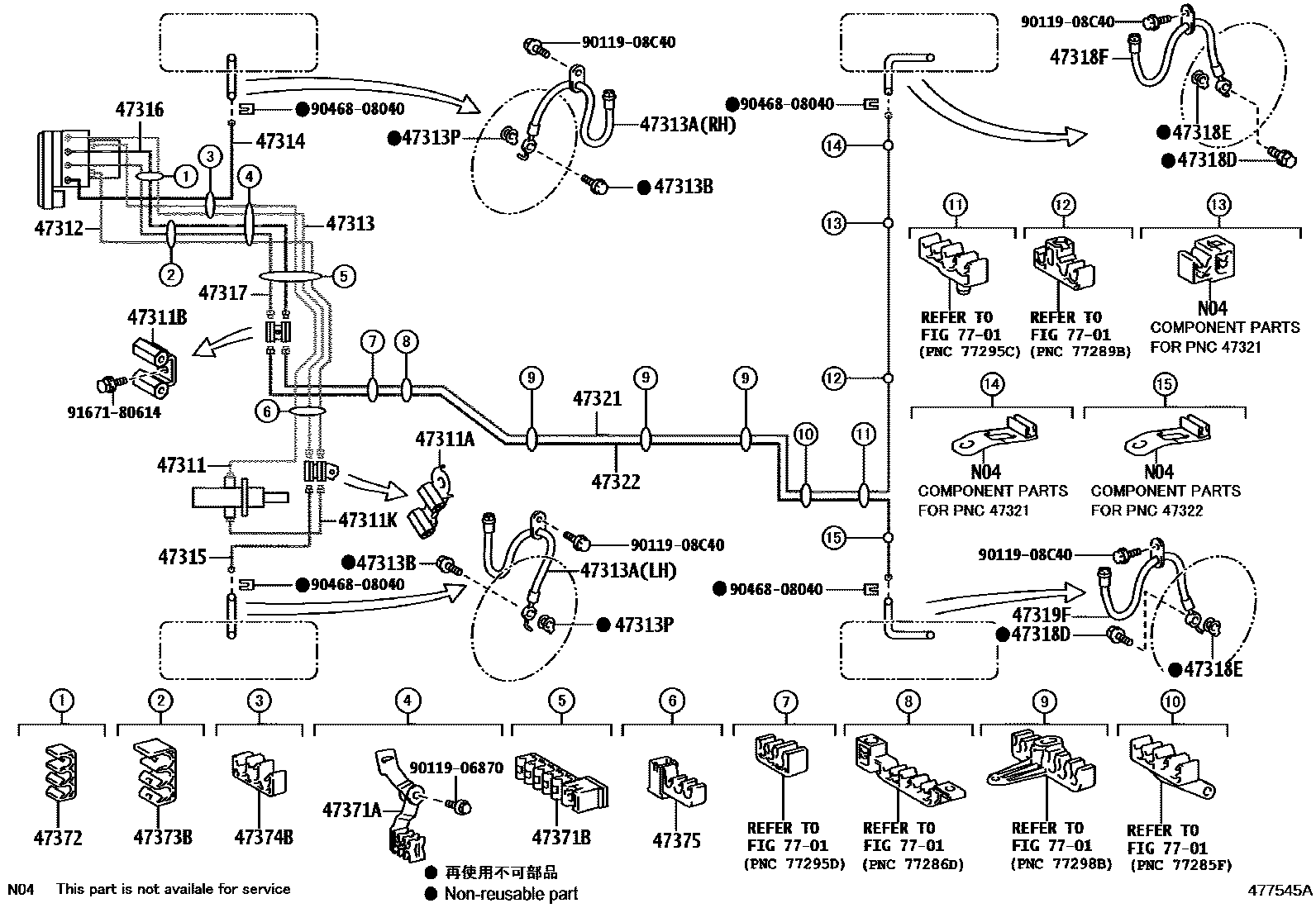

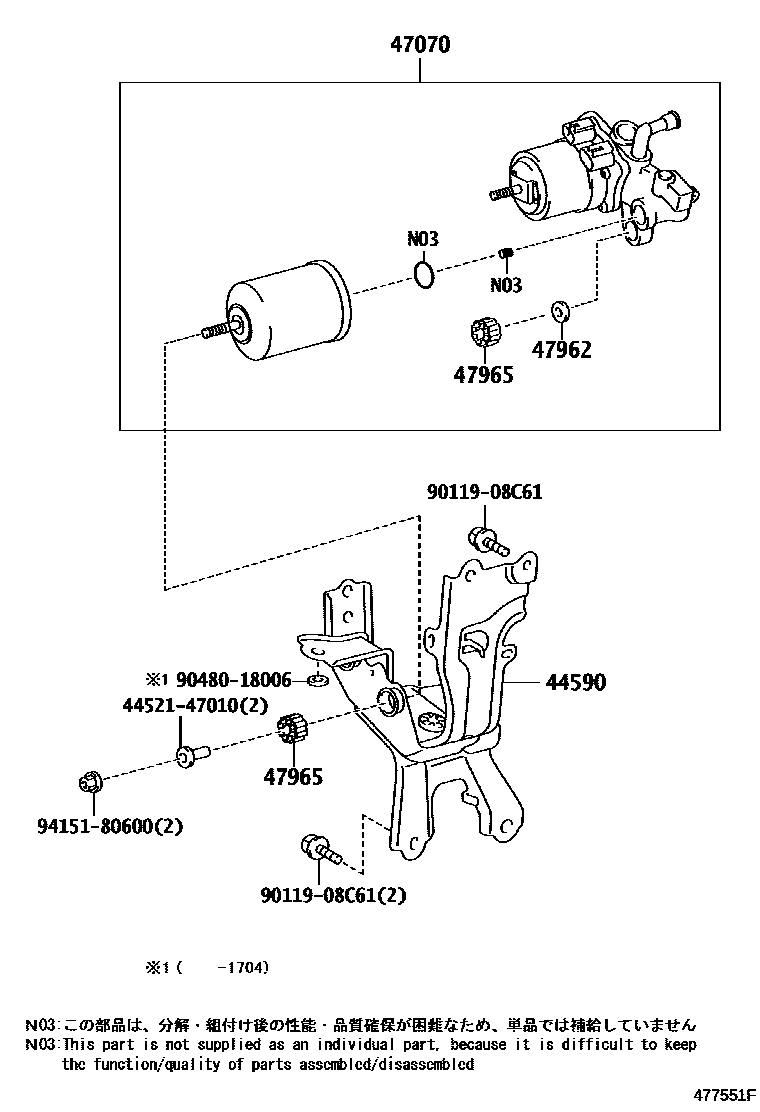

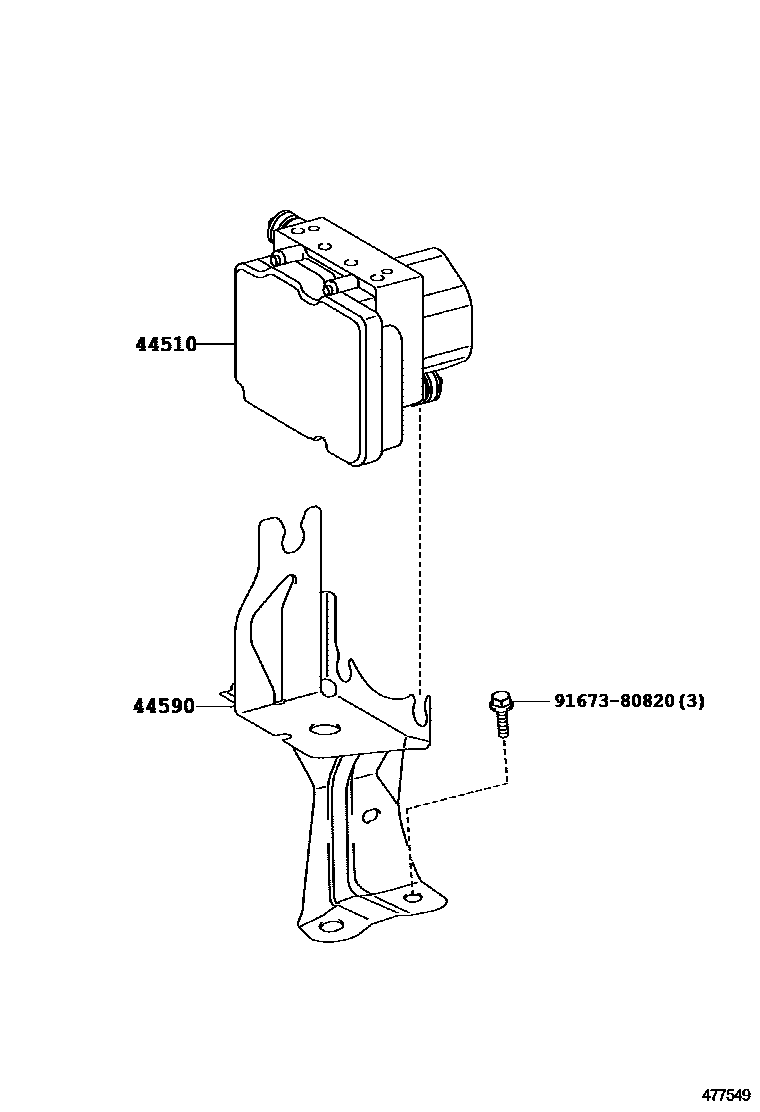

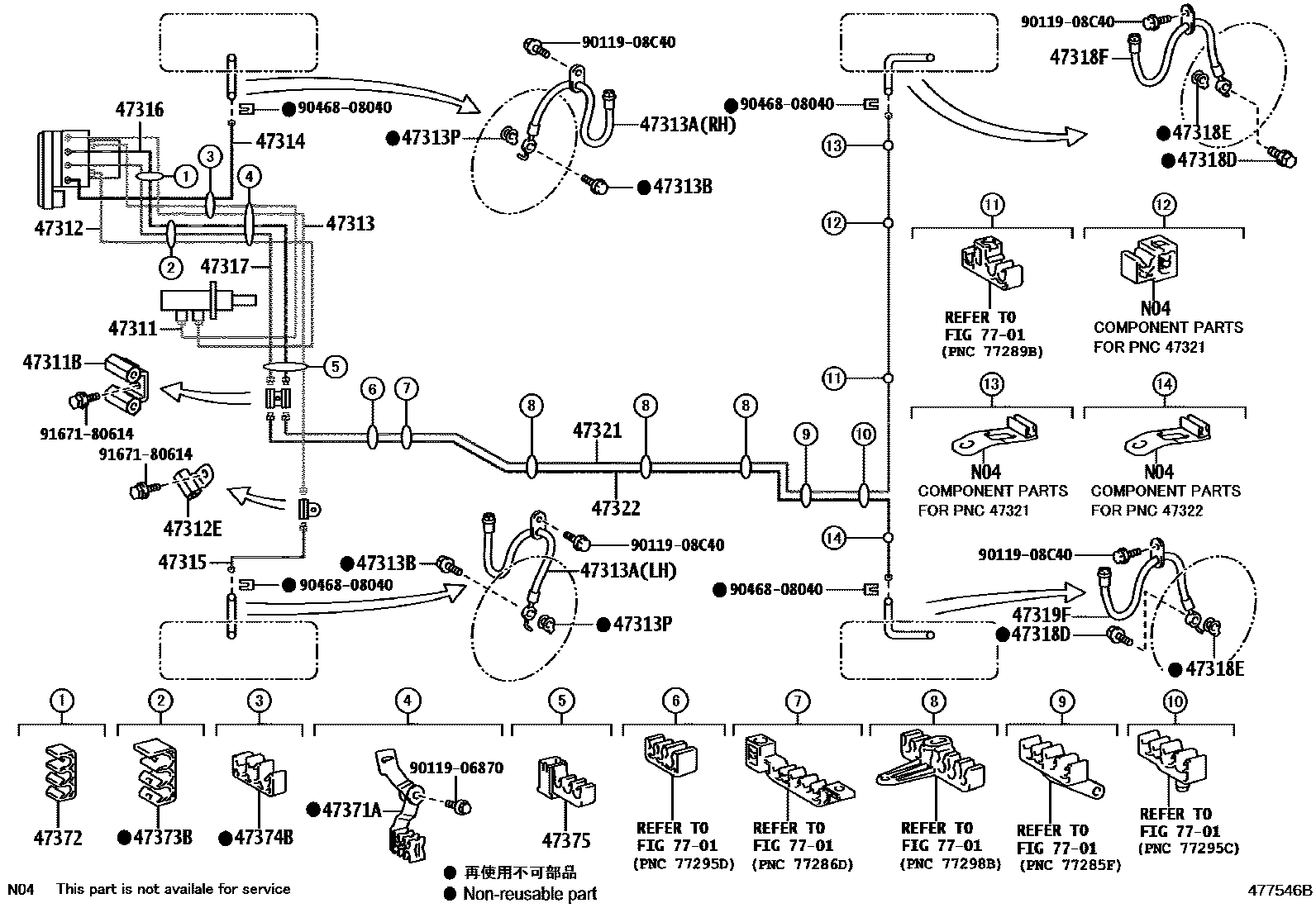

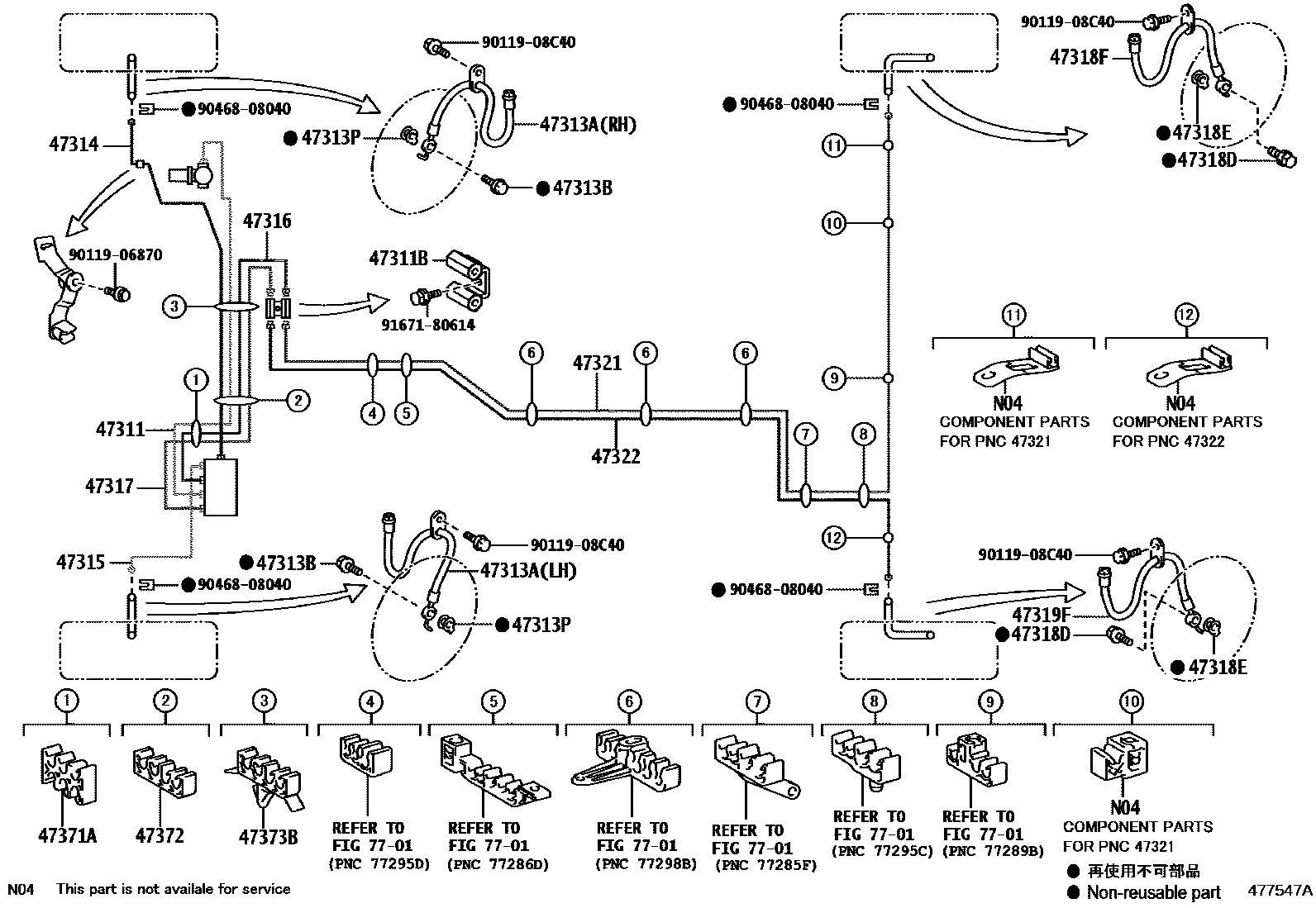

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 7 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-33270 · 44050-33310 · 44050-33470 · 44050-33480 · 44050-33610 |
| 44590 | Brake actuator bracket assembly | 44590-33140 · 47940-33010 · 47940-33030 |
| 47070 | Brake booster pump assembly | 47070-33020 · 47070-33040 |
| 47311 | No. 1 front brake pipe | 47311-06560 · 47311-33260 · 47311-33280 · 47311-33290 · 47311-33291 · 47311-33300 · 47311-33301 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-12066 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-33240 |
| 47312 | No. 2 front brake pipe | 47312-06450 · 47312-33220 · 47312-33240 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10272 · 90412-10280 |
| 47313 | No. 3 front brake pipe | 47313-06440 · 47313-33220 · 47313-33240 · 47313-33250 |
| 47313A | No. 1 front flexible hose | 90947-02G45 · 90947-02G48 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06400 · 47314-33190 · 47314-33200 · 47314-33210 · 47314-33240 · 47314-33260 · 47314-33270 |
| 47315 | No. 5 front brake pipe | 47315-06421 · 47315-33240 · 47315-33260 · 47315-33270 · 47315-33280 · 47315-33290 · 47315-33291 · 47315-33300 · 47315-33310 · 47315-33320 |
| 47316 | No. 6 front brake pipe | 47316-06530 · 47316-33300 · 47316-33320 · 47316-33330 · 47316-33340 |
| 47317 | No. 7 front brake pipe | 47317-06510 · 47317-33290 · 47317-33310 · 47317-33320 · 47317-33330 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02G49 |
| 47319F | Left rear flexible hose | 90947-02G50 |
| 47321 | No. 1 rear brake pipe | 47321-06210 · 47321-06220 · 47321-33180 · 47321-33200 |
| 47322 | No. 2 rear brake pipe | 47322-06210 · 47322-06220 · 47322-33150 · 47322-33170 |
| 47371A | No. 1 brake pipe clamp | 47371-33280 · 90464-00876 · 90464-00880 |
| 47371B | No. 6 brake pipe clamp | 90949-01D51 |
| 47372 | No. 2 brake pipe clamp | 90464-00857 · 90949-01540 · 90949-01D87 |
| 47373B | No. 3 brake pipe clamp | 90464-00894 · 90949-01D16 |
| 47374B | No. 4 brake pipe clamp | 90464-00919 |
| 47375 | No. 5 brake pipe clamp | 90949-01D08 · 90949-01D50 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
