Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

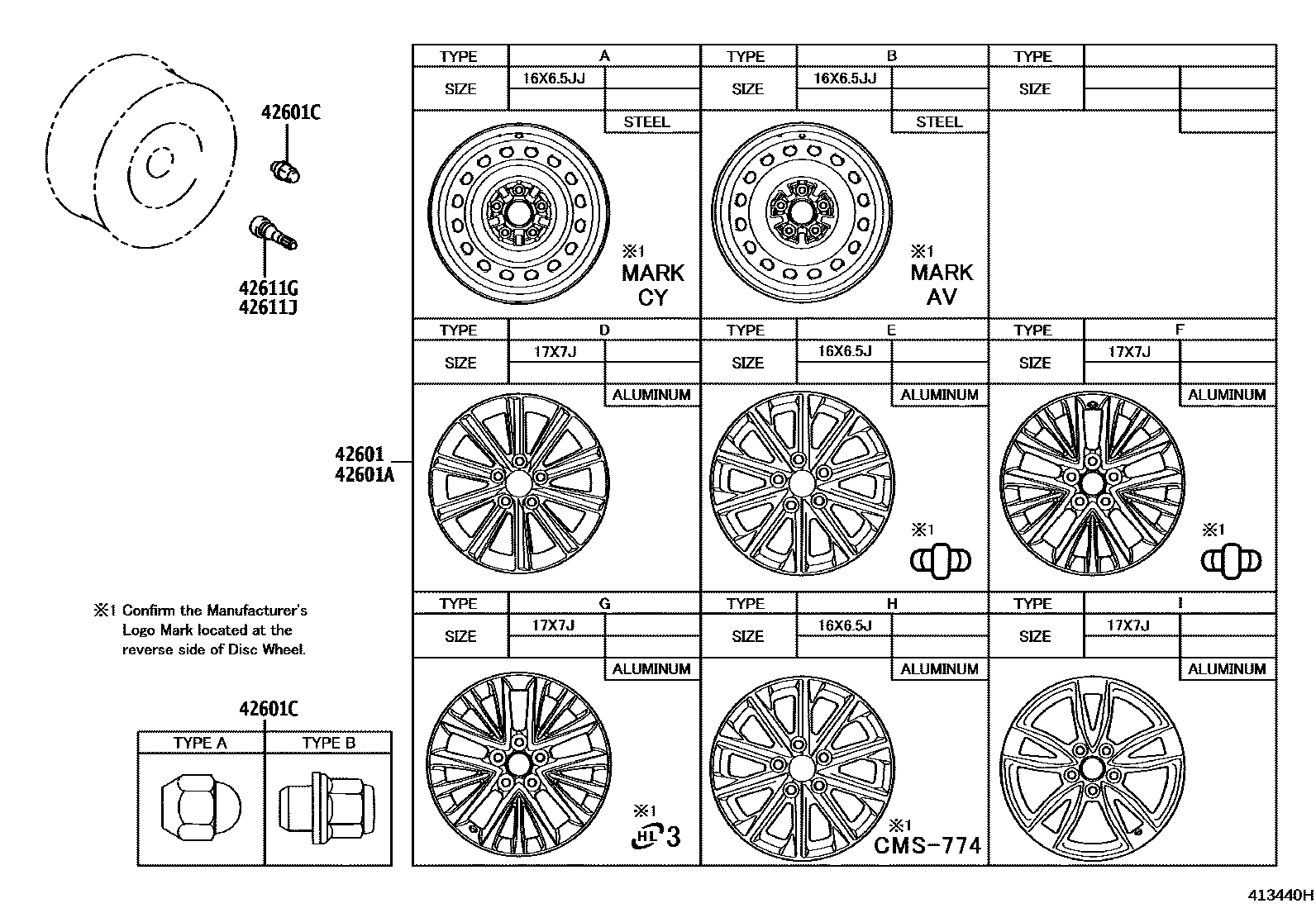

| 42601 | spoke wheel | 42611-06A70 · 42611-06A80 · 42611-06B80 · 42611-33491 · 42611-33541 · 42611-33790 · 42611-33800 · 42611-33810 · 42611-33820 · 42611-33840 · 42611-33850 · 42611-33860 · 42611-33A50 · 42611-YY670 · 4261A-06100 · 4261A-33130 · 4261A-33140 |
| 42601A | Spoke wheel (for spare tire) | 42611-06A70 · 42611-06A80 · 42611-06B80 · 42611-33491 · 42611-33541 · 42611-33790 · 42611-33800 · 42611-33810 · 42611-33820 · 42611-33840 · 42611-33850 · 42611-33860 · 42611-33A50 · 4261A-06100 · 4261A-33130 · 4261A-33140 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-01082 |

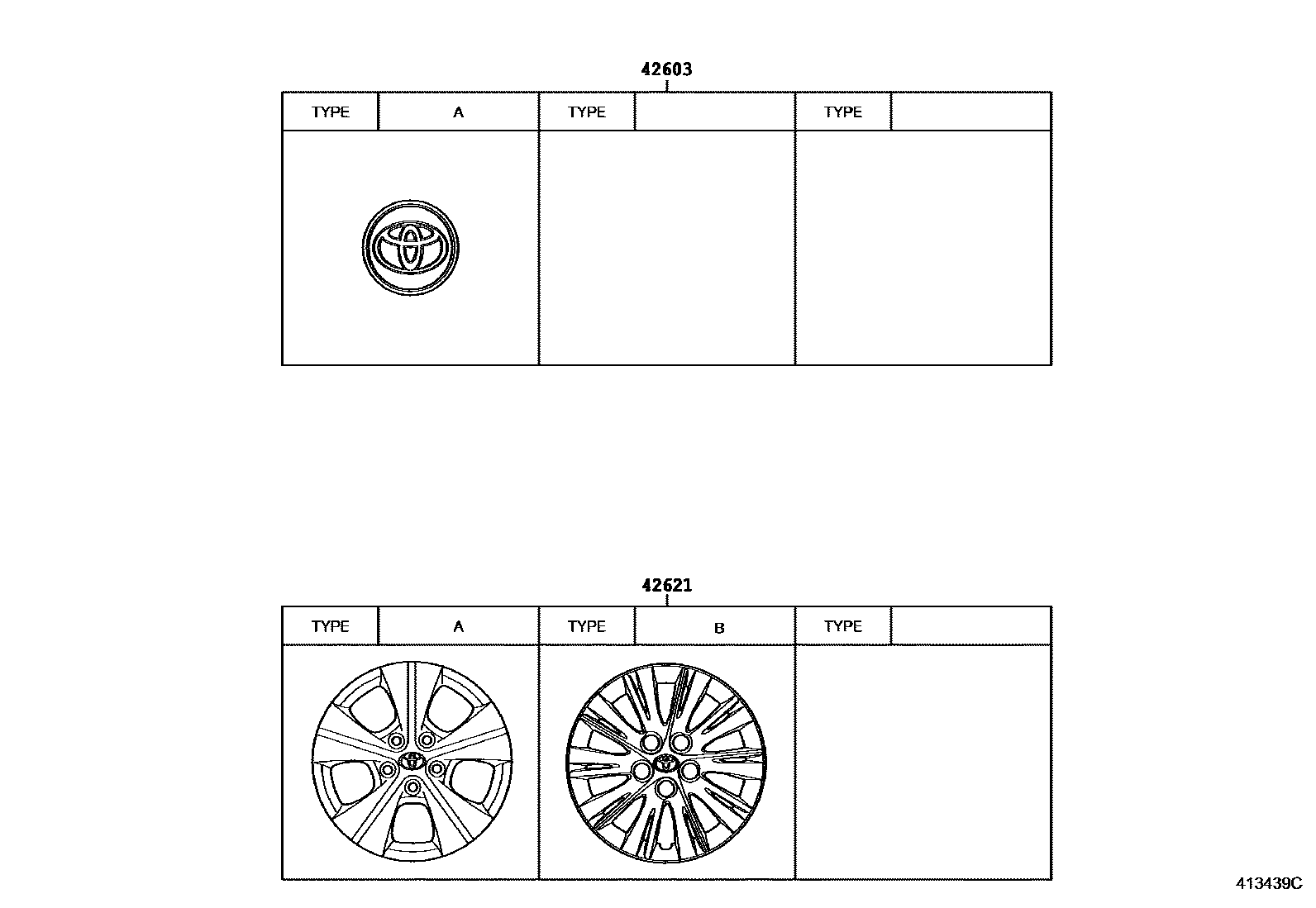

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12730 · 42603-12750 · 42603-48140 · 42603-YY310 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-33160 · 42602-33180 |
