Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 2 PNC and OE references.

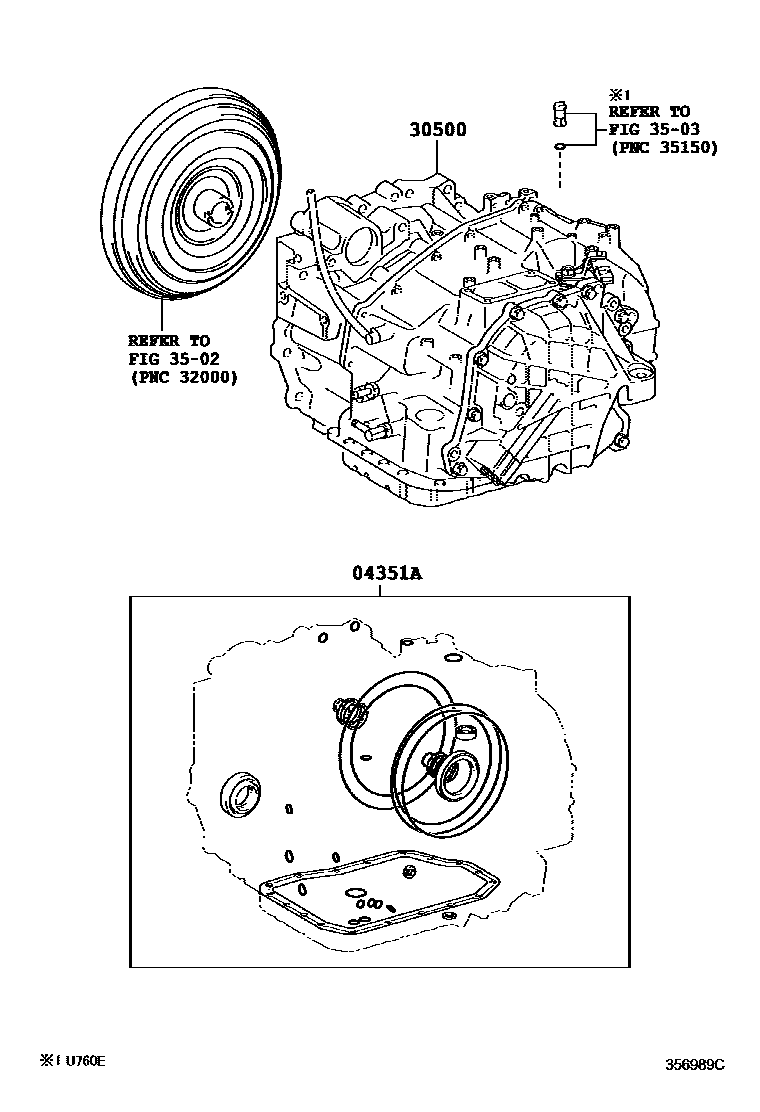

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 356989C
传动桥或变速器总成和衬垫组件(ATM) — 356989C (201108 – 999999)

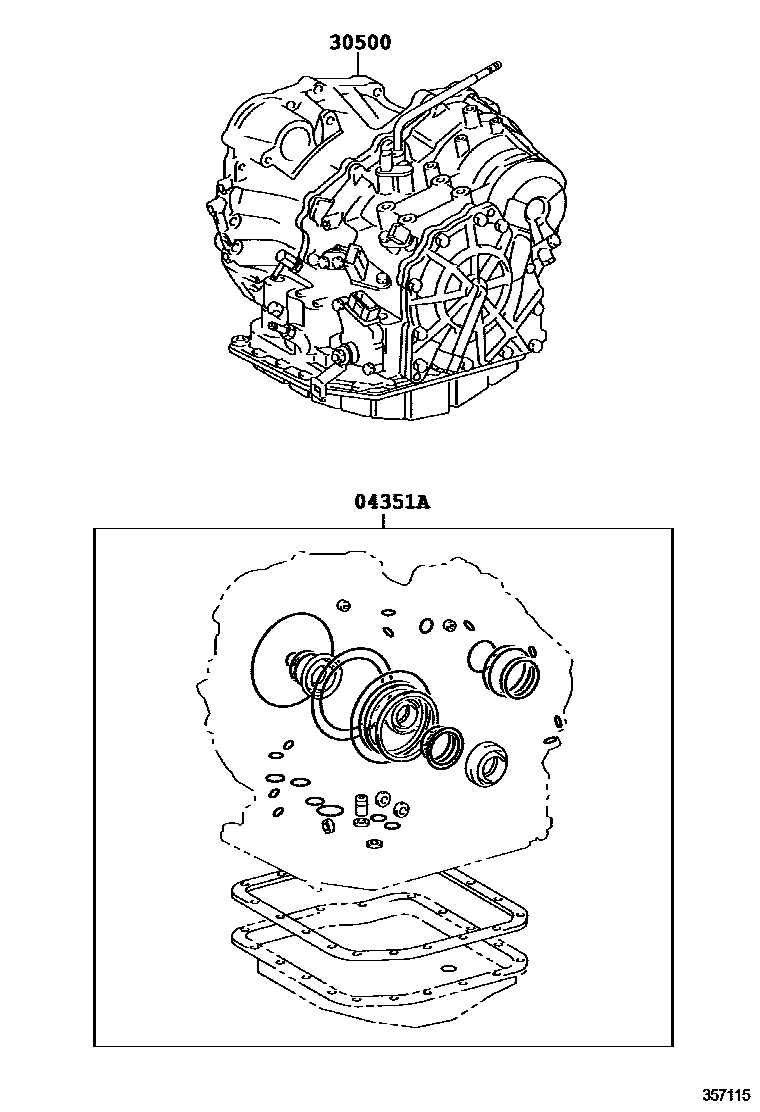

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 357115
传动桥或变速器总成和衬垫组件(ATM) — 357115 (201208 – 999999)

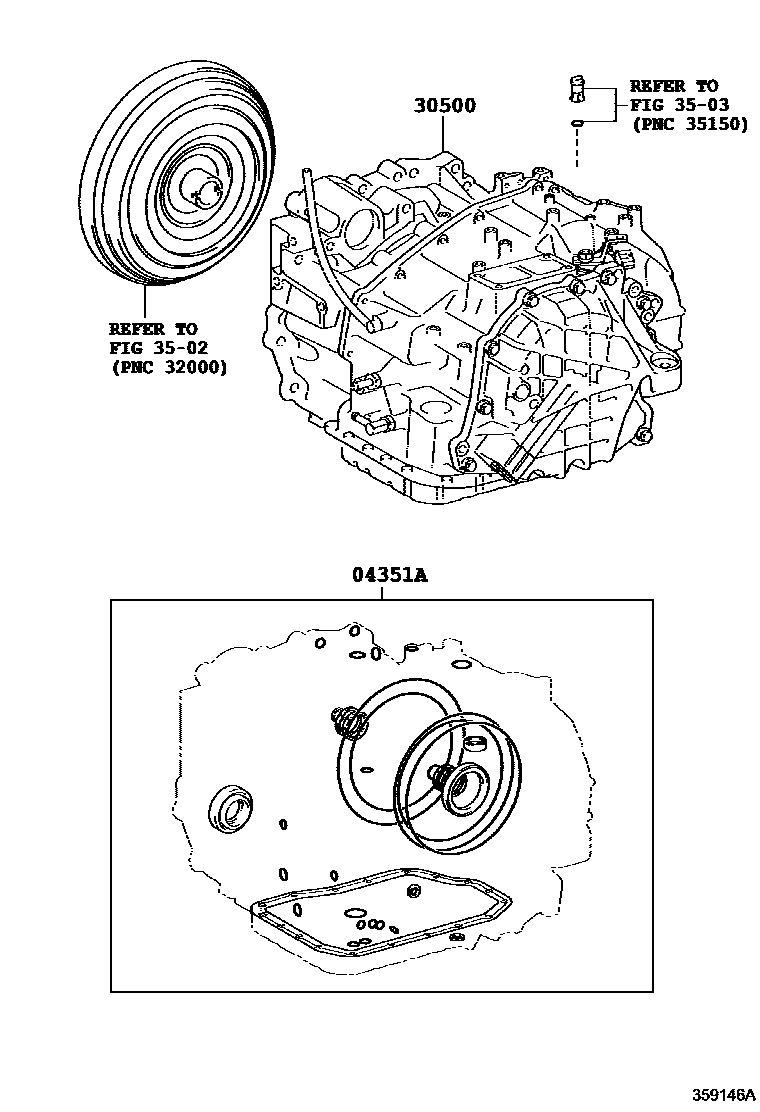

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 359146A
传动桥或变速器总成和衬垫组件(ATM) — 359146A (201502 – 999999)

PNC and OE references

PNCPart nameOE numbers
04351ATransaxle overhaul gasket assembly (ATM)04351-33401 · 04351-33402 · 04351-33560 · 04351-48151 · 04351-48154 · 04351-48182 · 04351-48183
30500Automatic transmission axle assembly30500-33600 · 30500-33601 · 30500-33602 · 30500-33640 · 30500-33641 · 30500-33680 · 30500-33730
