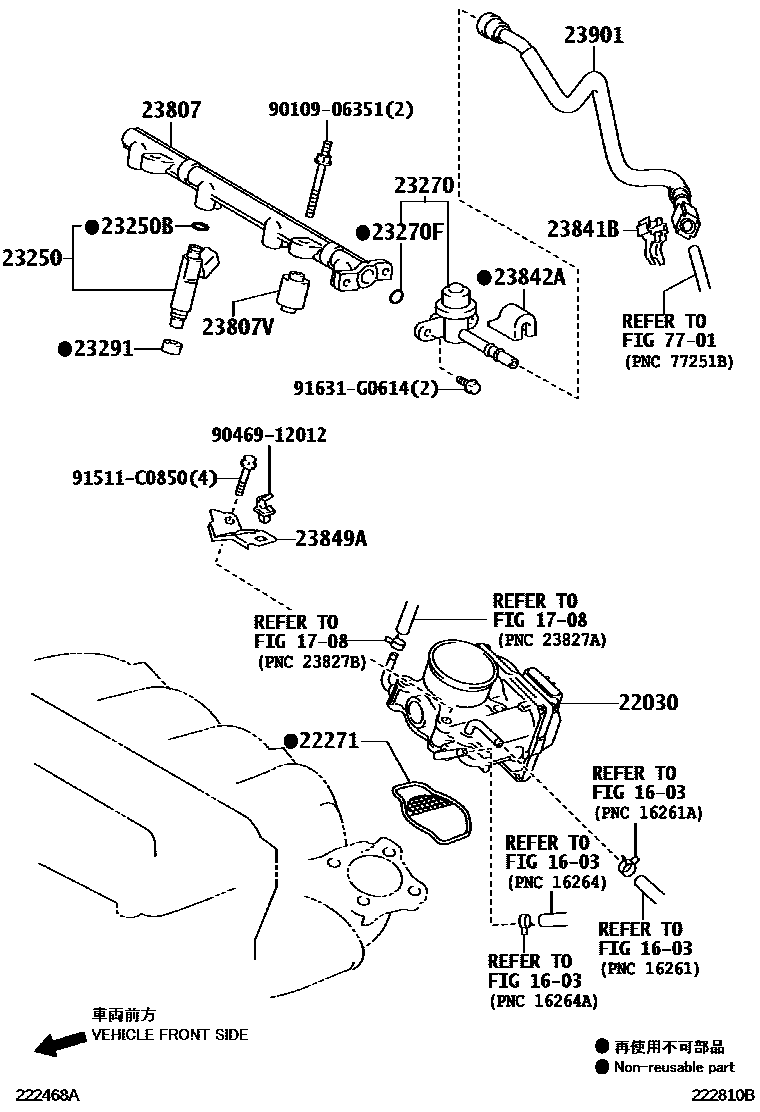

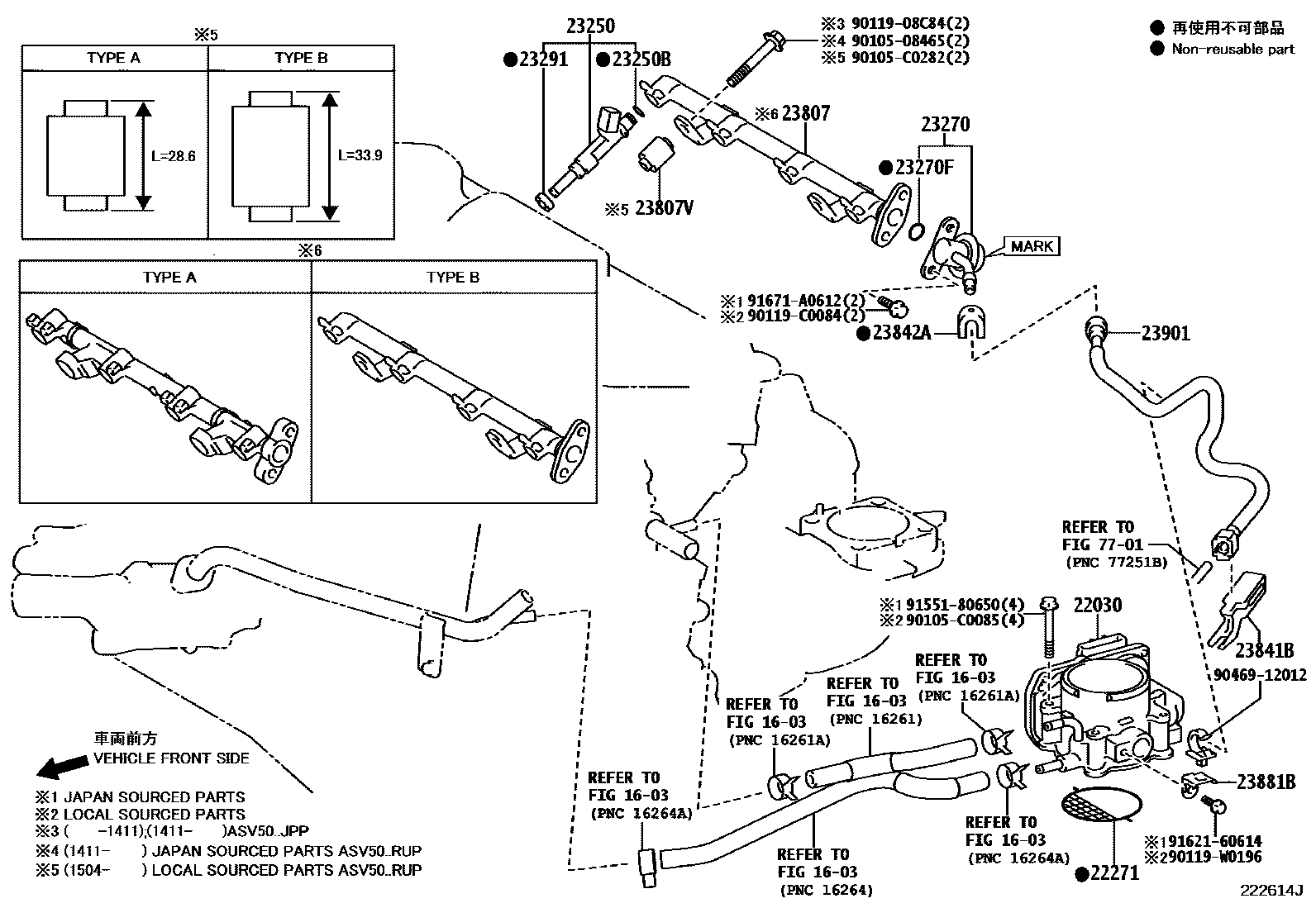

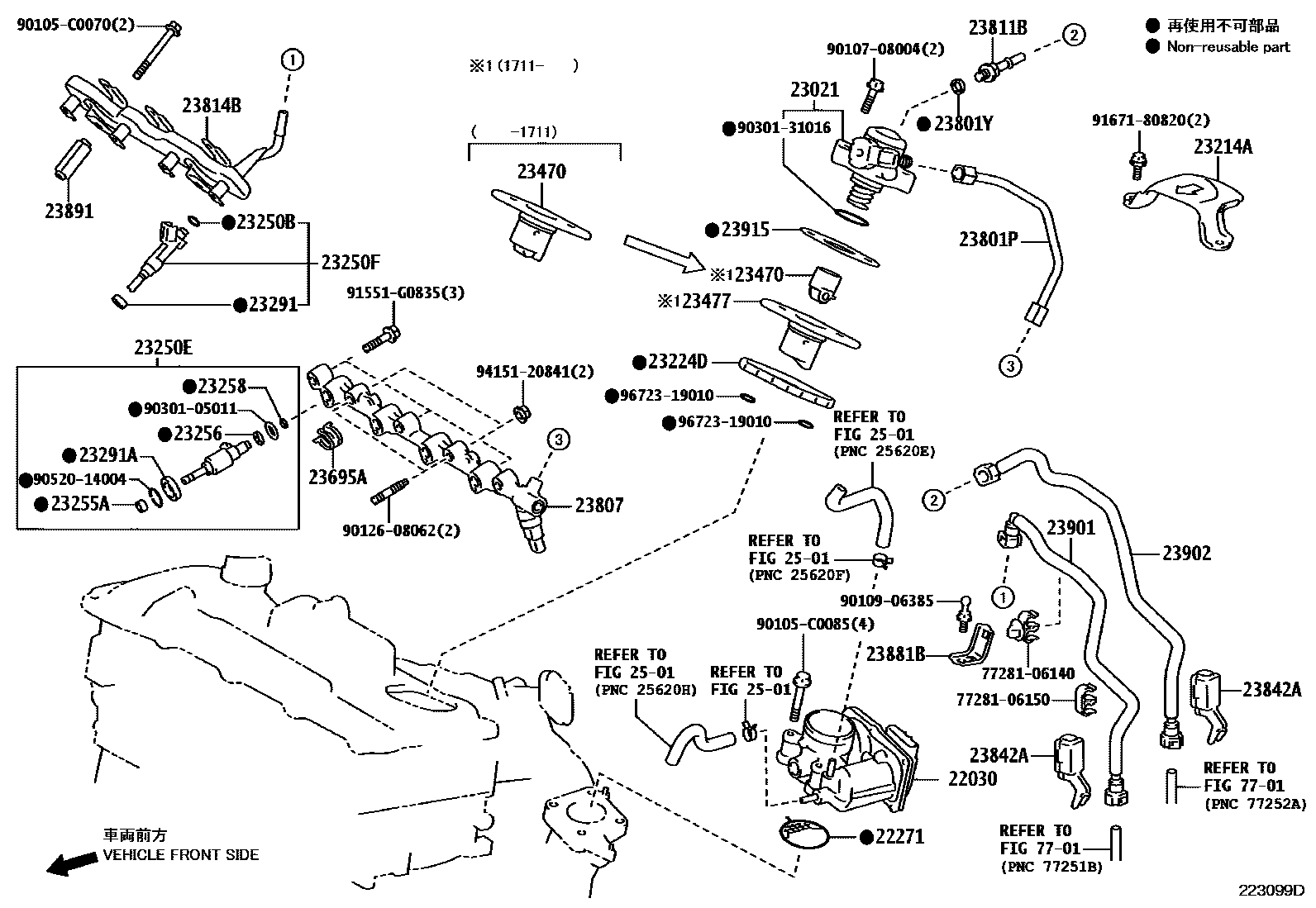

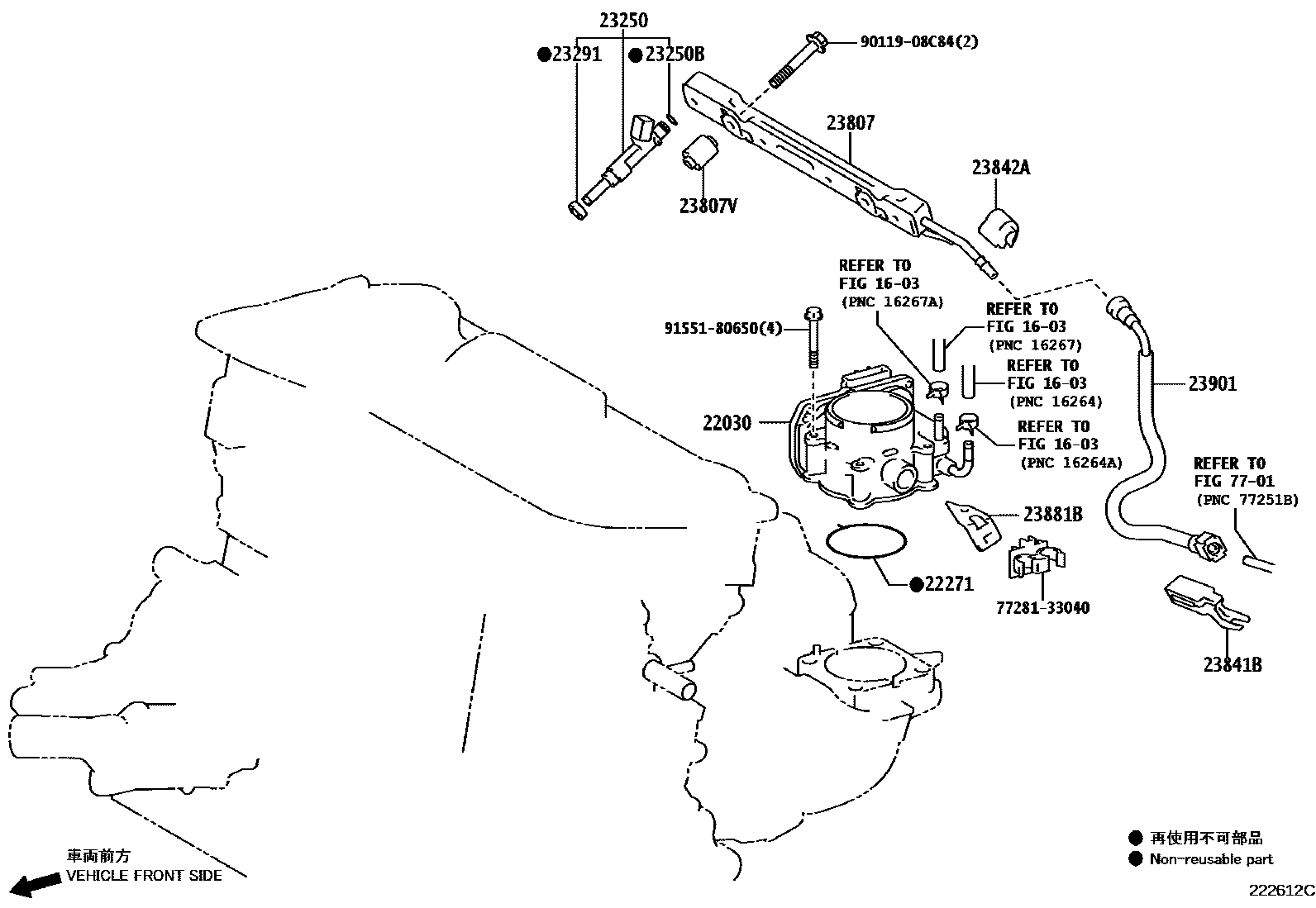

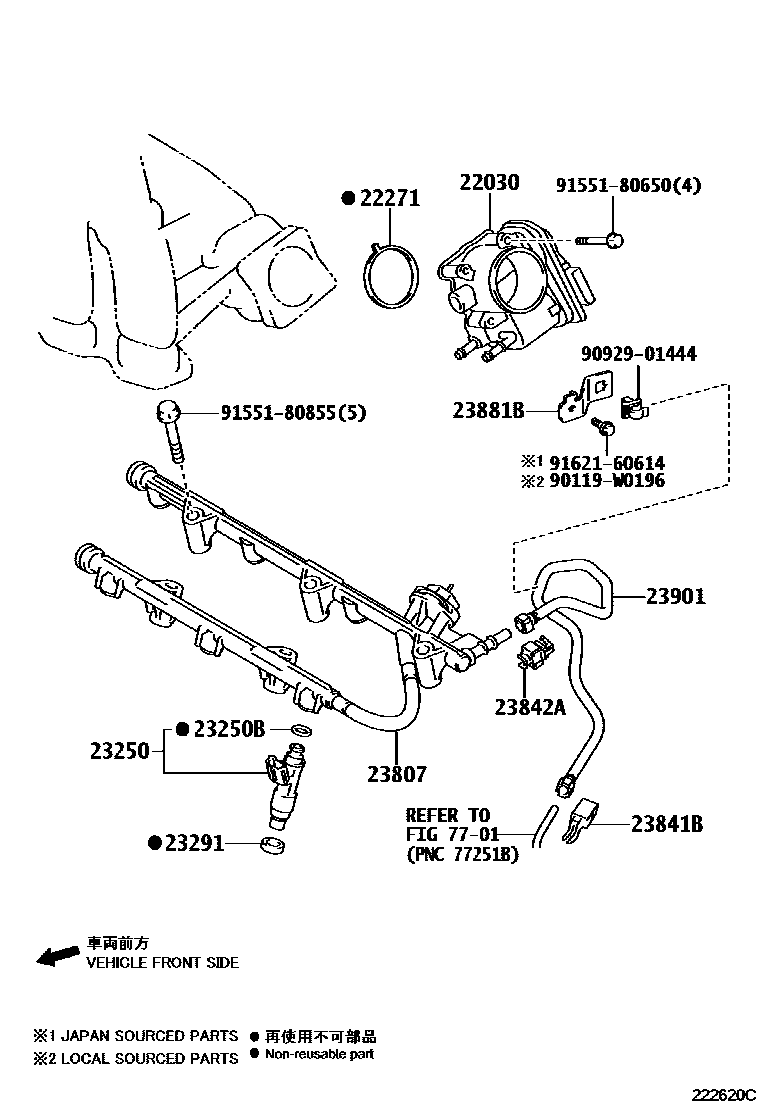

Toyota CAMRY 燃油喷射系统 — Figure 2211
Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-0P050 · 22030-0V020 · 22030-0V040 · 22030-28071 · 22030-31030 · 22030-36010 · 22030-36020 |
| 22271 | Throttle body gasket | 22271-0T010 · 22271-0V020 · 22271-28020 · 22271-31040 · 22271-36010 · 22271-36020 |
| 23021 | SOUS-ENSEMBLE POMPE, CARBURANT AVEC JOINT | 23021-36010 · 23021-36030 · 23021-36040 |
| 23214A | PROTECTEUR, POMPE A CARBURANT | 23214-36010 |
| 23224D | JOINT D'ETANCHEITE, ENTRETOISE DE POMPE A CARBURANT | 23224-0V010 |
| 23250 | Fuel injector assembly | 23209-09230 · 23209-0H060 · 23209-31090 · 23209-39175 |
| 23250B | O-ring (for fuel injector) | 90301-07033 · 90301-07037 · 90301-C0072 |
| 23250F | ENS INJECTEUR, CARBURANT(POUR PORT) | 23209-09280 |
| 23255A | Injector seal | 23255-31020 |
| 23256 | No. 1 injector retaining ring | 23256-31010 |
| 23258 | No. 3 injector retaining ring | 23258-36020 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-28052 · 23270-36010 · 23270-36031 |
| 23270F | O-ring (for pulsation damper) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-0P020 · 23291-0V010 · 23291-23010 · 23291-28020 |
| 23291A | Injector vibration isolation pad | 23291-31020 |
| 23470 | Fuel pump tappet assembly | 23460-36010 · 23470-25010 |
| 23477 | fuel pump tappet guide | 23477-36011 |
| 23695A | Injector body clamp | 23695-0Y010 · 23695-31020 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-0V010 |
| 23801Y | padding | 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23800-0V010 · 23814-0V050 · 23814-28031 · 23814-36010 · 23814-36030 · 23814-36040 · 23814-36050 · 23870-31010 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-36010 · 23891-37010 · 90561-08053 |
| 23811B | No. 1 fuel pipe | 23811-36040 · 23811-36041 |
| 23814B | oil pipeline | 23814-0V010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-31070 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-31070 · 23842-28010 · 23842-31040 |
| 23849A | Fuel pipe bracket | 23849-28050 |
| 23881B | fuel hose bracket | 23881-0V020 · 23881-31020 · 23881-36010 · 23881-36030 |
| 23891 | oil pipe septum | 23891-36020 |
| 23901 | Fuel pipe sub-assembly | 23901-0H170 · 23901-0V210 · 23901-31160 · 23901-36050 · 23901-36060 |
| 23902 | Fuel pipe sub-assembly | 23902-0V050 |
| 23915 | Fuel pump vibration isolation pad | 23915-31010 |
