Toyota CAMRY 点火线圈和火花塞 — Figure 1901

Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 3 images and 2 PNC and OE references.

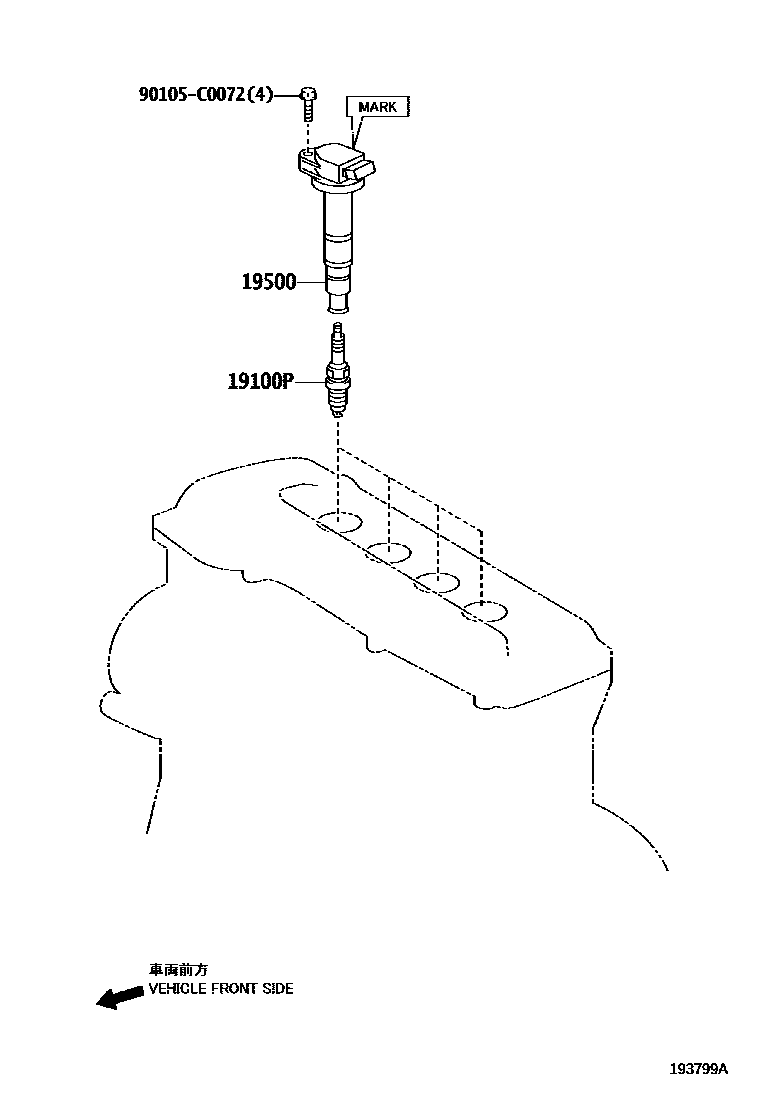

Toyota CAMRY 点火线圈和火花塞 EPC diagram — 193799A
点火线圈和火花塞 — 193799A (201208 – 999999)

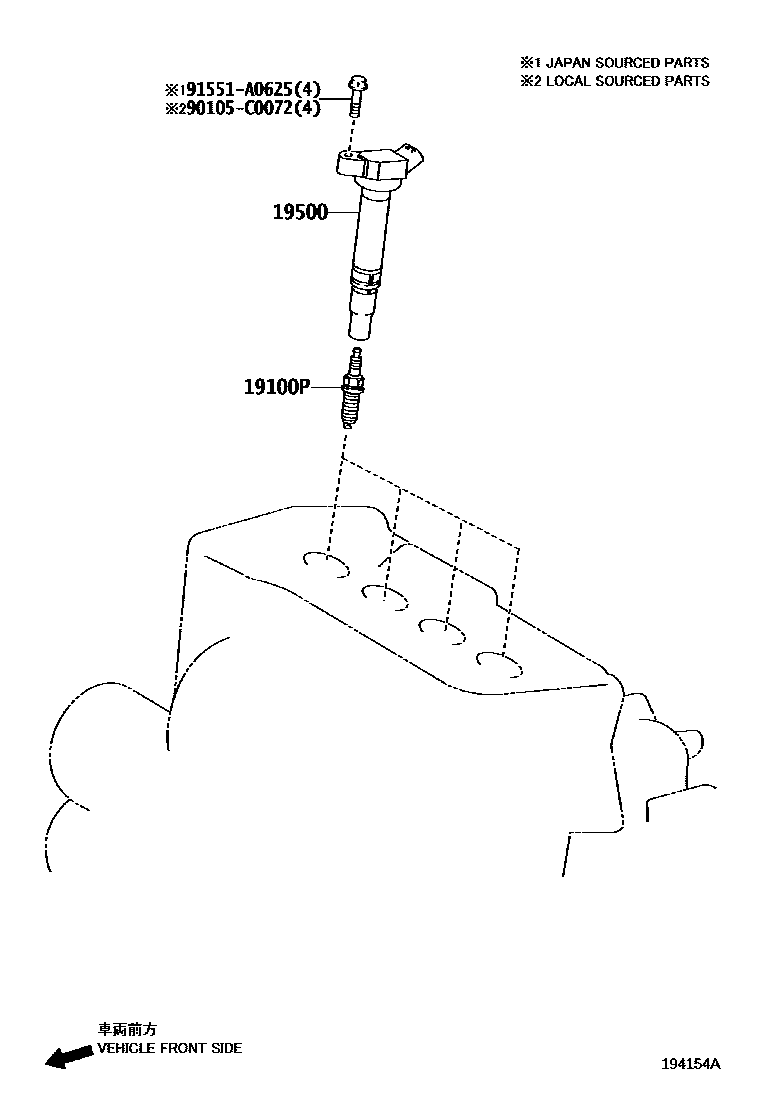

Toyota CAMRY 点火线圈和火花塞 EPC diagram — 194154A
点火线圈和火花塞 — 194154A (201108 – 999999)

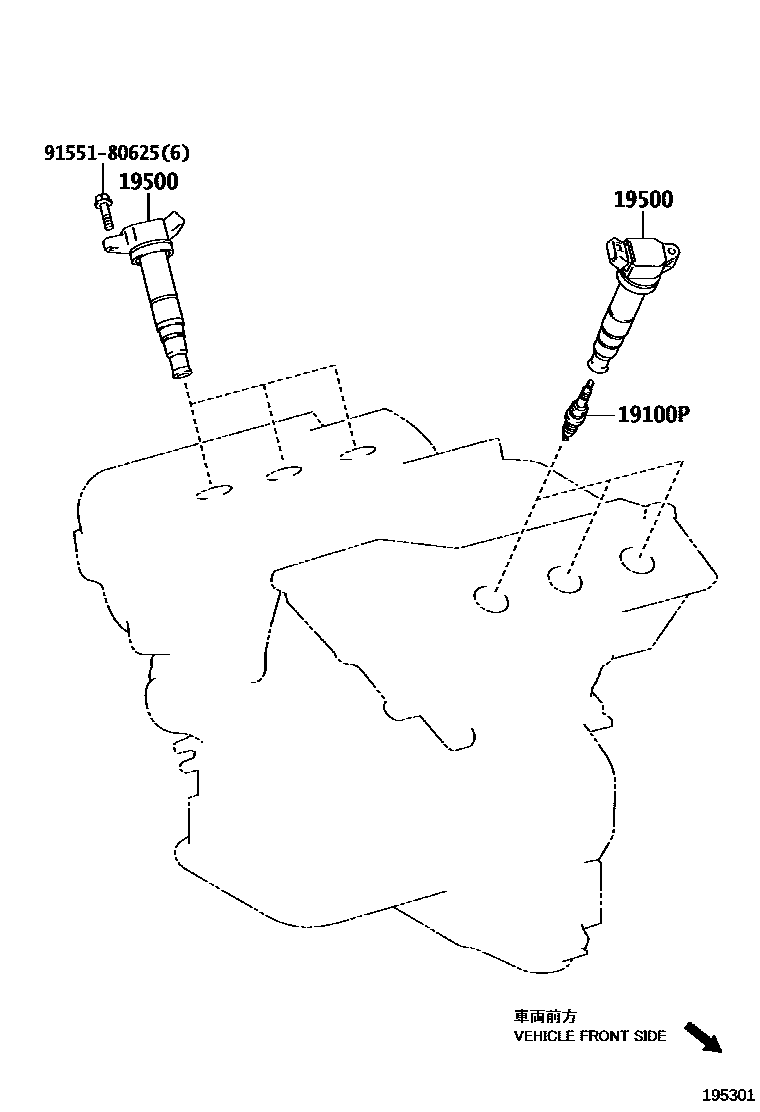

Toyota CAMRY 点火线圈和火花塞 EPC diagram — 195301
点火线圈和火花塞 — 195301 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01233 · 90919-01240 · 90919-01247 · 90919-01259 · 90919-01286 · 90919-C1001 · 90919-C1006 · 90919-C1008
19500Ignition coil assembly90919-02255 · 90919-02256 · 90919-02260 · 90919-C2004 · 90919-C2006
