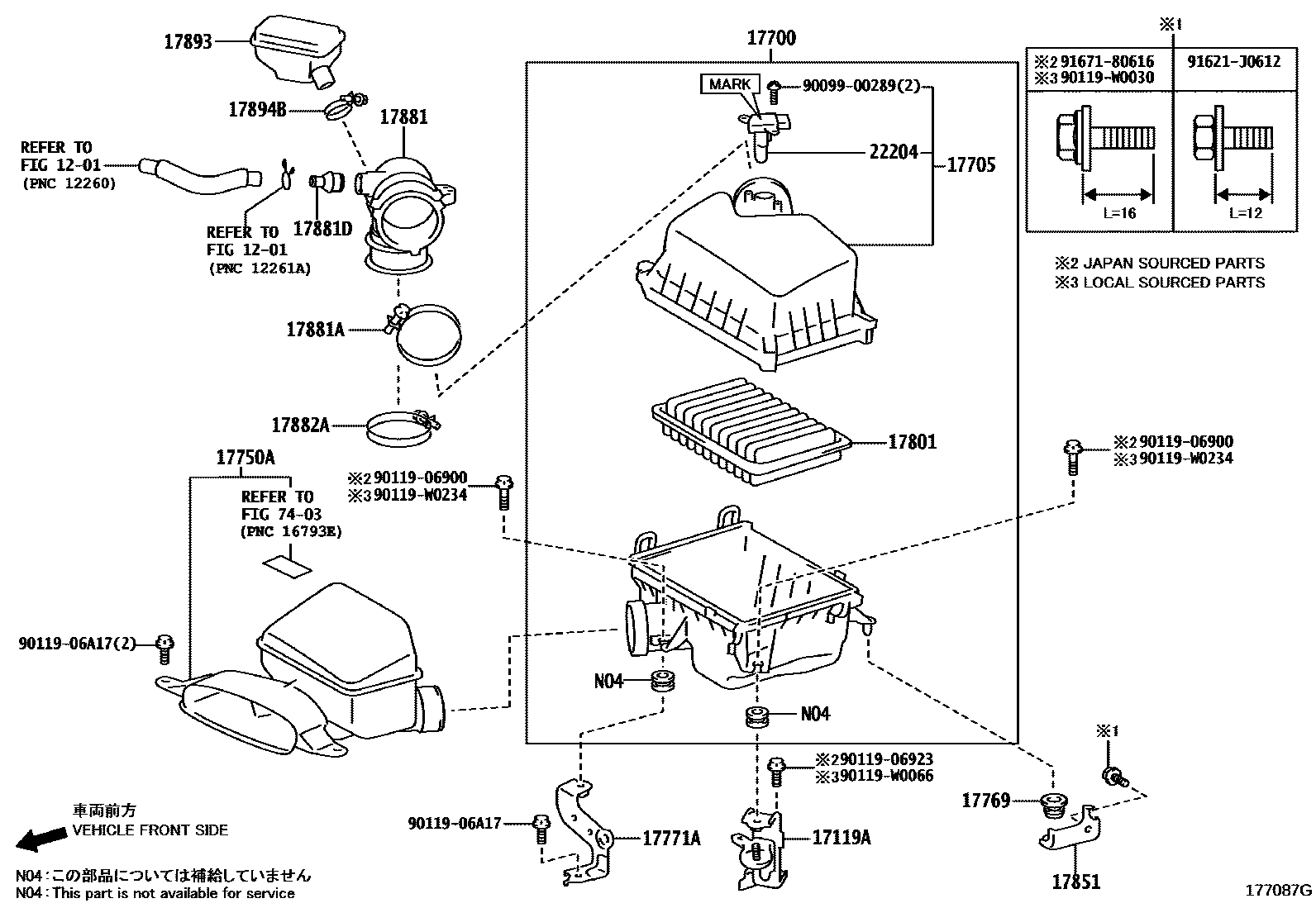

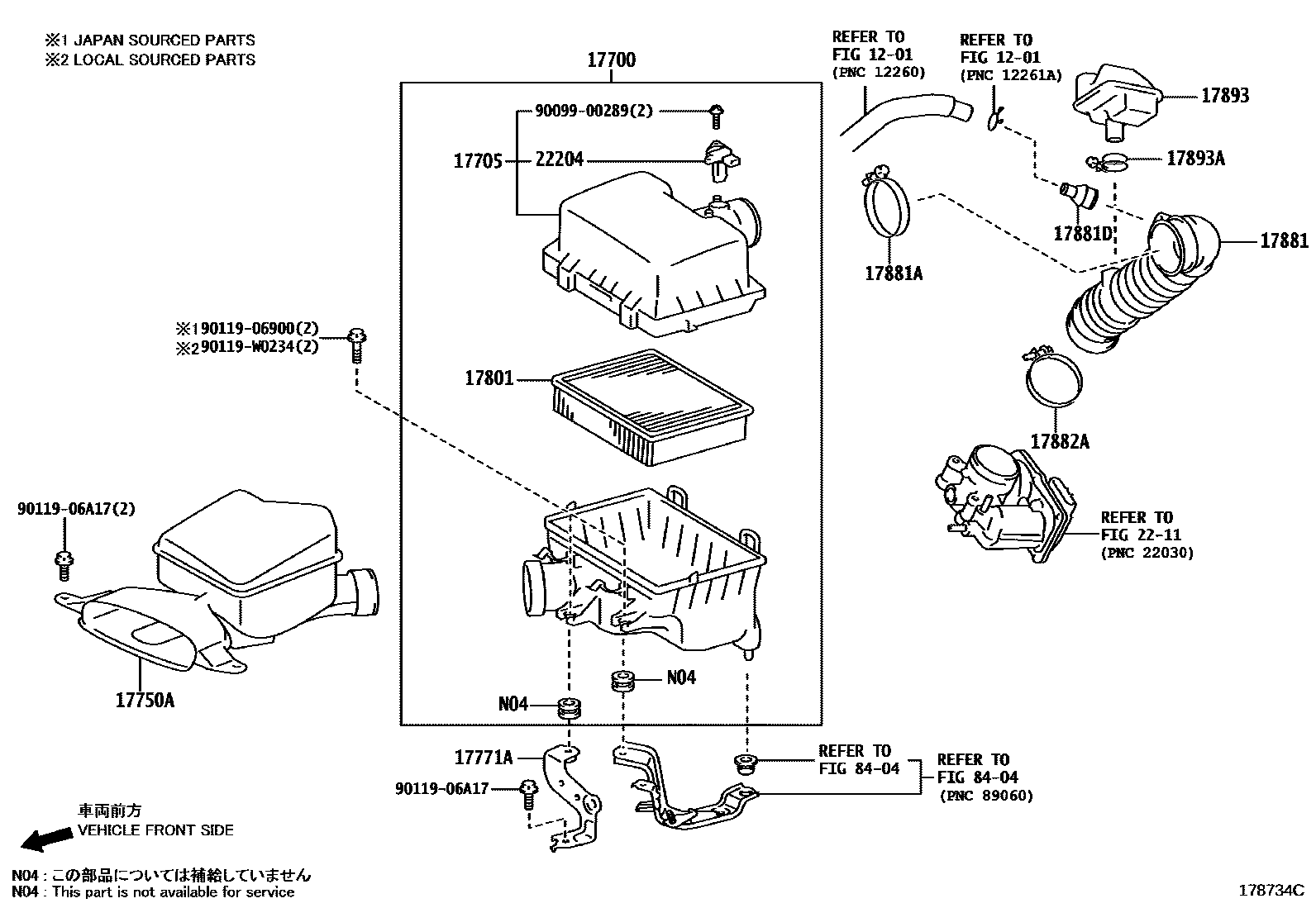

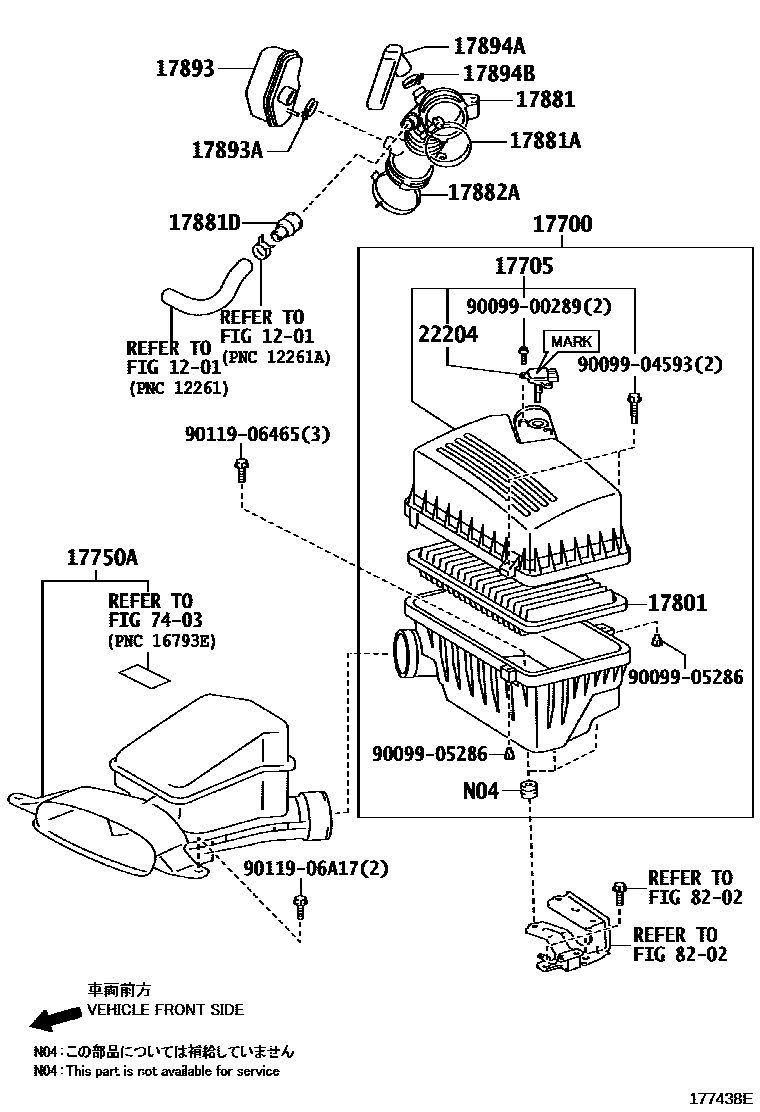

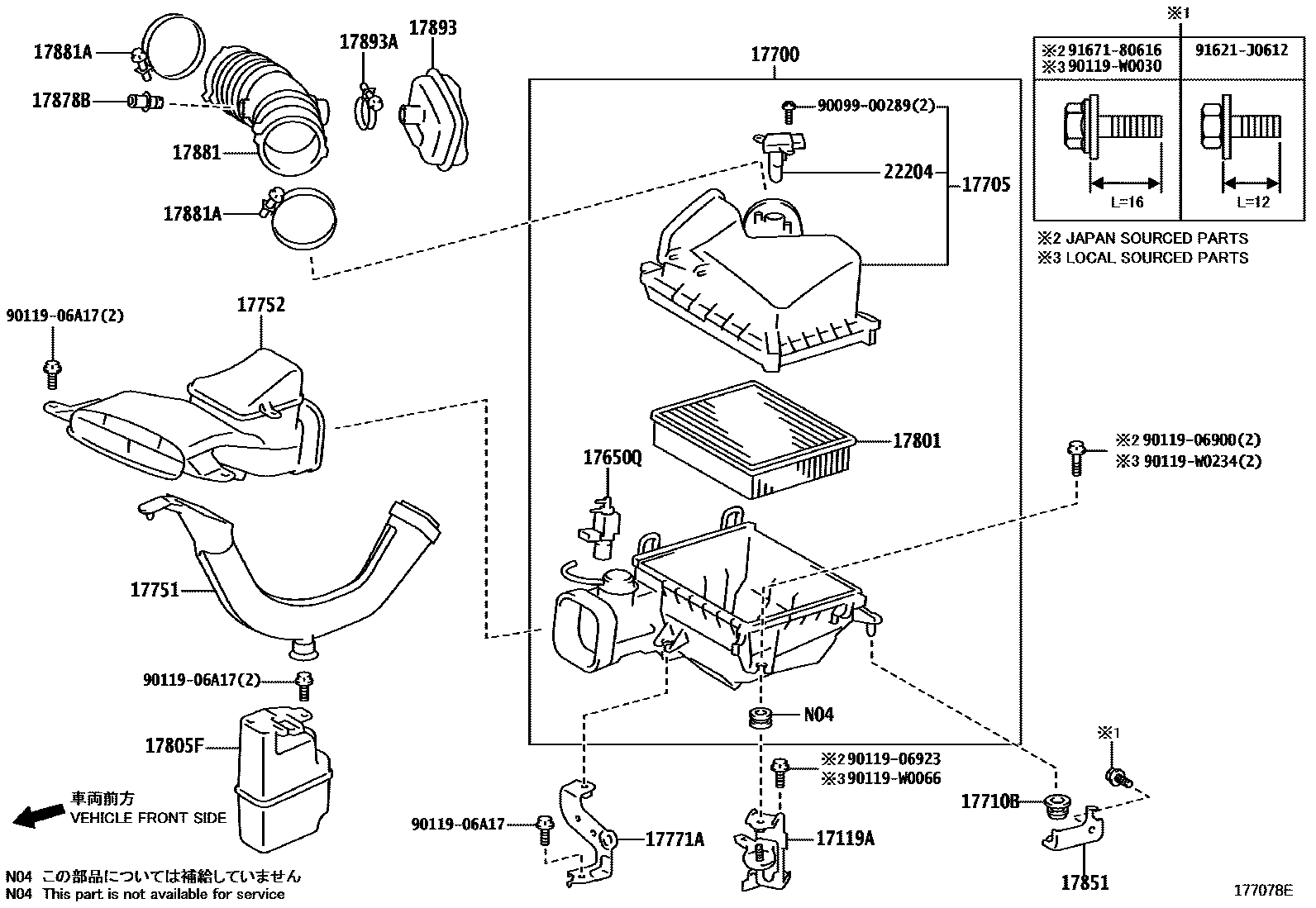

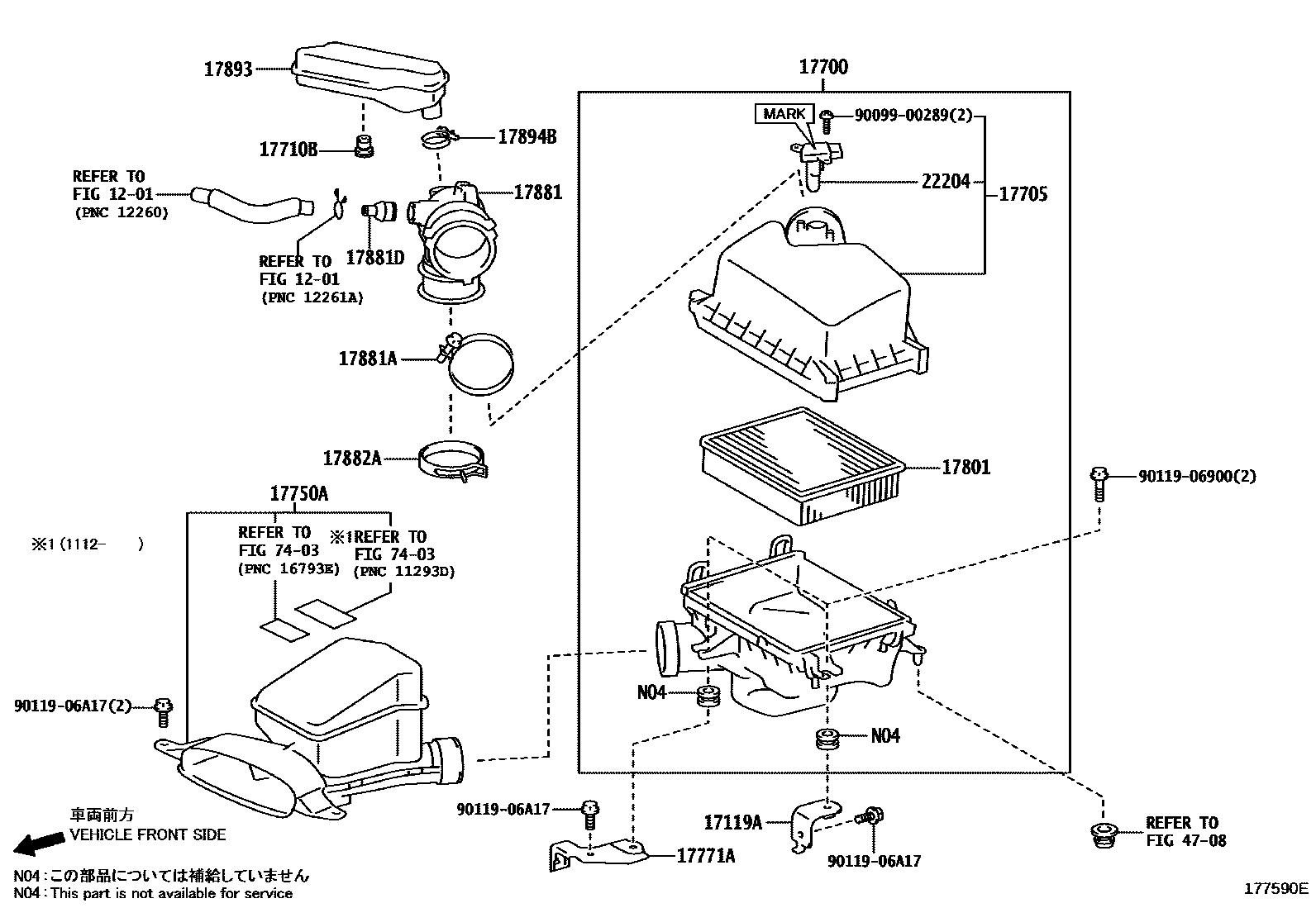

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-36010 · 17119-36020 |
| 17650Q | Vacuum switch valve | 90910-12088 |
| 17700 | air filter assembly | 17700-0V170 · 17700-28411 · 17700-31A00 · 17700-36230 · 17700-36250 |
| 17705 | Air filter cover sub-assembly | 17705-0V180 · 17705-28351 · 17705-31400 · 17705-36060 · 17705-36070 |
| 17710B | gasket | 90480-16049 · 90480-18006 |
| 17750A | Air filter air inlet assembly | 17750-0H100 · 17750-0V150 · 17750-36020 · 17750-36021 · 17750-36030 · 17750-36031 |
| 17751 | No. 1 air filter air inlet | 17751-31340 |
| 17752 | No. 2 air filter air inlet | 17752-31130 · 17752-31131 |
| 17769 | air filter bracket | 90480-18006 |
| 17771A | air filter bracket | 17771-36030 · 17771-36040 |
| 17801 | Air filter element sub-assembly | 17801-0V040 · 17801-28030 · 17801-31131 · 17801-38011 |
| 17805F | Intake resonator sub-assembly | 17805-31040 |
| 17851 | air filter bracket | 17851-36020 |
| 17878B | ventilation duct | 17878-31010 |
| 17881 | No. 1 air cleaner hose | 17881-28250 · 17881-31270 · 17881-36100 · 17881-36110 · 17881-36160 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 · 96111-10900 |
| 17881D | Connector tube (for air cleaner hose) | 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 96111-10750 · 96111-10850 |
| 17893 | Intake resonator | 17893-28050 · 17893-31150 · 17893-36050 · 17893-36060 · 17893-36160 |
| 17893A | hose clamp | 96111-10380 · 96111-10400 · 96111-10430 |
| 17894A | No. 2 intake resonator | 17894-28100 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10400 · 96111-10430 |
| 22204 | Intake air flow meter assembly | 22204-0H010 · 22204-0P010 · 22204-0T010 · 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 · 22204-31020 · 22204-75040 |
