Toyota CAMRY Exhaust Pipe — Figure 1702

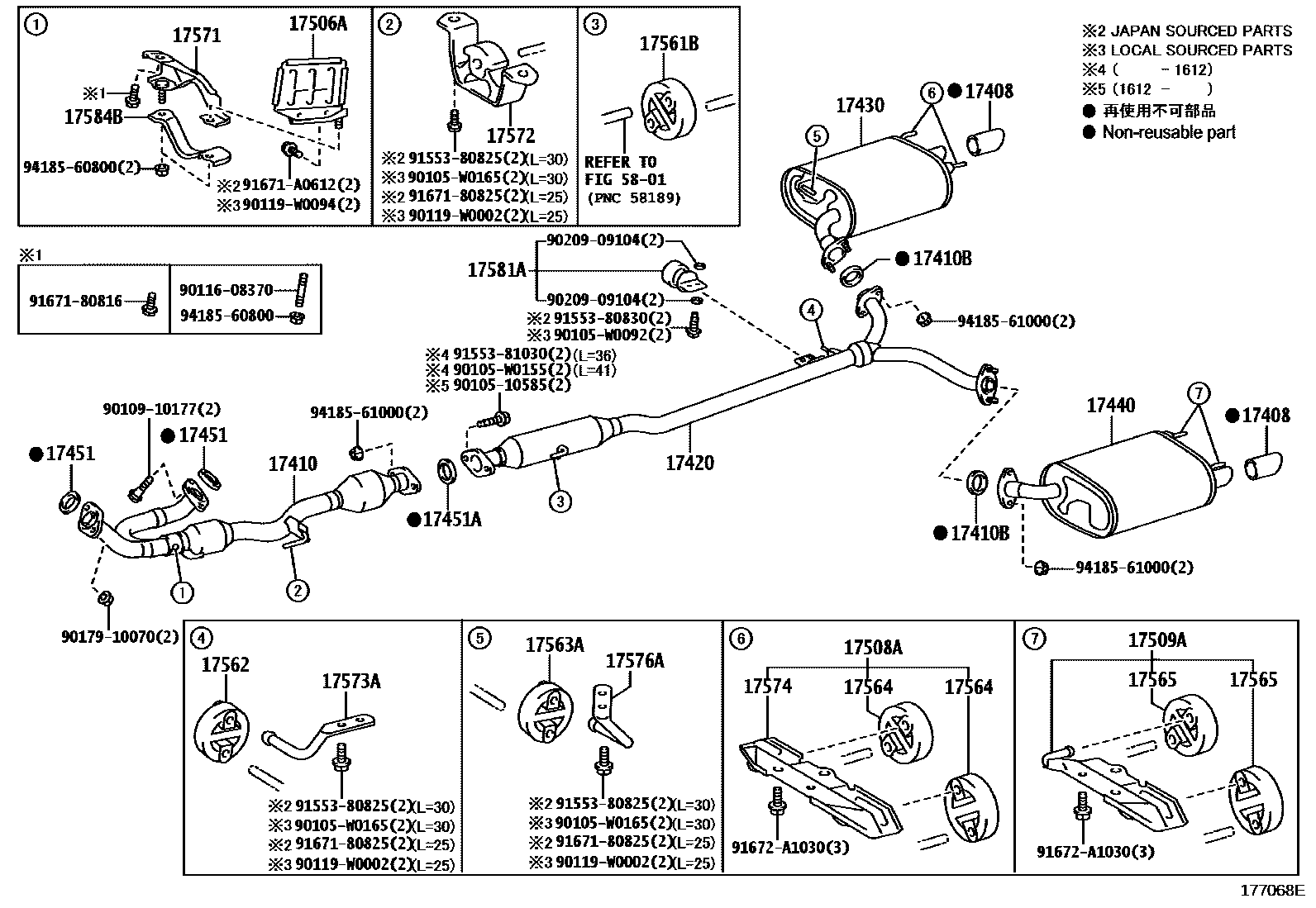

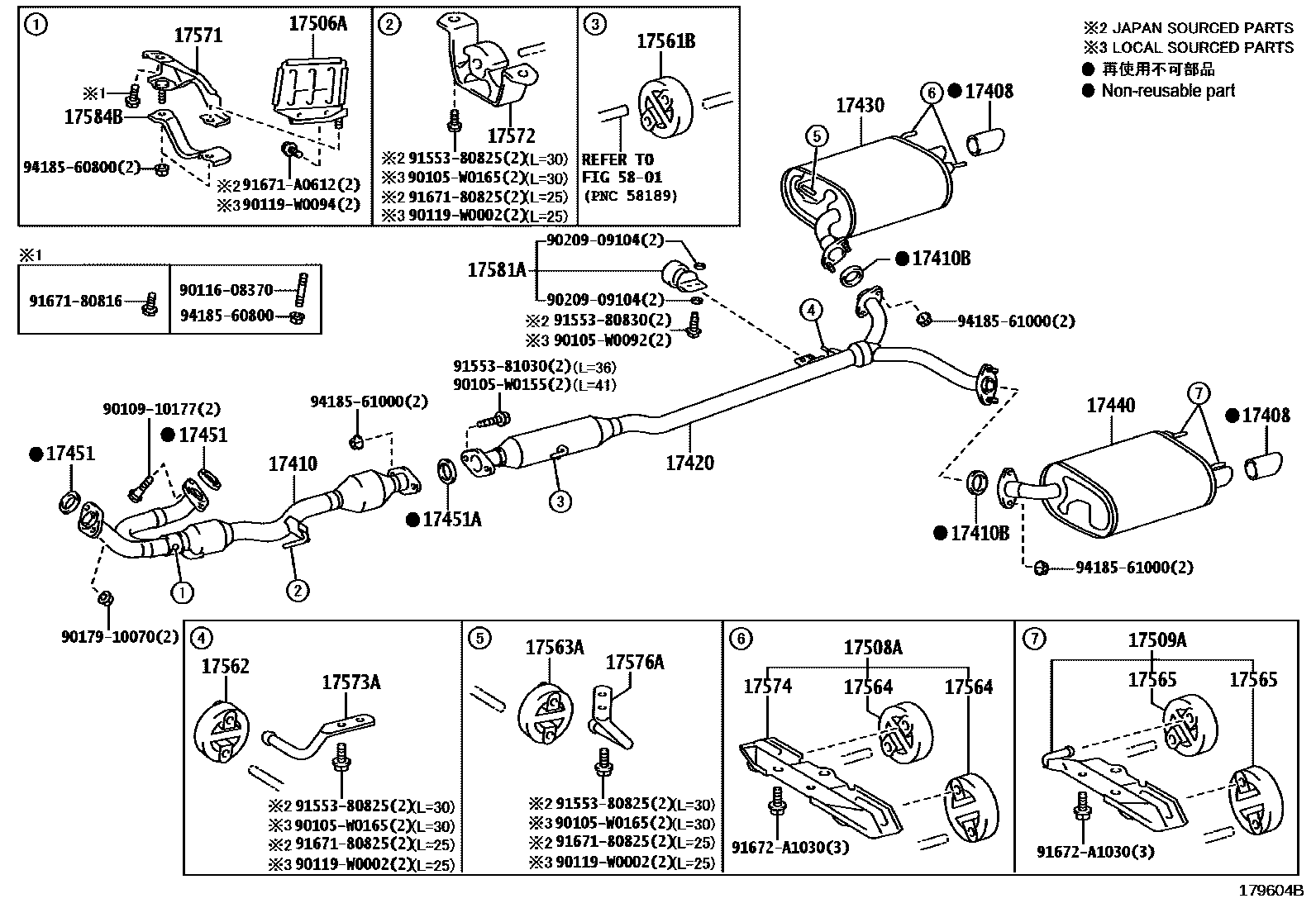

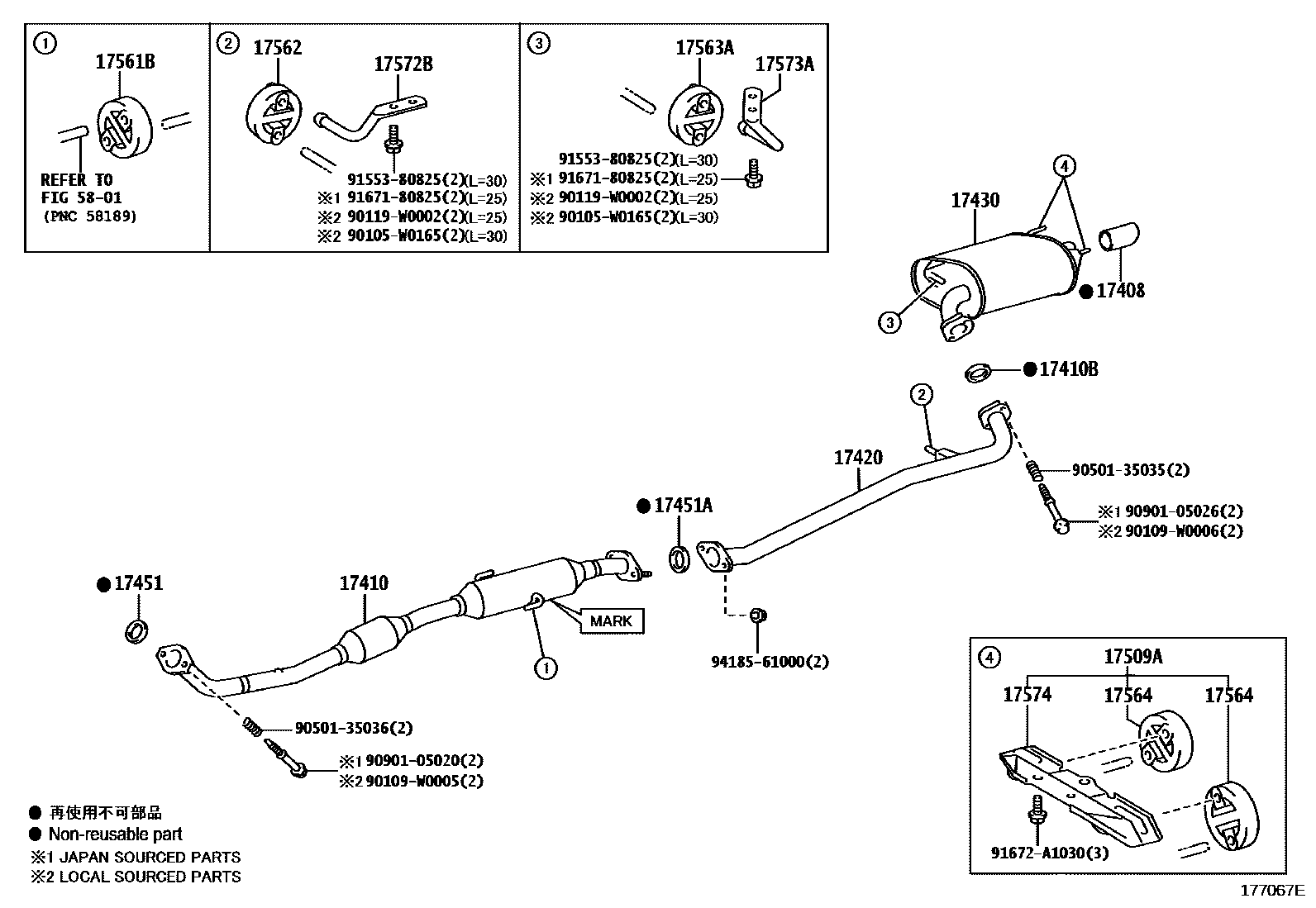

Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-31080 |
| 17410 | Front exhaust pipe assembly | 17410-0H450 · 17410-0P480 · 17410-0V360 · 17410-0V390 · 17410-0V560 · 17410-31430 · 17410-36220 · 17410-36230 · 17410-36240 · 17410-36250 · 17410-36570 |
| 17410B | Exhaust pipe gasket | 17451-28022 · 90917-06045 |
| 17420 | Central exhaust pipe assembly | 17420-0P400 · 17420-0V340 · 17420-31440 · 17420-31450 · 17420-36100 · 17420-36120 |
| 17430 | Exhaust tailpipe assembly | 17430-0P400 · 17430-0V320 · 17430-0V340 · 17430-31B00 · 17430-31B10 · 17430-36150 · 17430-36160 · 17430-36170 |
| 17440 | Left exhaust tailpipe | 17440-0P100 · 17440-31060 · 17440-31070 |
| 17451 | Exhaust pipe gasket | 17451-28070 · 17451-36010 · 17451-75010 · 90917-06089 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06076 · 90917-06078 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-31090 |
| 17508A | No. 3 exhaust pipe bracket sub-assembly | 17508-36060 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17508-36060 · 17509-31050 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-0D100 · 17565-22030 · 17565-31040 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0D100 · 17565-0J031 · 17565-22030 · 17565-22040 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0J031 · 17565-22040 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-22030 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-31040 |
| 17571 | No. 1 exhaust pipe bracket | 17571-31180 |
| 17572 | No. 1 exhaust pipe bracket | 17572-28020 |
| 17572B | No. 2 exhaust pipe bracket | 17573-31020 |
| 17573A | No. 3 exhaust pipe bracket | 17573-31020 · 17576-31070 |
| 17574 | No. 4 exhaust pipe bracket | 17574-36070 |
| 17576A | No. 6 exhaust pipe bracket | 17576-31070 |
| 17581A | Exhaust pipe damper | 17581-70080 |
| 17584B | No. 1 exhaust pipe bracket | 17584-31030 |
