Toyota CAMRY Manifold — Figure 1701

Toyota CAMRY EPC diagram 1701, Manifold, with 6 images and 27 PNC and OE references.

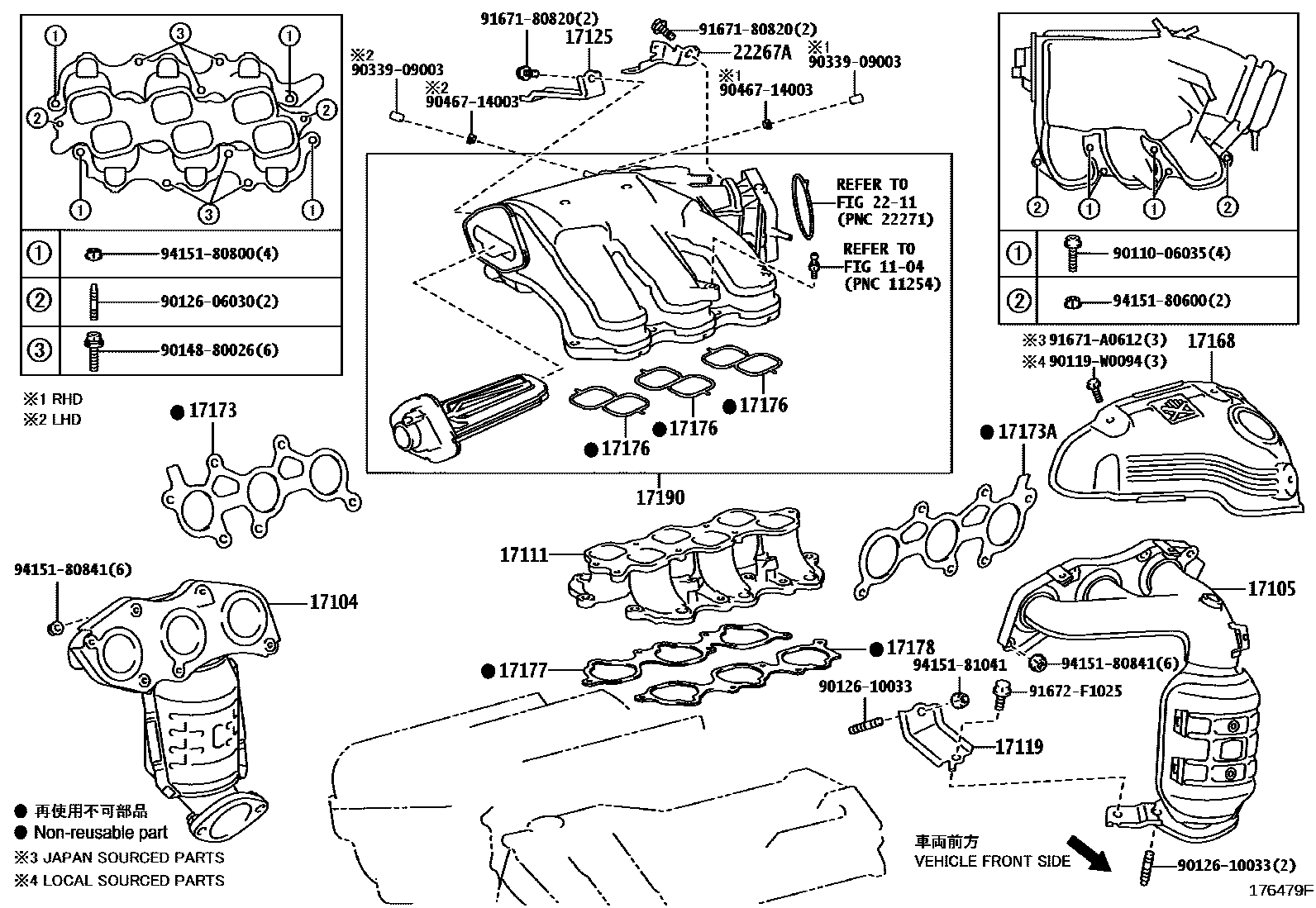

Toyota CAMRY Manifold EPC diagram — 176479F — Manifold — 176479F (201108 – 999999)

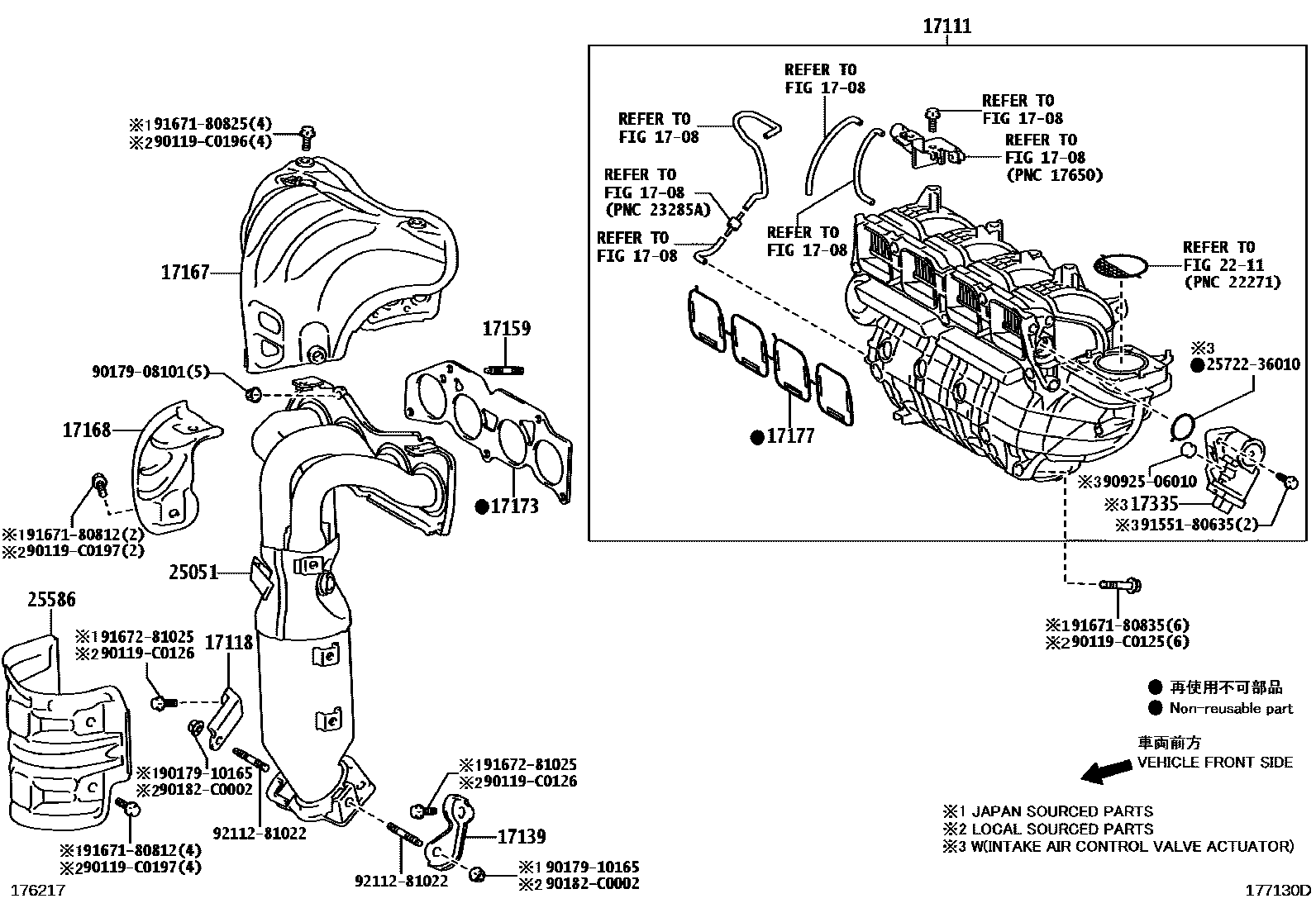

Toyota CAMRY Manifold EPC diagram — 177130D — Manifold — 177130D (201108 – 999999)

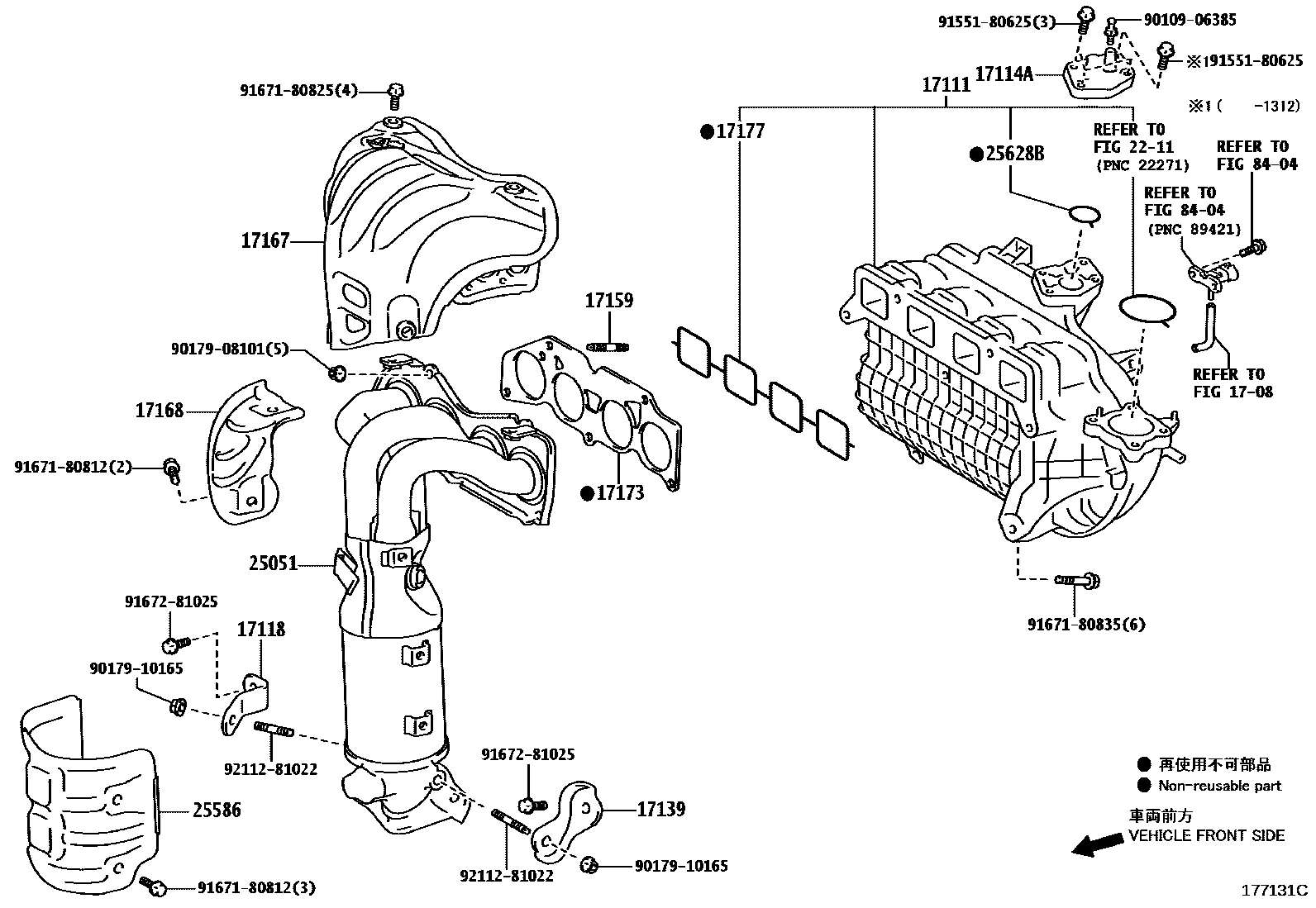

Toyota CAMRY Manifold EPC diagram — 177131C — Manifold — 177131C (201108 – 999999)

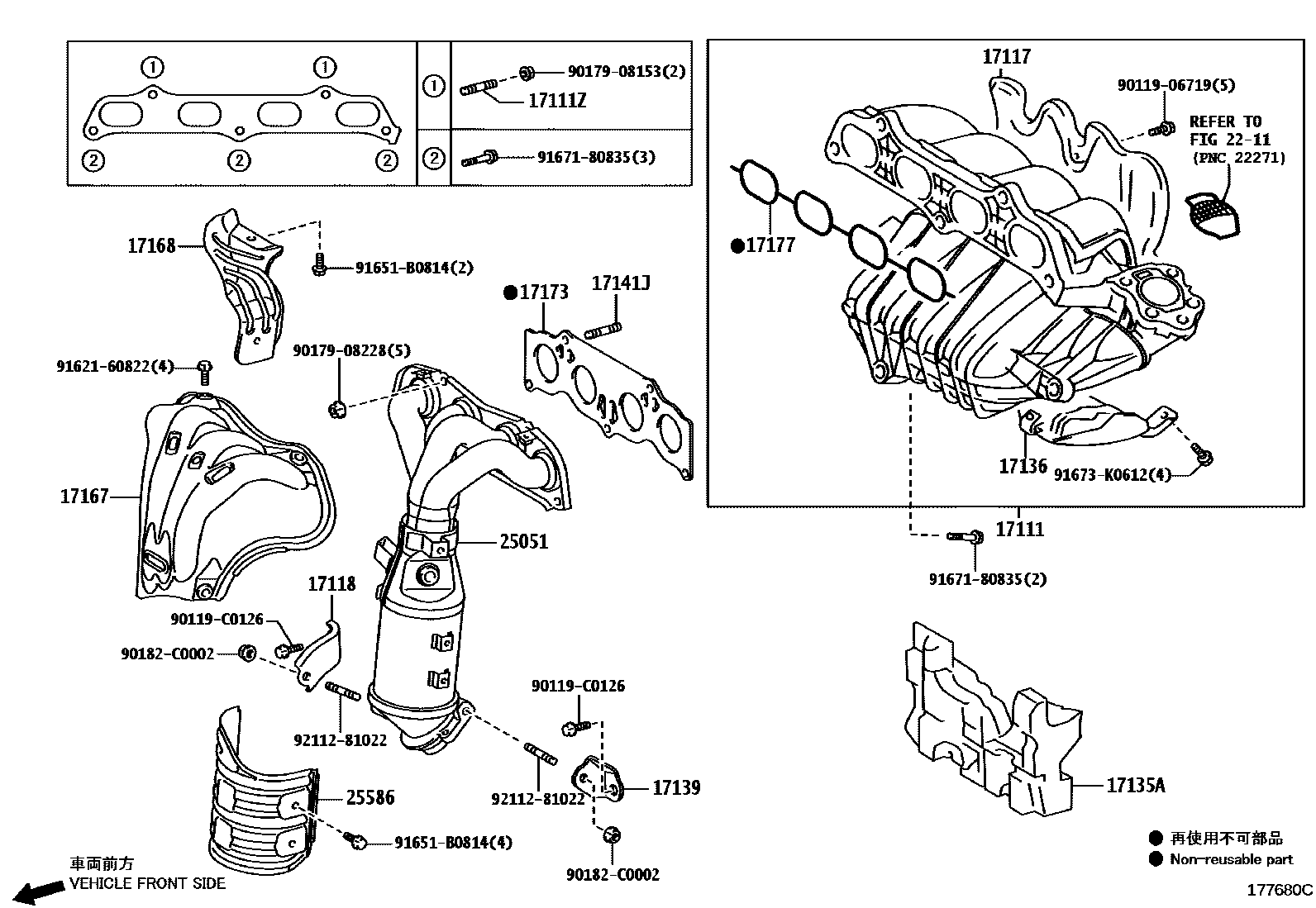

Toyota CAMRY Manifold EPC diagram — 177680C — Manifold — 177680C (201208 – 999999)

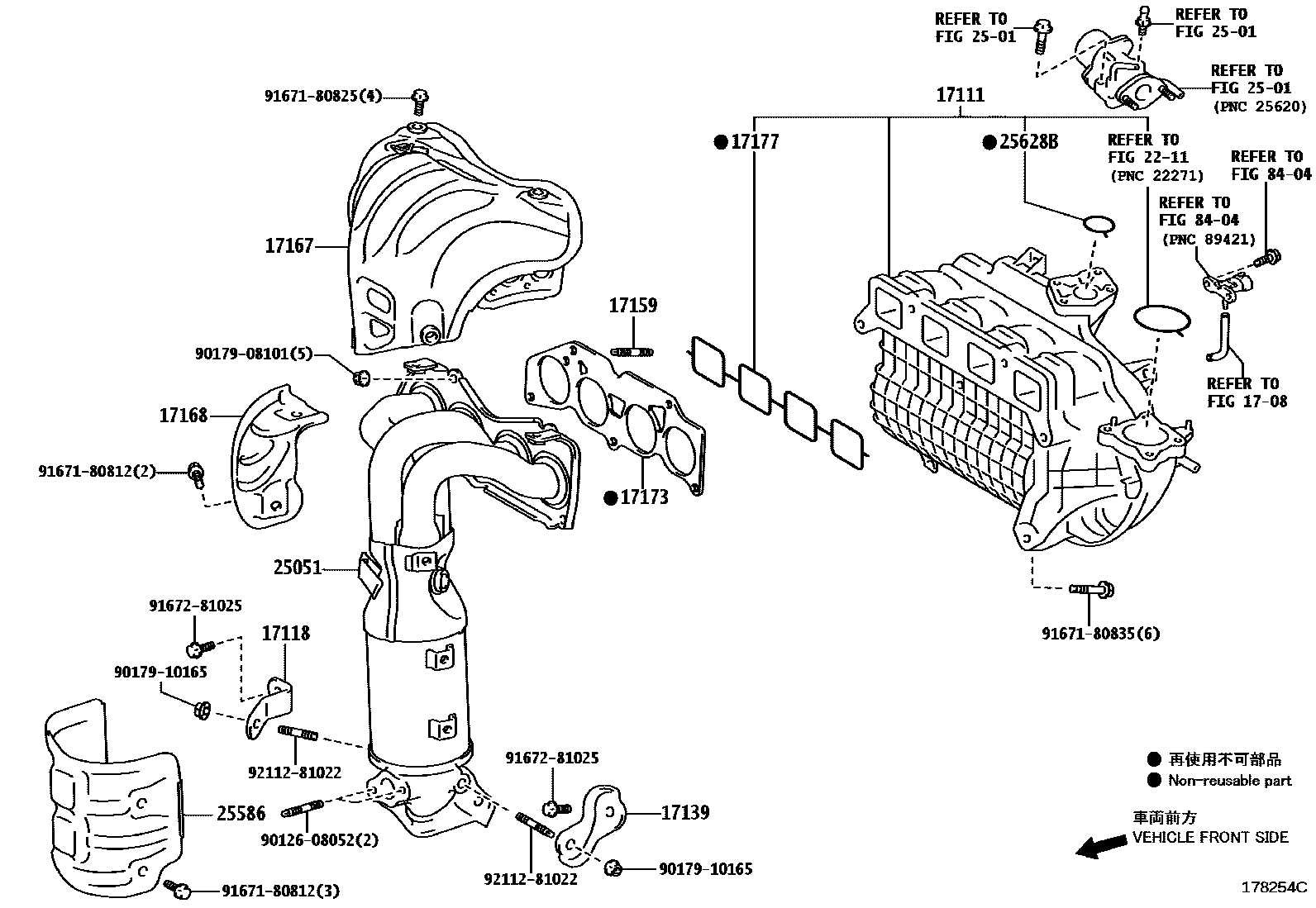

Toyota CAMRY Manifold EPC diagram — 178254C — Manifold — 178254C (201310 – 999999)

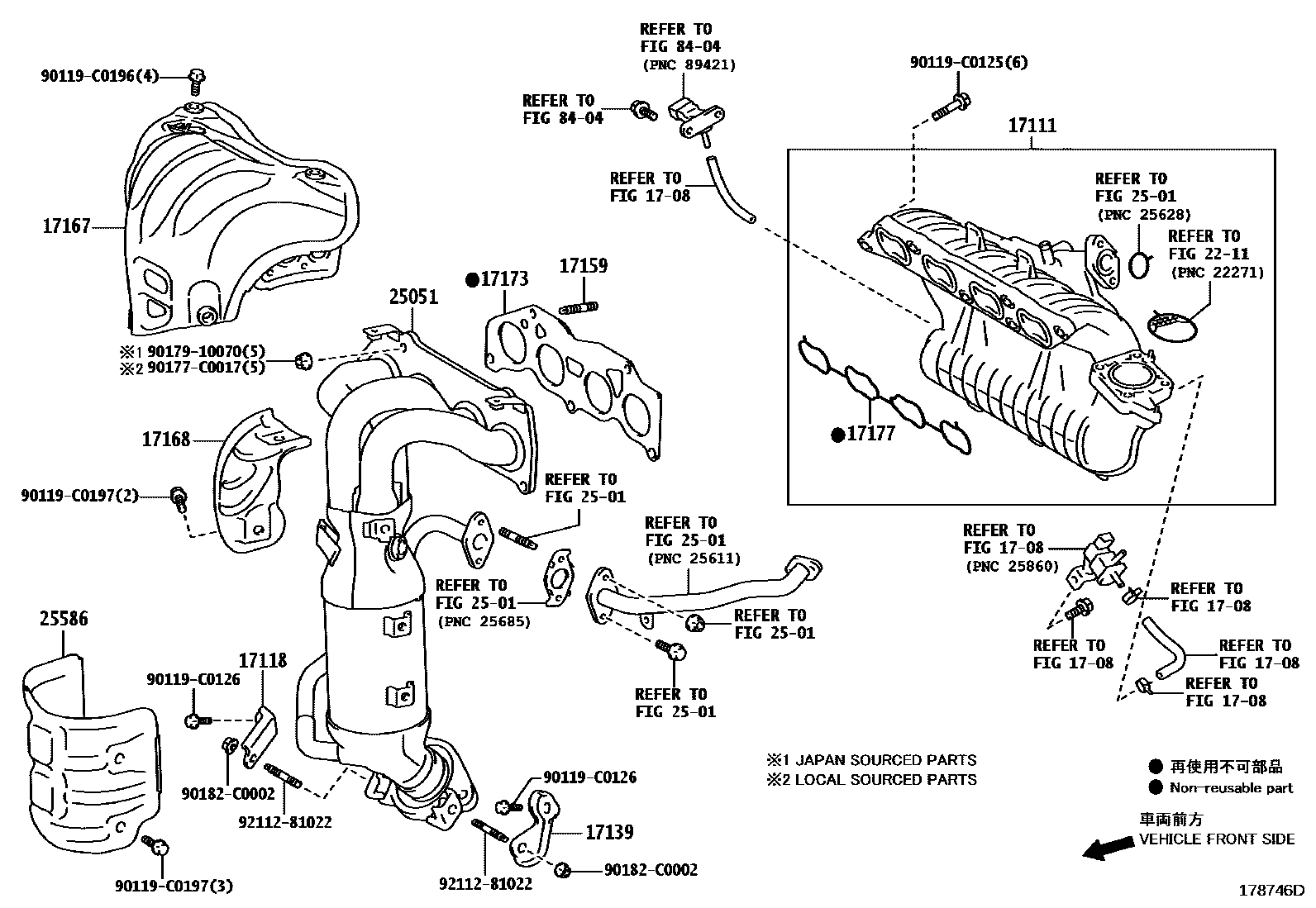

Toyota CAMRY Manifold EPC diagram — 178746D — Manifold — 178746D (201503 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17104	Right exhaust manifold sub-assembly	17140-31720
17105	Left exhaust manifold sub-assembly	17150-31720
17111	Intake Manifold	17111-31141 · 17120-0H022 · 17120-0V030 · 17120-0V060 · 17120-0V061 · 17120-36010 · 17120-36011 · 17120-36020 · 17120-36021 · 17120-36050 · 17120-36070
17111Z	Stud bolts (for intake manifold to cylinder head)	90126-08026
17114A	Intake flange	17114-36030 · 17114-36060
17117	Intake pipe insulation pad	17117-0H020
17118	Manifold stays	17118-0V020 · 17118-28080 · 17118-36010 · 17118-36020
17119	No. 2 manifold stay	17119-31020
17125	No. 1 pressure tank stay	17125-31040
17135A	Intake manifold No. 1 heat shield	17135-28011
17136	Intake manifold No. 2 heat shield	17136-0H010
17139	No. 2 manifold stay	17139-0V020 · 17139-28050 · 17139-36020 · 17139-36040
17141J	Studs (for right exhaust manifold)	90126-08037
17159	Studs (for manifold to cylinder head)	90126-08037 · 90126-08052 · 90126-10015 · 90126-C0010
17167	Exhaust manifold No. 1 heat shield	17167-0H050 · 17167-0V020 · 17167-0V040 · 17167-36011
17168	Exhaust manifold No.2 insulation pad	17168-0H050 · 17168-0V020 · 17168-31011 · 17168-31100 · 17168-36010
17173	Gasket (exhaust manifold to cylinder head)	17173-0H040 · 17173-0V020 · 17173-0V030 · 17173-31020 · 17173-36020
17173A	Left side gasket (exhaust manifold to cylinder head)	17173-31020
17176	Gasket (intake surge tank to intake manifold)	17176-31040 · 17176-31090
17177	No. 1 gasket (intake manifold to cylinder head)	17171-0V020 · 17171-0V030 · 17171-36010 · 17171-36011 · 17171-36020 · 17177-28031 · 17177-31040
17178	No. 2 gasket (intake manifold to cylinder head)	17178-31030
17190	Intake pressure regulator tank assembly	17190-31081 · 17190-31200
17335	Intake control valve actuator	17335-36010
22267A	Throttle body bracket	22267-31030
25051	Exhaust manifold three-way catalytic converter sub-assembly	25051-0H160 · 25051-0V050 · 25051-0V220 · 25051-36120 · 25051-36130 · 25051-36140
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-0H050 · 25586-0V030 · 25586-0V070 · 25586-36010 · 25586-36020
25628B	EGR air intake gasket	25628-36010
