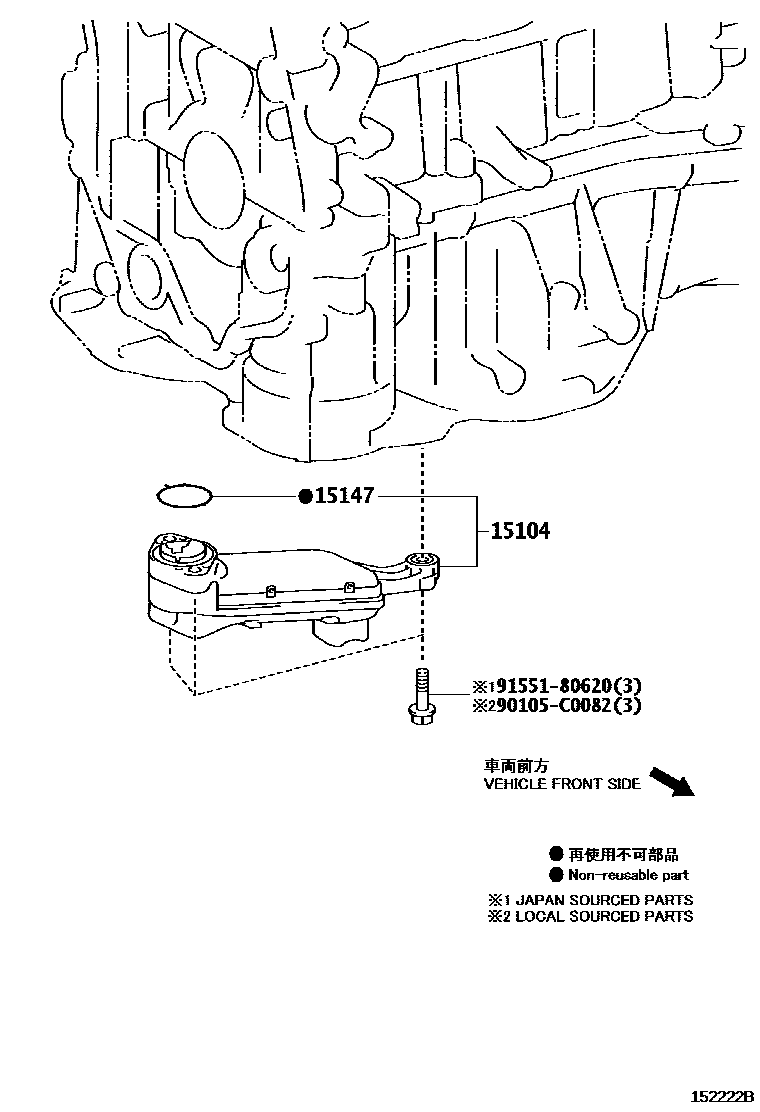

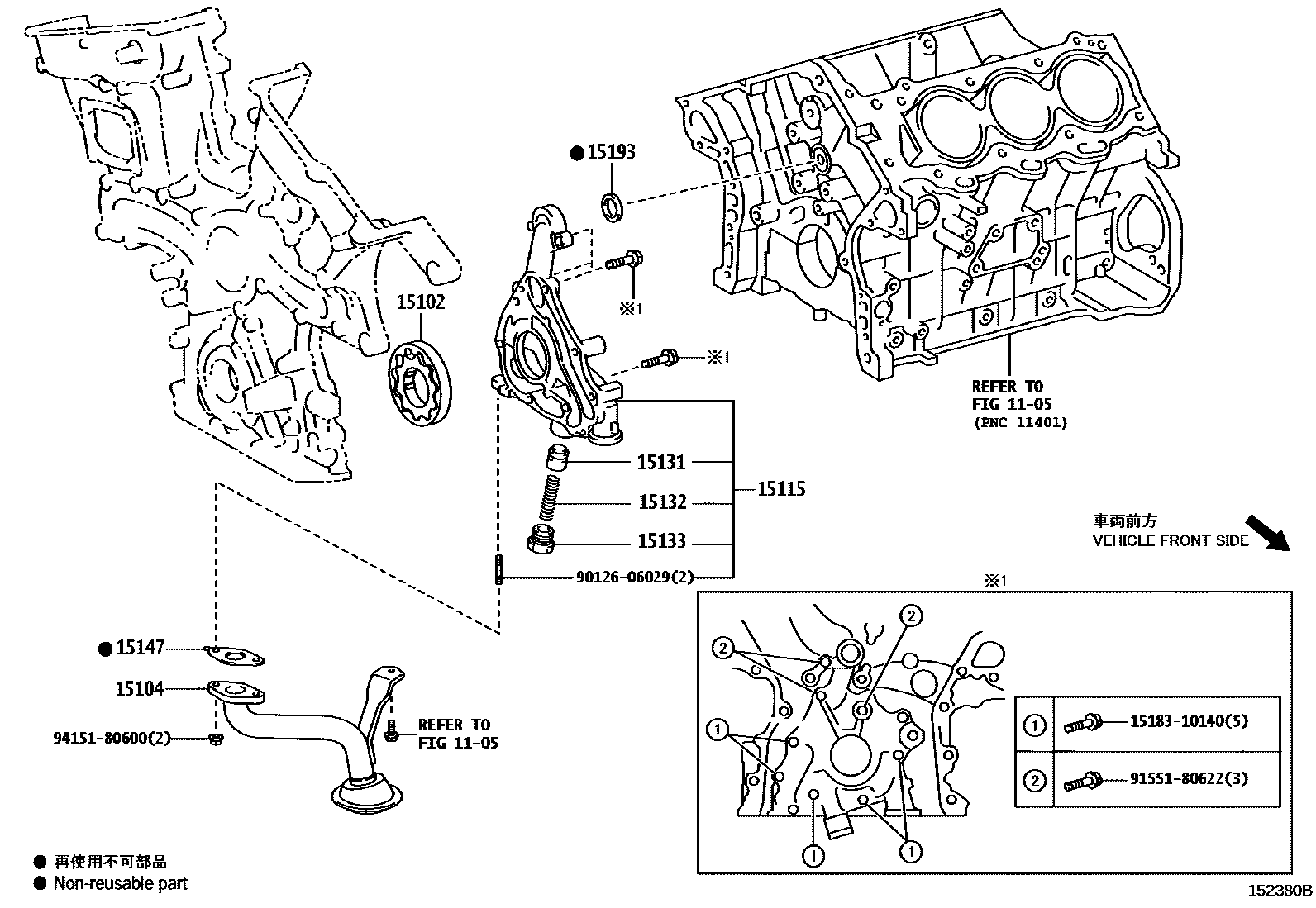

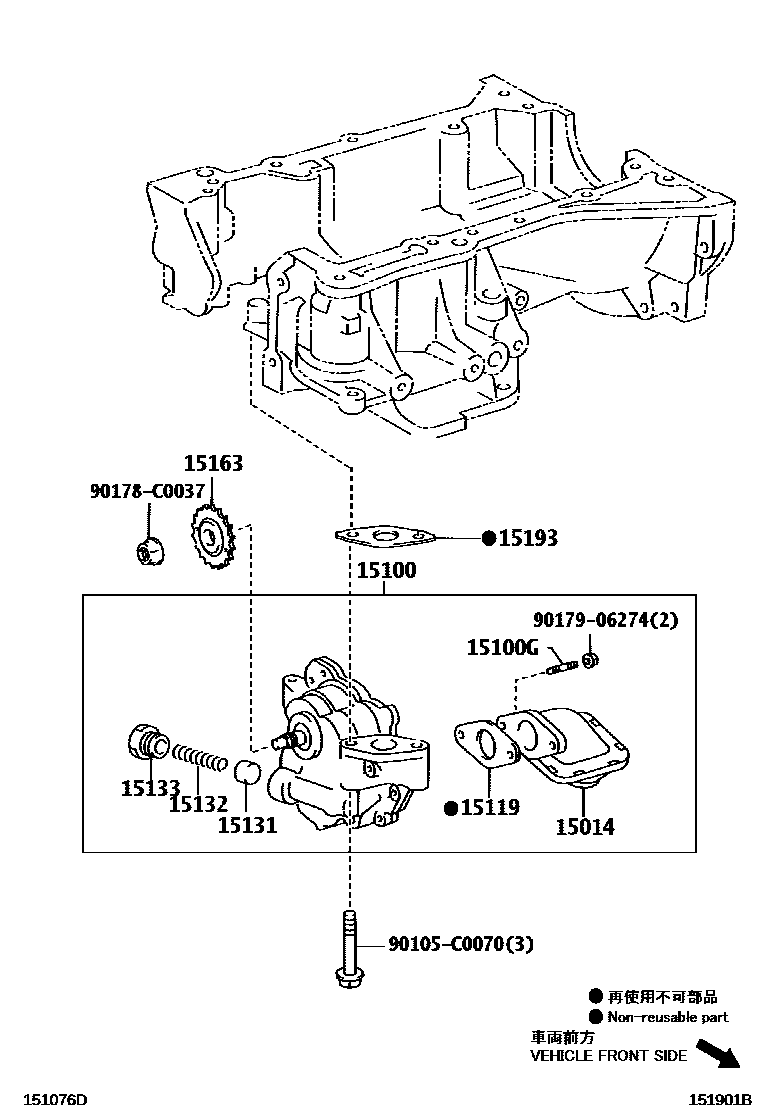

Toyota CAMRY Engine Oil Pump — Figure 1501
Toyota CAMRY EPC diagram 1501, Engine Oil Pump, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15014 | Oil pump filter assembly | 15014-0H060 |
| 15100 | Oil pump assembly | 15100-0H060 |
| 15100G | Stud bolt (for oil pump) | 15183-0H060 |
| 15102 | Oil pump rotor assembly | 15103-31050 |
| 15104 | Oil filter sub-assembly | 15104-0V010 · 15104-0V040 · 15104-31120 · 15104-31190 · 15104-36020 |
| 15115 | oil pump cover | 15115-31040 |
| 15119 | Oil pump cover gasket | 15119-28020 |
| 15131 | Oil pump pressure reducing valve | 15131-17010 · 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-46020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-28020 |
| 15147 | Oil filter gasket | 15147-0V010 · 15147-31060 · 15147-36010 |
| 15163 | Oil pump drive shaft gear | 15163-0H050 |
| 15193 | oil pump gasket | 15193-0H030 · 15193-31020 |
