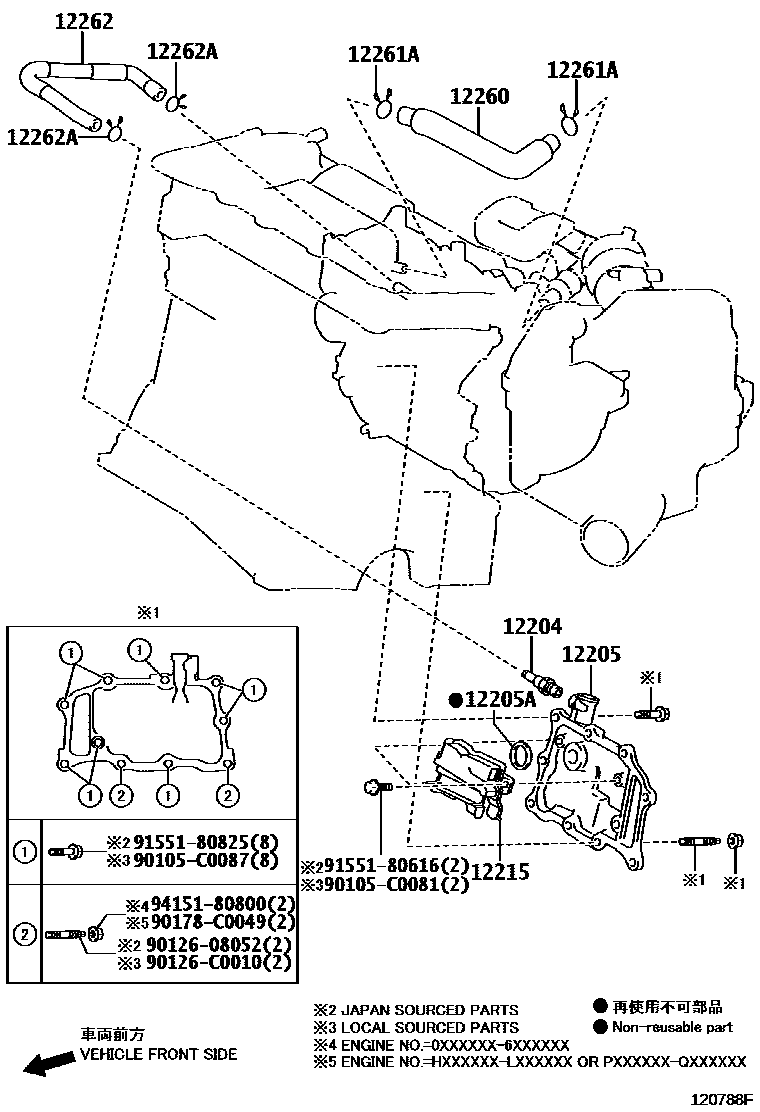

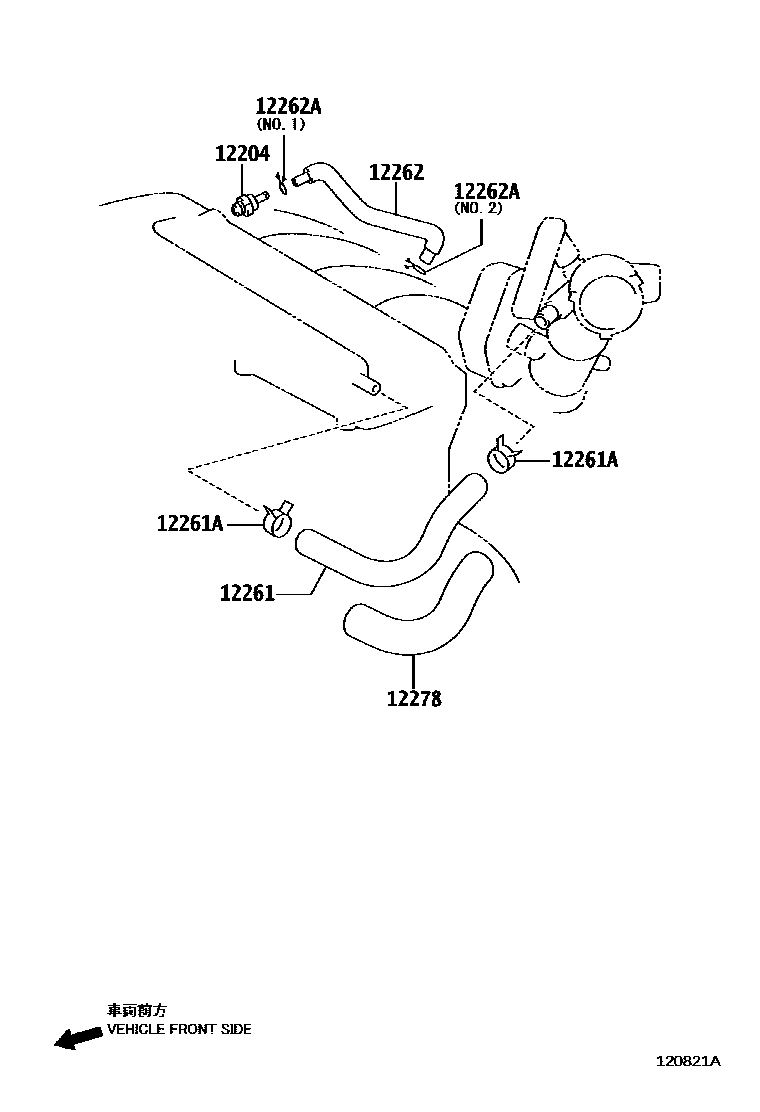

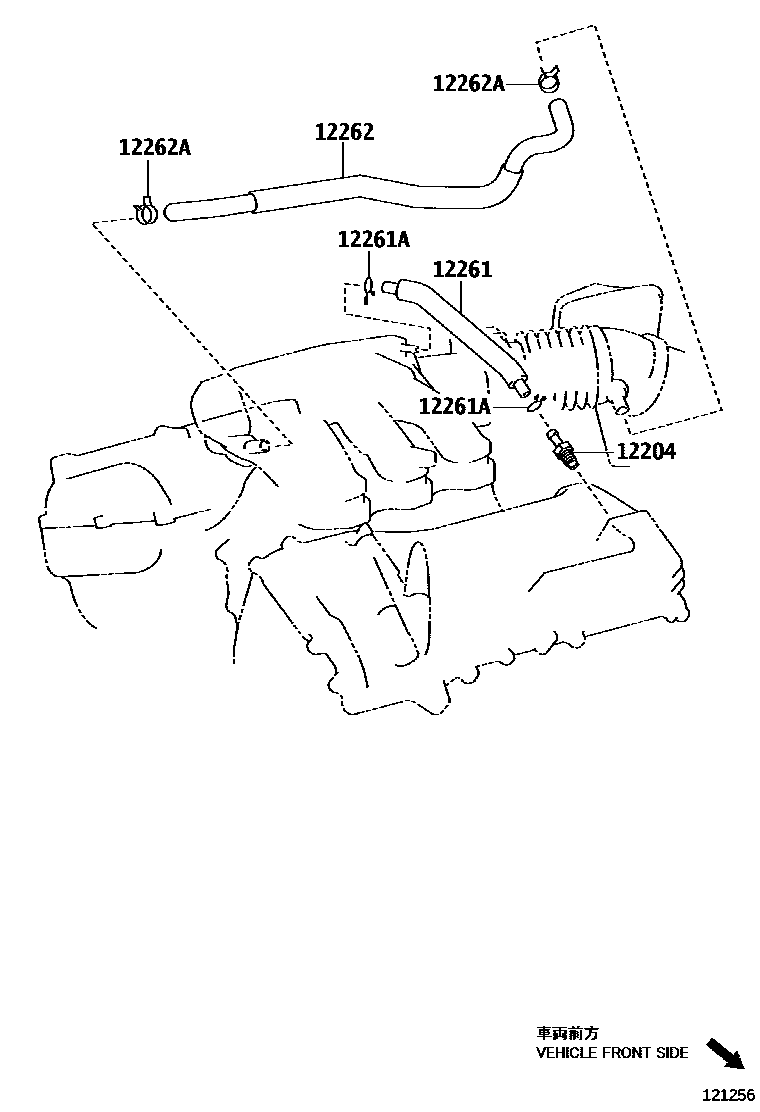

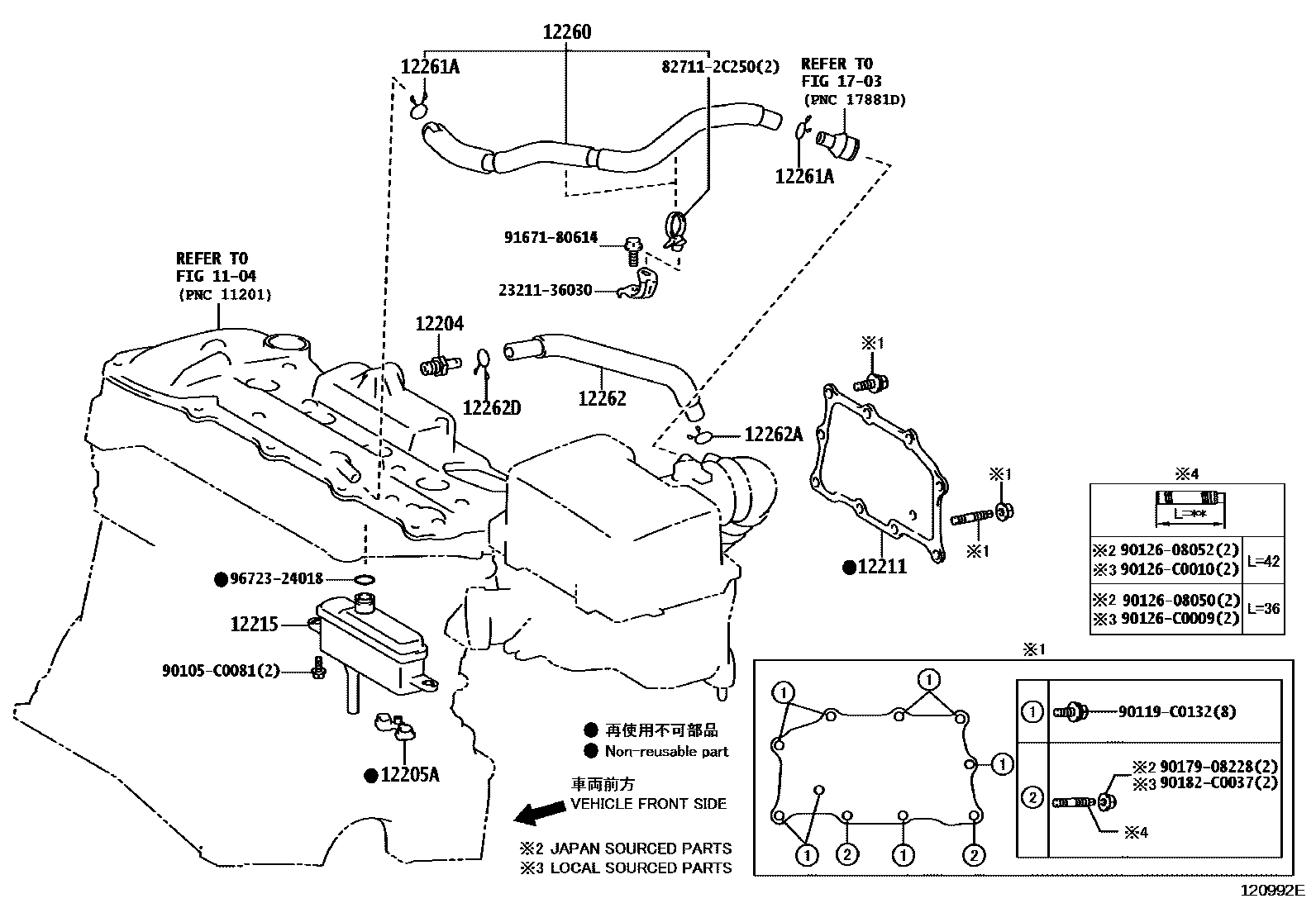

Toyota CAMRY Ventilation Hose — Figure 1201
Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-0H010 · 12204-0V030 · 12204-31120 · 12204-36020 · 12204-36030 |
| 12205 | Ventilation box sub-assembly | 12205-0V020 · 12205-36010 |
| 12205A | O-ring (for ventilation box) | 12273-0V010 · 12273-0V030 · 12273-36010 |
| 12211 | Ventilation box No. 1 | 12211-0V030 |
| 12215 | Ventilation box isolation device | 12215-0V030 · 12215-36010 |
| 12260 | Ventilation hose assembly | 12260-36040 · 12260-36080 |
| 12261 | Ventilation Hose | 12261-28110 · 12261-31070 · 12261-31160 |
| 12261A | Clip or clip (for vent hose) | 90467-14017 · 90467-21004 |
| 12262 | Ventilation hose No. 2 | 12262-0V010 · 12262-28021 · 12262-31100 · 12262-36030 · 12262-36040 · 12262-36080 · 12262-36100 |
| 12262A | Clamp (for vent hose No. 2) | 90467-13103 · 90467-16035 · 90467-17126 · 90467-21004 |
| 12262D | Clamp (for vent hose No. 2) | 90467-15120 |
| 12278 | Ventilation hose insulation pad | 12278-28010 |
