Toyota CAMRY Engine Mounting — Figure 1107

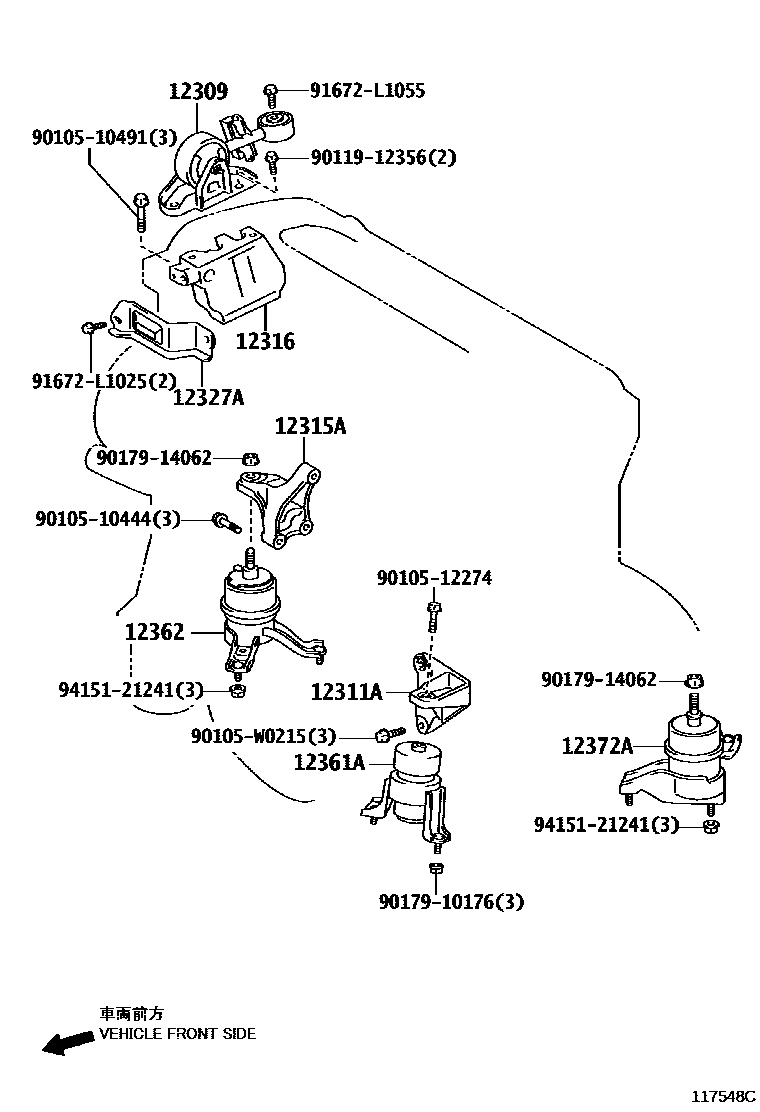

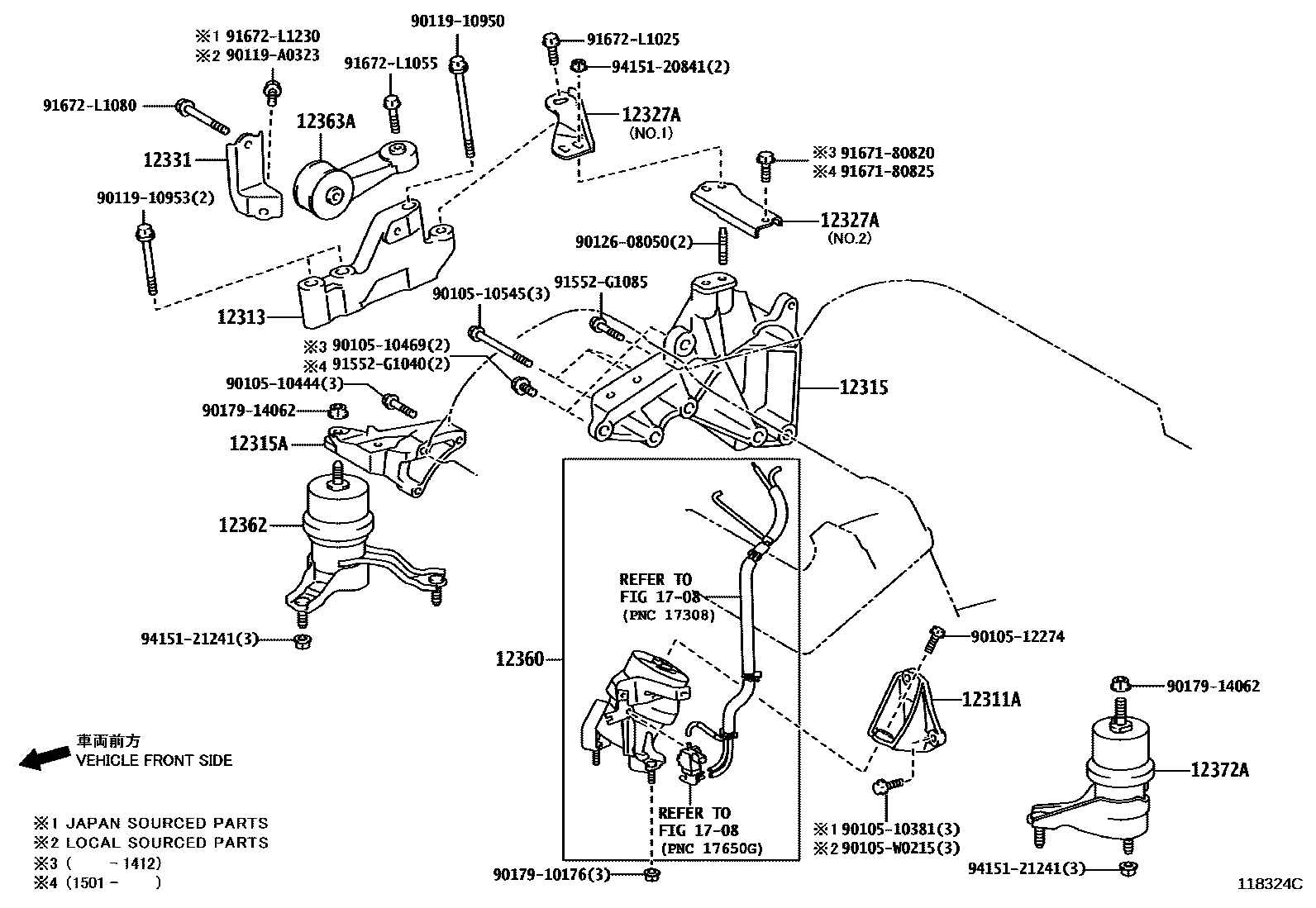

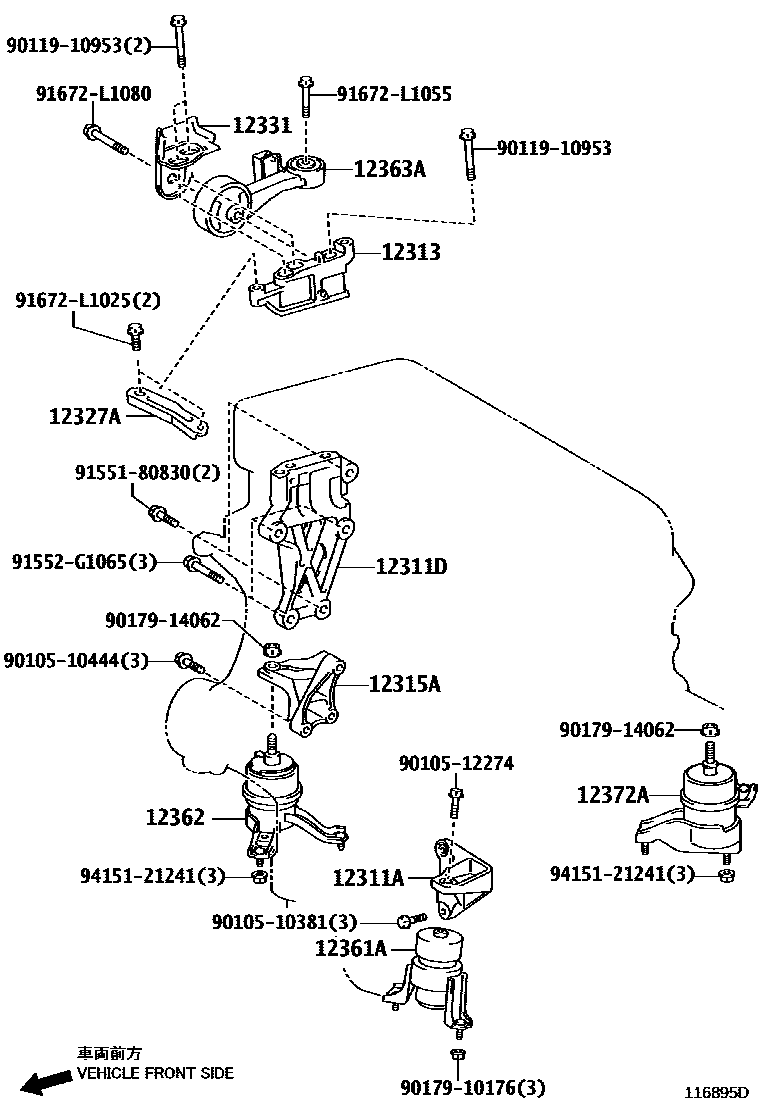

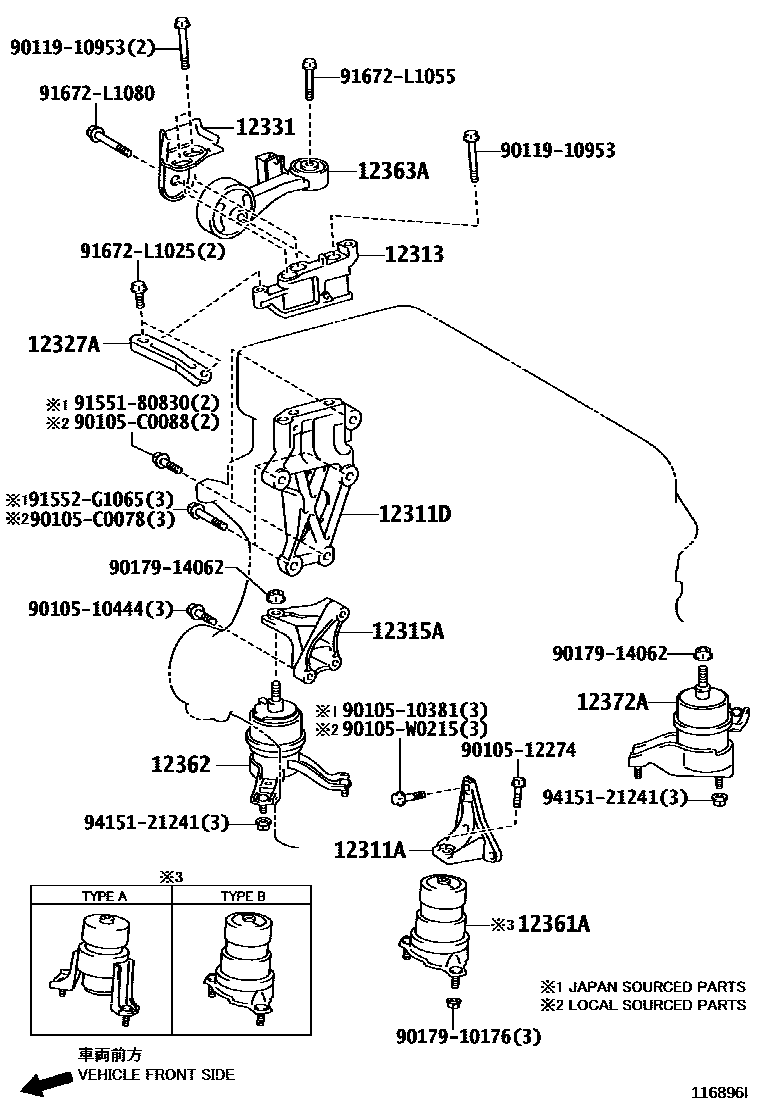

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12309 | Engine motion control lever sub-assembly | 12309-28161 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-28210 · 12311-31060 · 12311-36020 · 12311-36070 |
| 12311D | engine mounting bracket | 12313-0V080 · 12313-36010 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0P060 · 12313-31010 · 12313-36040 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-31091 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-28070 · 12315-31100 · 12319-36010 · 12319-36030 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-28061 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-28030 · 12327-31010 · 12327-31020 · 12327-31120 · 12327-36020 |
| 12331 | Engine No. 3 right side mounting bracket | 12331-0P020 · 12331-31010 · 12331-36020 |
| 12360 | Engine front mount vibration isolation pad assembly | 12360-0P130 · 12360-31060 · 12360-31061 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-36080 · 12361-36090 · 12361-36091 · 12361-36110 · 12361-36111 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-31080 · 12362-36050 · 12362-36051 · 12362-36052 |
| 12363A | Engine movement control lever | 12363-0P011 · 12363-0P012 · 12363-31012 · 12363-36040 · 12363-36050 · 12363-36080 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0V020 · 12372-28020 · 12372-28250 · 12372-31010 · 12372-36040 |
