Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 10 images and 2 PNC and OE references.

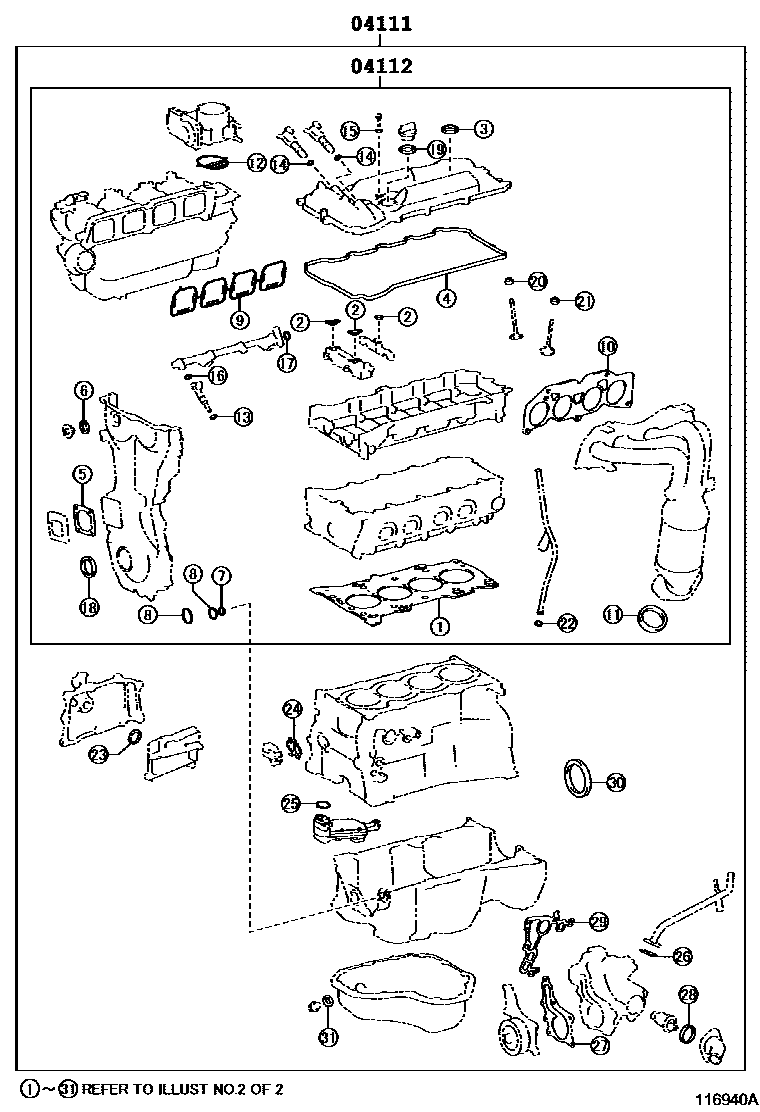

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 116940A
Engine Overhaul Gasket Kit — 116940A (201108 – 999999)

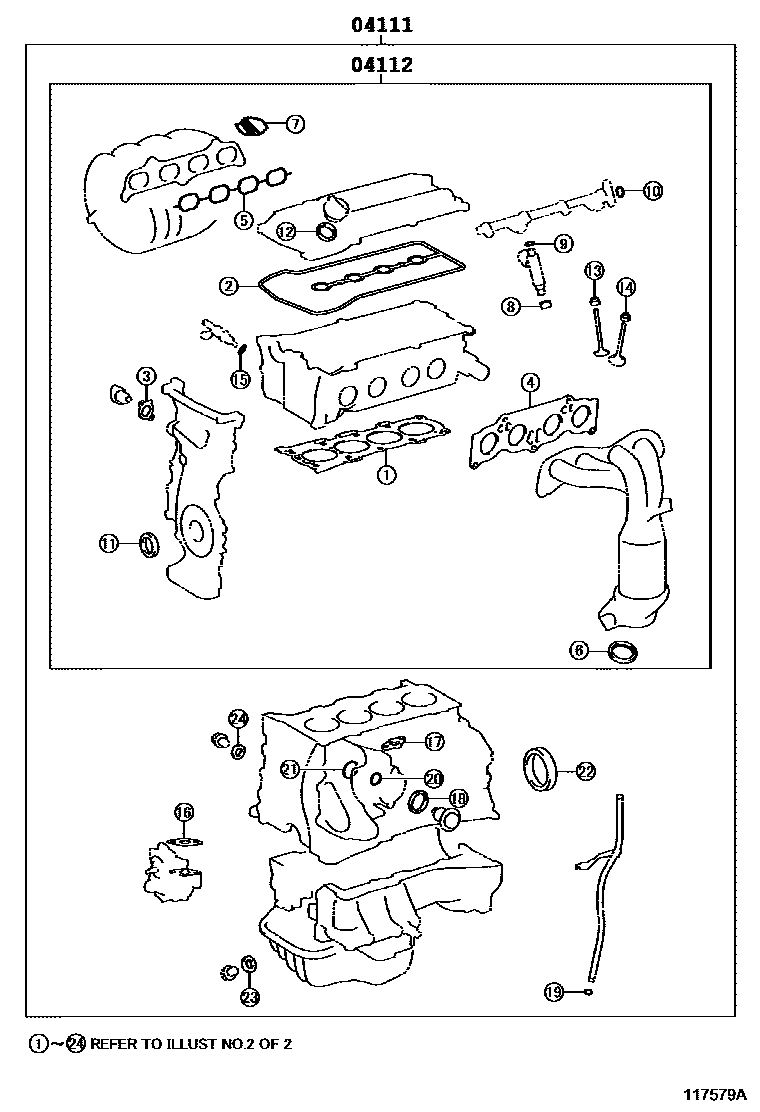

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 117579A
Engine Overhaul Gasket Kit — 117579A (201208 – 999999)

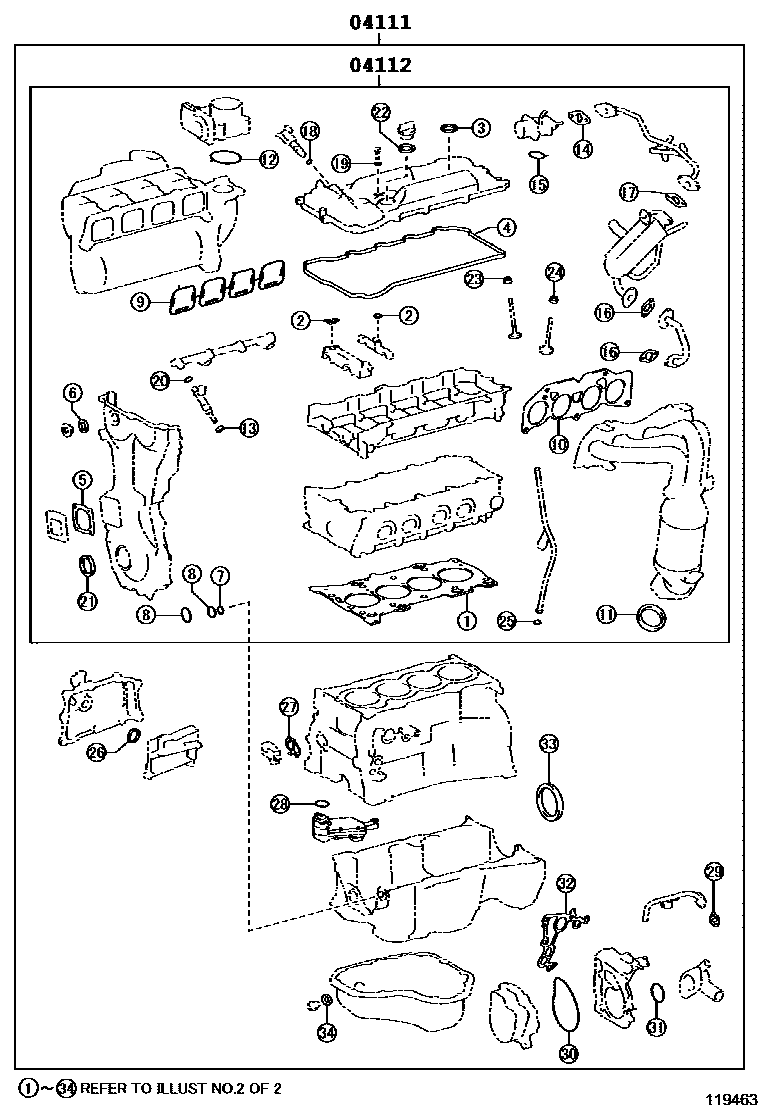

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 119463
Engine Overhaul Gasket Kit — 119463 (201108 – 999999)

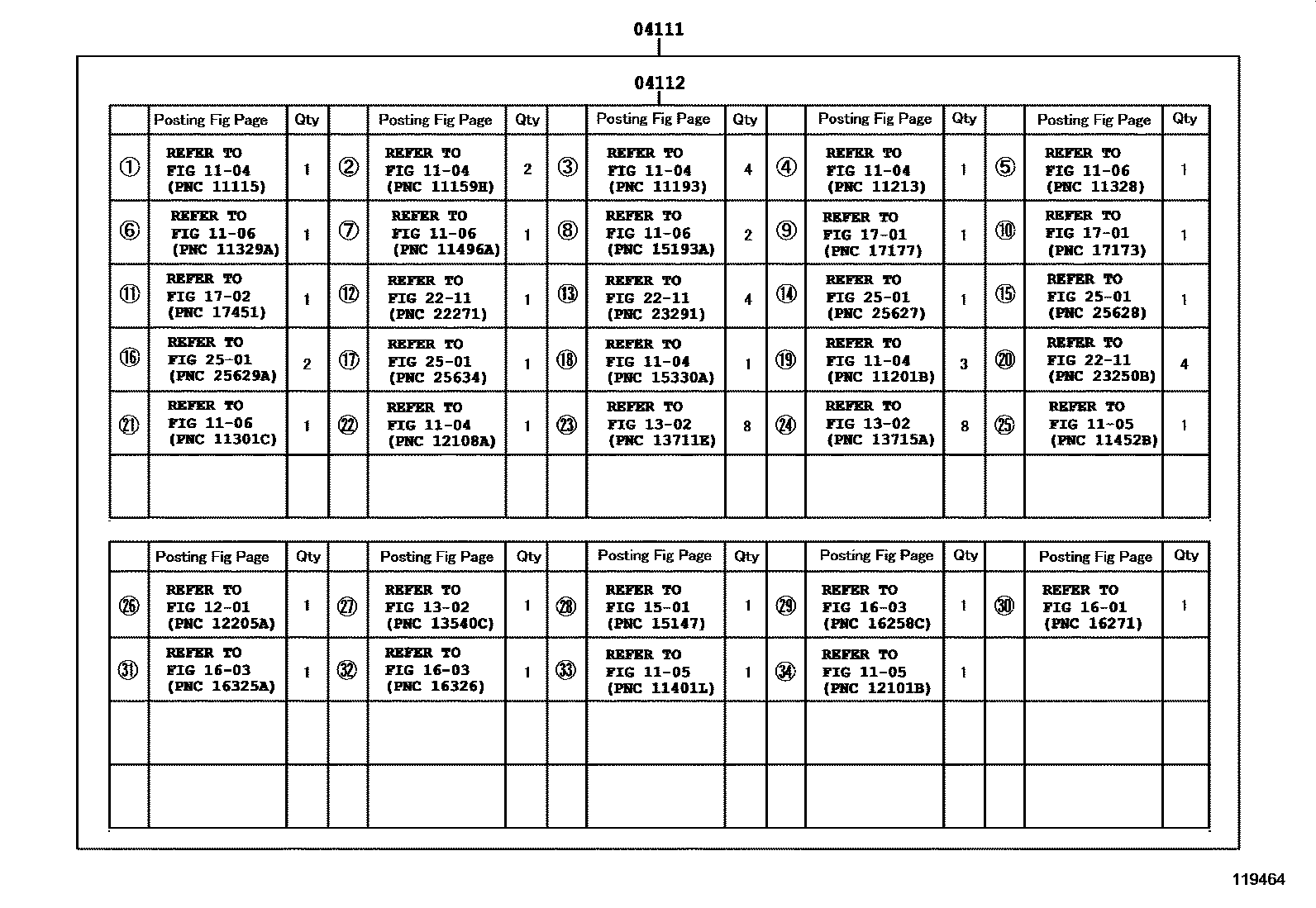

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 119464
Engine Overhaul Gasket Kit — 119464 (201108 – 999999)

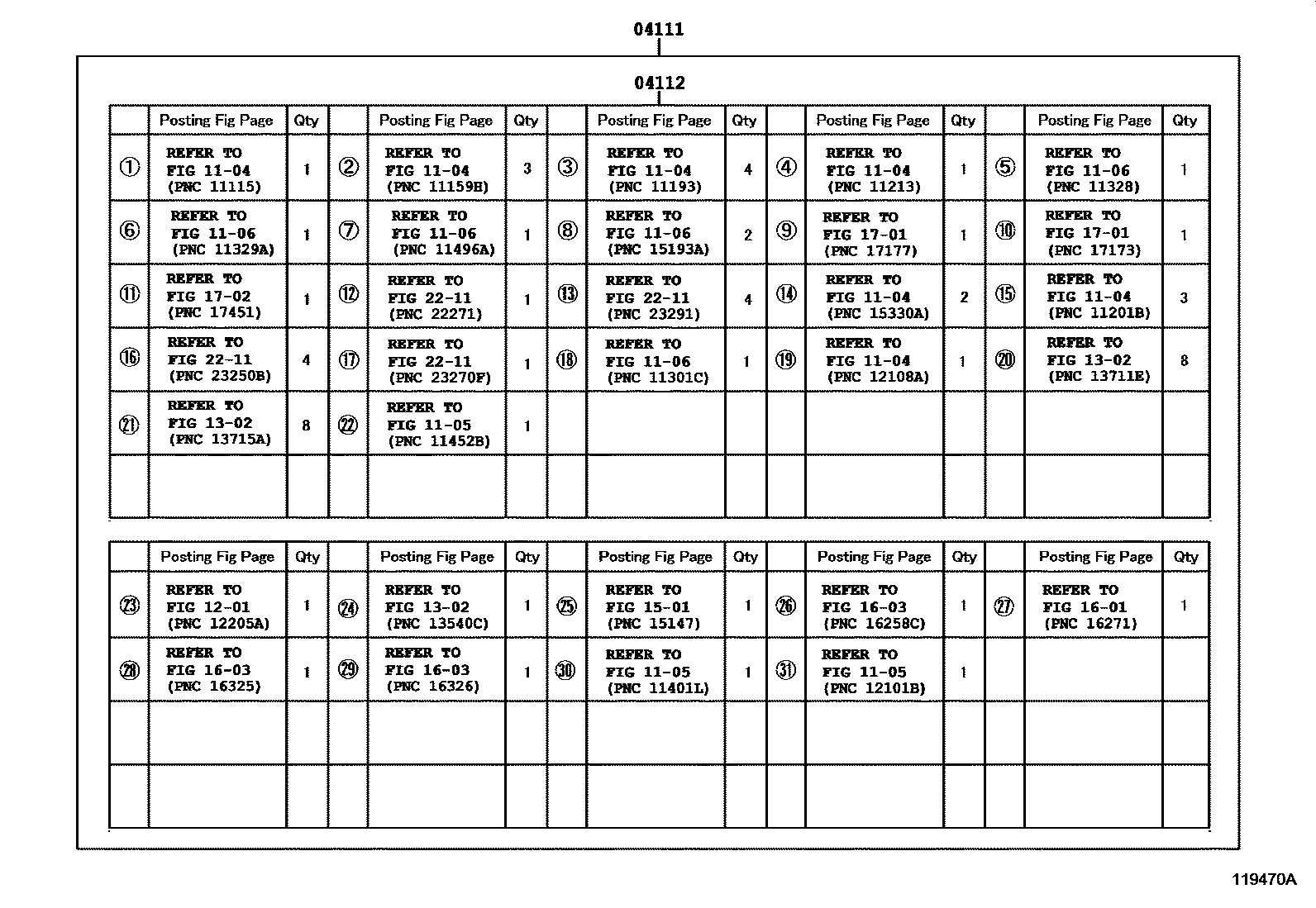

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 119470A
Engine Overhaul Gasket Kit — 119470A (201108 – 999999)

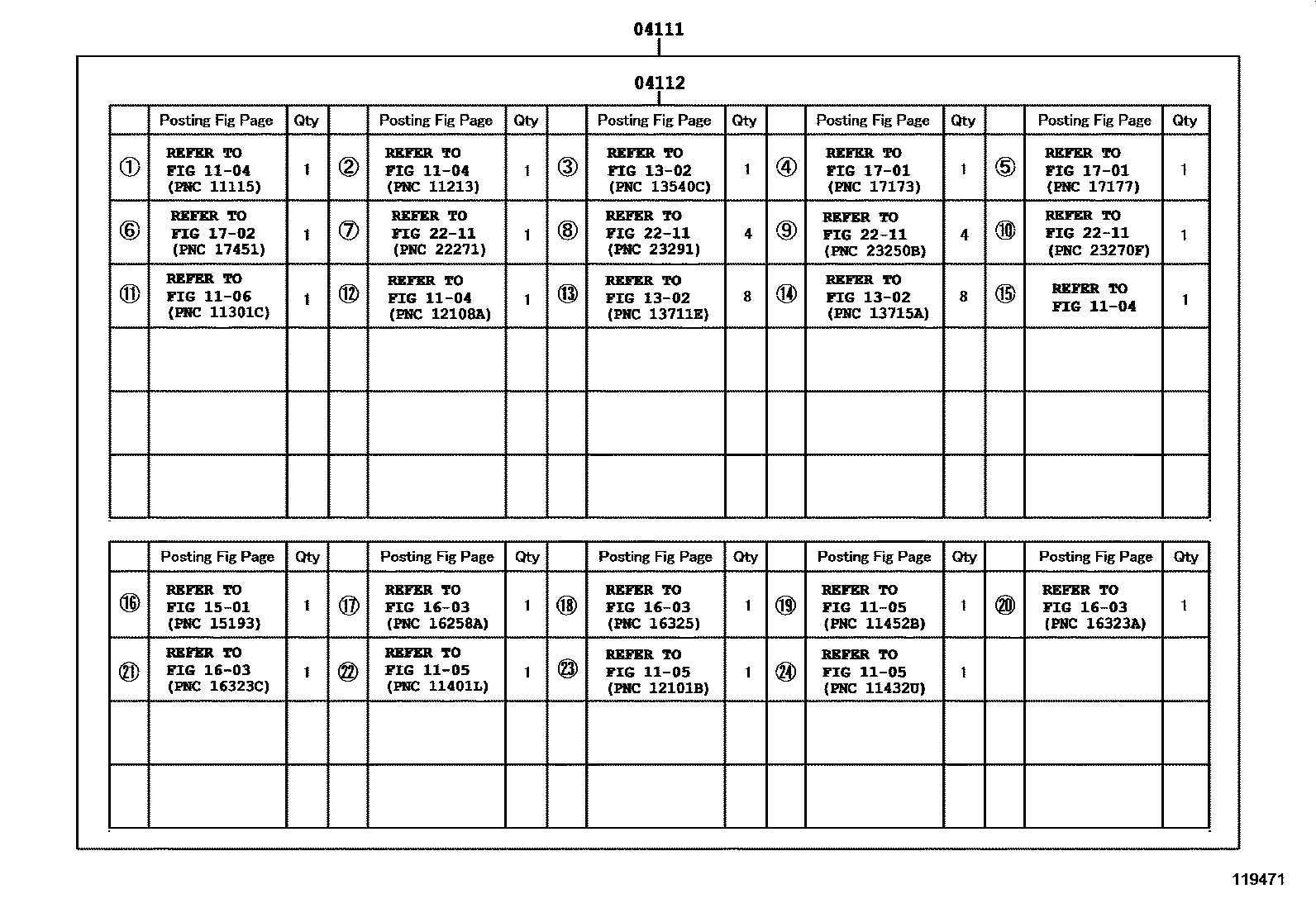

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 119471
Engine Overhaul Gasket Kit — 119471 (201208 – 999999)

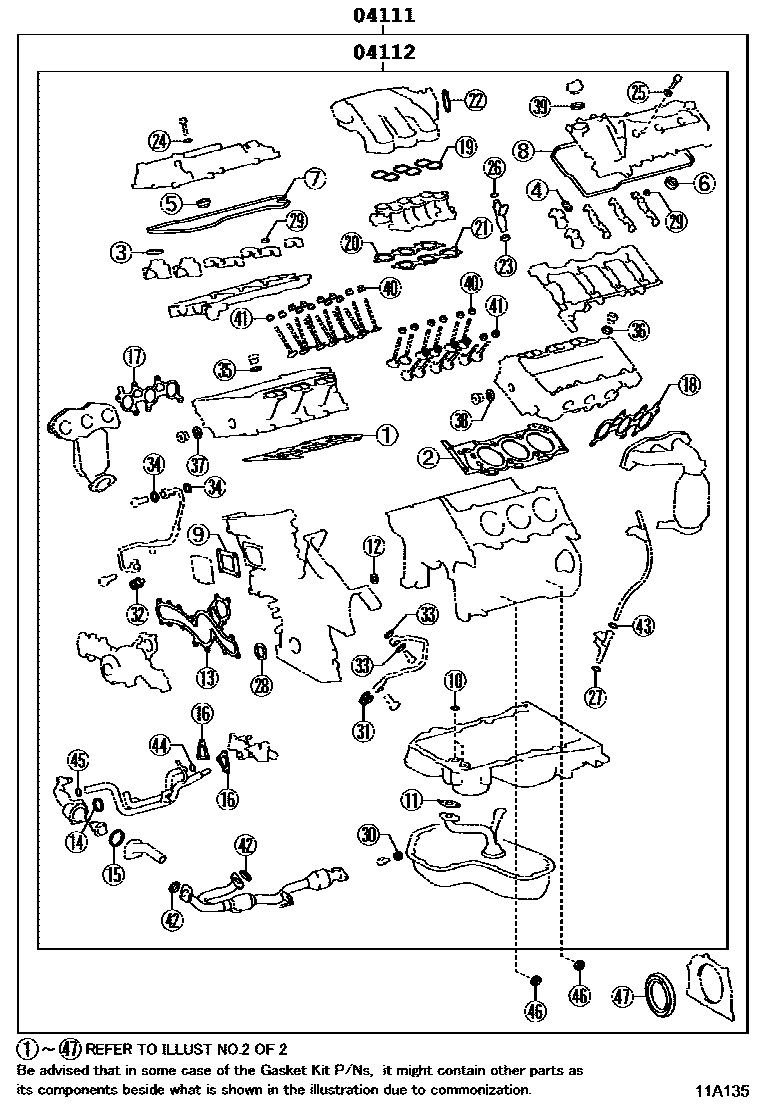

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A135
Engine Overhaul Gasket Kit — 11A135 (201108 – 999999)

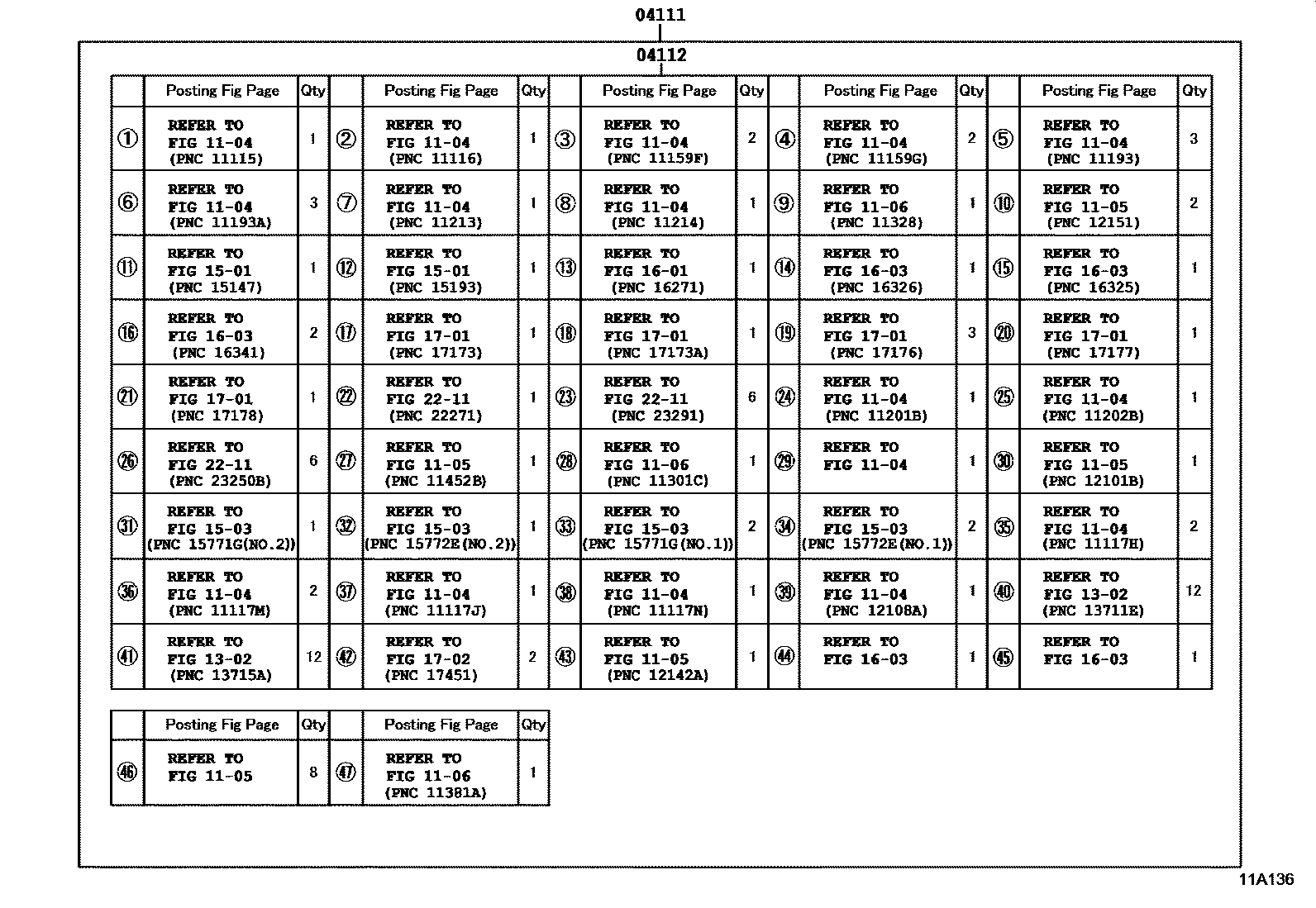

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A136
Engine Overhaul Gasket Kit — 11A136 (201108 – 999999)

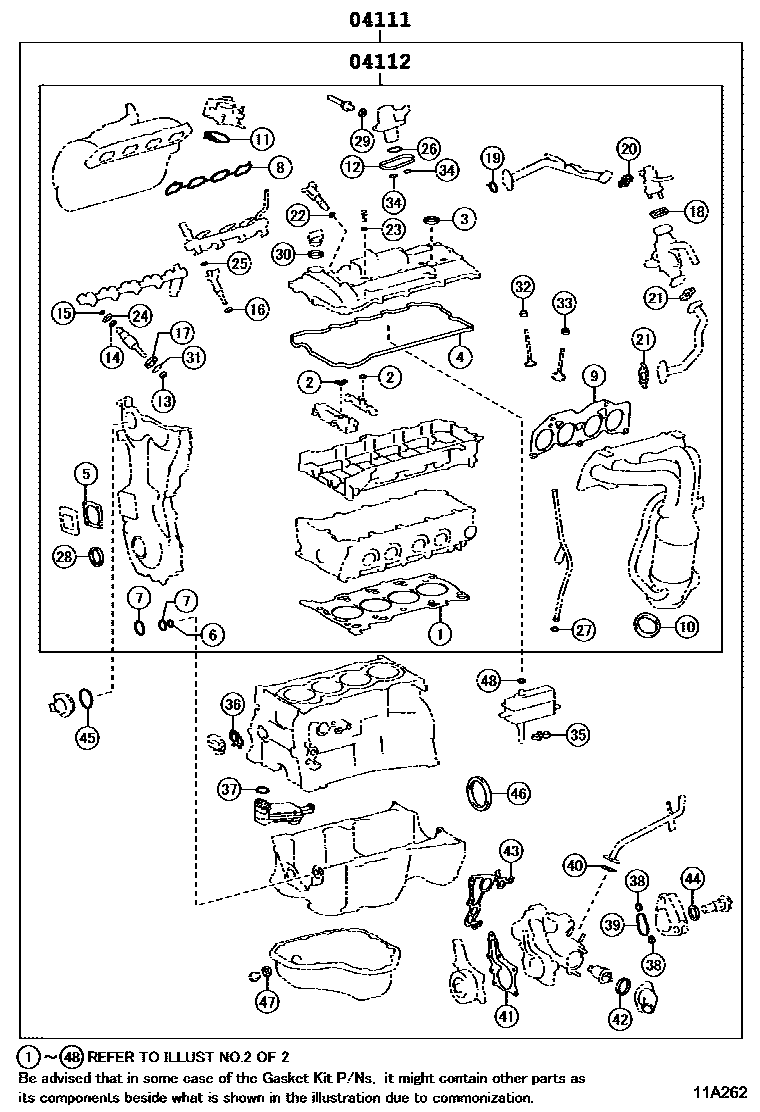

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A262
Engine Overhaul Gasket Kit — 11A262 (201503 – 999999)

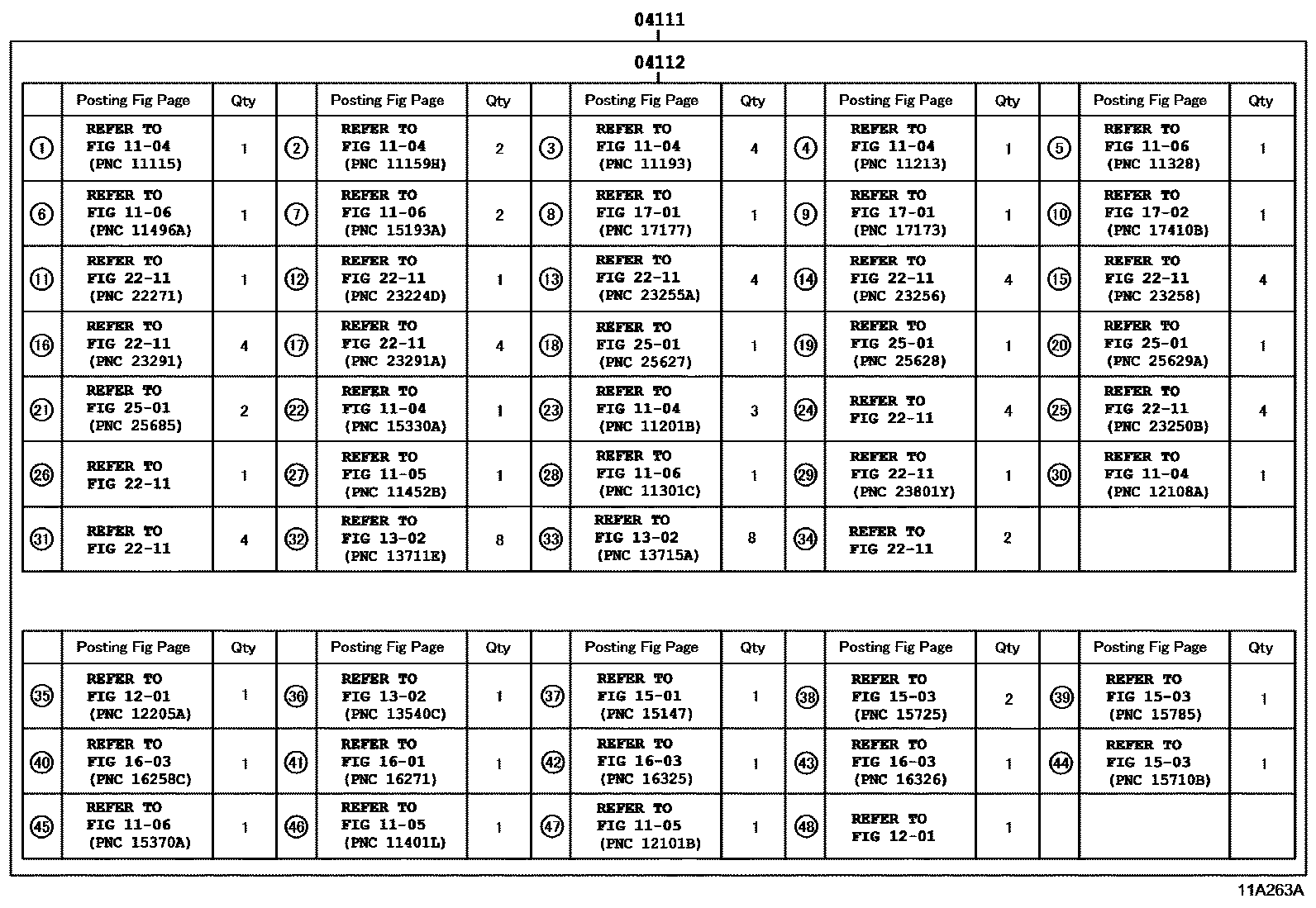

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A263A
Engine Overhaul Gasket Kit — 11A263A (201502 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0H433 · 04111-0V072 · 04111-0V073 · 04111-0V074 · 04111-0V120 · 04111-0V121 · 04111-0V160 · 04111-31443 · 04111-31444 · 04111-31445 · 04111-36112 · 04111-36113 · 04111-36114 · 04111-36115 · 04111-36120 · 04111-36121 · 04111-36122 · 04111-36123 · 04111-36124 · 04111-36125 · 04111-36126 · 04111-36140 · 04111-36141 · 04111-36142 · 04111-36143 · 04111-36144 · 04111-36145 · 04111-36146 · 04111-36147 · 04111-36150 · 04111-36151 · 04111-36152
04112Engine valve grinding pad assembly04112-0H393 · 04112-0V061 · 04112-0V062 · 04112-0V063 · 04112-0V110 · 04112-0V111 · 04112-0V150 · 04112-31273 · 04112-31274 · 04112-36091 · 04112-36092 · 04112-36093 · 04112-36110 · 04112-36111 · 04112-36112 · 04112-36113 · 04112-36114 · 04112-36115 · 04112-36120 · 04112-36121 · 04112-36122 · 04112-36123 · 04112-36124 · 04112-36130 · 04112-36131
