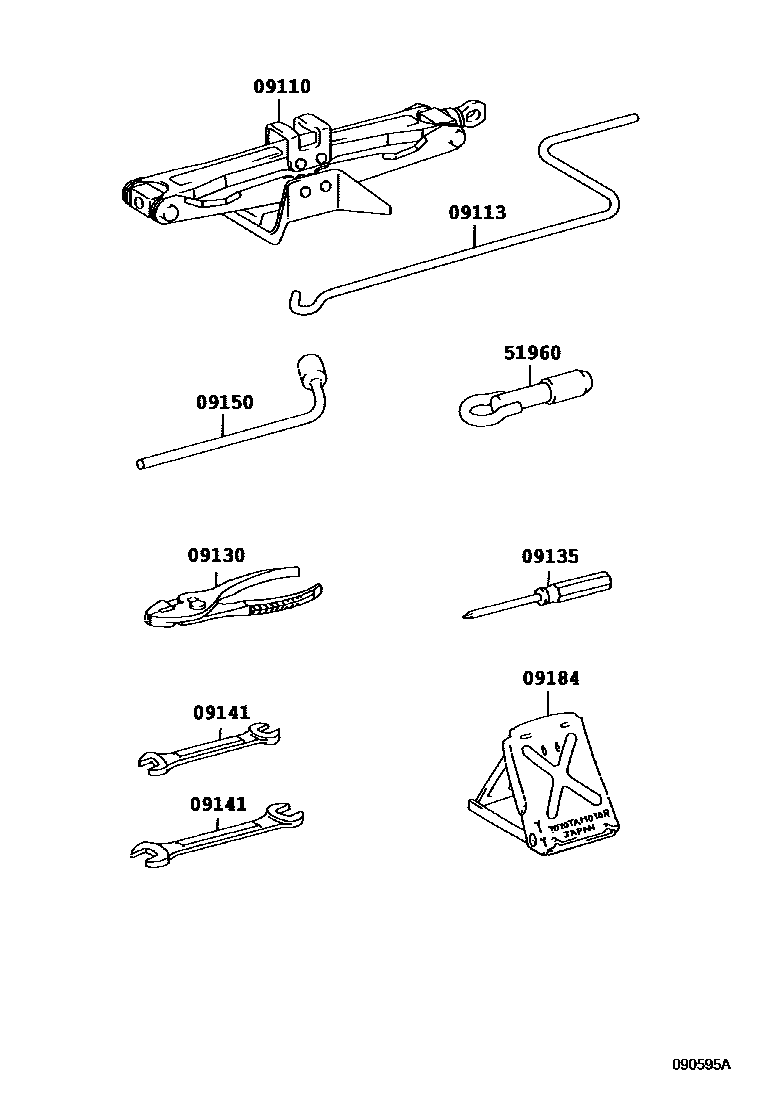

Toyota CAMRY Standard Tools — Figure 0901
Toyota CAMRY EPC diagram 0901, Standard Tools, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-05050 · 09111-33030 · 09111-76010 |
| 09113 | Jack Handle | 09113-05020 · 09113-33010 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 99915-10700 |
| 09141 | Wrench | 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench | 09150-02060 · 09150-05011 · 09150-40010 |
| 09184 | Wheel Chock | 09184-00010 |
| 51960 | Front Towing Hook Assembly | 51960-47020 · 51960-52090 |
