Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

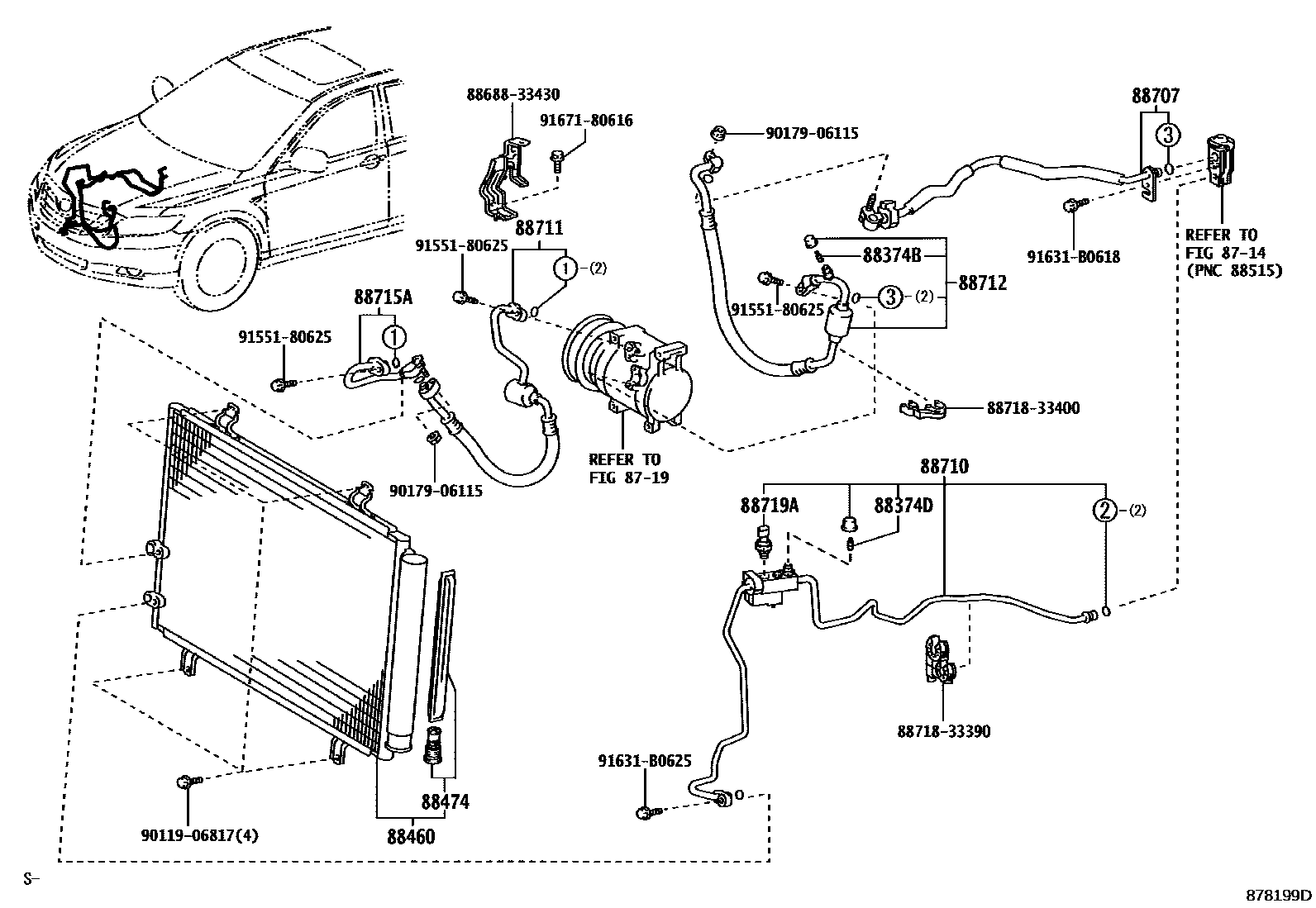

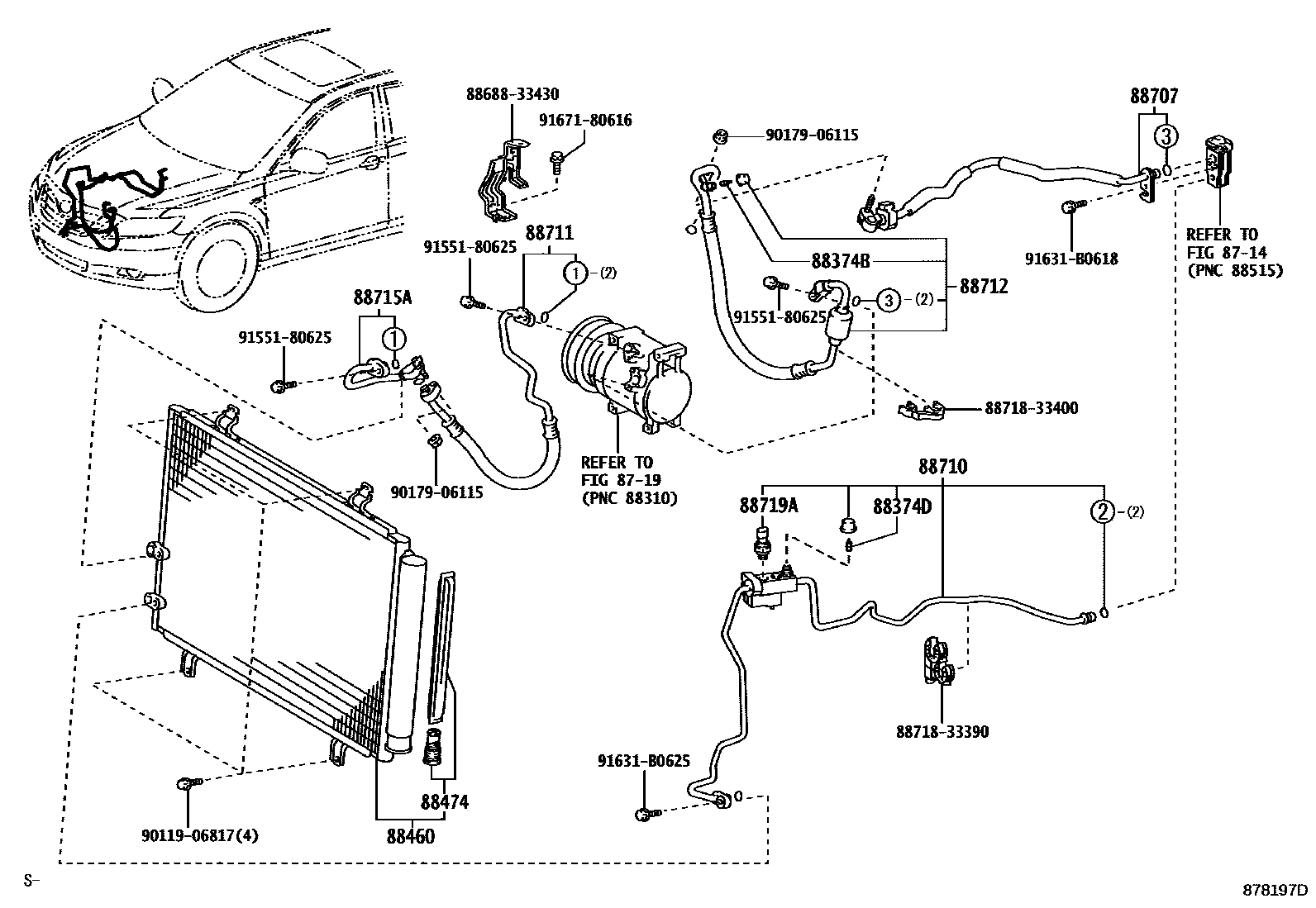

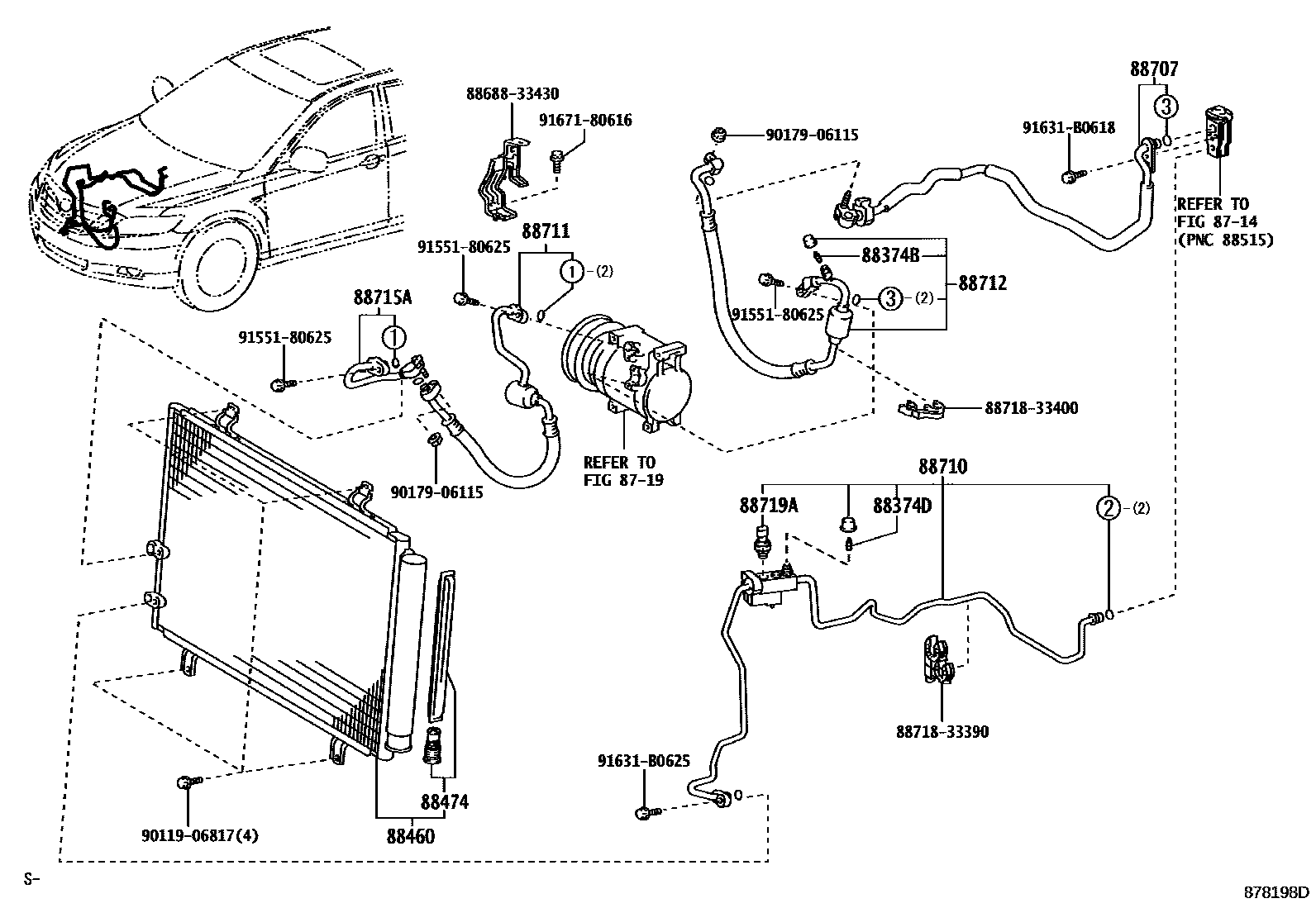

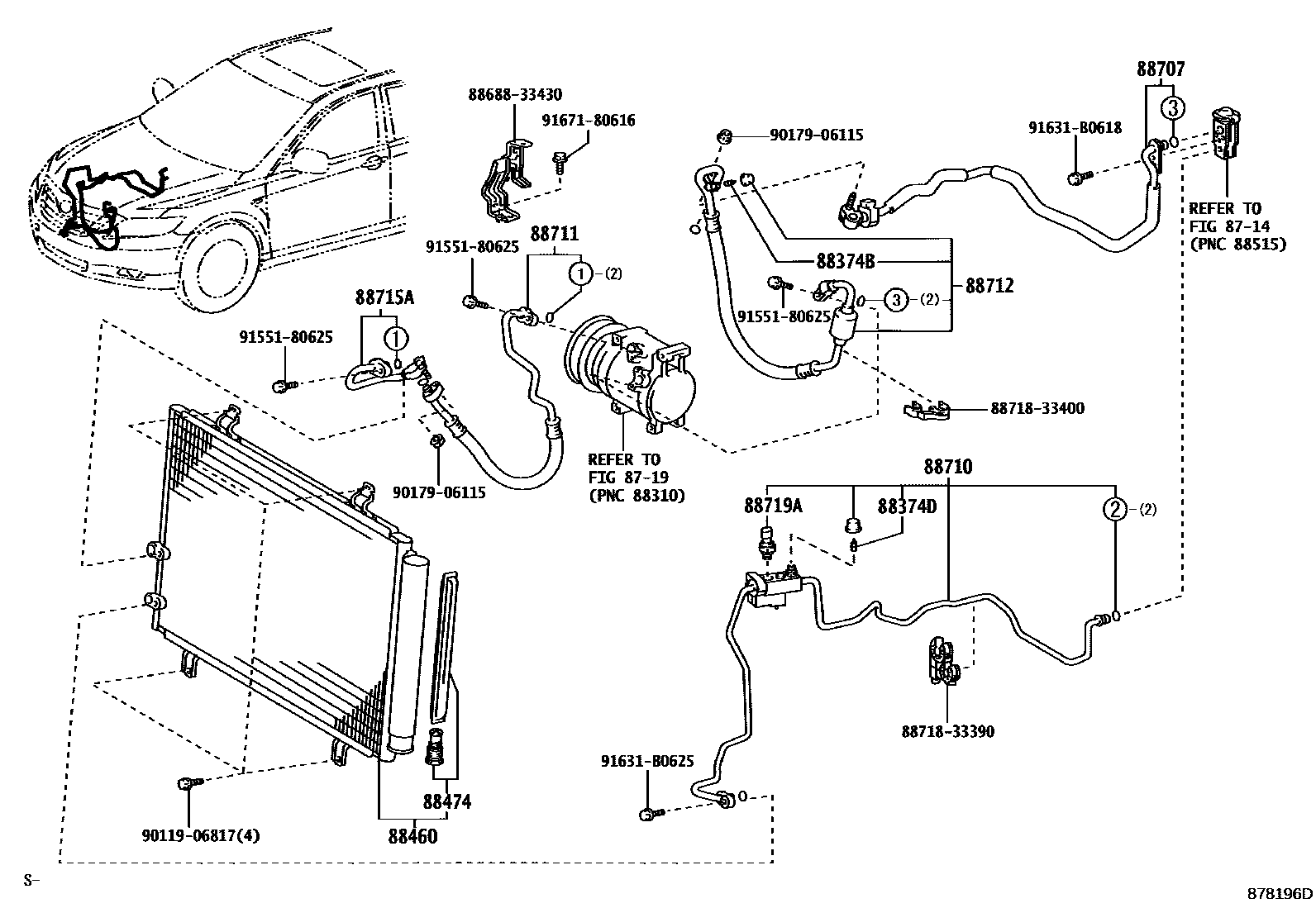

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374D | No. 3 maintenance valve | 88374-30010 |
| 88460 | Air conditioning condenser assembly | 88460-33100 |
| 88474 | cooler dryer | 88474-17010 |
| 88707 | Suction pipe sub-assembly | 88707-33010 · 88707-33020 |
| 88710 | Air conditioning pipe assembly | 88710-33320 · 88710-33330 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-33200 · 88711-33210 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-33250 · 88712-33260 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-33020 |
| 88719A | Air conditioning pressure sensor | 88719-33020 · 88719-40020 |
