Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

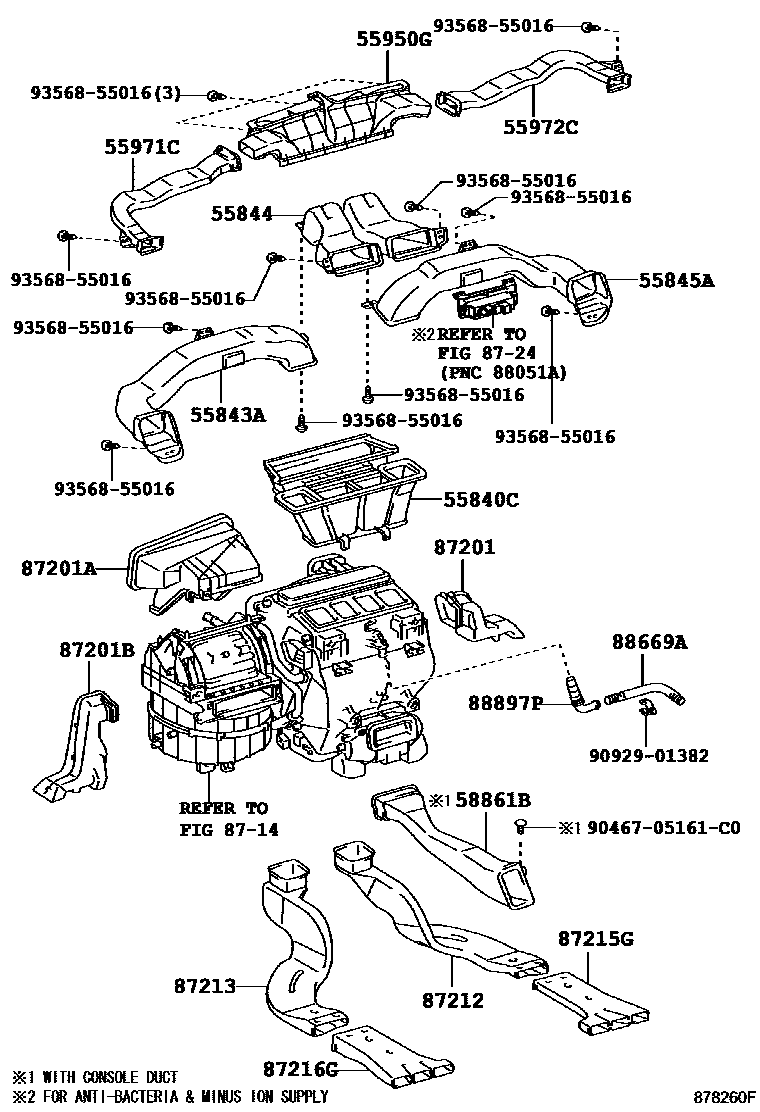

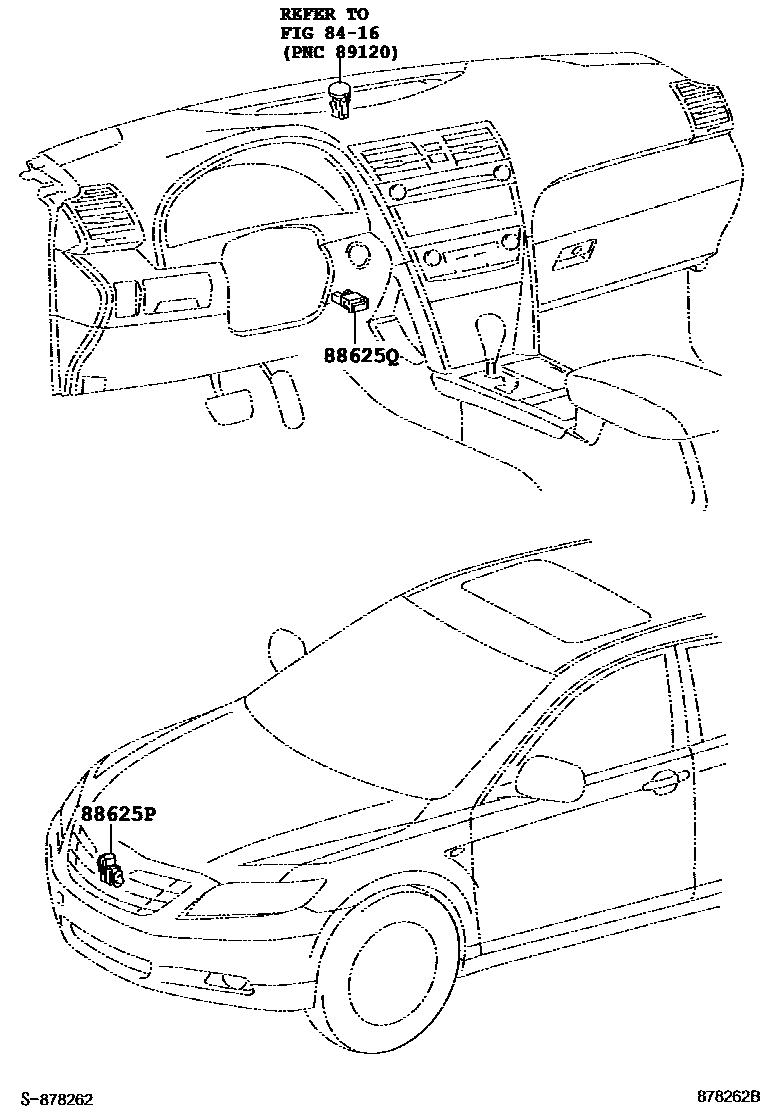

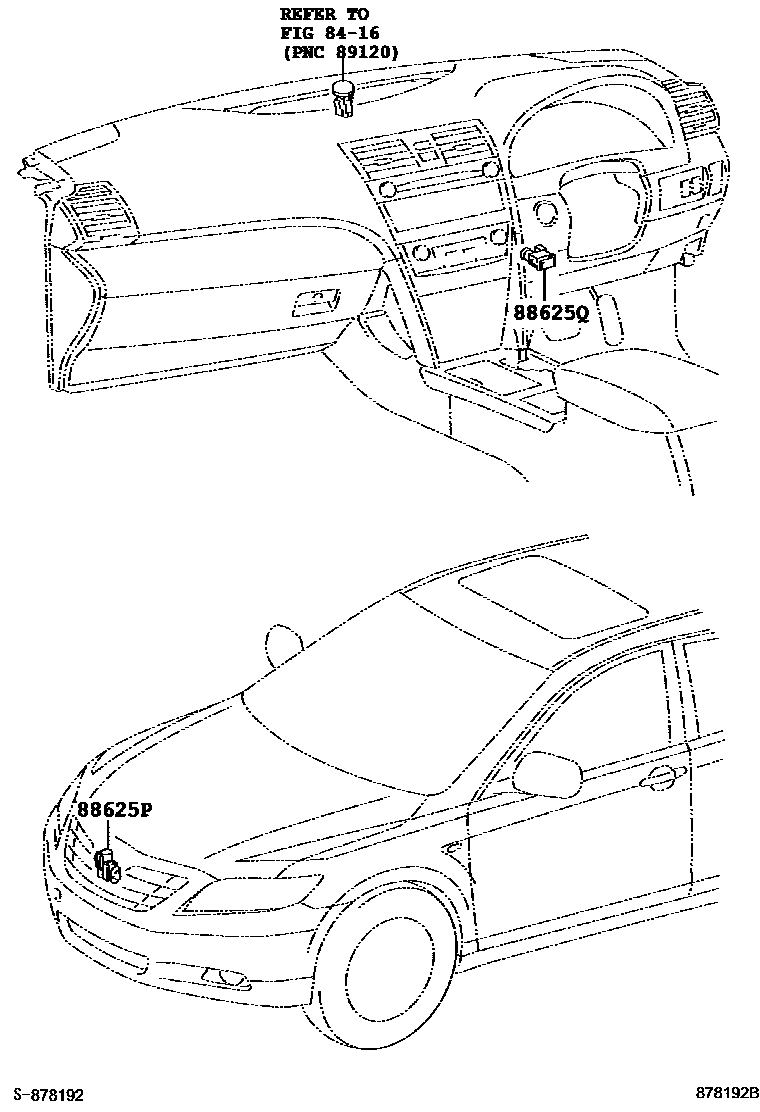

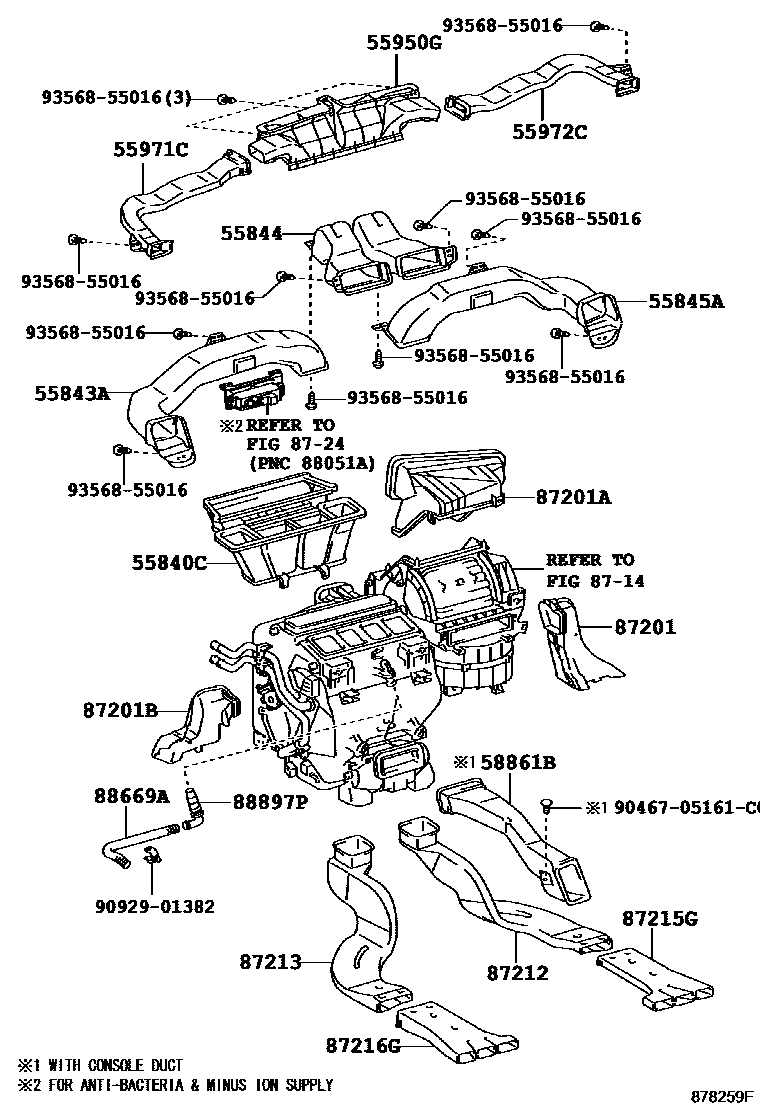

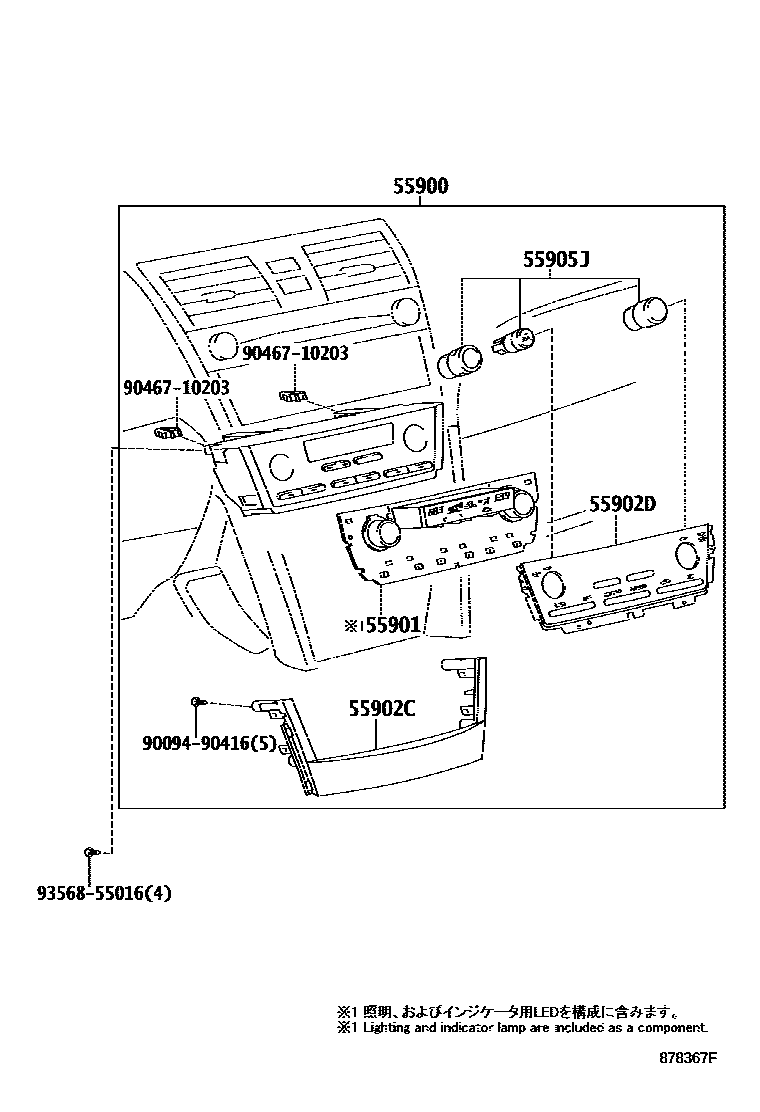

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-33010 |
| 55843A | Air duct No. 1 from heater to air register | 55843-33130 · 55843-33131 · 55843-33140 · 55843-33141 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-33140 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-33130 · 55845-33131 · 55845-33140 · 55845-33141 |
| 55900 | Air conditioning control assembly | 55900-33B31 · 55900-33B32 · 55900-33B41 · 55900-33B42 · 55900-33C60 · 55900-33C70 · 55900-33C71 |
| 55901 | Heater controller base sub-assembly | 55901-33040 · 55901-33050 · 55901-33110 · 55901-33120 · 55901-33180 · 55901-33190 |
| 55902C | Air conditioning panel sub-assembly | 55902-33820 |
| 55902D | Air conditioning panel sub-assembly | 55902-33830 · 55902-33840 · 55902-33890 |
| 55905J | Control button sub-assembly | 55905-33220 · 55905-33240 |
| 55950G | Defroster nozzle assembly | 55950-33090 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-33100 · 55971-33101 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-33100 · 55972-33101 |
| 58861B | Air duct No. 1 for armrest box | 58861-33020 · 58861-33030 |
| 87201 | No. 1 air duct sub-assembly | 87201-33290 · 87201-33310 |
| 87201A | Air duct sub-assembly | 87201-33270 · 87201-33300 |
| 87201B | No. 2 air duct sub-assembly | 87201-33280 · 87201-33320 |
| 87212 | No. 1 rear air duct | 87212-33040 |
| 87213 | No. 2 rear air duct | 87213-33050 |
| 87215G | Right rear air duct deflector | 87215-33010 |
| 87216G | Left rear air duct deflector | 87216-33010 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88669A | Hoses (for cooler thermistor) | 88669-33090 |
| 88897P | aspirator | 88897-33030 |
