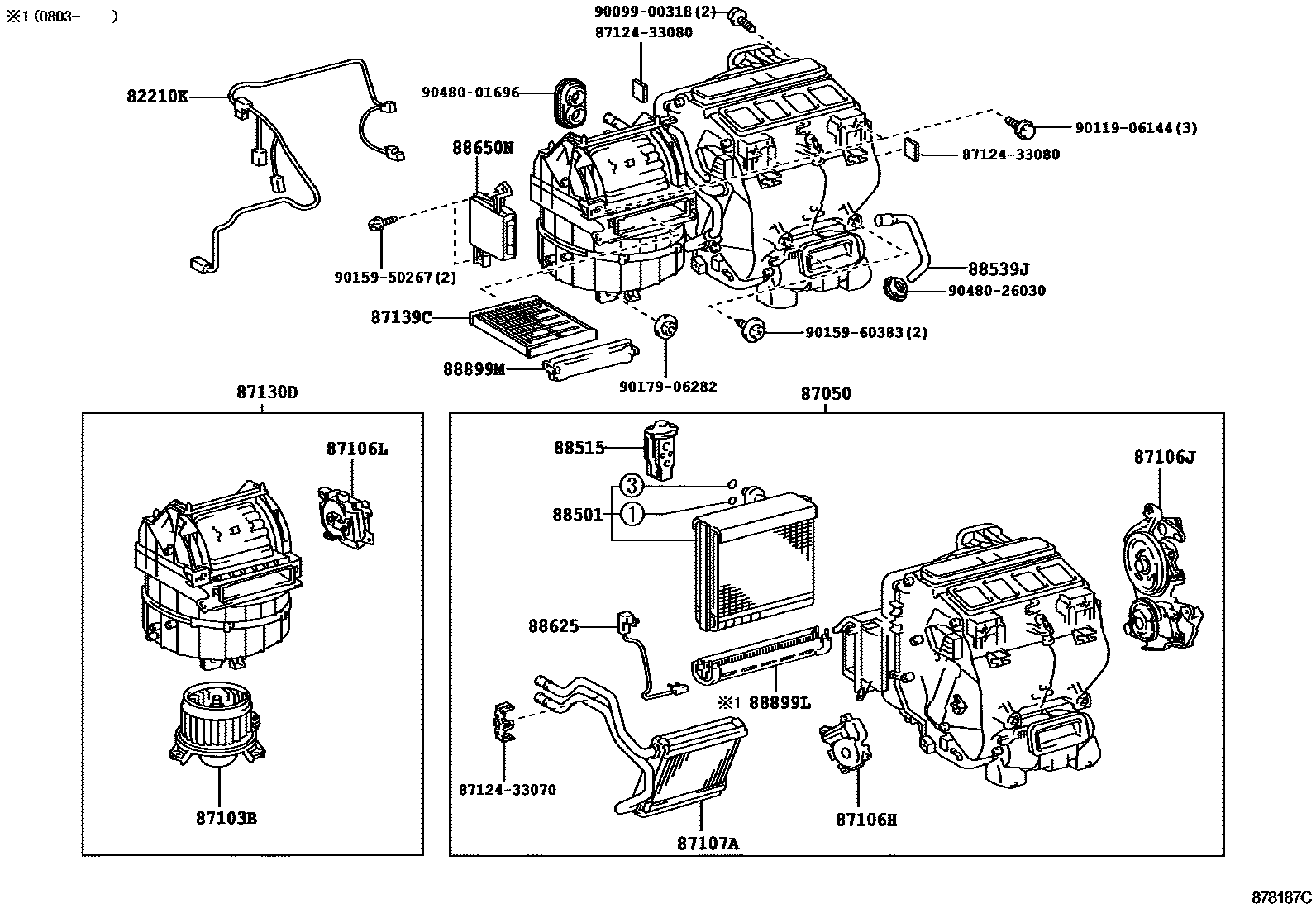

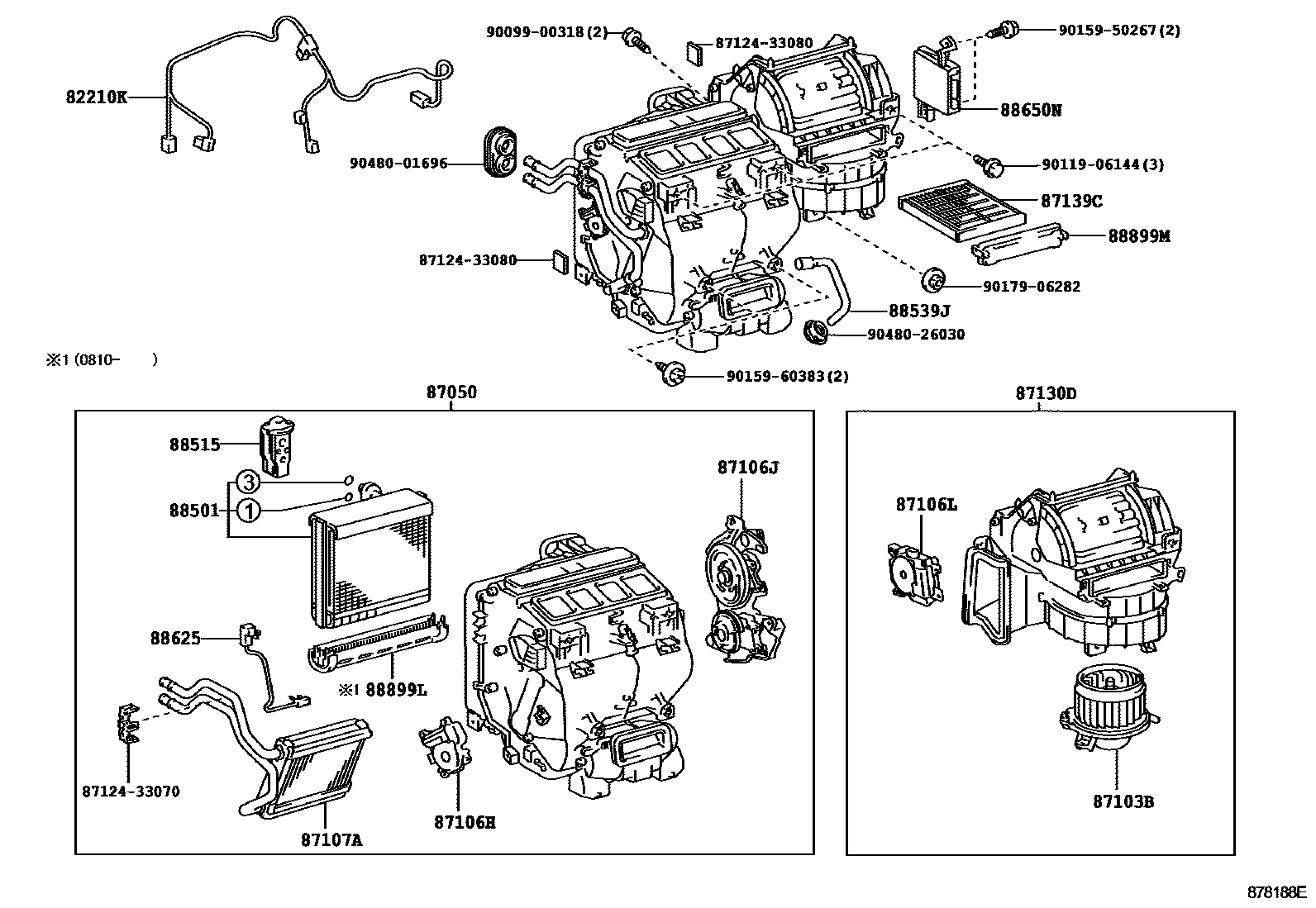

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-33010 · 82212-33011 · 82212-33020 · 82212-33021 |
| 87050 | Air conditioning radiator assembly | 87050-33540 · 87050-33541 · 87050-33542 · 87050-33543 · 87050-33580 · 87050-33581 · 87050-33582 · 87050-33590 · 87050-33591 · 87050-33592 · 87050-33600 · 87050-33601 |
| 87103B | Blower motor sub-assembly with fan | 87103-33090 · 87103-33100 · 87103-48070 · 87103-48080 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-33260 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-33250 · 87106-33290 |
| 87106L | Damper servo mechanism sub-assembly | 87106-33270 · 87106-33280 |
| 87107A | Heater radiator device sub-assembly | 87107-33120 |
| 87130D | Blower assembly | 87130-33200 · 87130-33210 · 87130-48190 · 87130-48200 · 87130-48210 · 87130-48220 |
| 87139C | air purification filter | 87139-30040 · 87139-30070 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-28400 · 88501-33120 · 88501-33190 · 88501-33200 · 88501-48310 · 88501-48311 |
| 88515 | Cooler expansion valve | 88515-33020 |
| 88539J | Cooler drain hose | 88539-33090 |
| 88625 | Cooler No. 1 Thermistor | 88625-33190 |
| 88650N | Air conditioning amplifier assembly | 88650-33670 · 88650-33671 · 88650-33672 · 88650-33690 · 88650-33691 · 88650-33710 · 88650-33711 · 88650-33A00 · 88650-33A01 |
| 88899L | Cooling unit parts | 88899-33050 |
| 88899M | cover (for air cleaner) | 88899-33040 |
